Drive Pinion Assembly

• Saab 9-2X 2.5i Linear

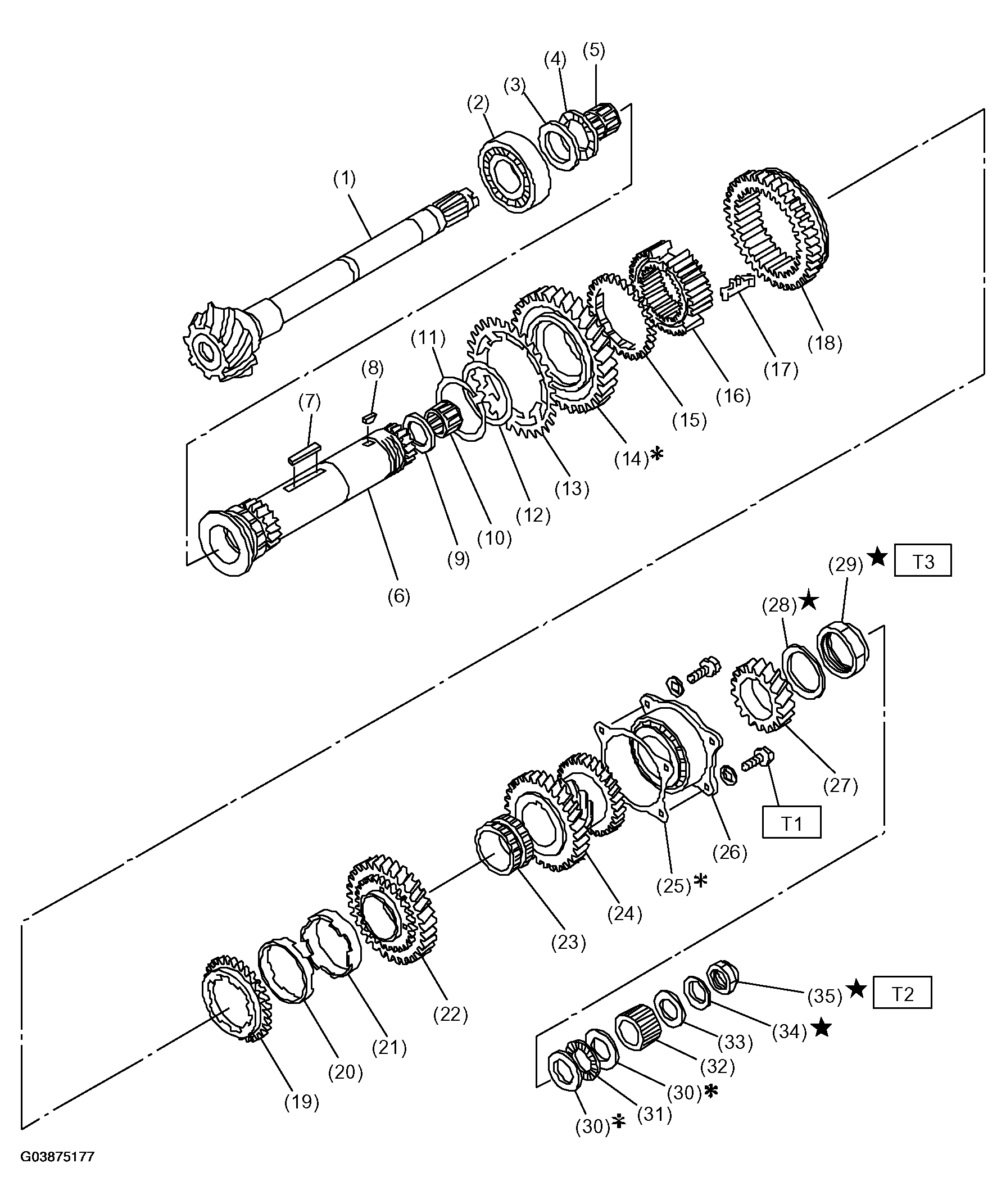

  Fig 1: Exploded View Of Drive Pinion Assembly (Saab 9-2X 2.5i Linear)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Drive pinion shaft
2. Roller bearing
3. Washer
4. Thrust bearing
5. Needle bearing
6. Driven shaft
7. Key
8. Woodruff key
9. Drive pinion collar
10. Needle bearing
11. Snap ring (Outer)
12. Washer
13. Sub gear
14. 1st driven gear
15. Baulk ring
16. 1st-2nd synchronizer hub
17. Insert key
18. Reverse driven gear
19. Outer baulk ring
20. Synchro cone
21. Inner baulk ring
22. 2nd driven gear
23. 2nd driven gear bush
24. 3rd-4th driven gear
25. Driven pinion shim
26. Roller bearing
27. 5th driven gear
28. Lock washer
29. Lock nut
30. Washer
31. Thrust bearing
32. Differential bevel gear sleeve
33. Washer
34. Lock washer
35. Lock nut

Tightening torque: Nm (kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: 120 (12.2, 88.5)

T3: 260 (26.5, 191.7)

• Saab 9-2X 2.0T Aero

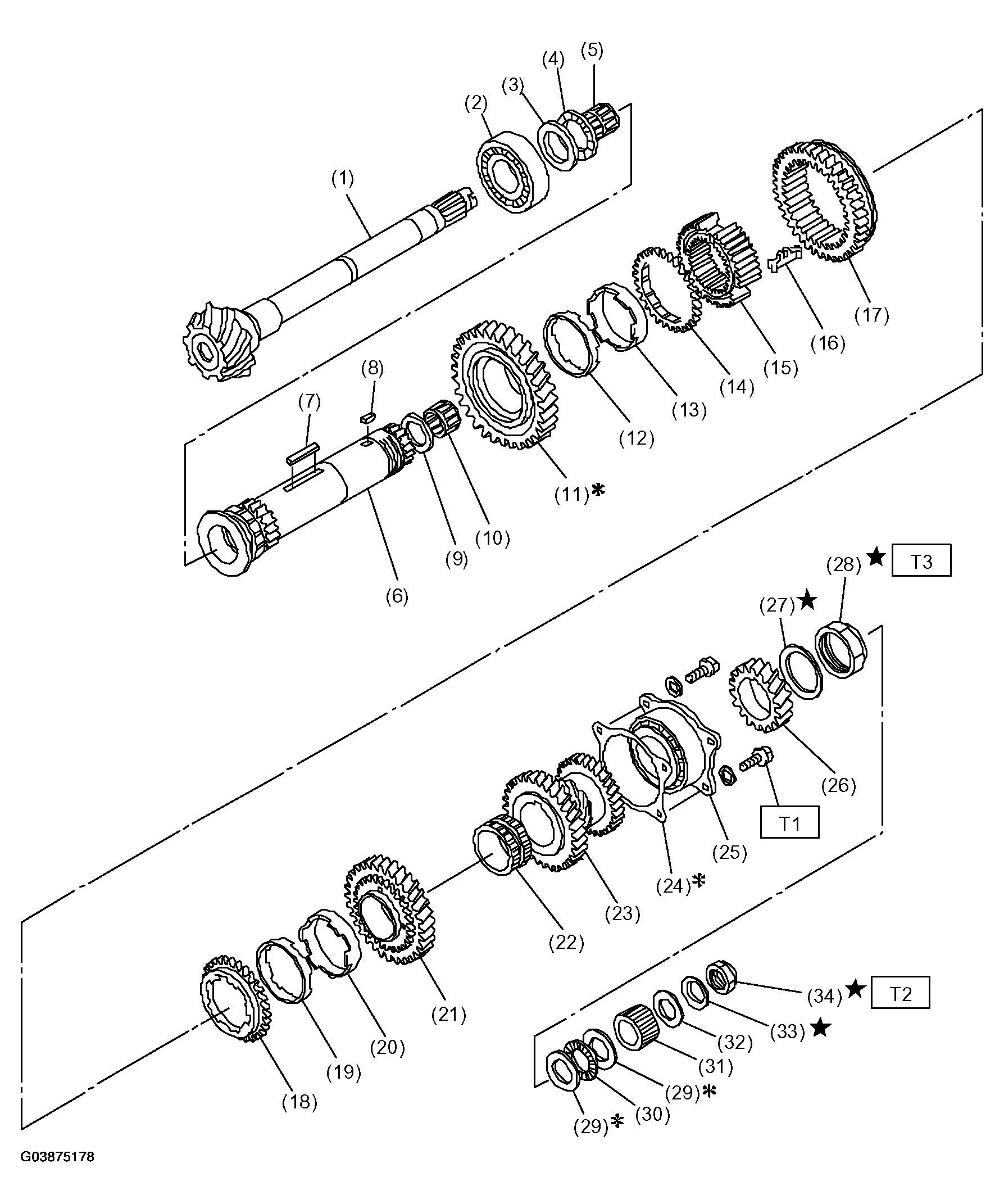

  Fig 2: Exploded View Of Drive Pinion Assembly (Saab 9-2X 2.0T Aero)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Drive pinion shaft
2. Roller bearing
3. Washer
4. Thrust bearing
5. Needle bearing
6. Driven shaft
7. Key
8. Woodruff key
9. Drive pinion collar
10. Needle bearing
11. 1st driven gear
12. Inner baulk ring
13. Synchro cone
14. Outer baulk ring
15. 1st-2nd synchronizer hub
16. Insert key
17. Reverse driven gear
18. Outer baulk ring
19. Synchro cone
20. Inner baulk ring
21. 2nd driven gear
22. 2nd driven gear bush
23. 3rd-4th driven gear
24. Driven pinion shim
25. Roller bearing
26. 5th driven gear
27. Lock washer
28. Lock nut
29. Washer
30. Thrust bearing
31. Differential bevel gear sleeve
32. Washer
33. Lock washer
34. Lock nut

Tightening torque: Nm (kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: 120 (12.2, 88.5)

T3: 260 (26.5, 191.7)
