Front Differential Assembly: Adjustment/Replacement: Inspection: Notes
Repair or replace the differential gear in the following cases:
- The hypoid drive gear and drive pinion shaft tooth surface are damaged, excessively worn, or seized.
- The roller bearing on the drive pinion shaft has a worn or damaged roller path.
- There is damage, wear, or seizure of the differential bevel pinion, differential bevel gear, washer, pinion shaft, and straight pin.
- The differential case has worn or damaged sliding surfaces.

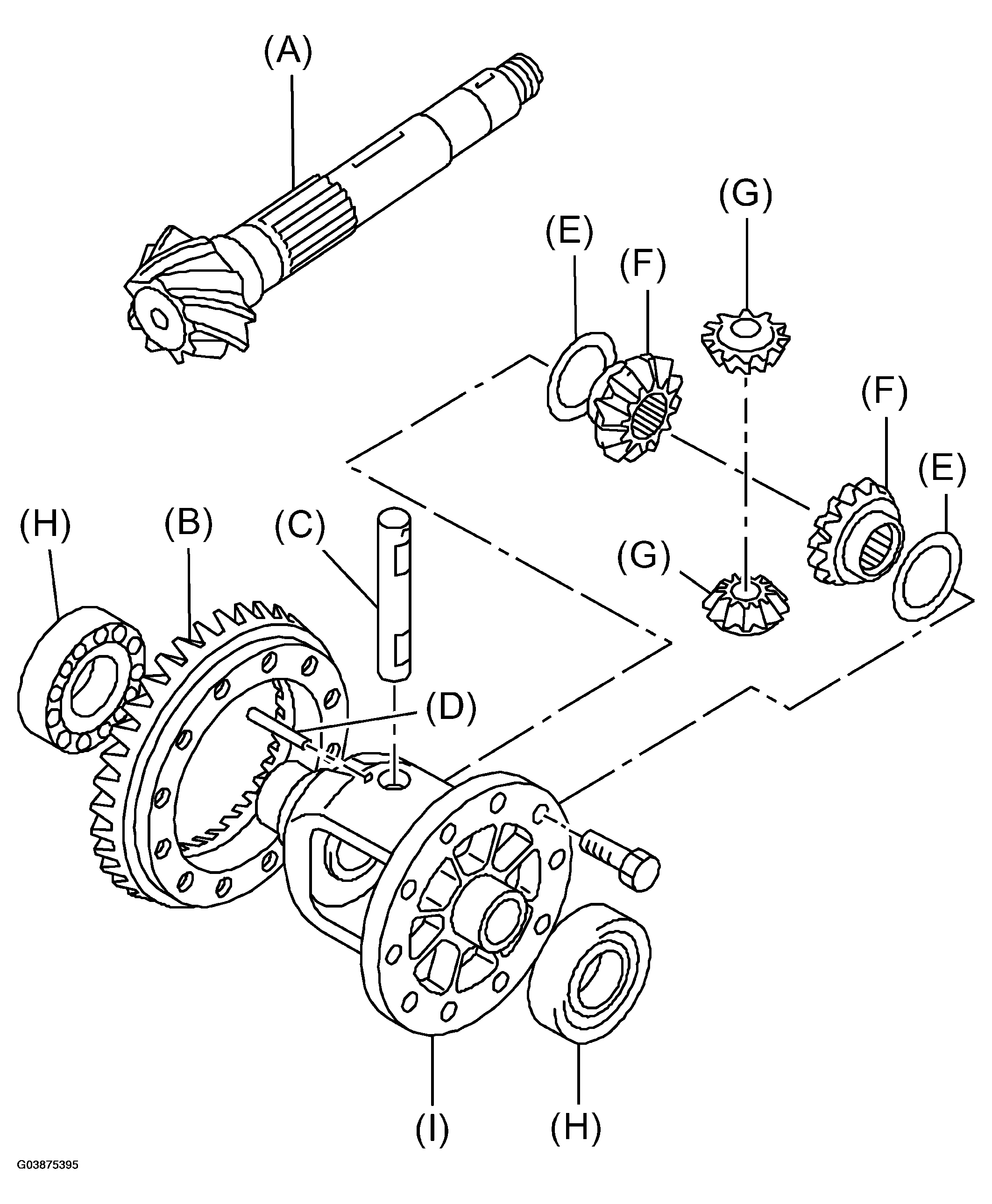

- Drive pinion shaft
- Hypoid driven gear
- Pinion shaft
- Straight pin
- Washer
- Differential bevel gear
- Differential bevel pinion
- Roller bearing
- Differential case
