Side Retainer

Remove the O-ring.

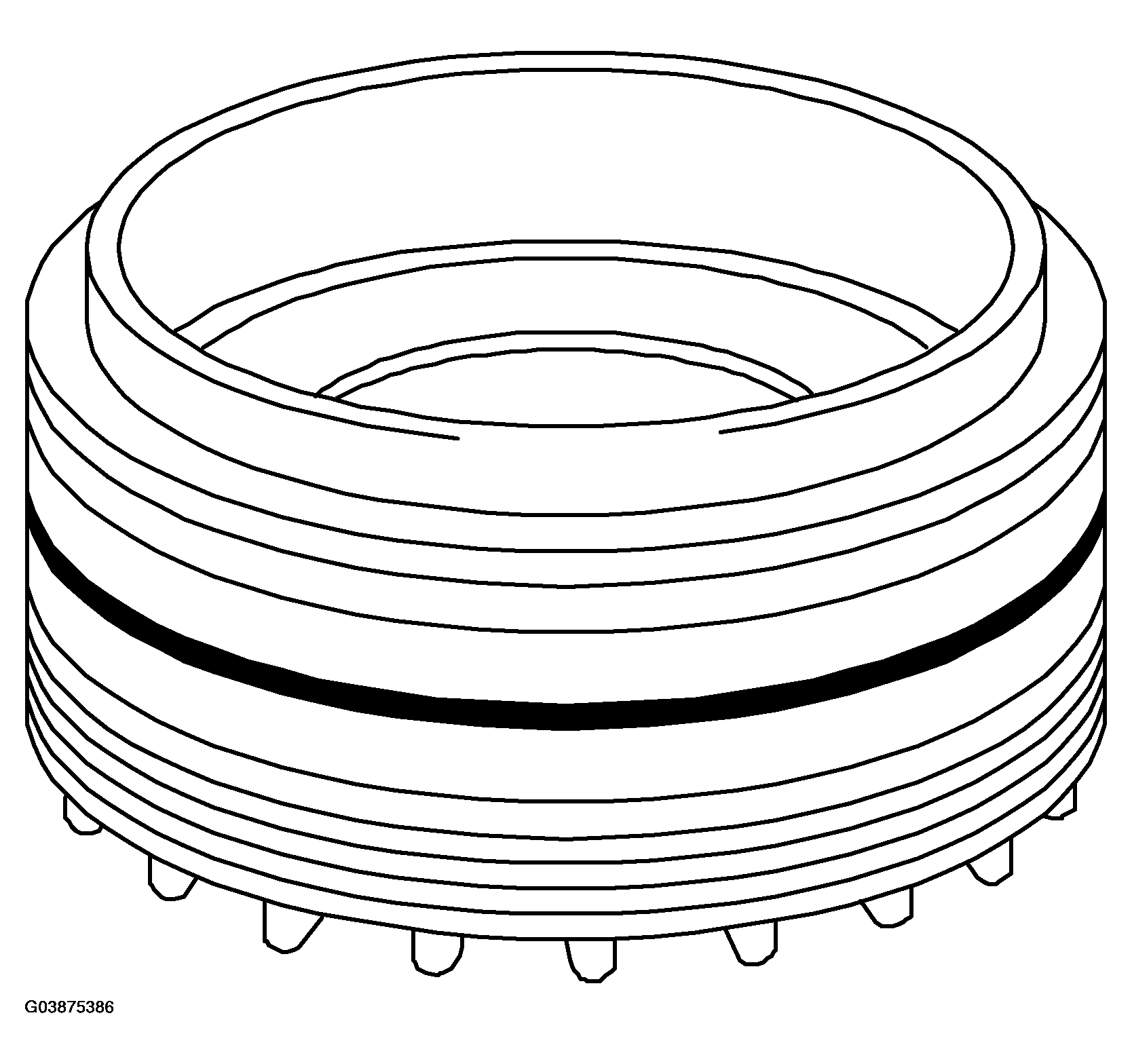

Fig 1: Removing O-Ring
G03875386Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the oil seal.

NOTE: Do not reuse the oil seal. Prepare a new oil seal.

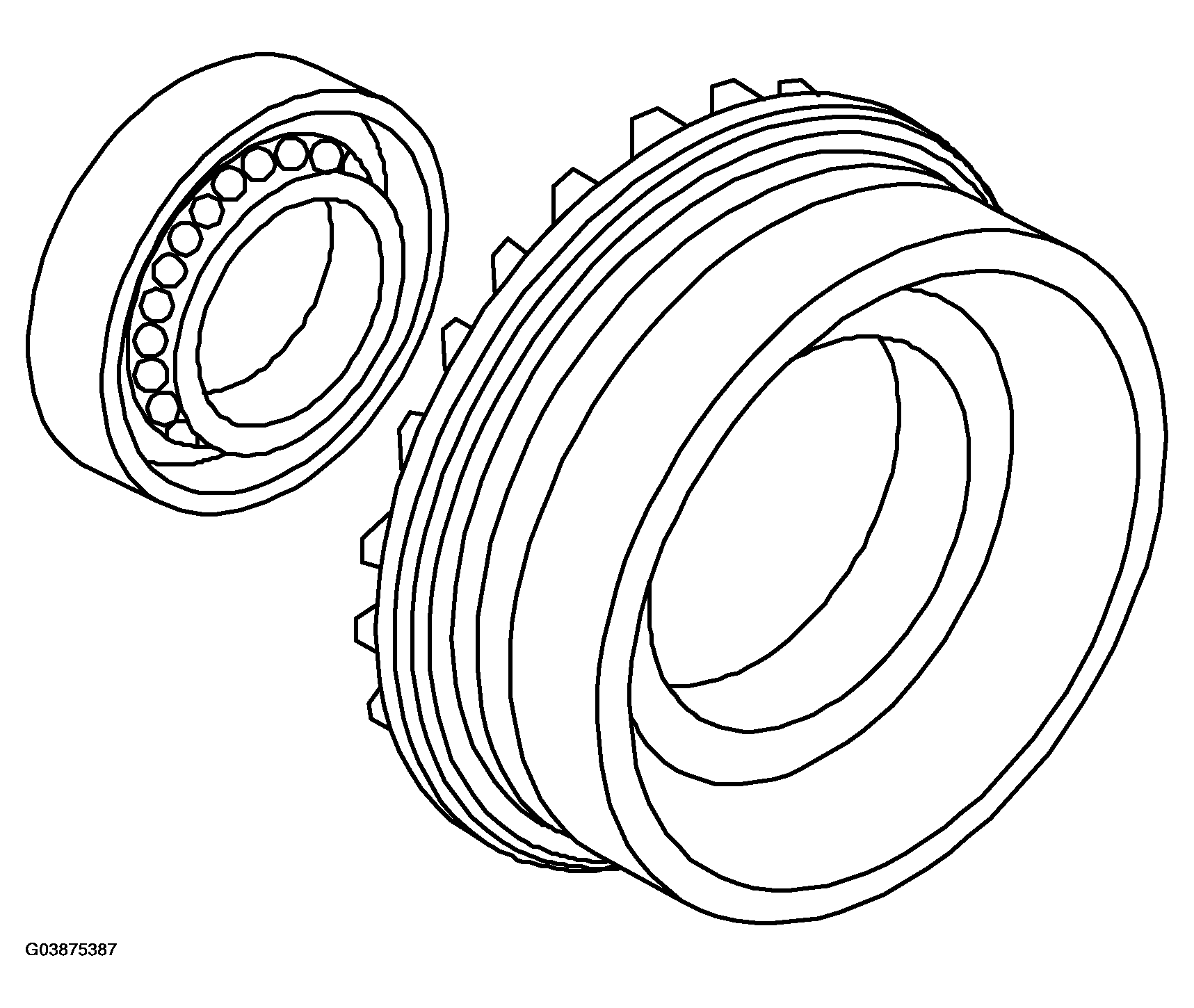

Fig 2: Removing Oil Seal
G03875387Courtesy of SAAB-SCANIA OF AMERICA, INC.
