Center Differential: Adjustment/Replacement: Disassembly

NOTE: Do not disassemble the center differential because it is a non-disassemble part.

Remove the ball bearing using ST.

NOTE: Do not reuse the ball bearing.

ST 32005089 CENTER DIFFERENTIAL BEARING REMOVER

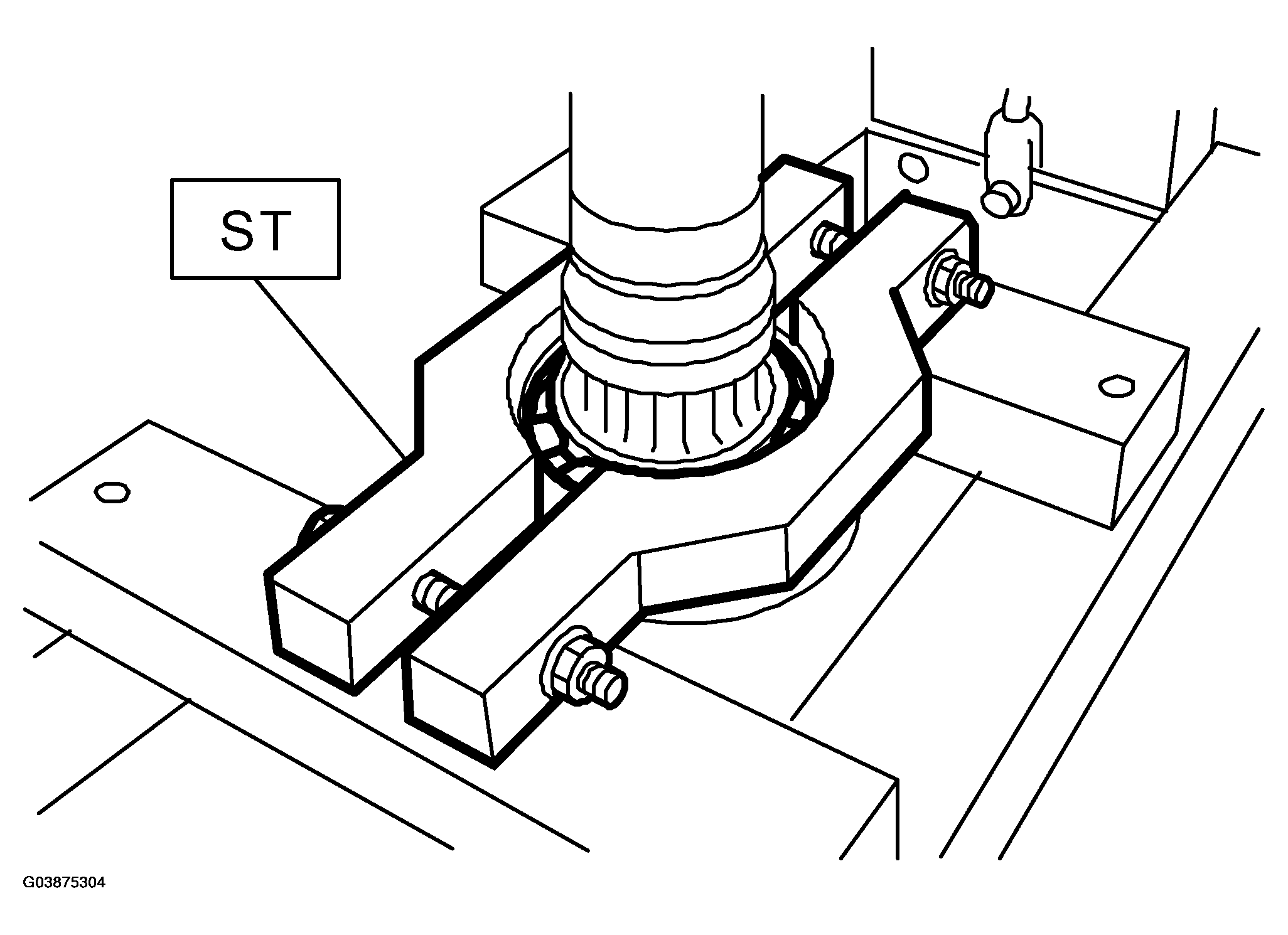

Fig 1: Removing Ball Bearing

Courtesy of SAAB-SCANIA OF AMERICA, INC.
