Wheel Arch Height

Set the vehicle on a level surface.

Set the vehicle to "curb weight" conditions. (Empty luggage compartment, install spare tire, jack, service tools, and top up fuel tank.)

Set the steering wheel in a straight line, then remove the vehicle straight ahead more than 5 m (16 ft) to settle the suspension.

Suspend the thread from wheel arch (point "A" in figure below) to determine a point directly above center of wheel.

Measure the distance between measuring point "A" and center of wheel.

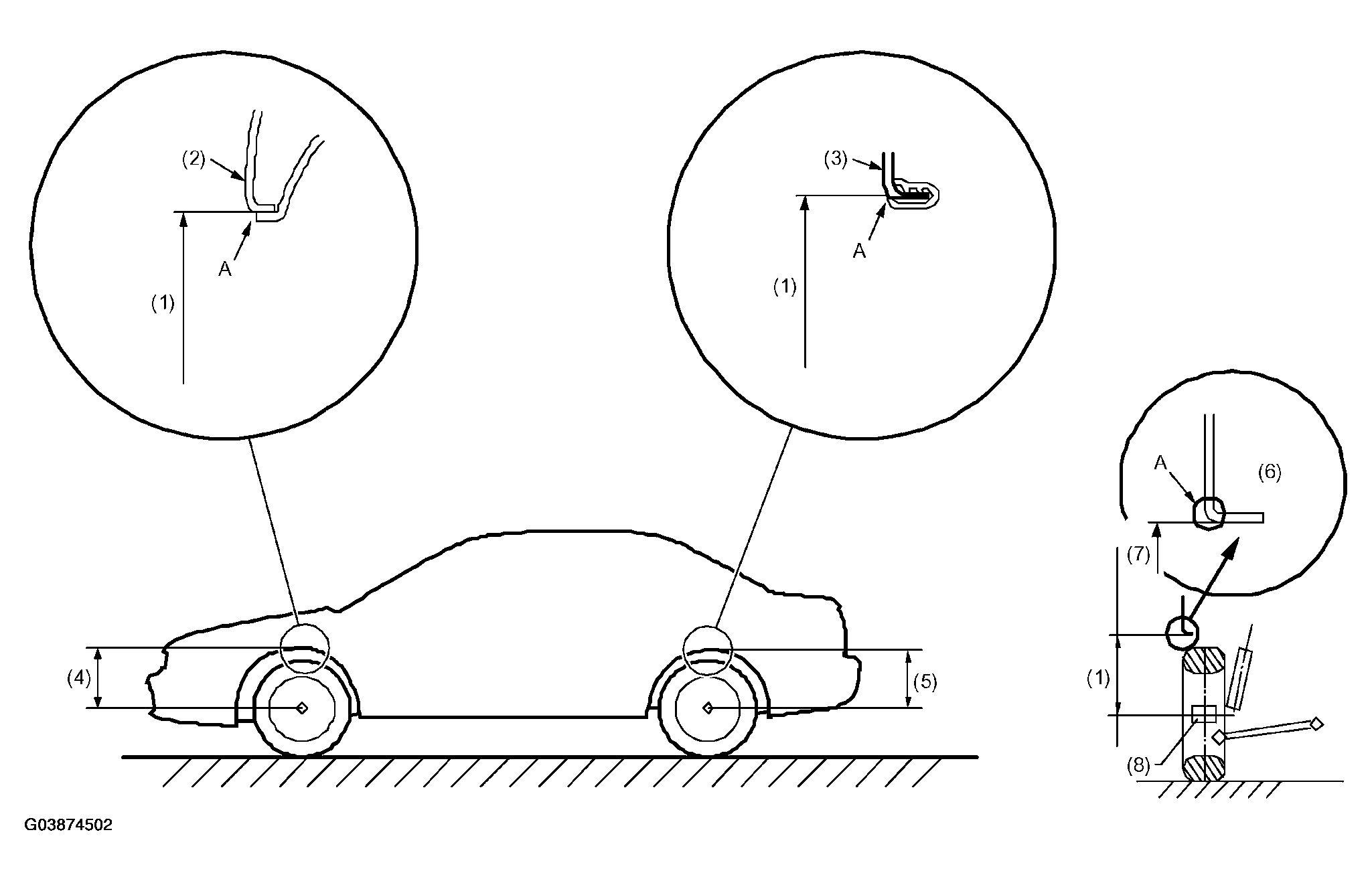

Fig 1: Measuring Distance Between Measuring Point A And Center Of Wheel

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Wheel arch height
2. Front fender
3. Rear quarter
4. Front wheel arch height
5. Rear wheel arch height
6. Flange bend line
7. Measuring point
8. End of spindle
