Steering Angle: Adjustment

Turn the tie-rod to adjust steering angle of both inner and outer wheels.

Check the toe-in.

NOTE: Correct the boot if it is twisted.

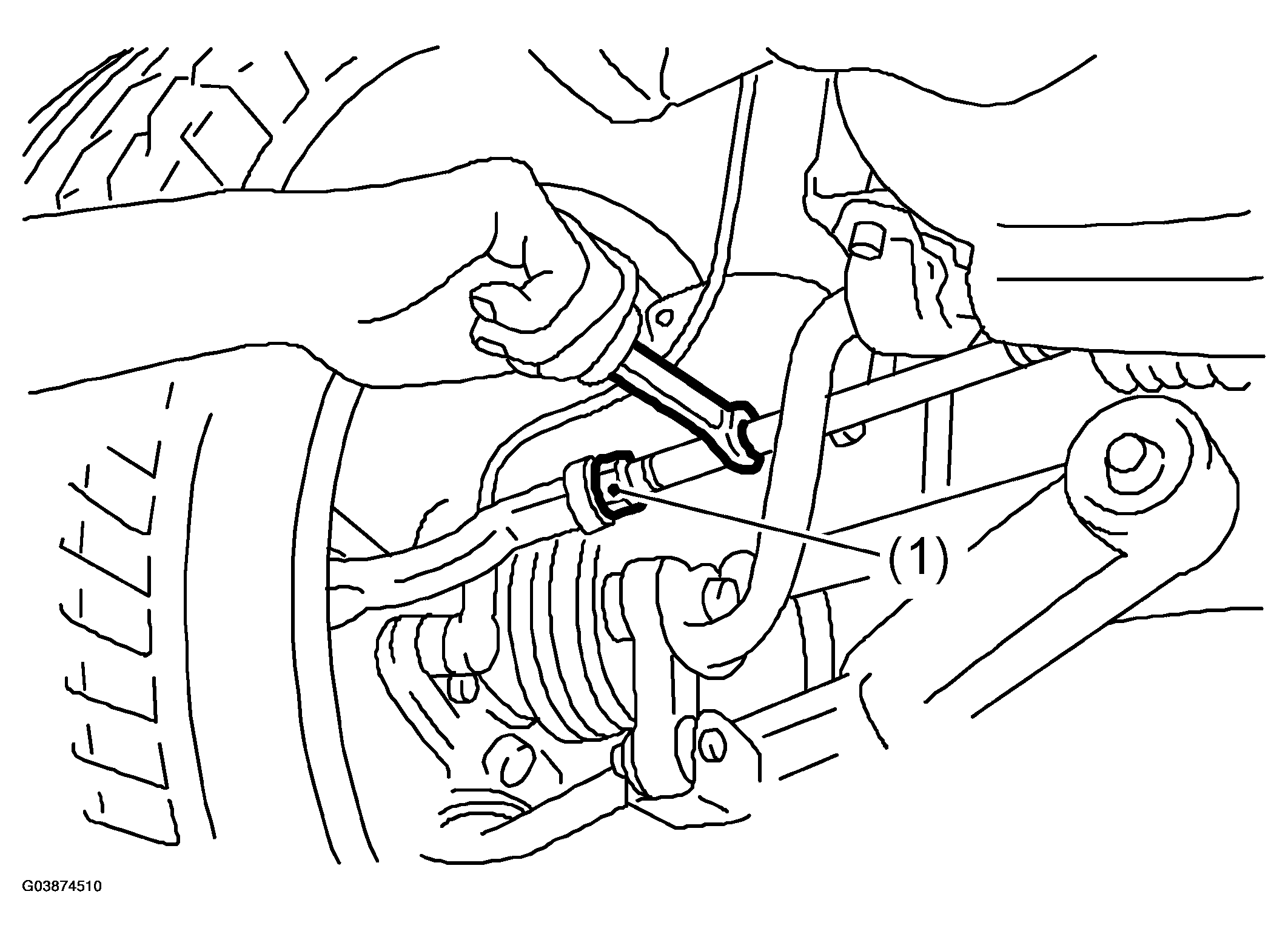

Fig 1: Turning Tie-Rod To Adjust Steering Angle Of Both Inner And Outer Wheels
G03874510Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lock nut
