Jack-Up Plate: Removal

Set the vehicle on a lift.

Lift-up the vehicle.

Remove the under cover.

Remove the jack-up plate.

• Saab 9-2X 2.5i Linear

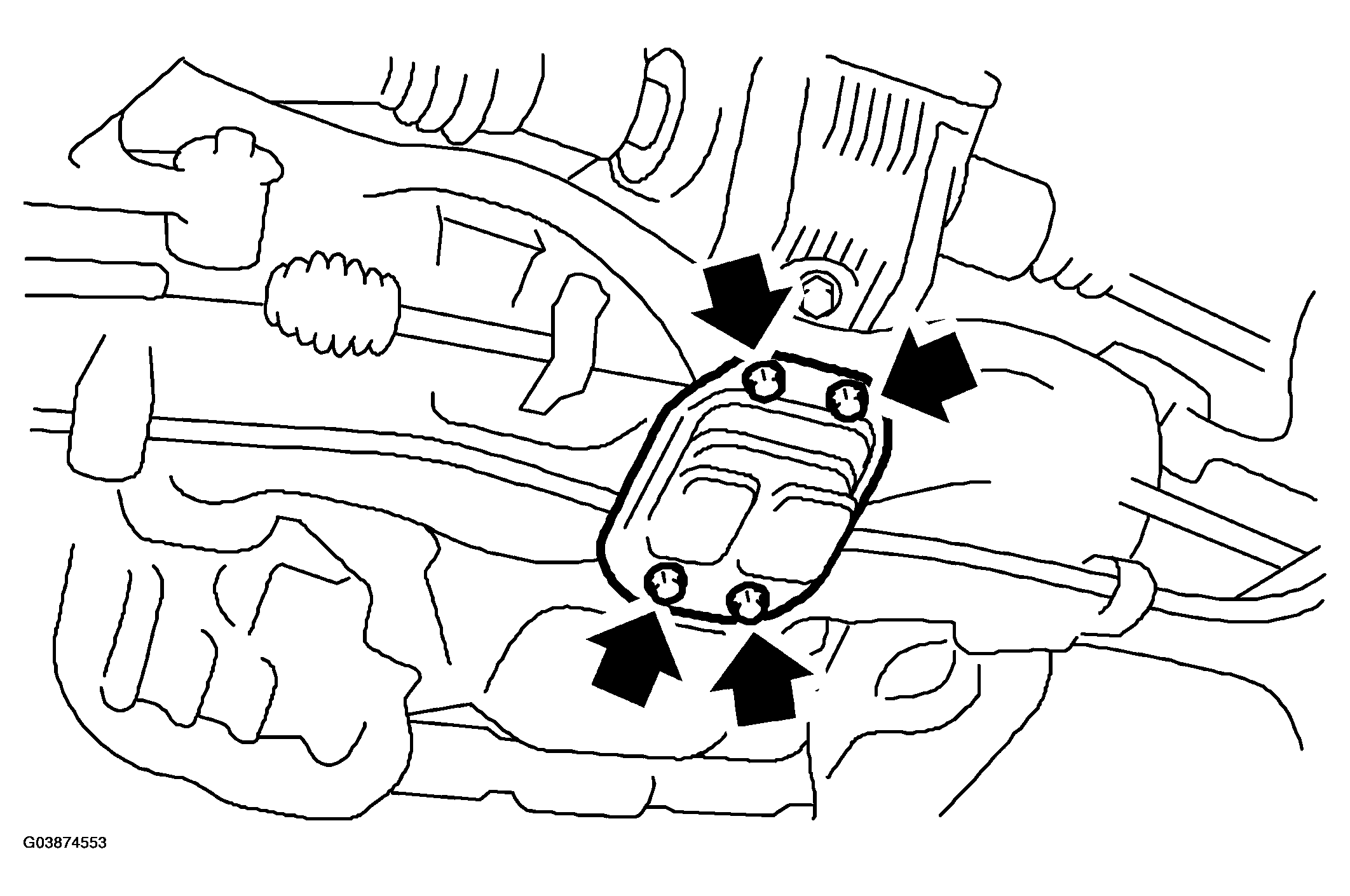

  Fig 1: Removing Jack-Up Plate (Saab 9-2X 2.5i Linear)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
• Saab 9-2X 2.0T Aero

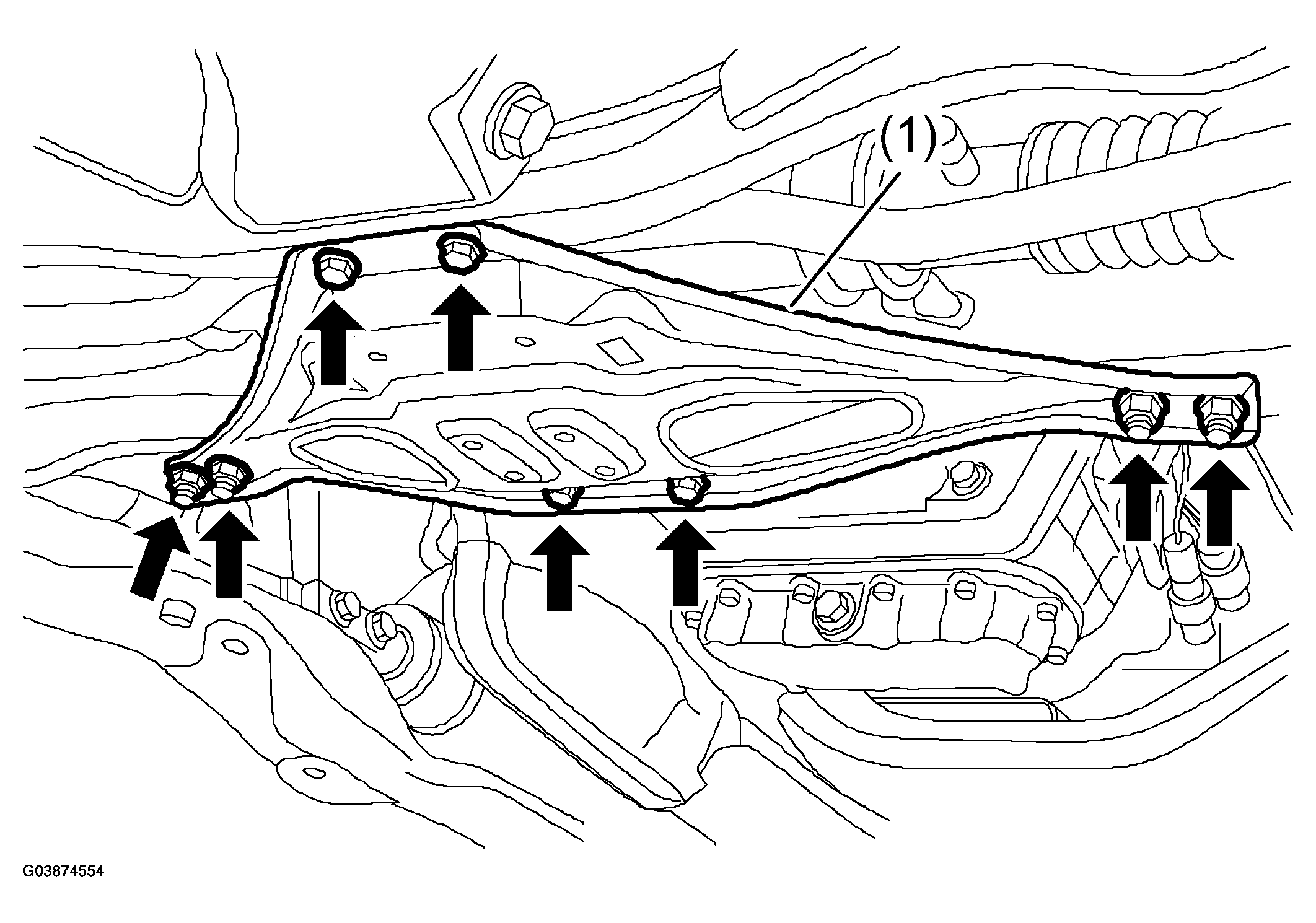

  Fig 2: Removing Jack-Up Plate (Saab 9-2X 2.0T Aero)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
