Universal Joint: Removal

Remove the steering wheel.

Make matching mark on the universal joint.

Remove the universal joint bolts, and then remove the universal joint.

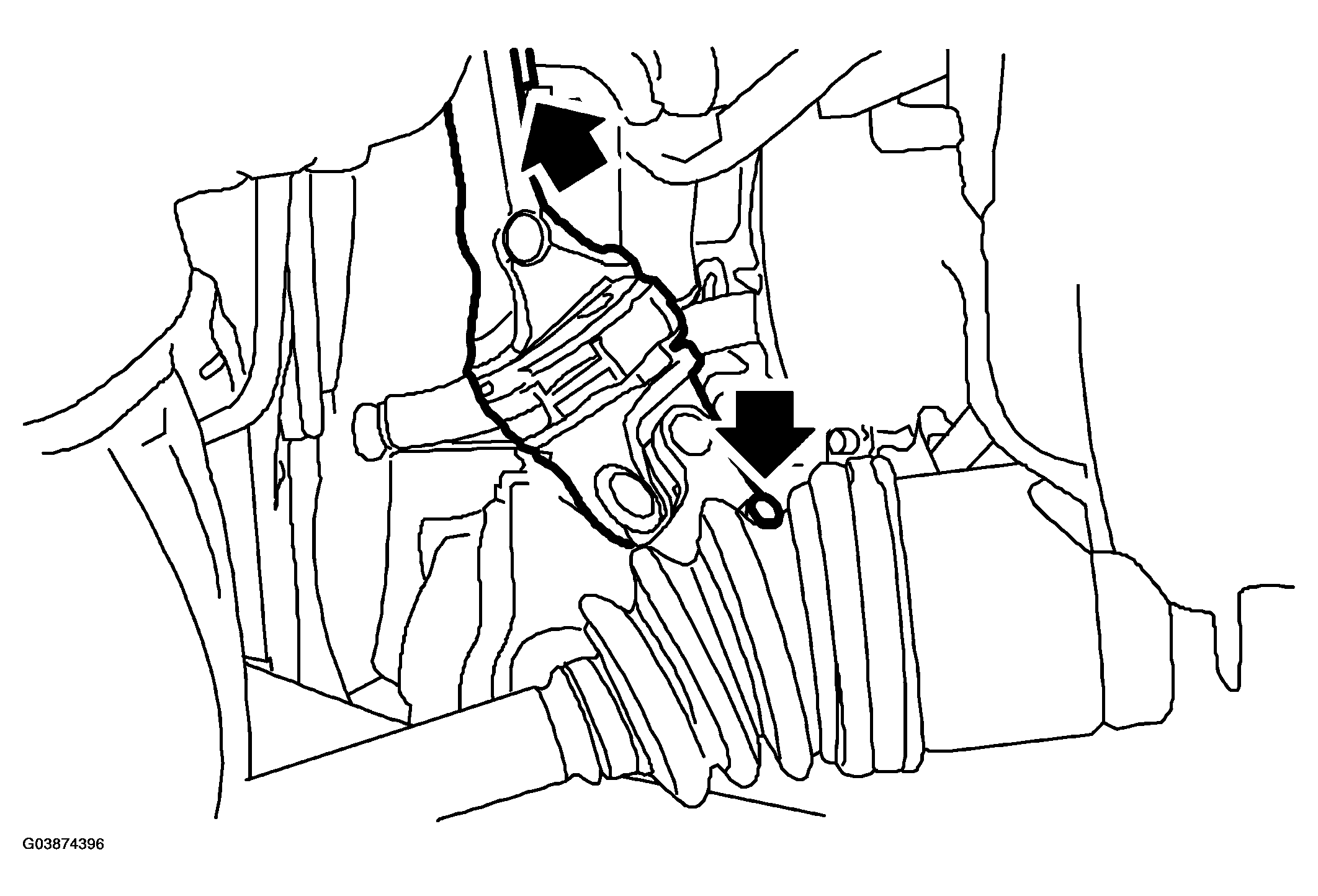

Fig 1: Removing Universal Joint Bolts
G03874396Courtesy of SAAB-SCANIA OF AMERICA, INC.
