Rear Door Glass: Removal

Remove the rear door trim.

Remove the sealing cover.

Remove the stabilizer.

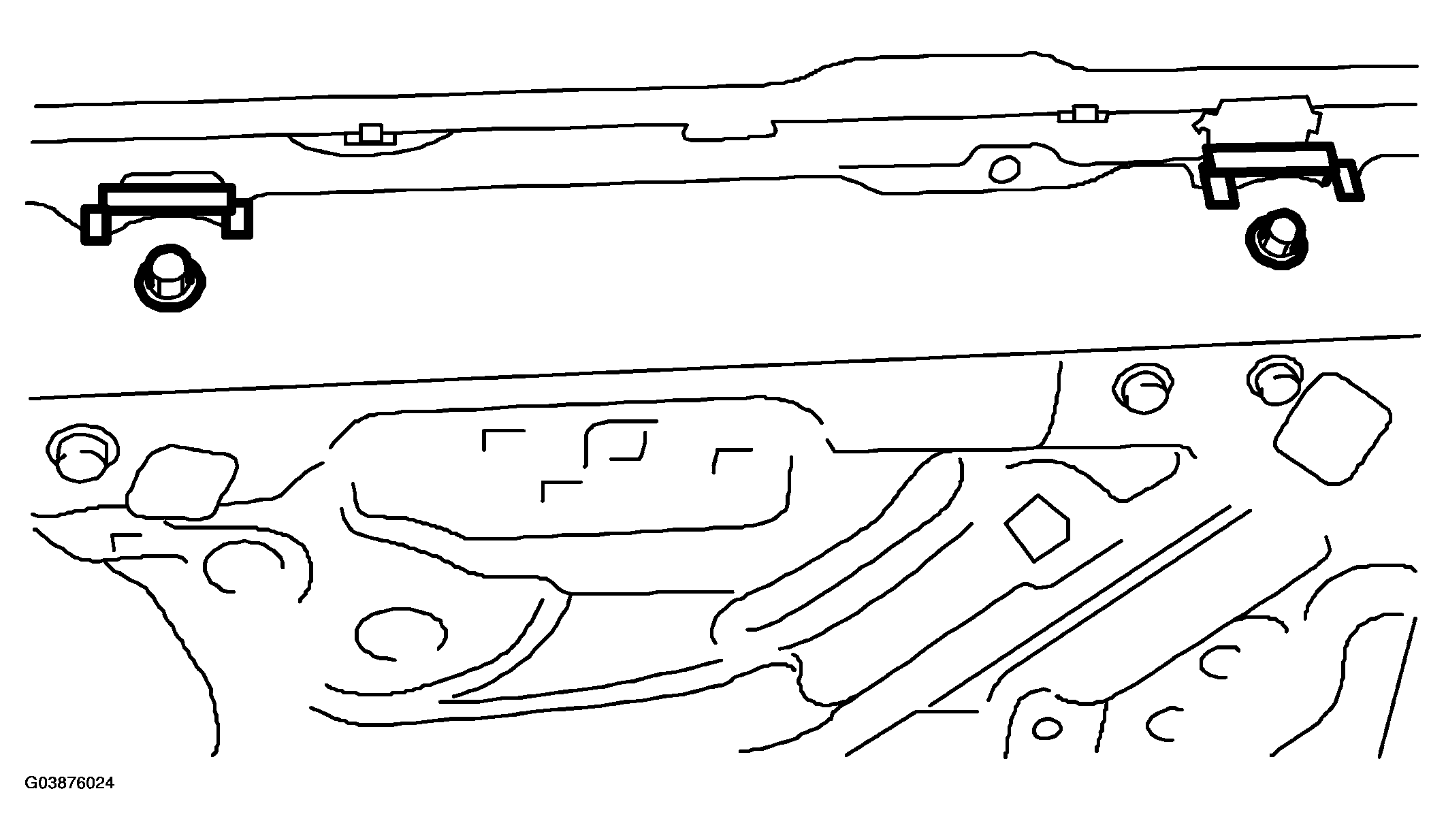

Fig 1: Removing Stabilizer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the front end and rear end of weather strip.

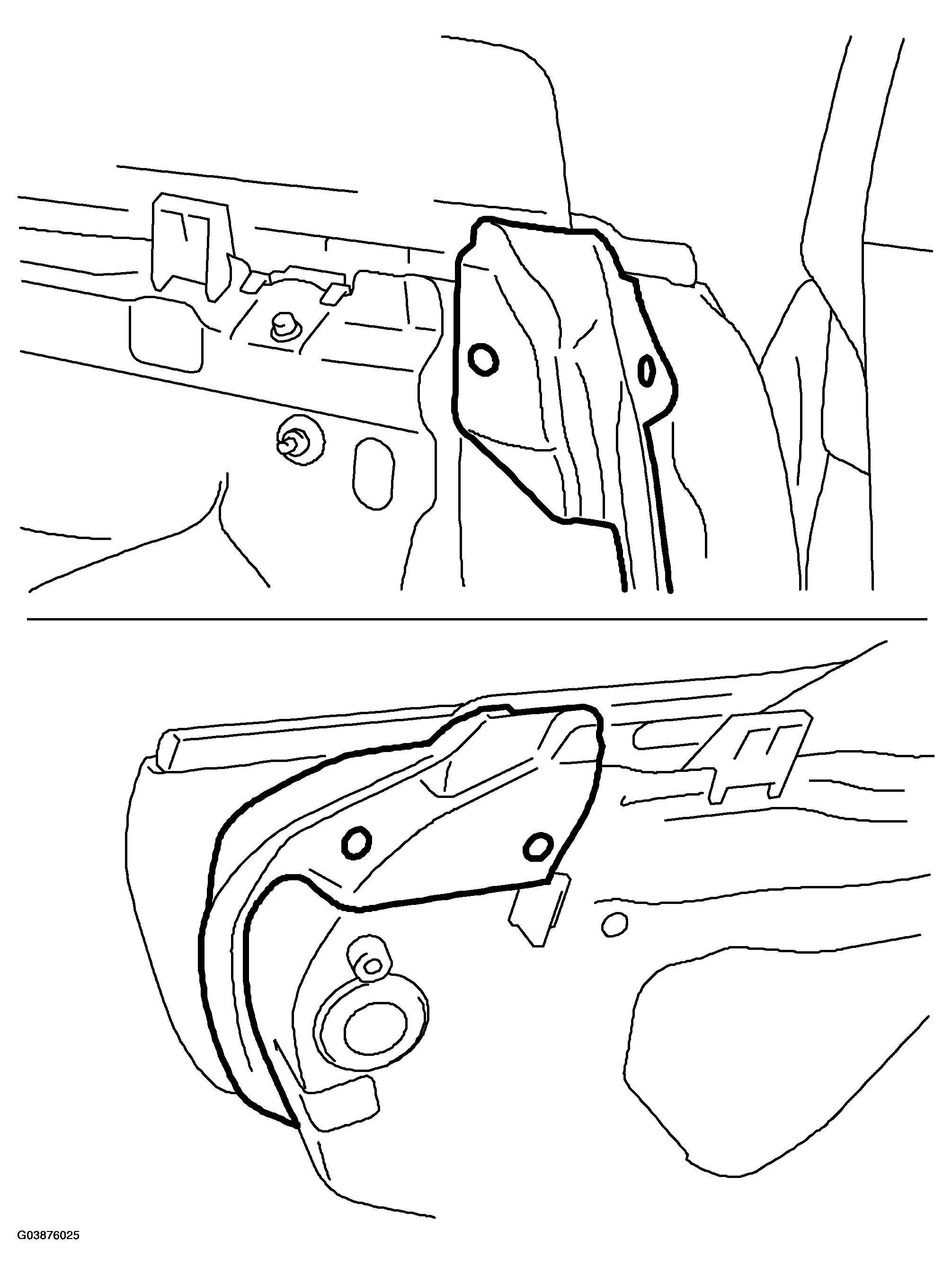

Fig 2: Removing Front End And Rear End Of Weather Strip

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the two screws to remove the weather strip outer.

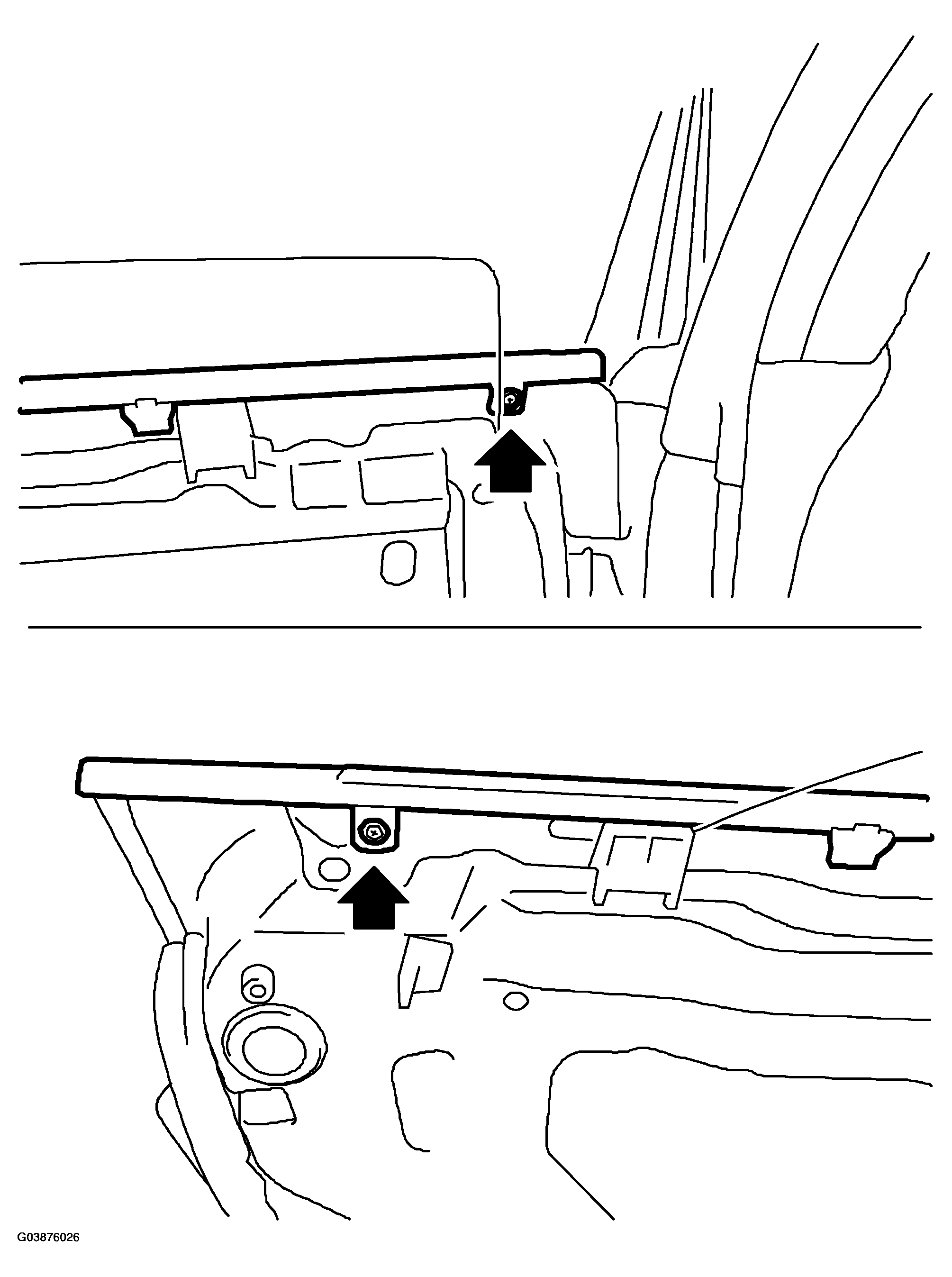

Fig 3: Removing Weather Strip Outer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Operate the power window switch to move the glass to position shown in the figure, and then remove two nuts from service holes.

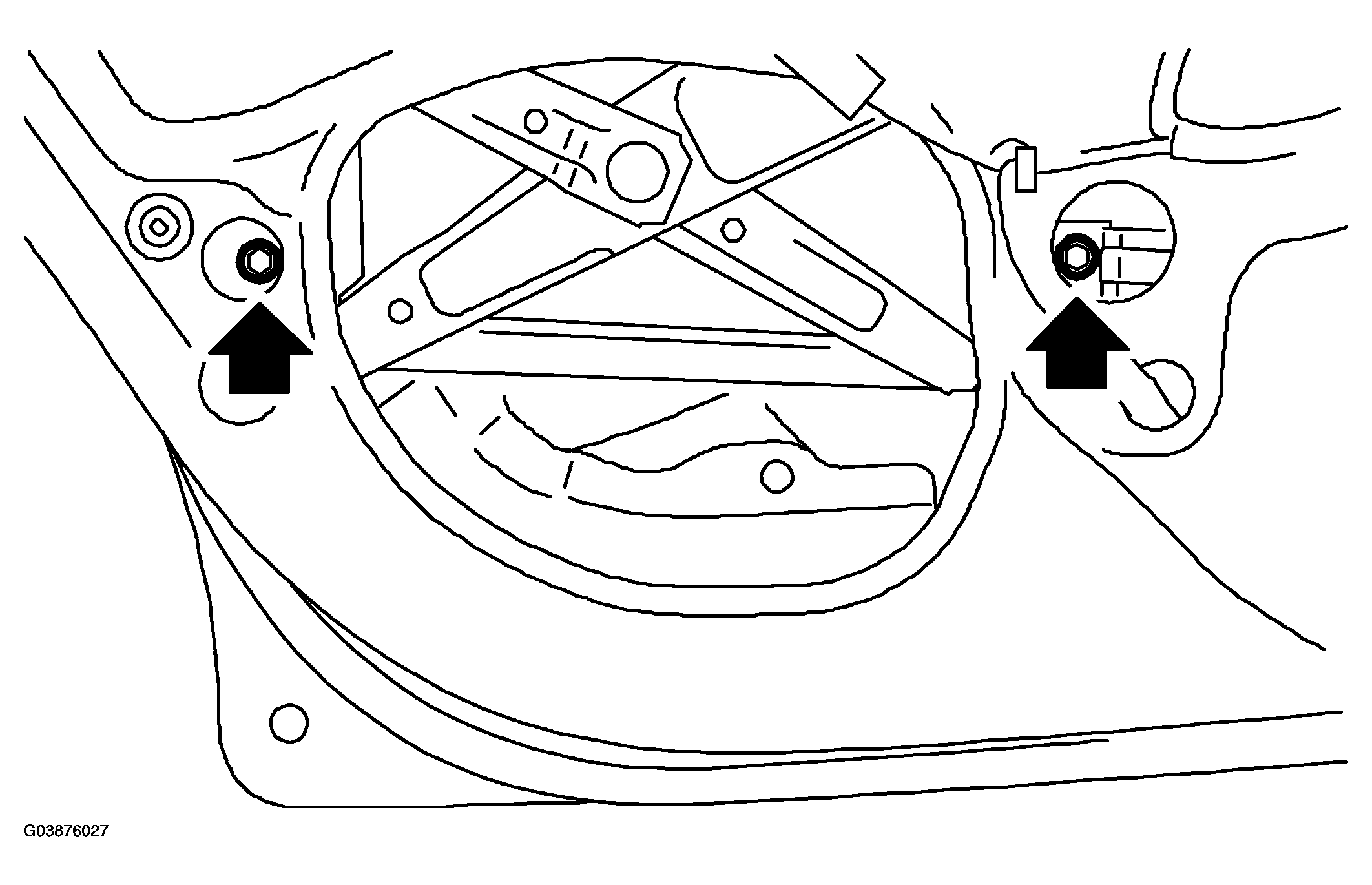

Fig 4: Removing Nuts From Service Holes

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the two rear sash installation nuts, and then move the rear sash backward.

Remove the glass.
