Rear Door Glass: Adjustment

NOTE: The rear door glass, as a rule, should be adjusted in the same manner as front door glass, although they are different in dimension. Special notes for the rear glass are given below.

Adjust the glass position using the following dimensions as a guide line.

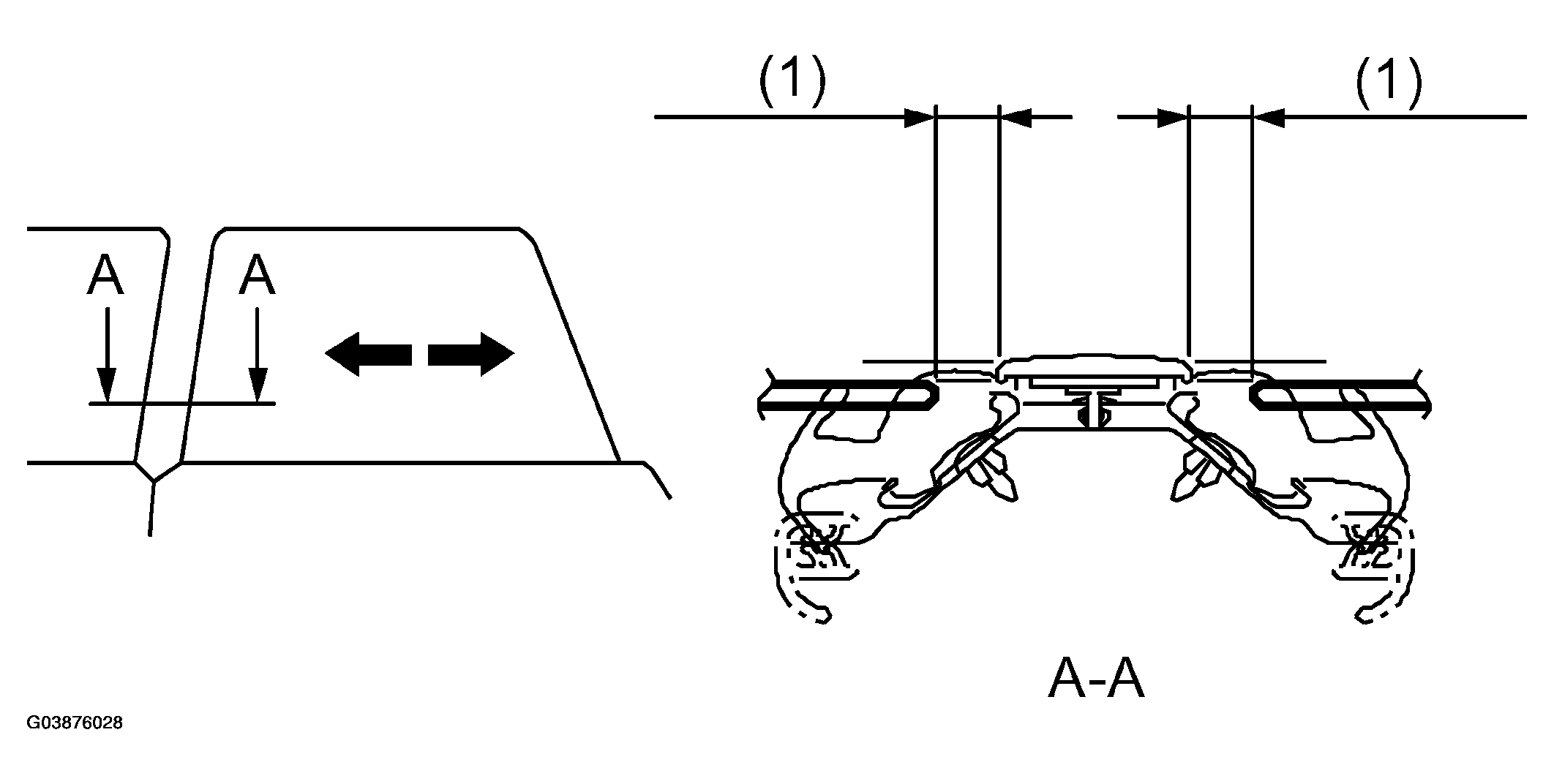

Fig 1: Identifying Dimensions For Adjusting Glass Position

Courtesy of SAAB-SCANIA OF AMERICA, INC.

12 mm (0.472 in

NOTE:

If the dimensions are smaller than the given dimensions, glass may get caught in weather strip during lifting/lowering operation. In the worst case, it may cause the glass not to be opened fully.
After adjustment, move the glass up and down to check whether it is caught.

Set the ST on glass, and then adjust the contact degree of glass using the following dimensions as a guide line.

ST 32005172 SPACER (For rear door glass of thickness 4 mm (0.157 in))

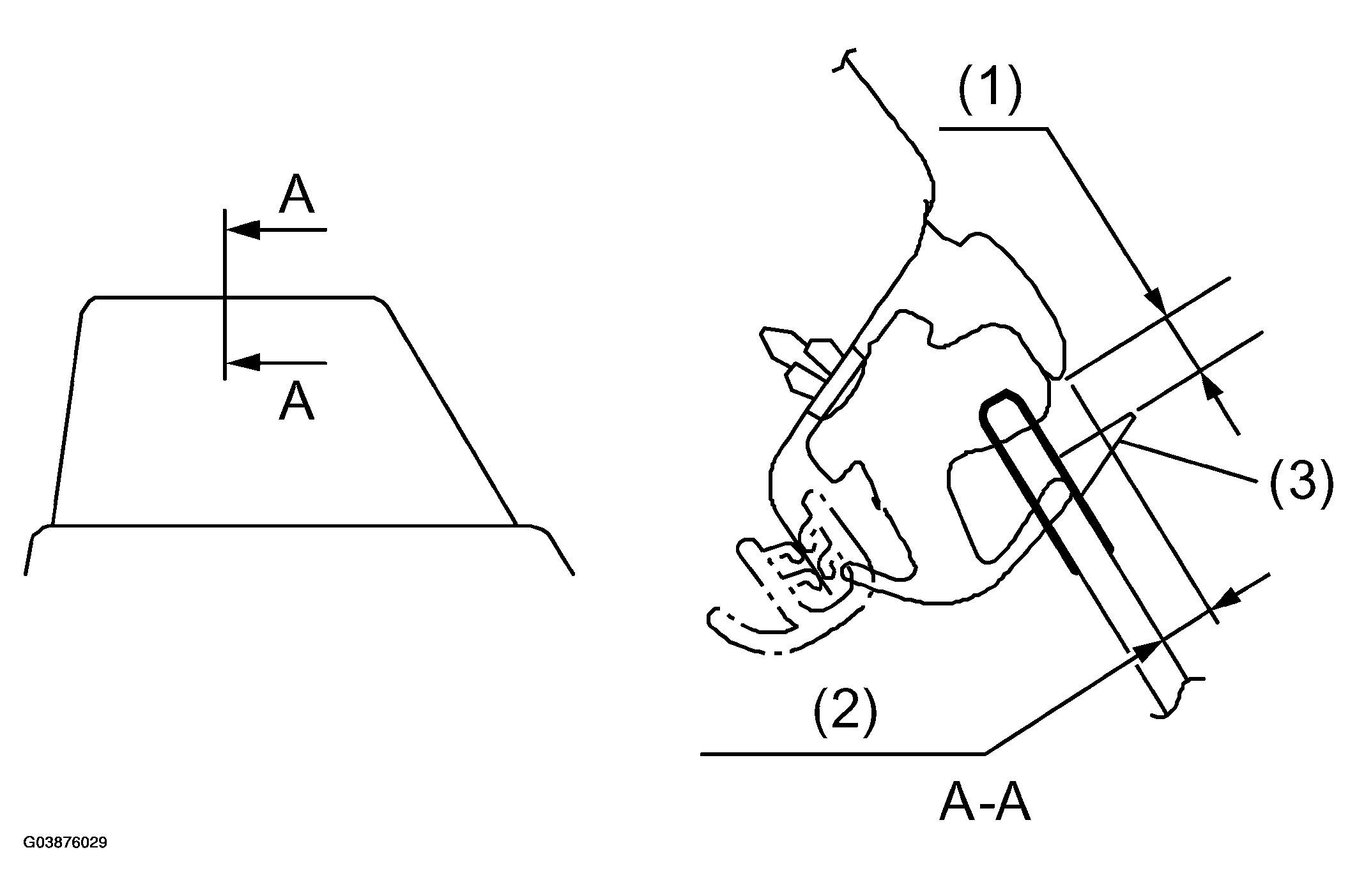

Fig 2: Identifying Dimensions For Adjusting Contact Degree Of Glass

Courtesy of SAAB-SCANIA OF AMERICA, INC.

3.7 - 5.3 mm (0.146 - 0.209 in)
4.6 mm (0.157 - 0.236 in)
ST

NOTE:

If the contact degree of rear glass is higher than necessary, glass may get caught in weather strip of center pillar corner, resulting in early wear of weather strip. Be careful when adjusting.
After adjustment, move the glass up and down to check whether it is caught.
