Rear Seat: Removal

Remove the bolts, and then detach the rear seat cushion.

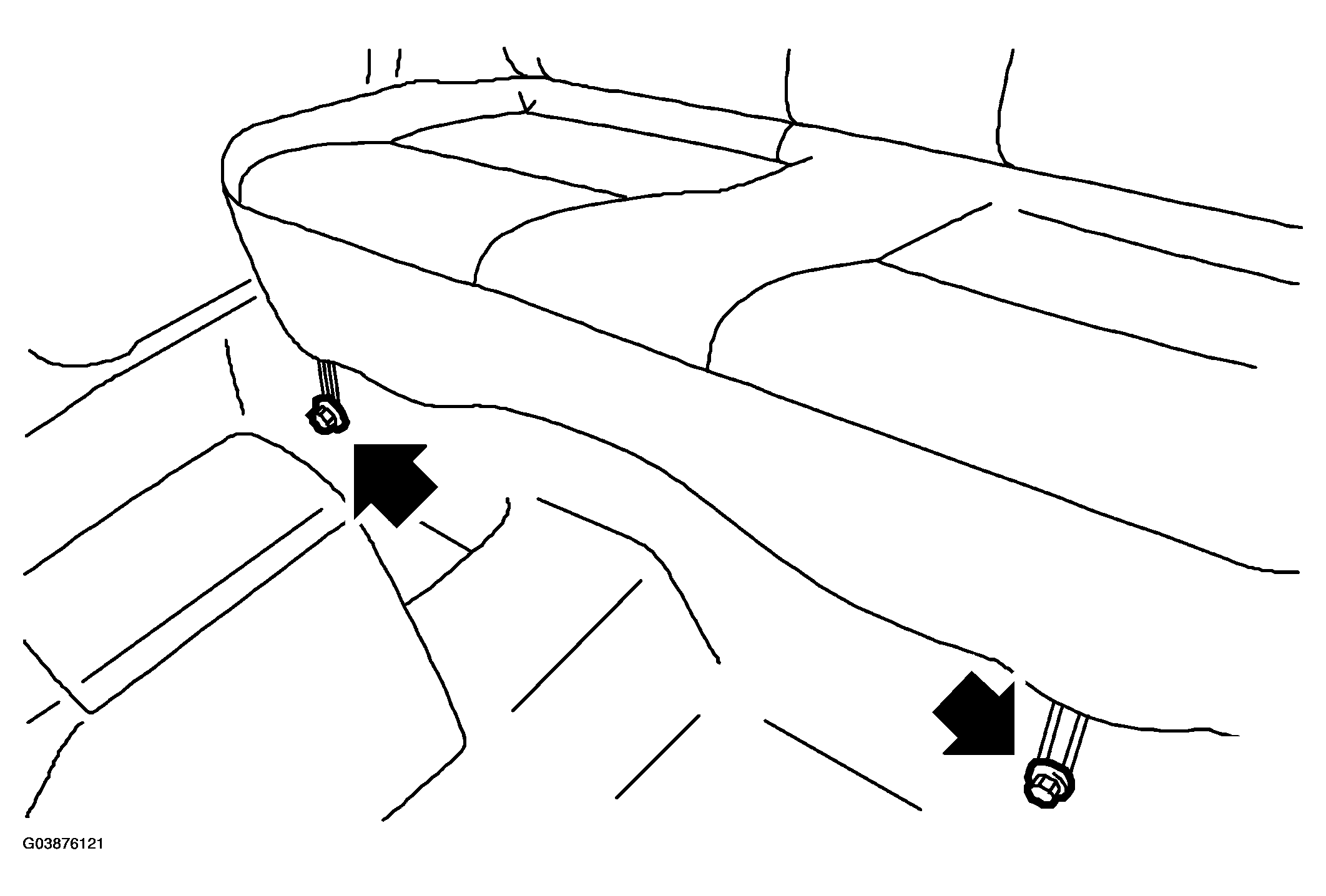

Fig 1: Removing Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the headrest.

Remove the luggage floor mat.

Turn over the mat to remove the bolts.

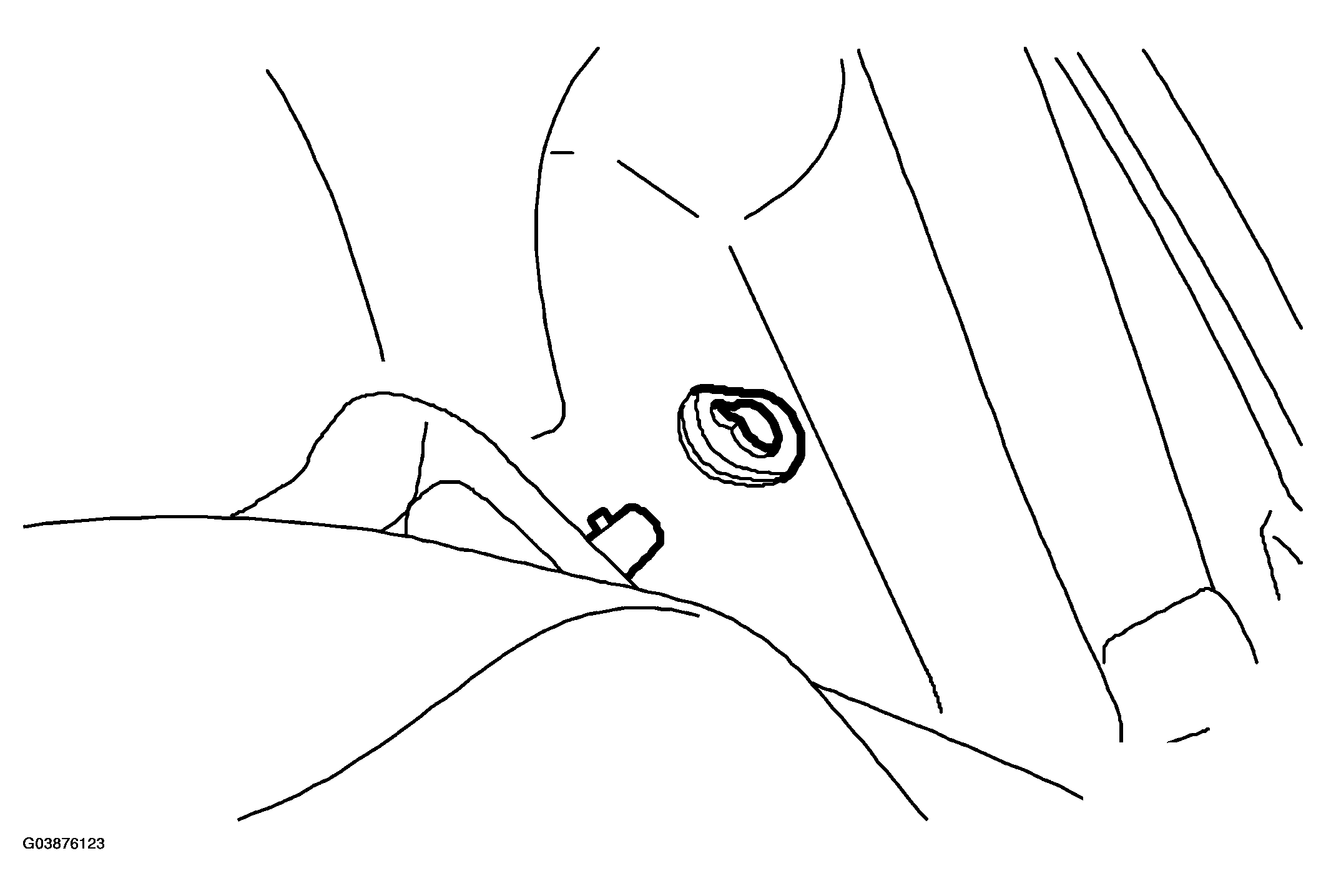

Fig 2: Removing Luggage Floor Mat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the rear seat backrest.

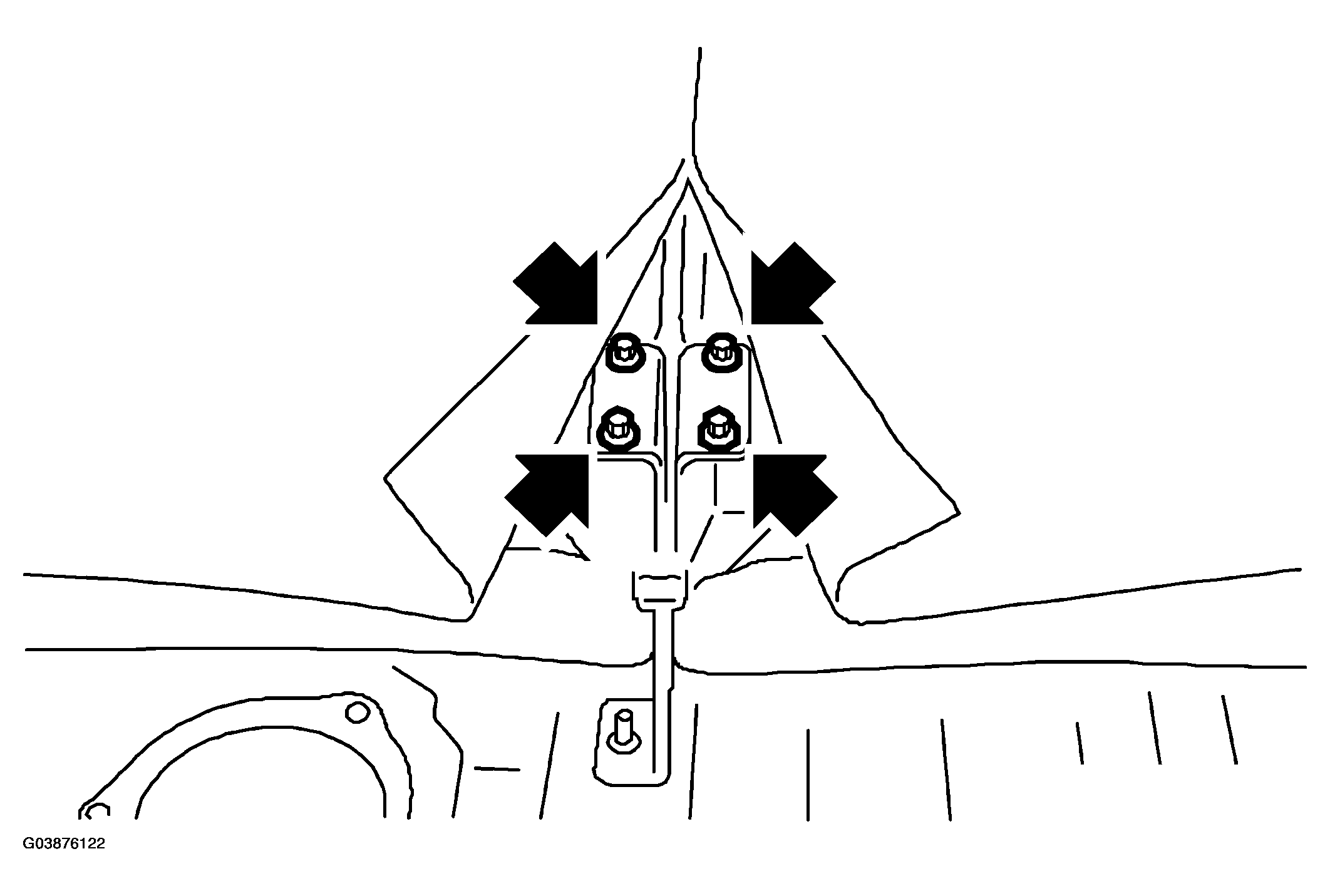

Fig 3: Removing Rear Seat Backrest

Courtesy of SAAB-SCANIA OF AMERICA, INC.
