Rear Inner Remote: Removal

Remove the rear door trim.

Remove the sealing cover.

Remove a screw and two rod joints.

Remove the inner remote.

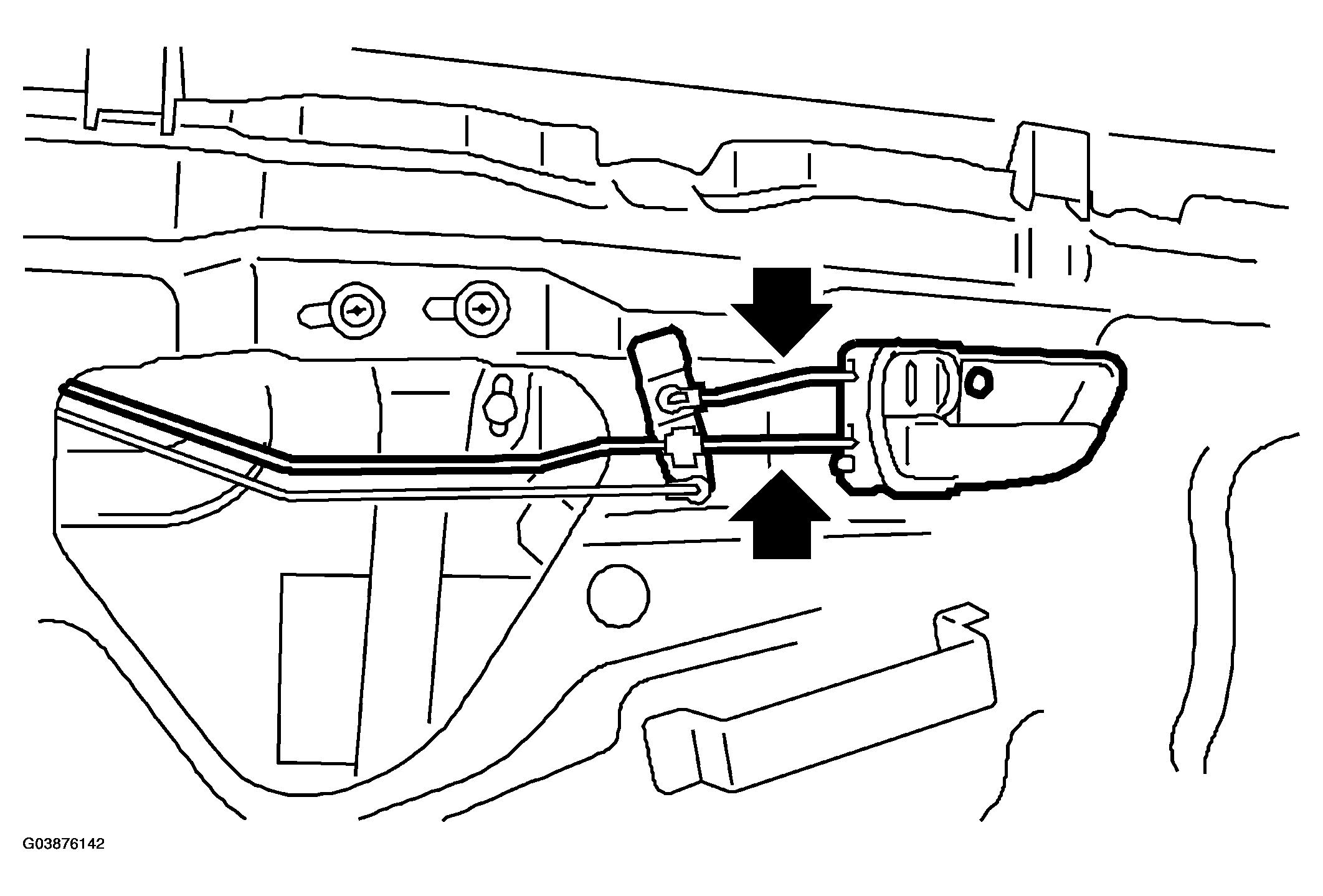

Fig 1: Removing Inner Remote
G03876142Courtesy of SAAB-SCANIA OF AMERICA, INC.
