Rear Gate Latch Assembly: Removal

Disconnect the ground cable from battery.

Remove the rear gate trim.

Remove three bolts.

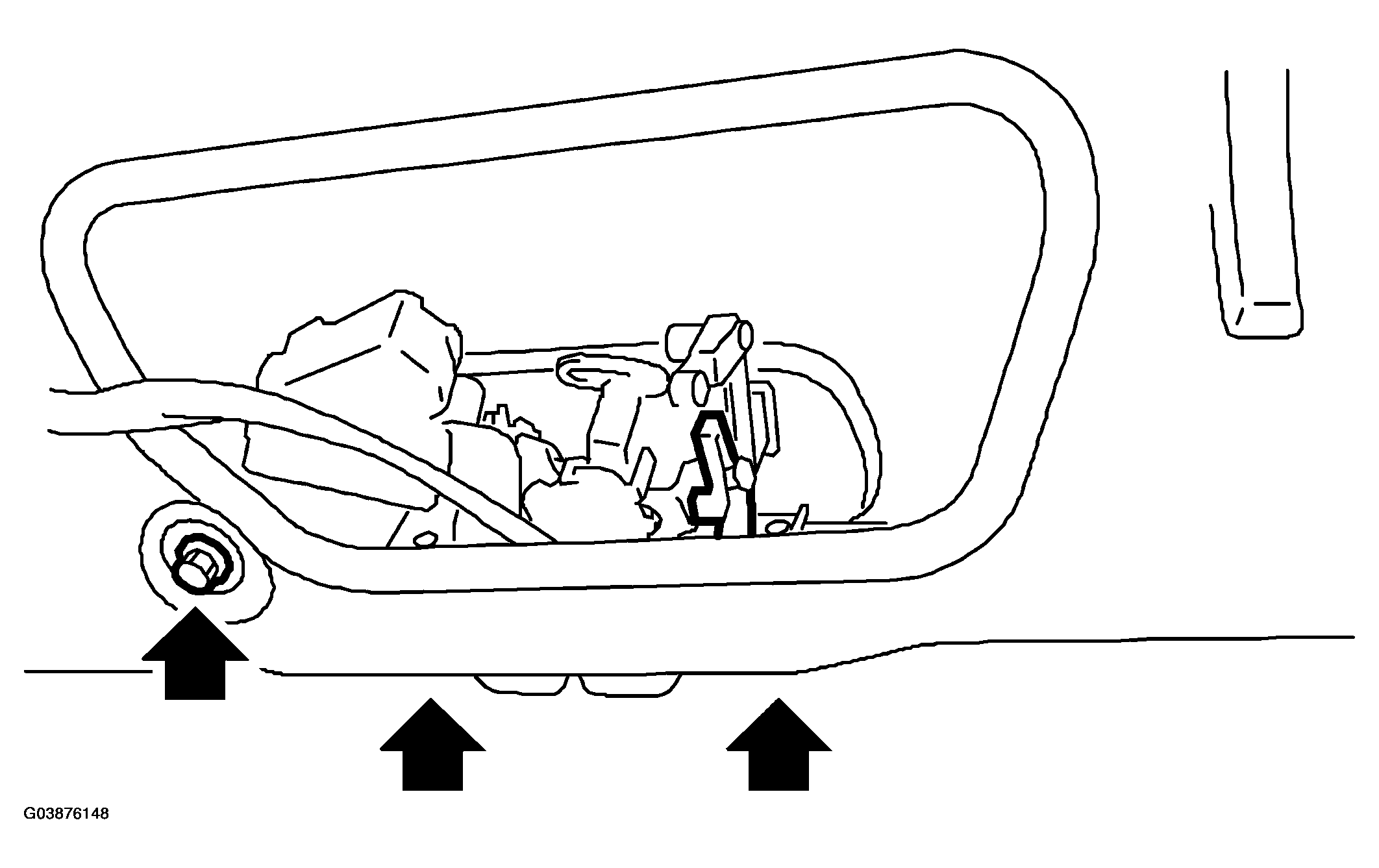

Fig 1: Removing Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the connectors, and then remove the rear gate latch assembly.
