Interrupt Relay: Removal

Disconnect the ground cable from battery.

Remove the mounting nuts and detach the interrupt relay (near the fuse box).

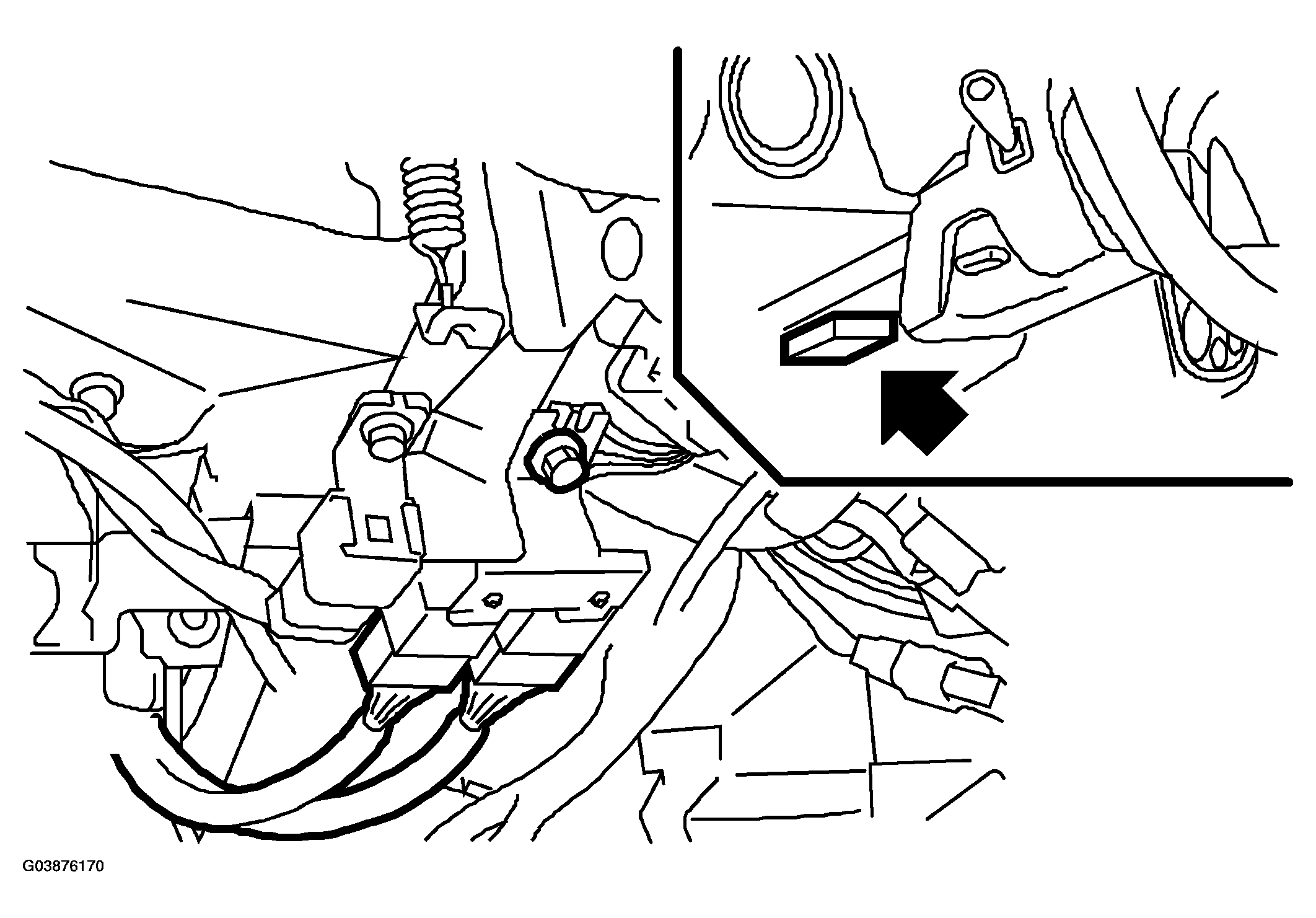

Fig 1: Removing Mounting Nuts
G03876170Courtesy of SAAB-SCANIA OF AMERICA, INC.
