Front Outer Handle: Removal

Remove the door trim.

Remove the sealing cover.

Remove the bolt (A).

Move the front door glass downward. Remove the bolt and rod clamp.

Remove the front outer handle.

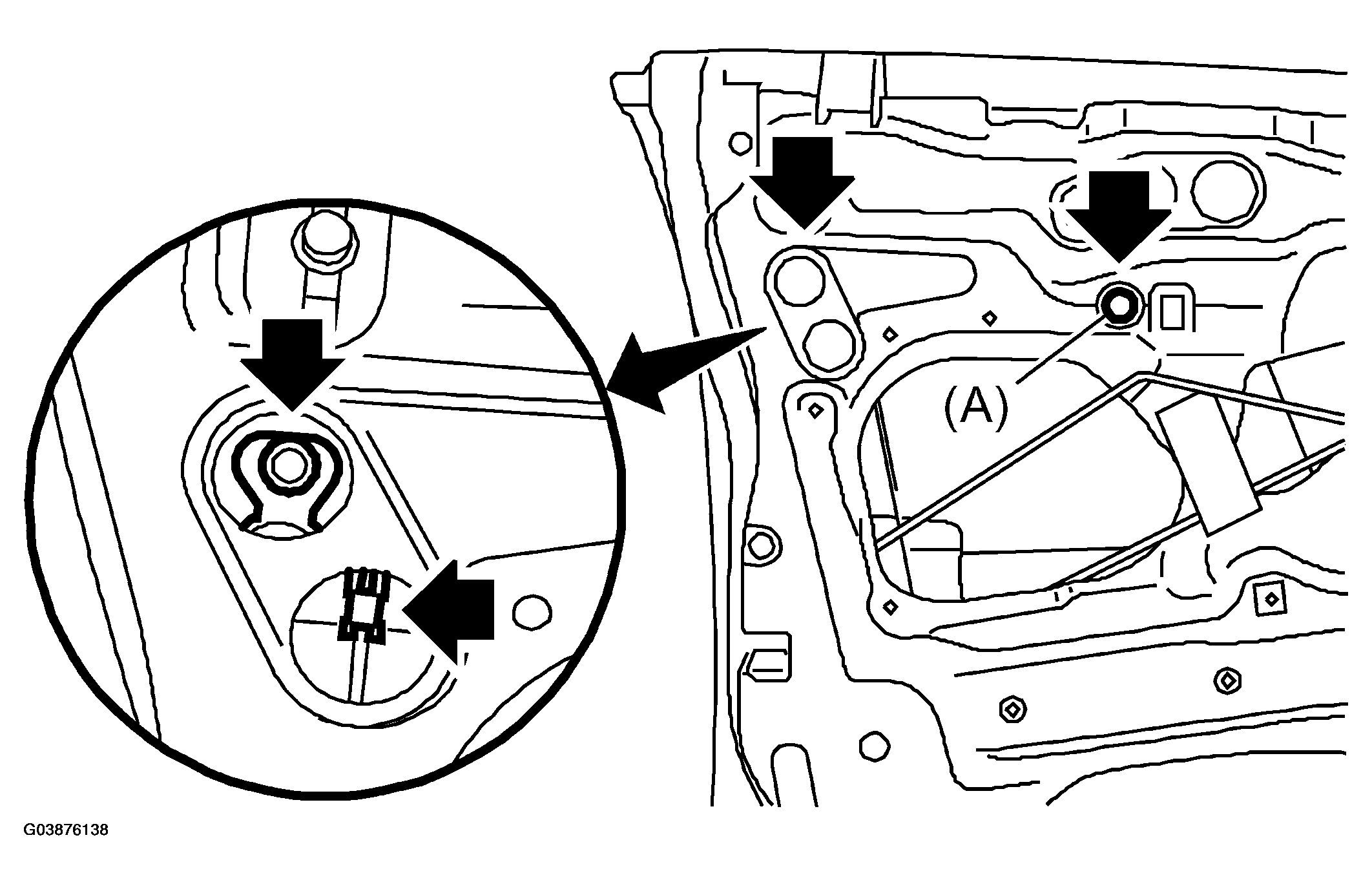

Fig 1: Removing Front Outer Handle

Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT: Do not use excessive force to remove the handle from door panel. This will deform it.
