Front Hood Lock Assembly: Removal

Open the front hood.

Remove the front bumper.

Remove the bolts. Remove the hood lock assembly.

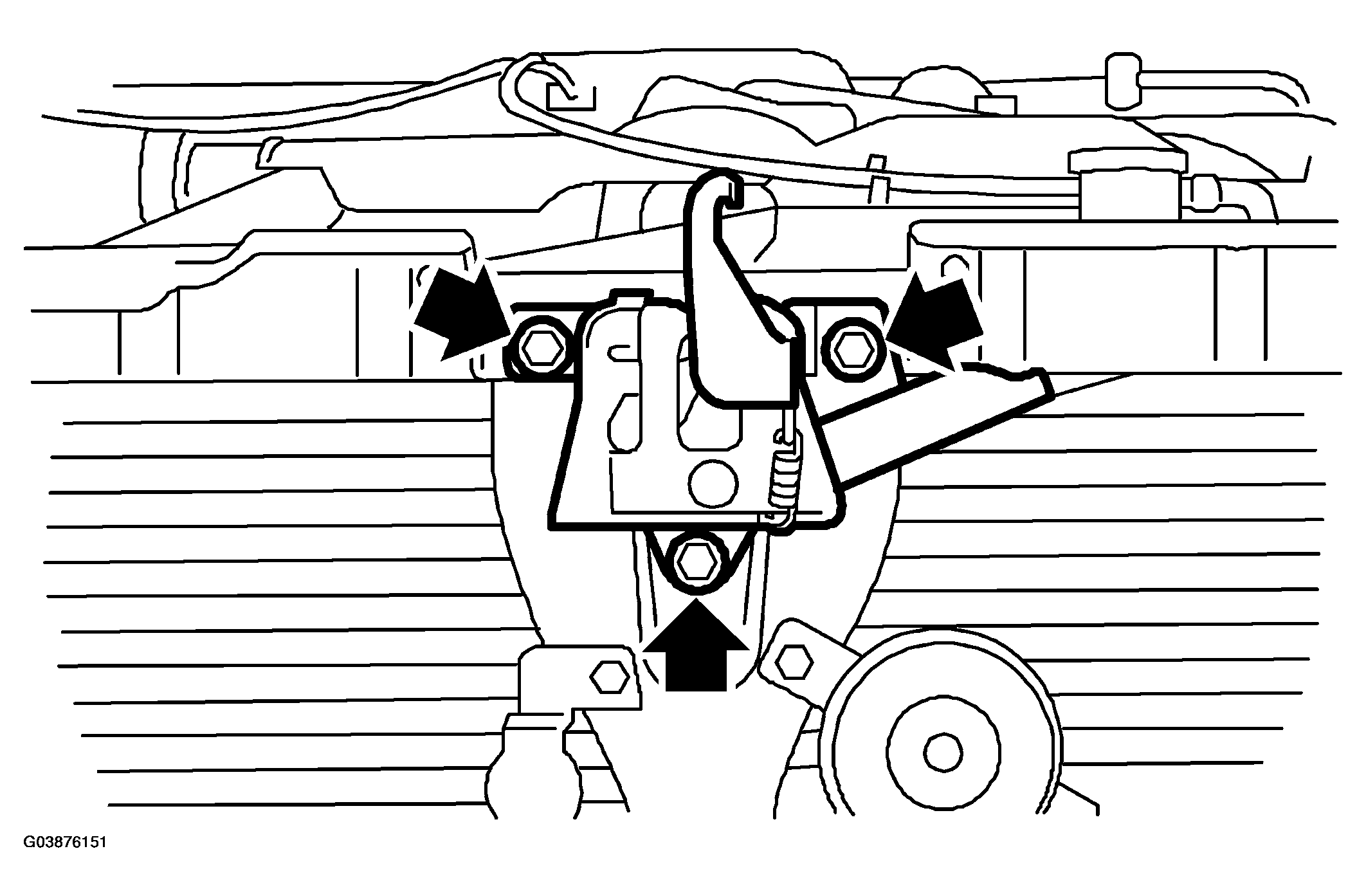

Fig 1: Removing Hood Lock Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the release cable from lock assembly.
