Front Hood Lock Assembly: Adjustment

Loosen the bolt. Adjust the lock assembly while moving it up and down.

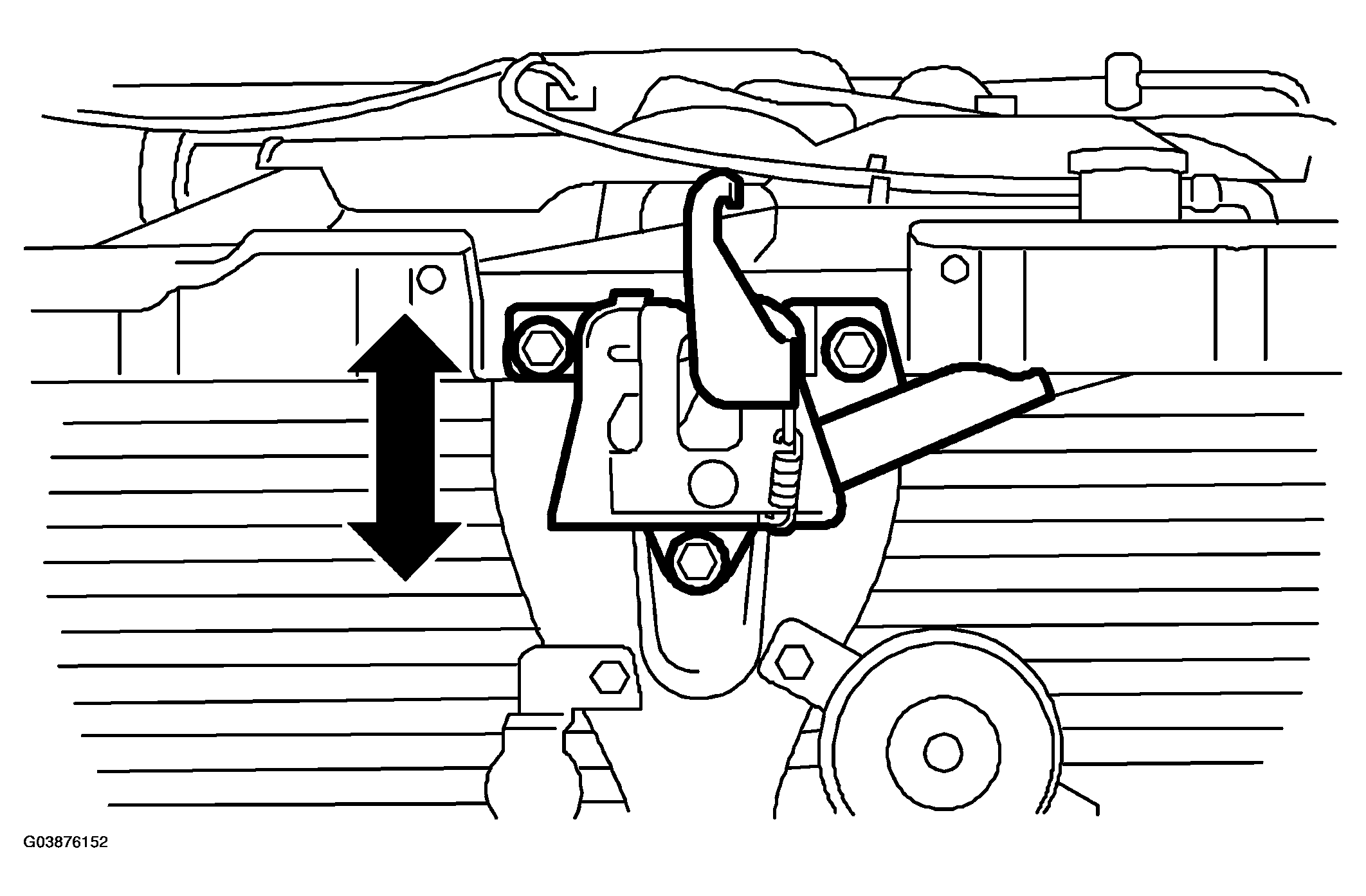

Fig 1: Adjusting Lock Assembly

G03876152

Courtesy of SAAB-SCANIA OF AMERICA, INC.
