Body Integrated Unit: Removal

Disconnect the ground cable from battery.

Remove the instrument panel lower cover.

Remove the nut, then remove the body integrated unit while disconnecting the connector.

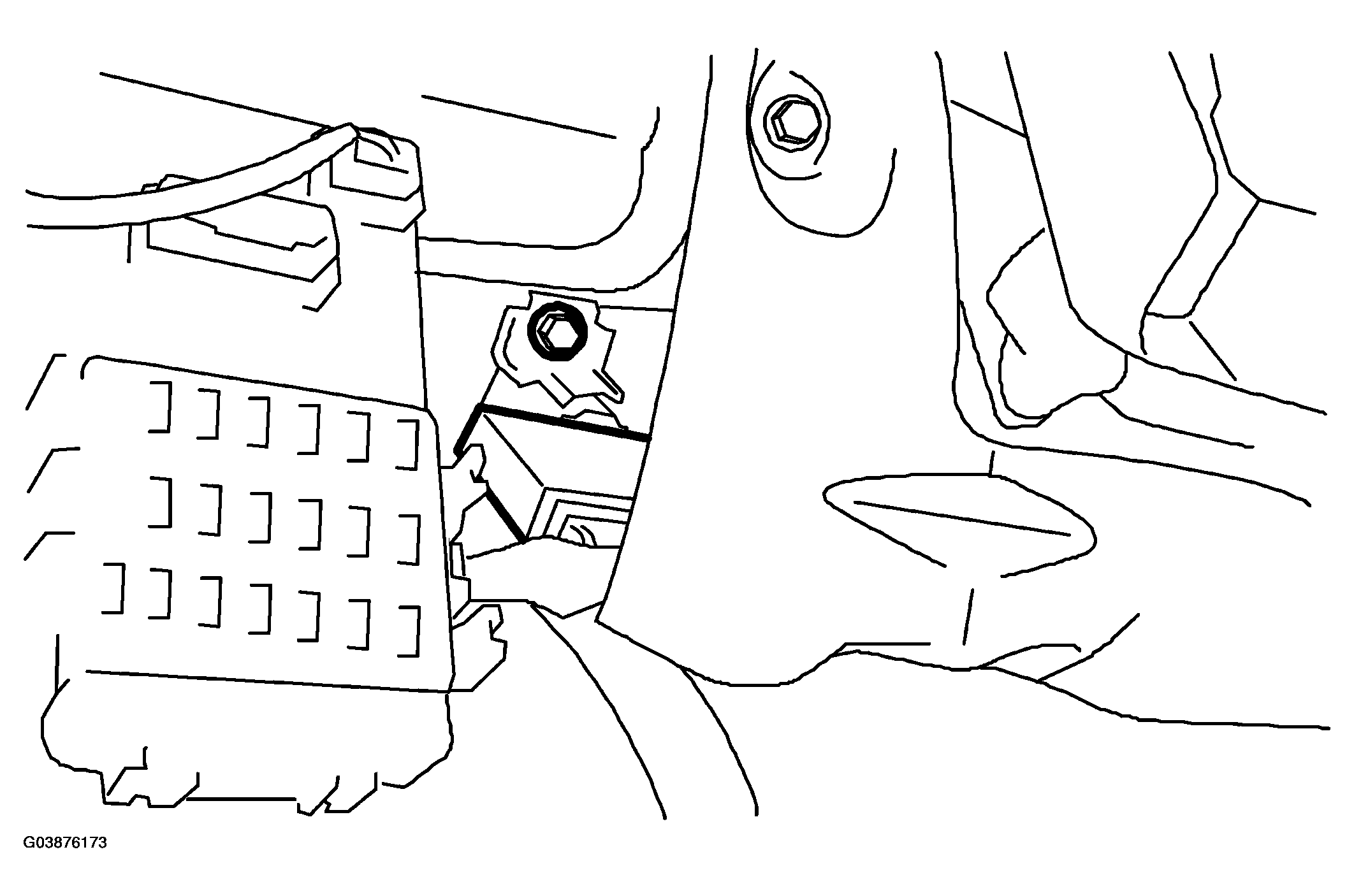

Fig 1: Removing Body Integrated Unit

Courtesy of SAAB-SCANIA OF AMERICA, INC.
