Intake Manifold: Adjustment/Replacement: Disassembly

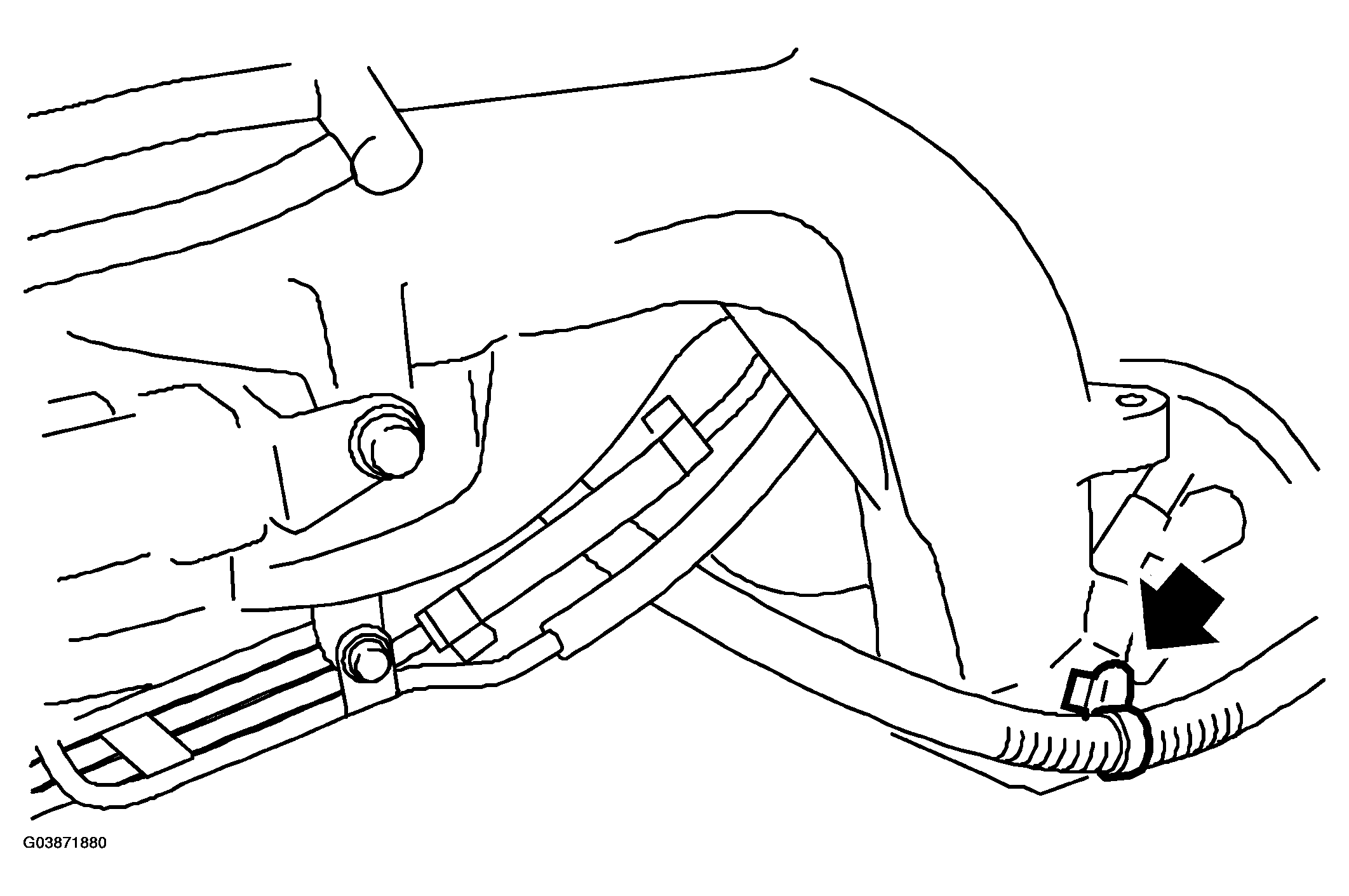

Disconnect the engine ground terminal from intake manifold.

Remove the ignition coil & ignitor ASSY.

Remove the throttle body.

Remove the EGR valve.

Remove the PCV pipe.

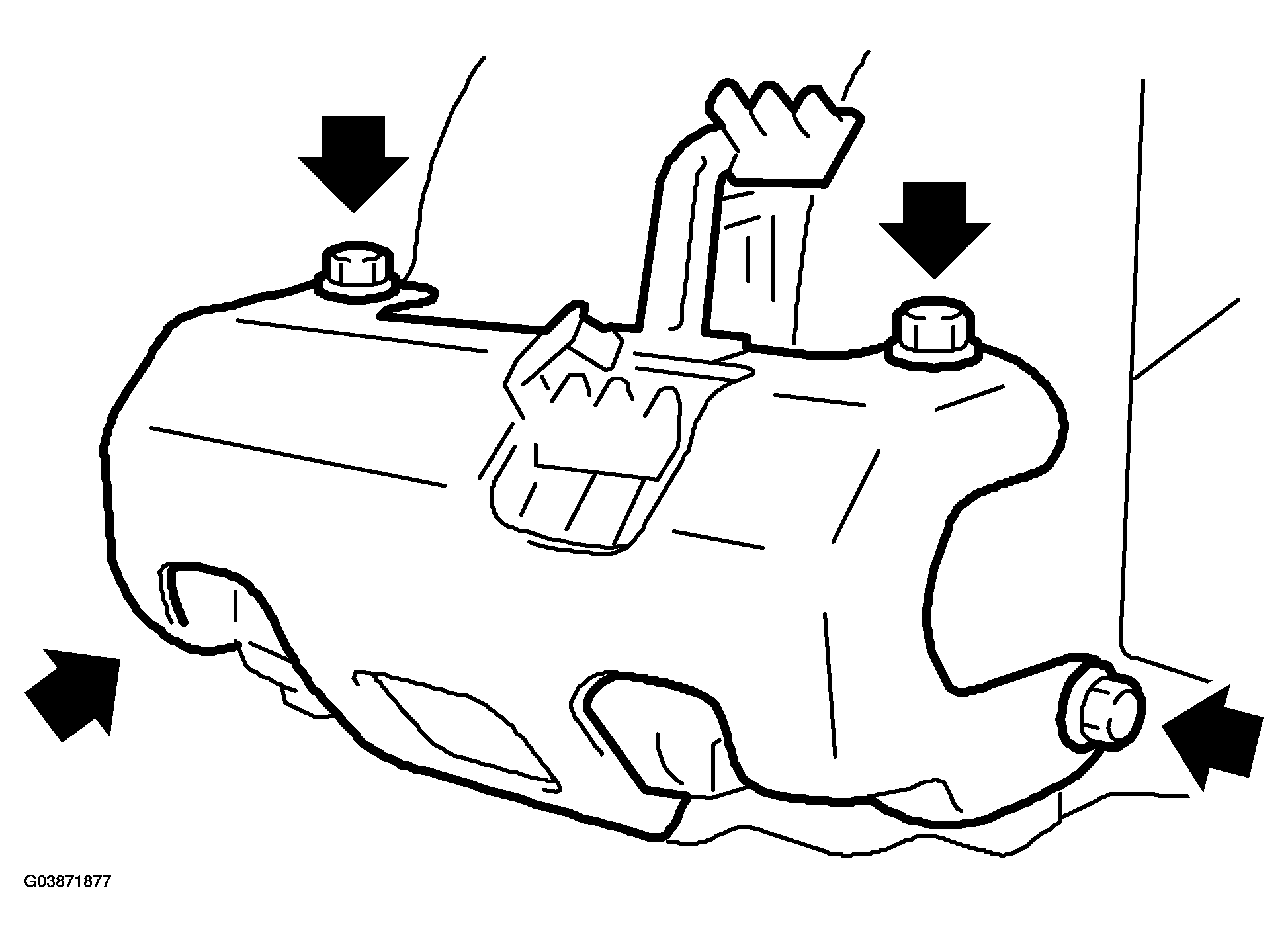

Remove the fuel pipe protector LH.

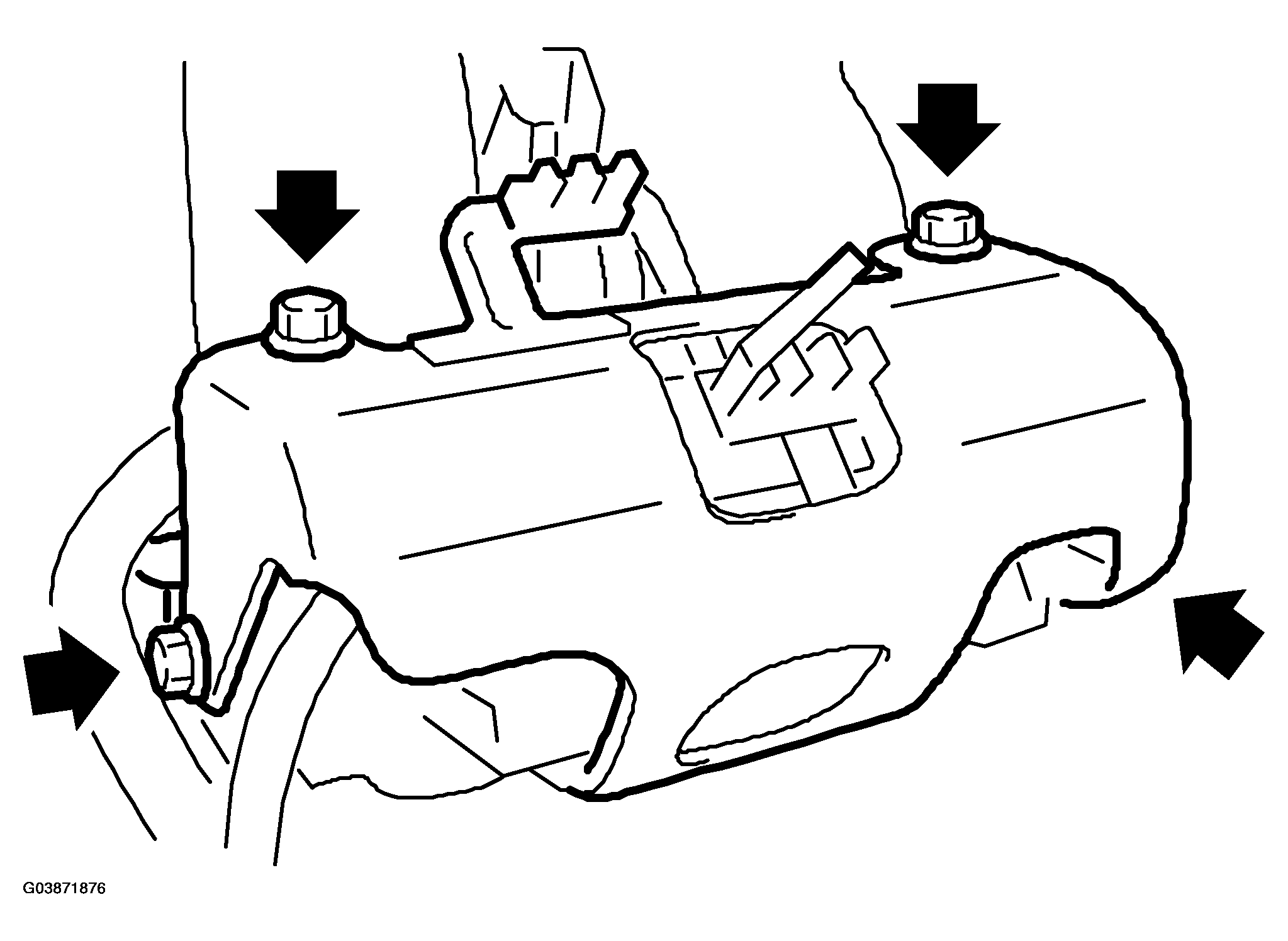

Remove the fuel pipe protector RH.

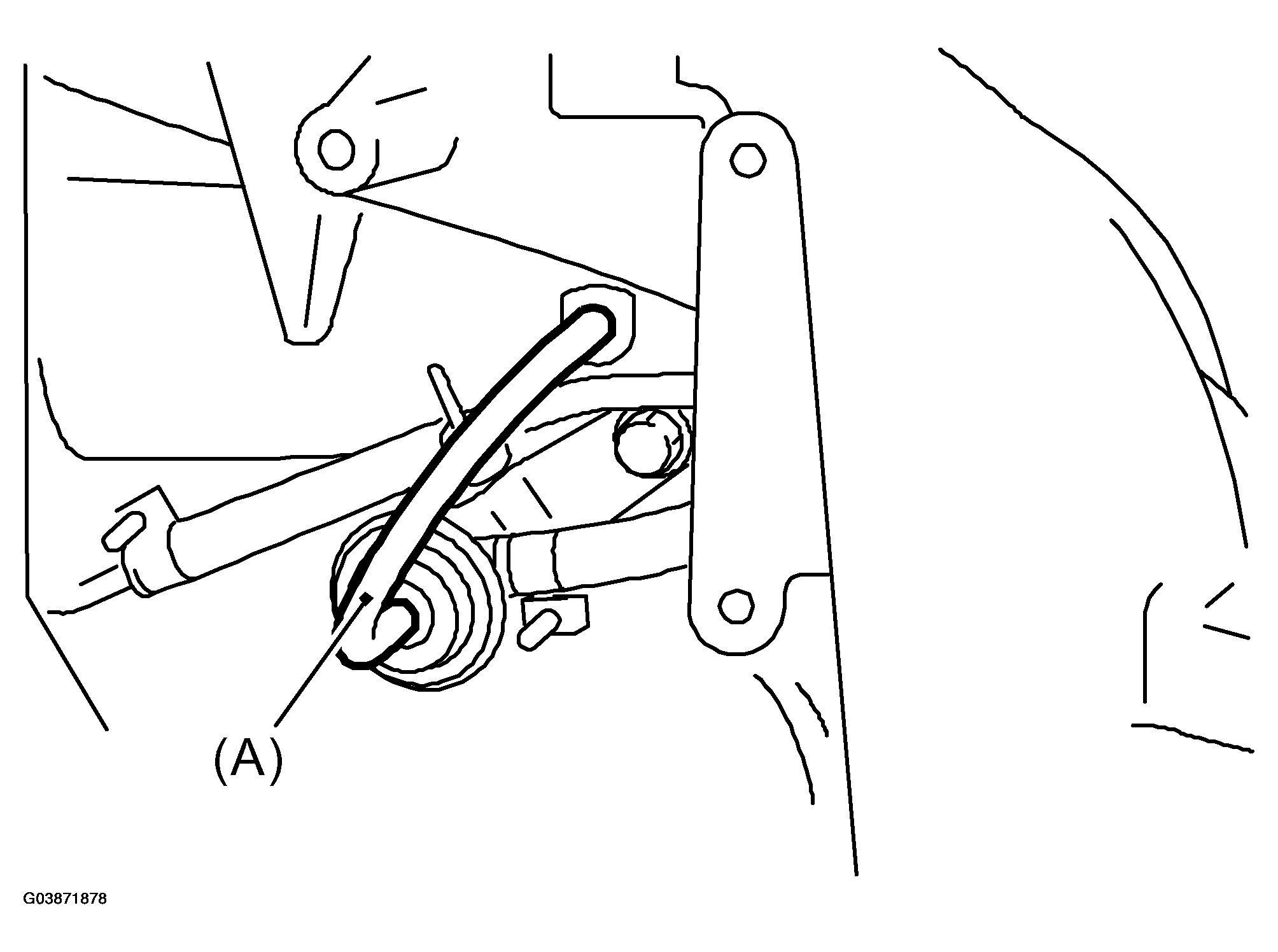

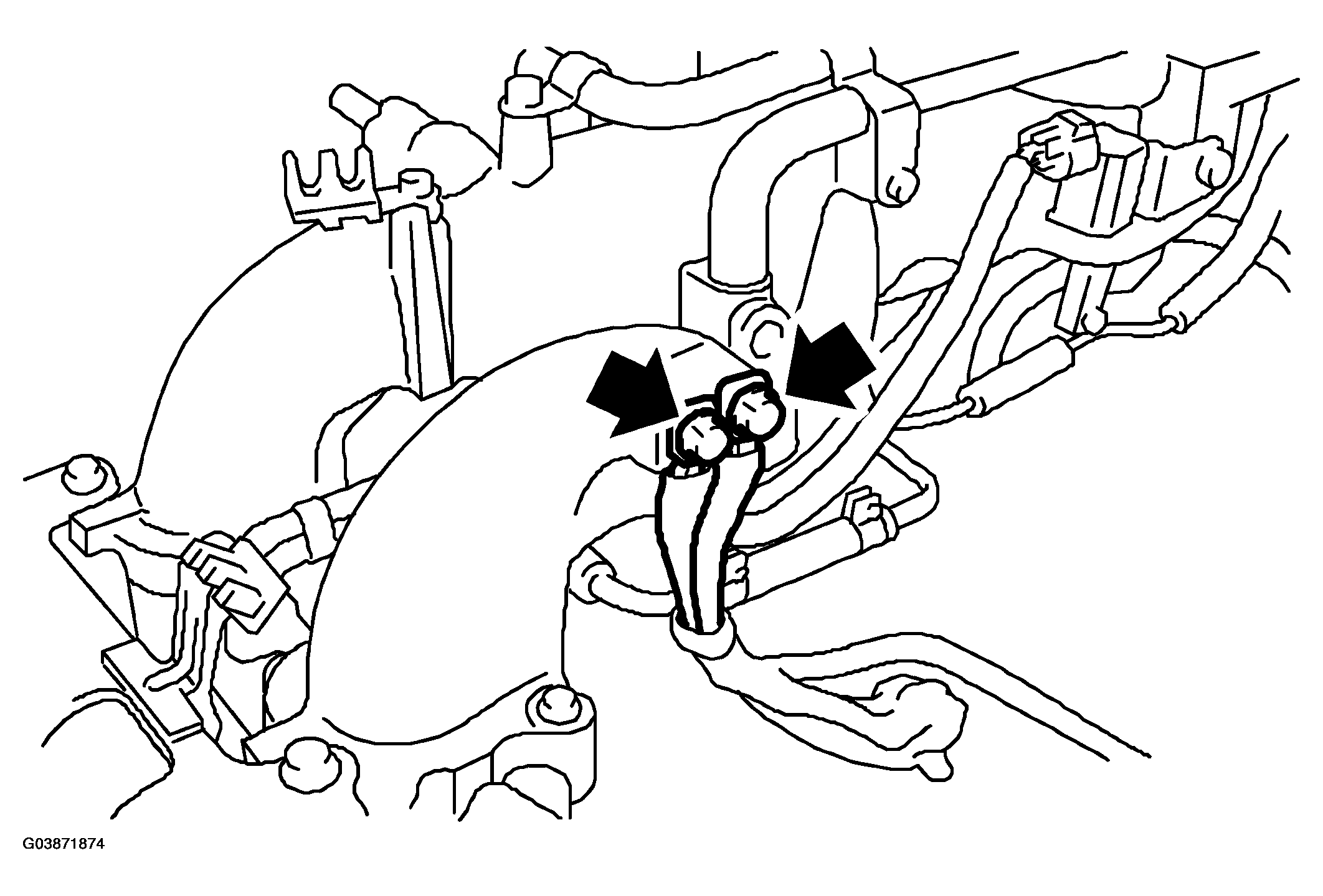

Disconnect the pressure regulator vacuum hose (A) from intake manifold.

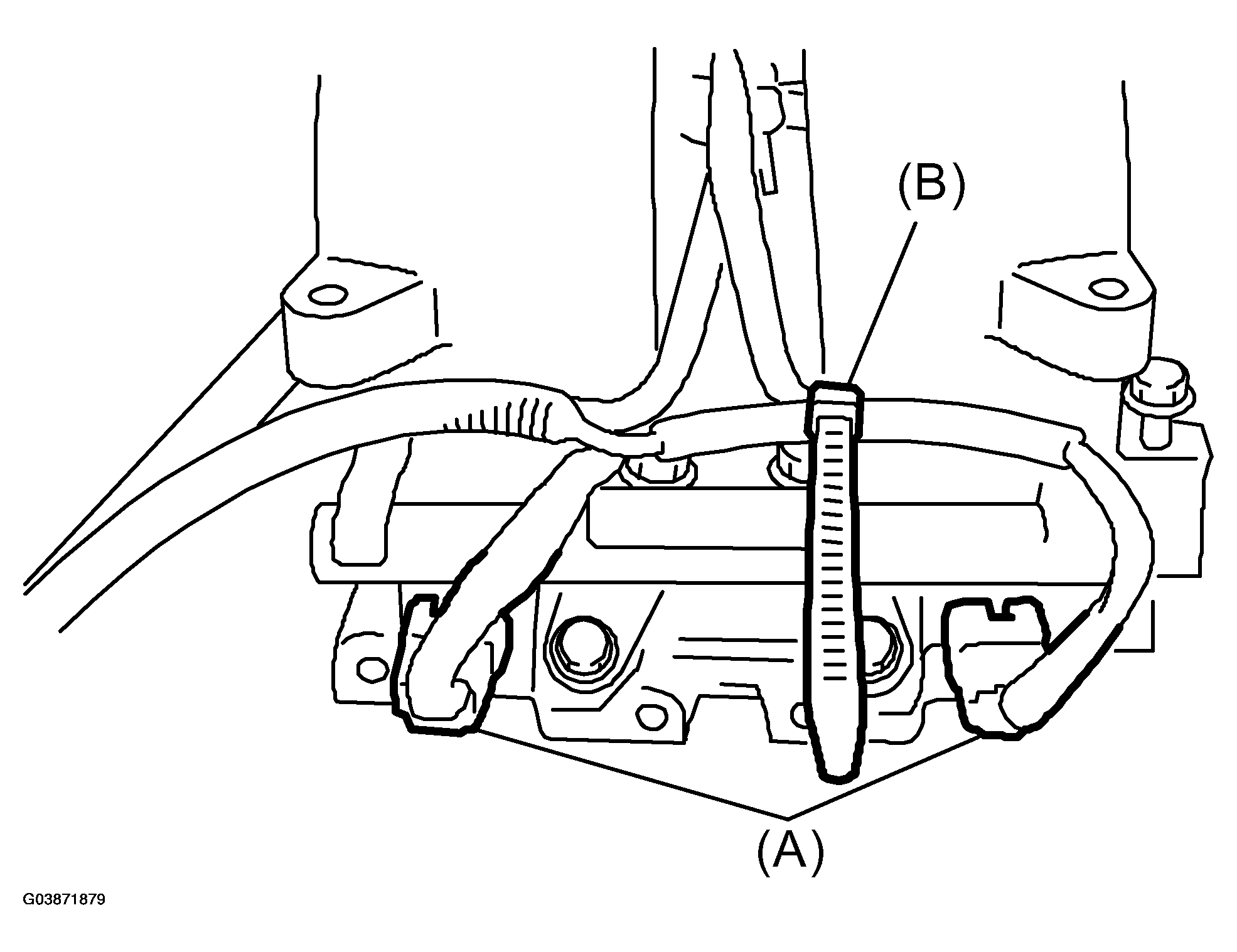

Disconnect the connectors (A) from fuel injector.

Remove the harness band (B) which holds engine harness to injector pipe.

Remove the purge control solenoid valve.

Remove the harness band clips which install the engine harness.

Remove the bolts which hold the engine harness to intake manifold.

Remove the engine harness from intake manifold.

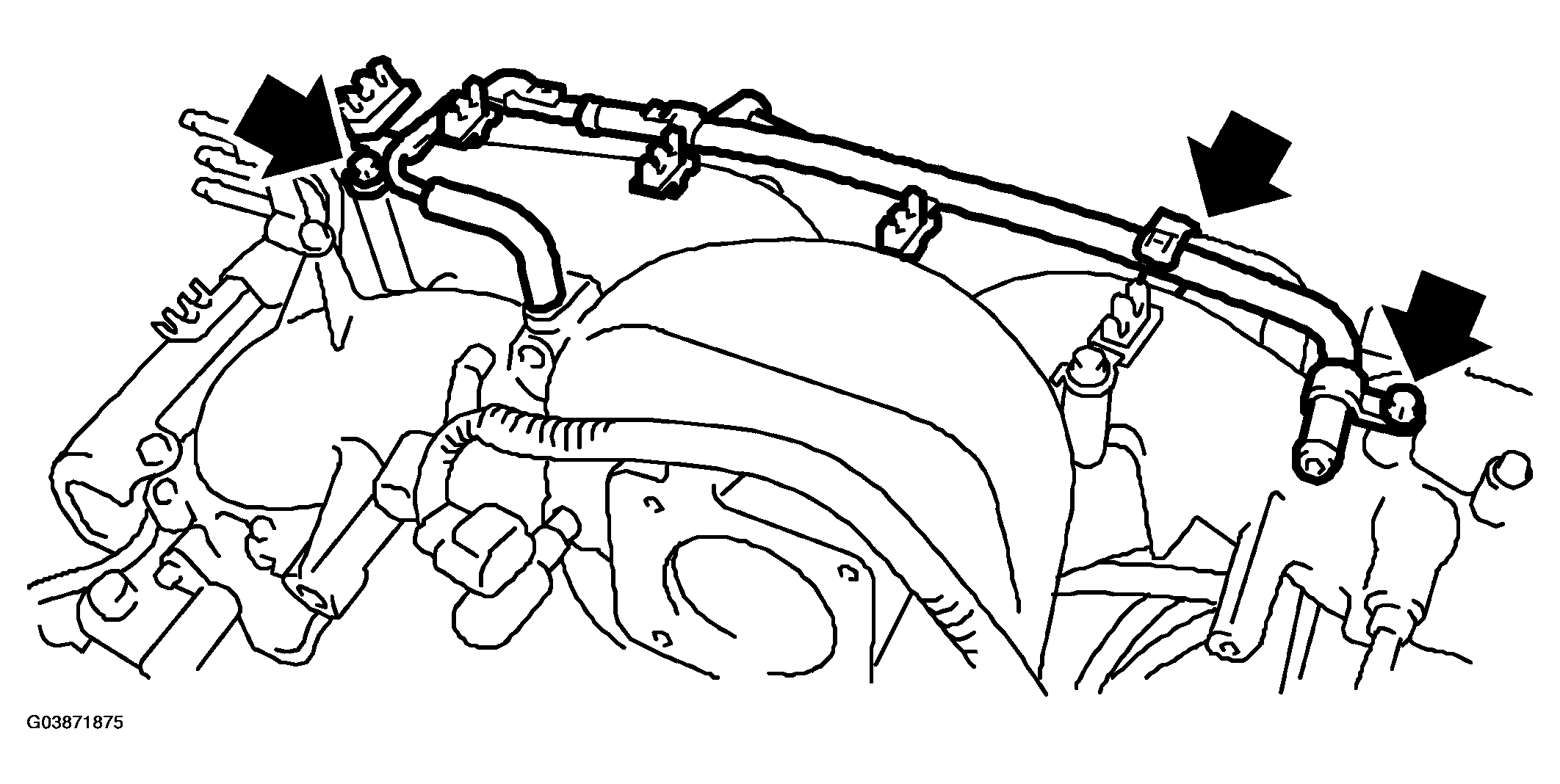

Remove the bolts which install injector pipe on the intake manifold as shown in the figure.

• RH side

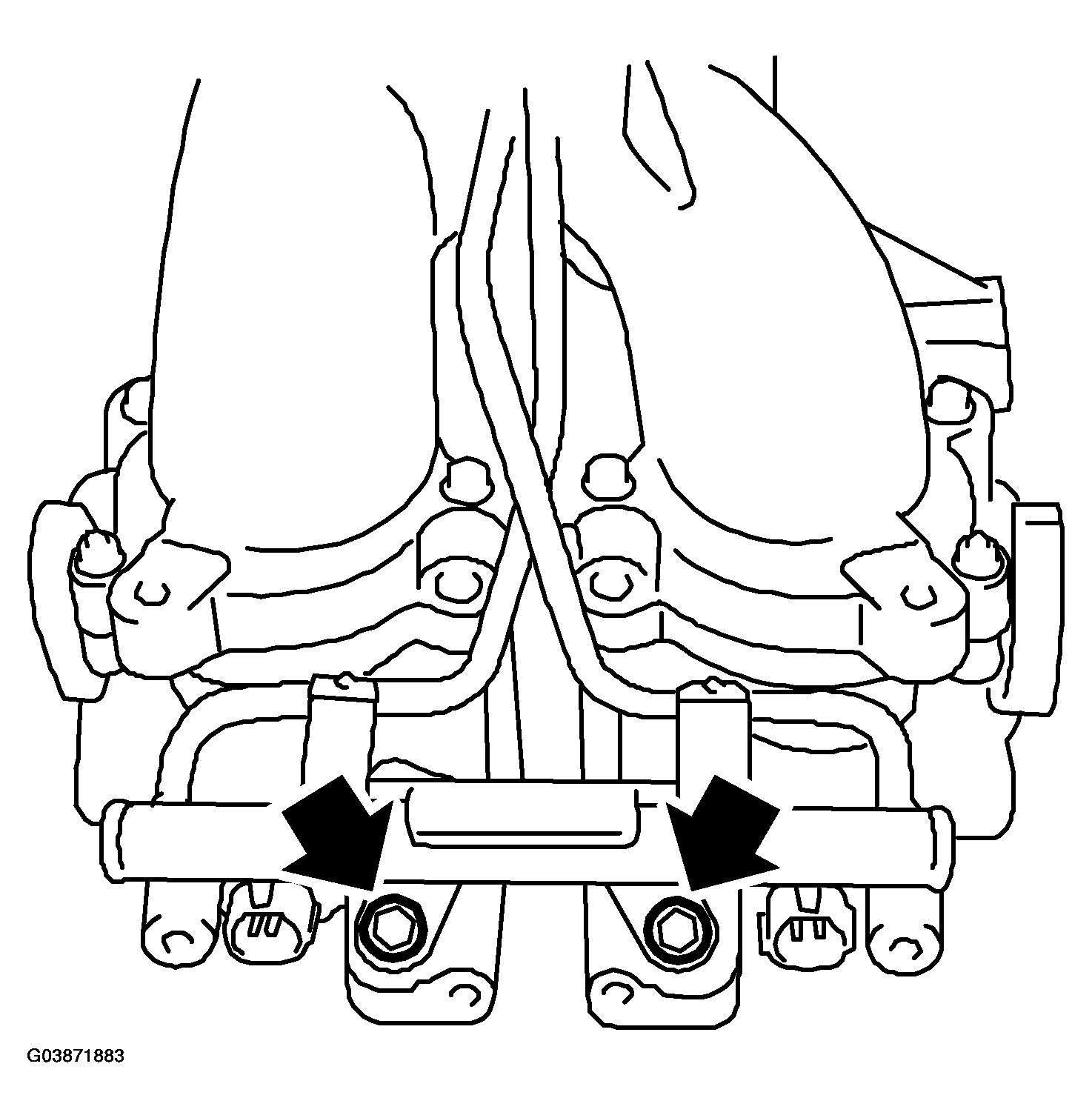

  Fig 9: Removing Bolts Which Install Injector Pipe On Intake Manifold (RH)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
• LH side

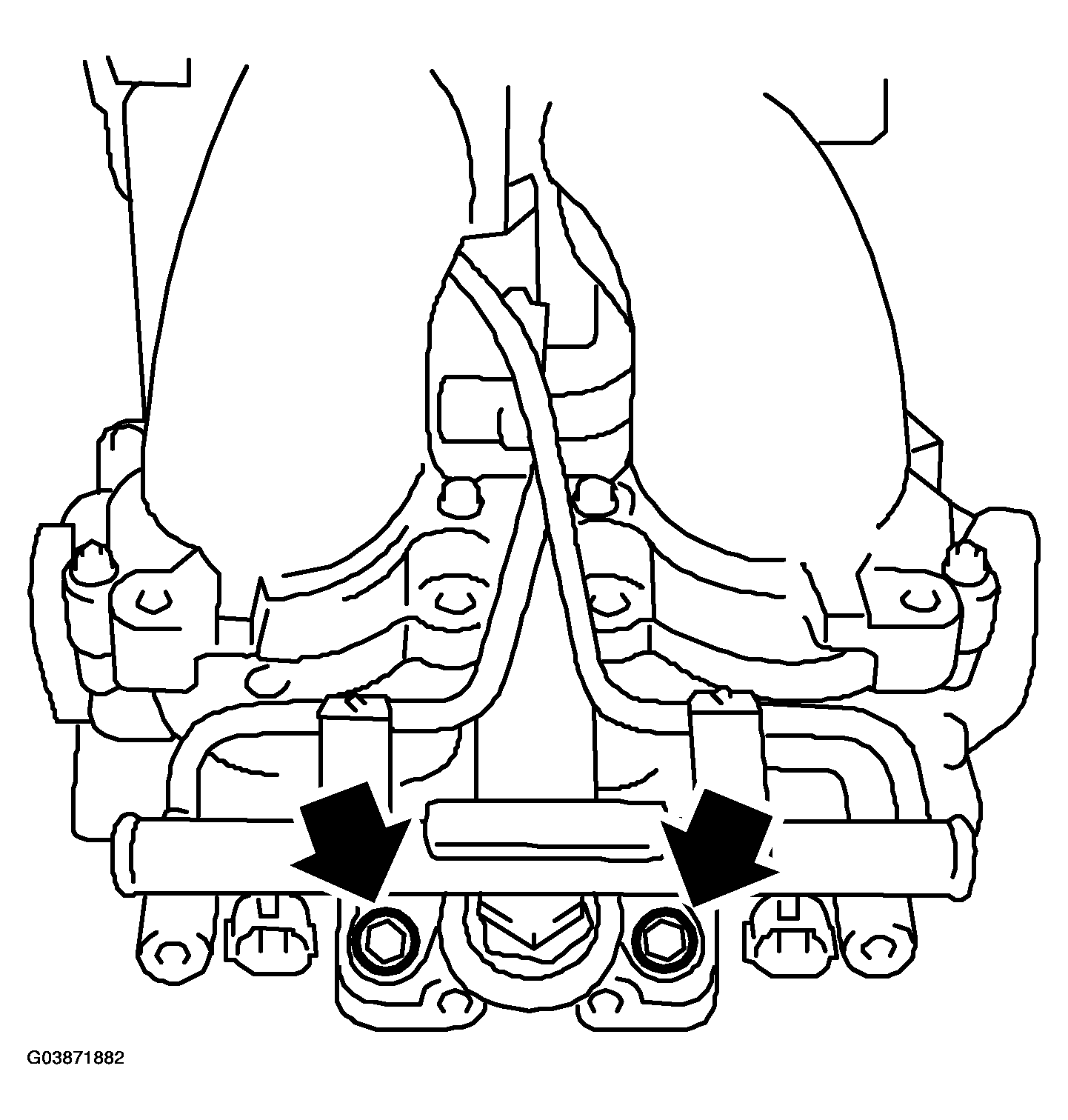

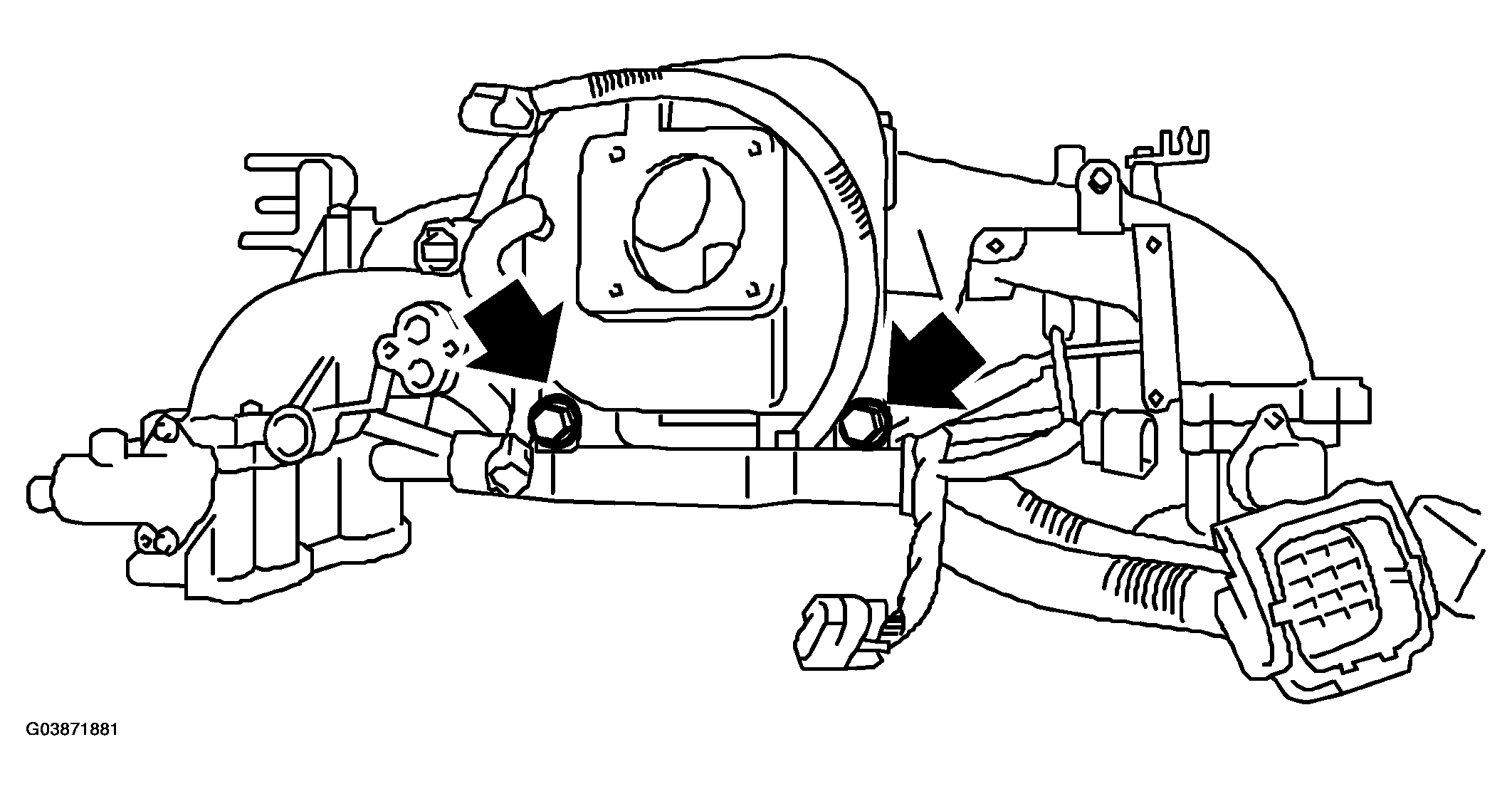

  Fig 10: Removing Bolts Which Install Injector Pipe On Intake Manifold (LH) (1 Of 2)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
  Fig 11: Removing Bolts Which Install Injector Pipe On Intake Manifold (LH) (2 Of 2)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the fuel injectors from injector pipe.

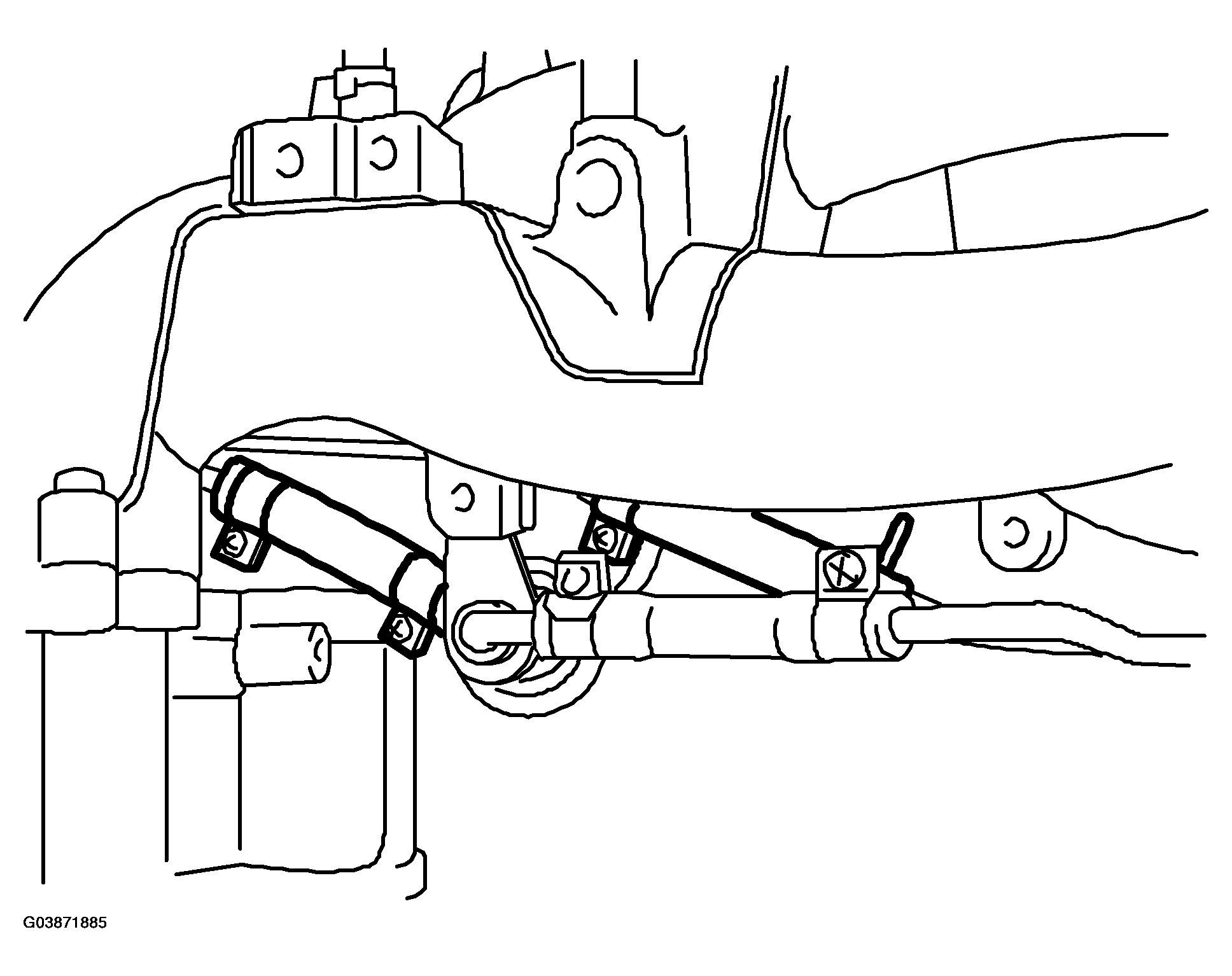

Loosen the clamp which holds fuel injector pipe RH to fuel hose, and then disconnect the pipe from fuel hose.

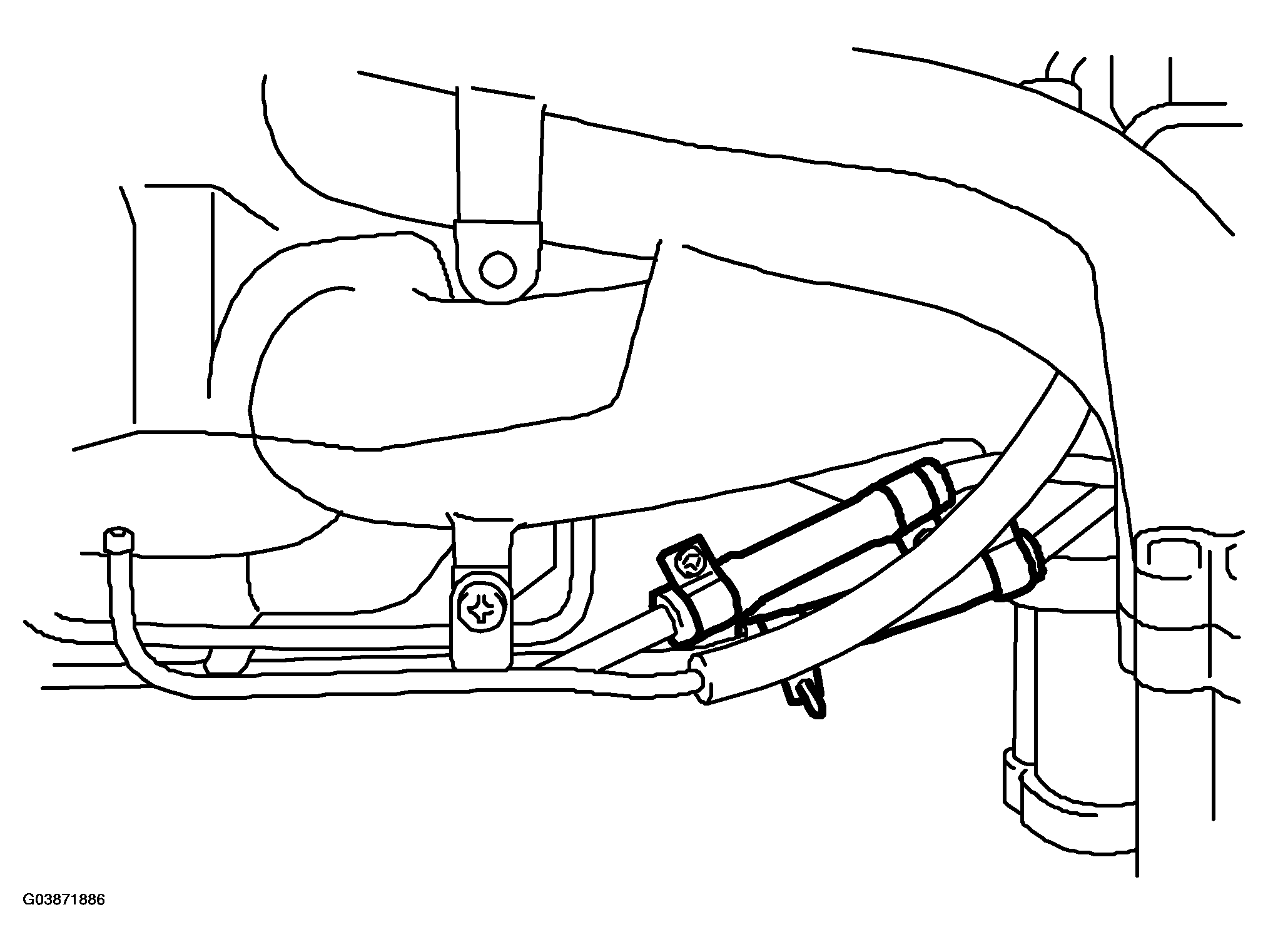

Loosen the clamp which holds fuel injector pipe LH to fuel hose, and then disconnect the pipe from fuel hose.

Remove the fuel injector pipe.

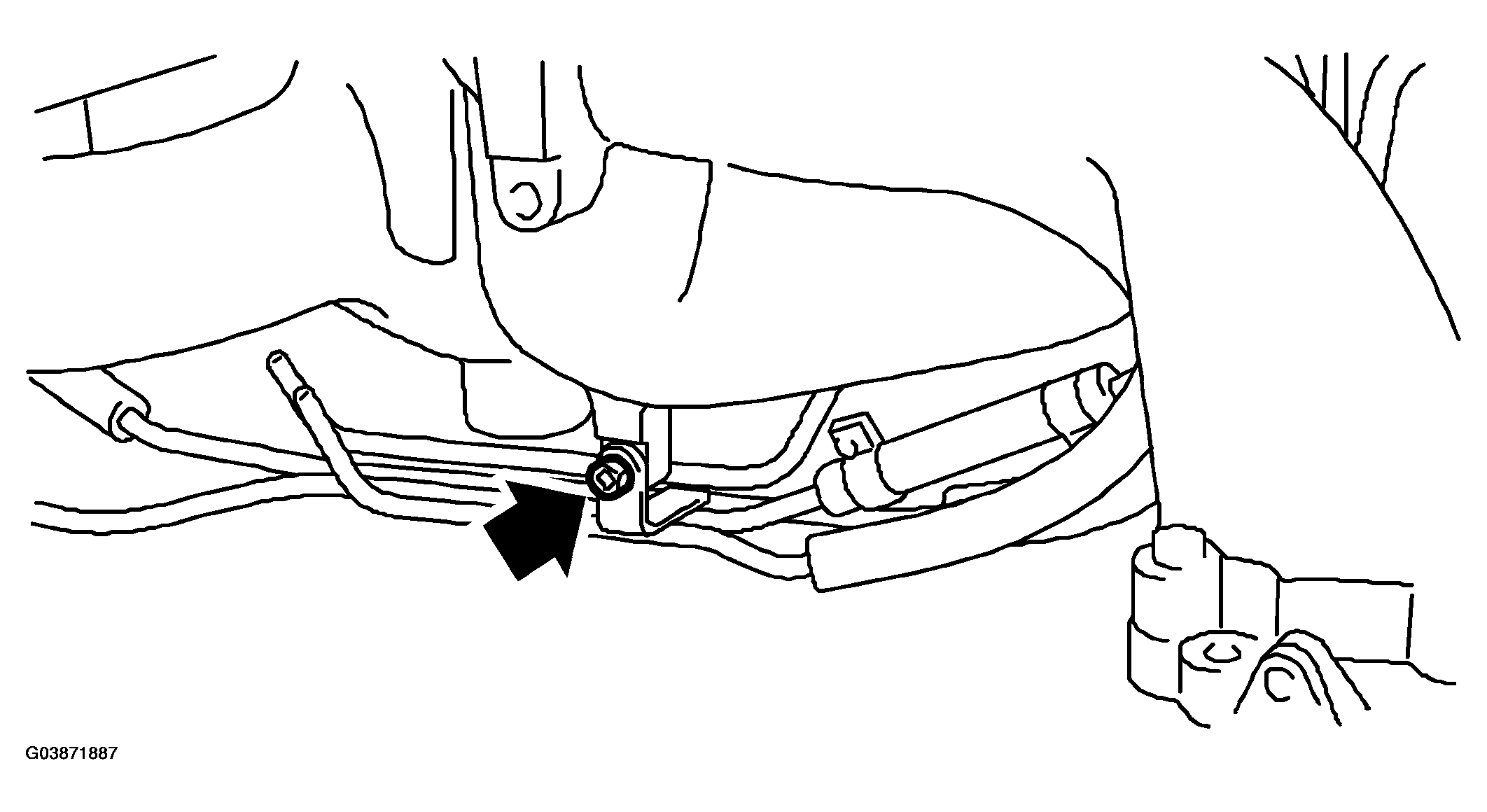

Remove the bolt which installs pressure regulator on intake manifold.

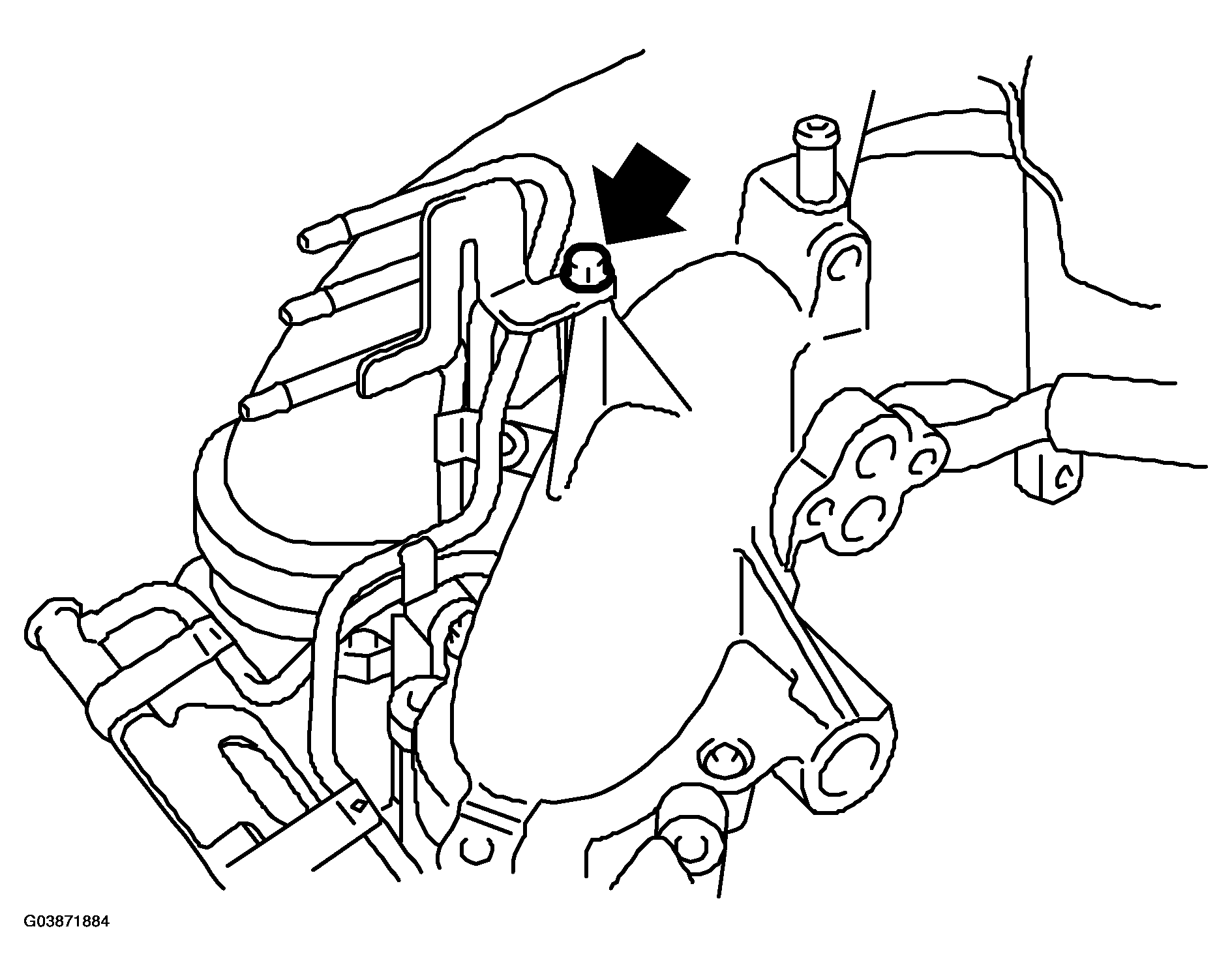

Remove the bolt which installs the fuel pipes on intake manifold.

Remove the fuel pipe assembly and pressure regulator, from intake manifold.
