Fuel Sub Level Sensor: Adjustment/Replacement: Removal

WARNING:

Disconnect the ground cable from battery.

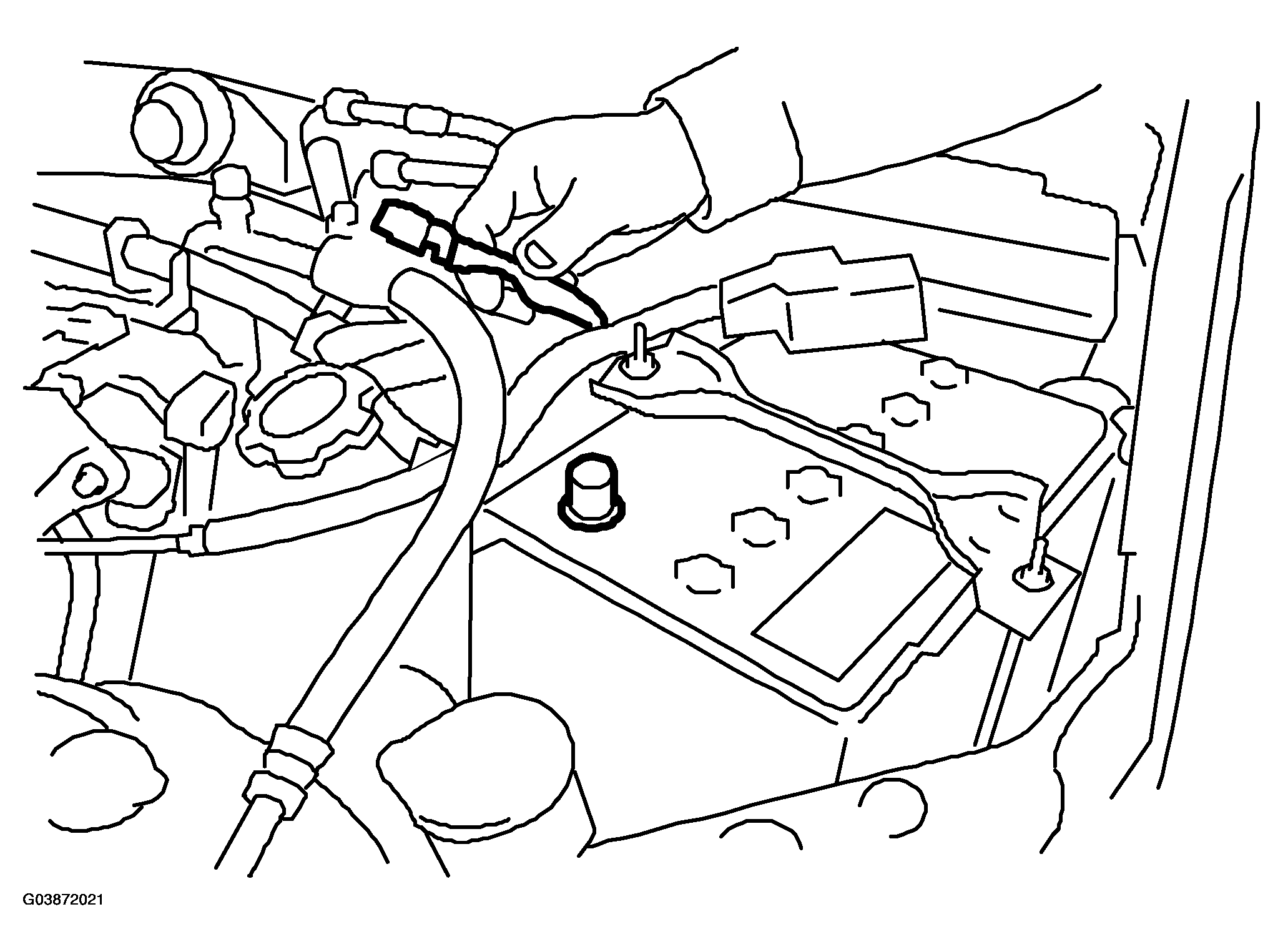

Fig 1: Disconnecting Ground Cable From Battery

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Lift up the vehicle.

Drain the fuel from the fuel tank.

Remove the rear seat.

Remove the service hole cover.

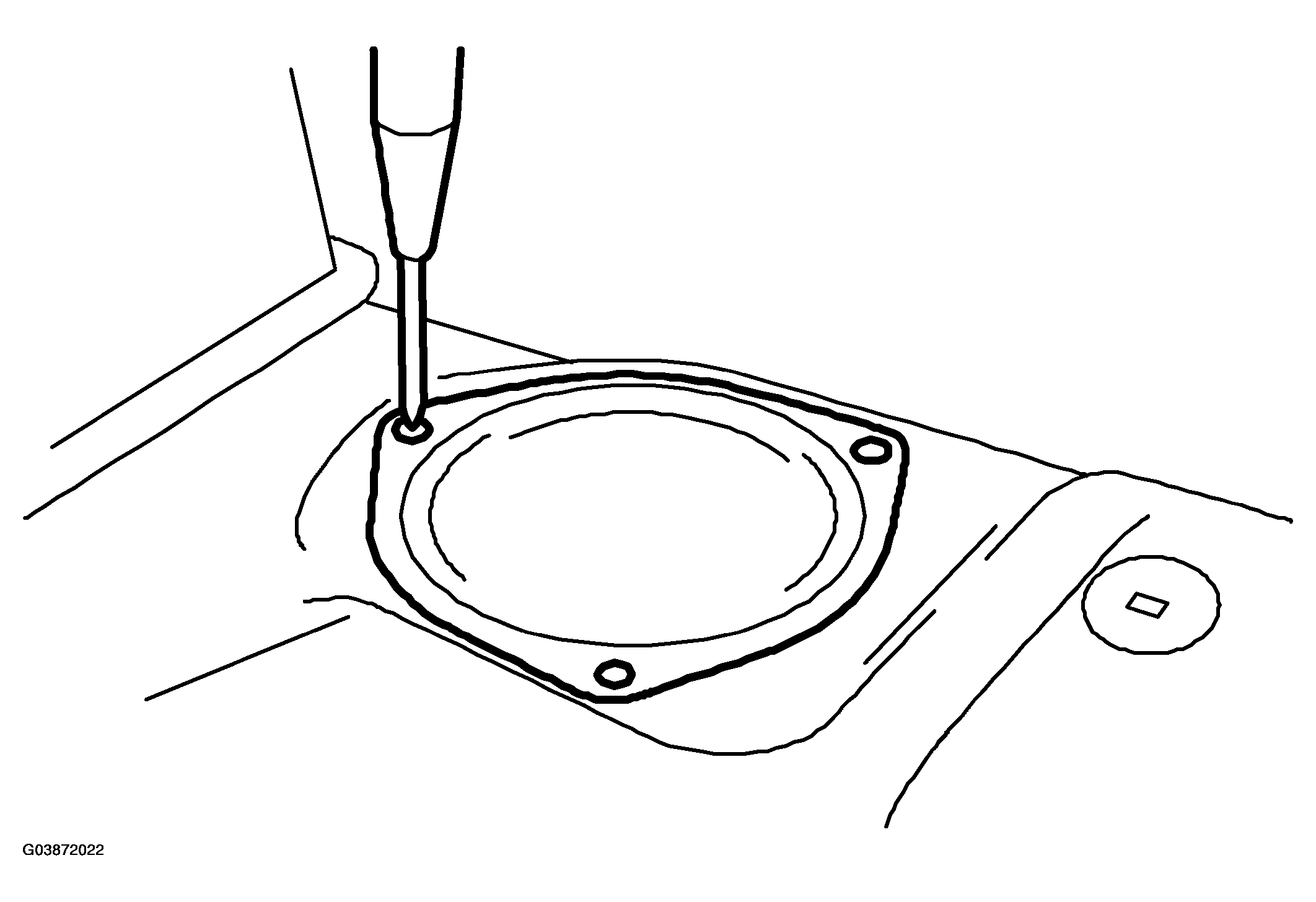

Fig 2: Removing Service Hole Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the connector from the fuel sub level sensor.

Disconnect the fuel jet pump hose.

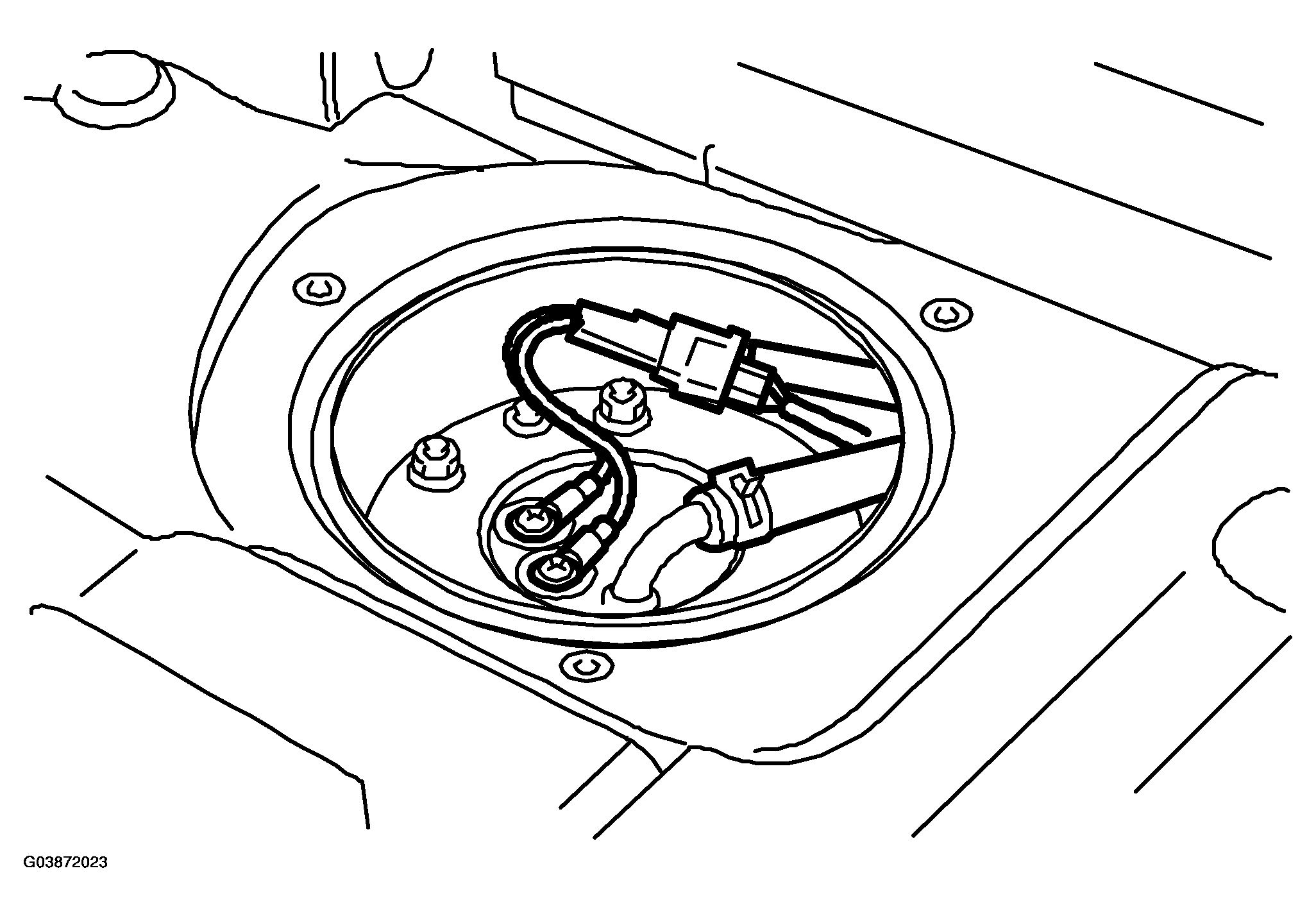

Fig 3: Disconnecting Connector From Fuel Sub Level Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the bolts which install the fuel sub level sensor on the fuel tank.

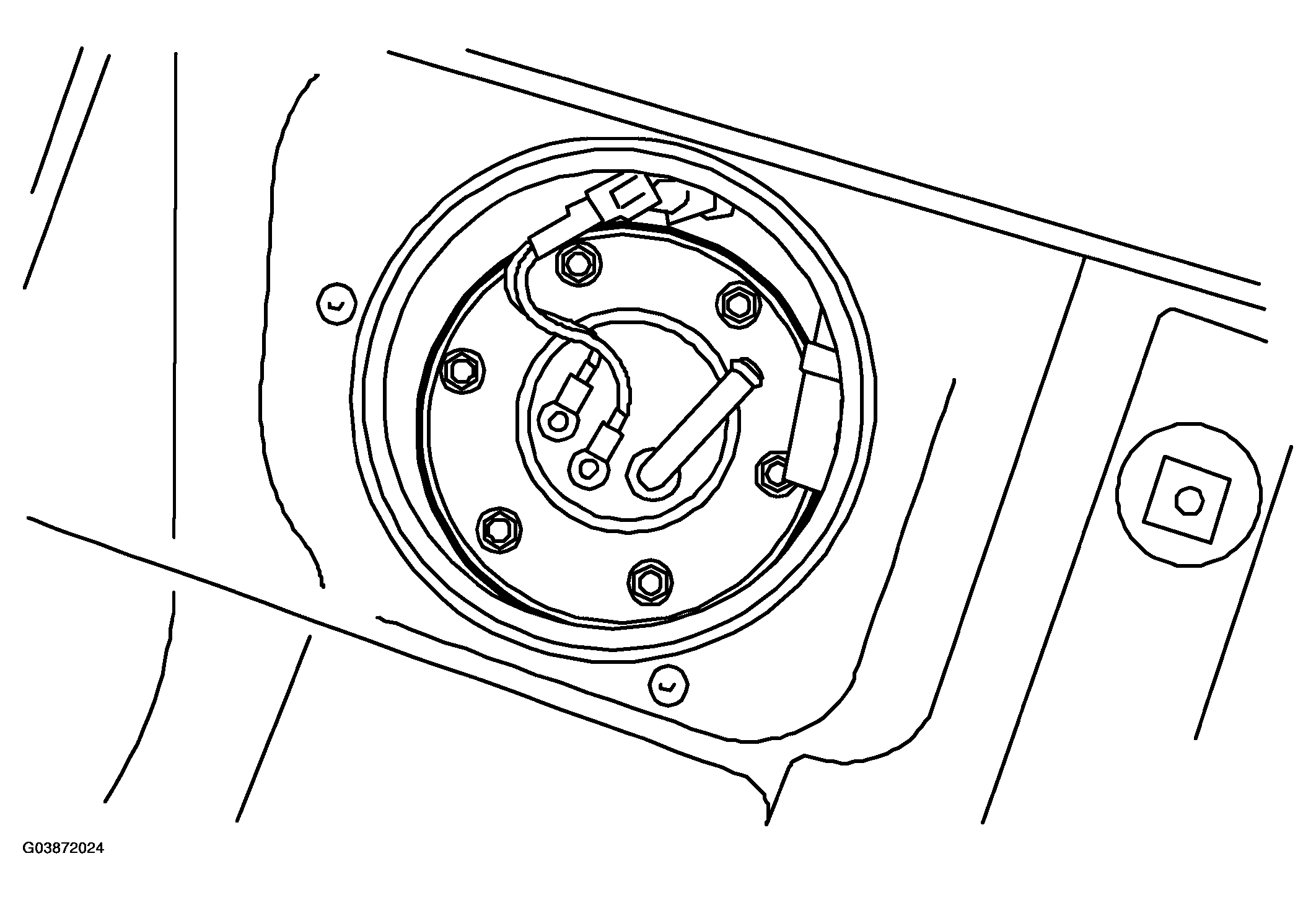

Fig 4: Removing Bolts Which Install Fuel Sub Level Sensor On Fuel Tank

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the fuel sub level sensor.

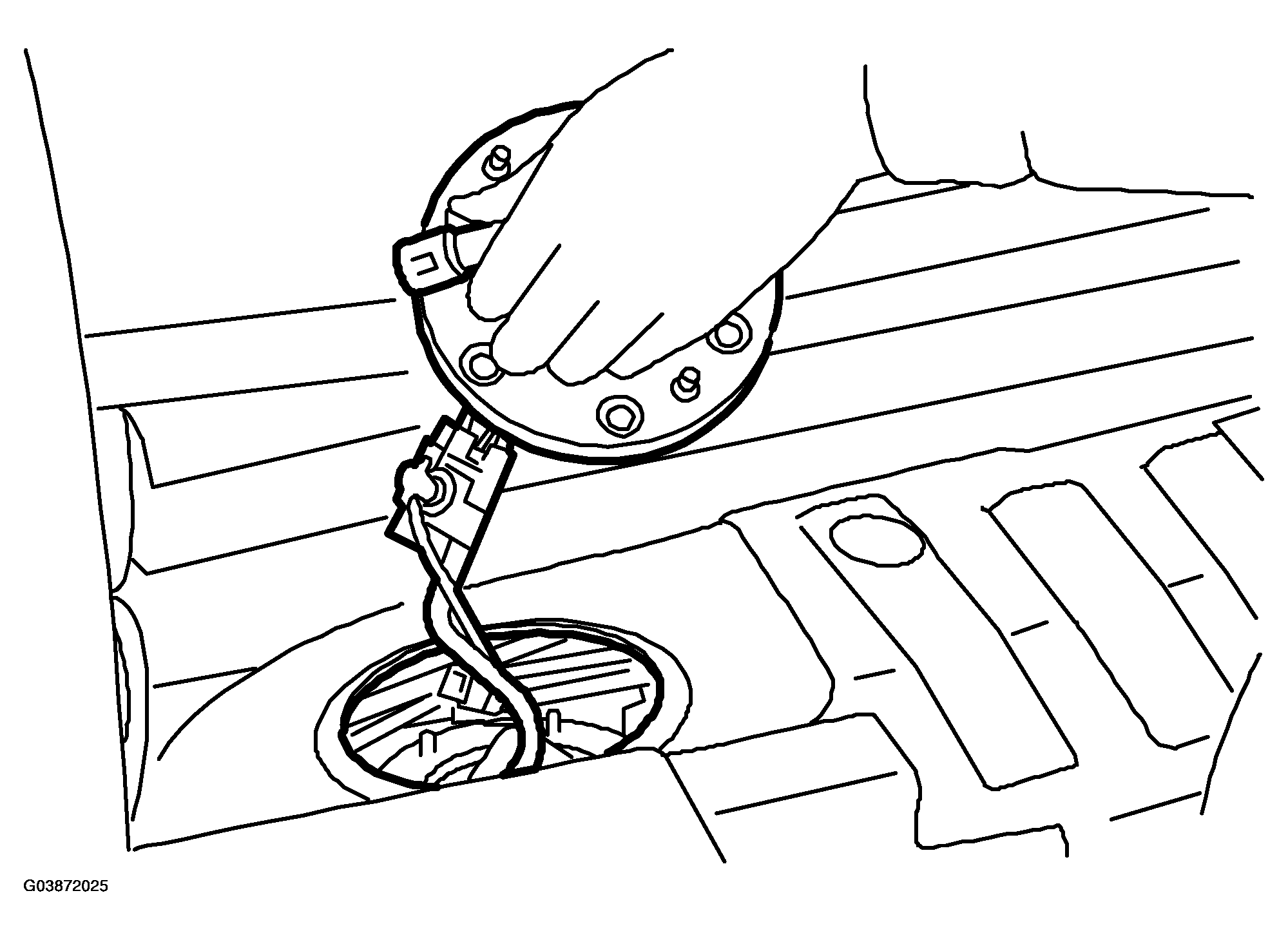

Fig 5: Removing Fuel Sub Level Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.
