Fuel Level Sensor: Adjustment/Replacement: Removal

WARNING:

NOTE: Fuel level sensor is built in fuel pump assembly.

Remove the fuel pump assembly.

Disconnect the connector from the fuel pump bracket.

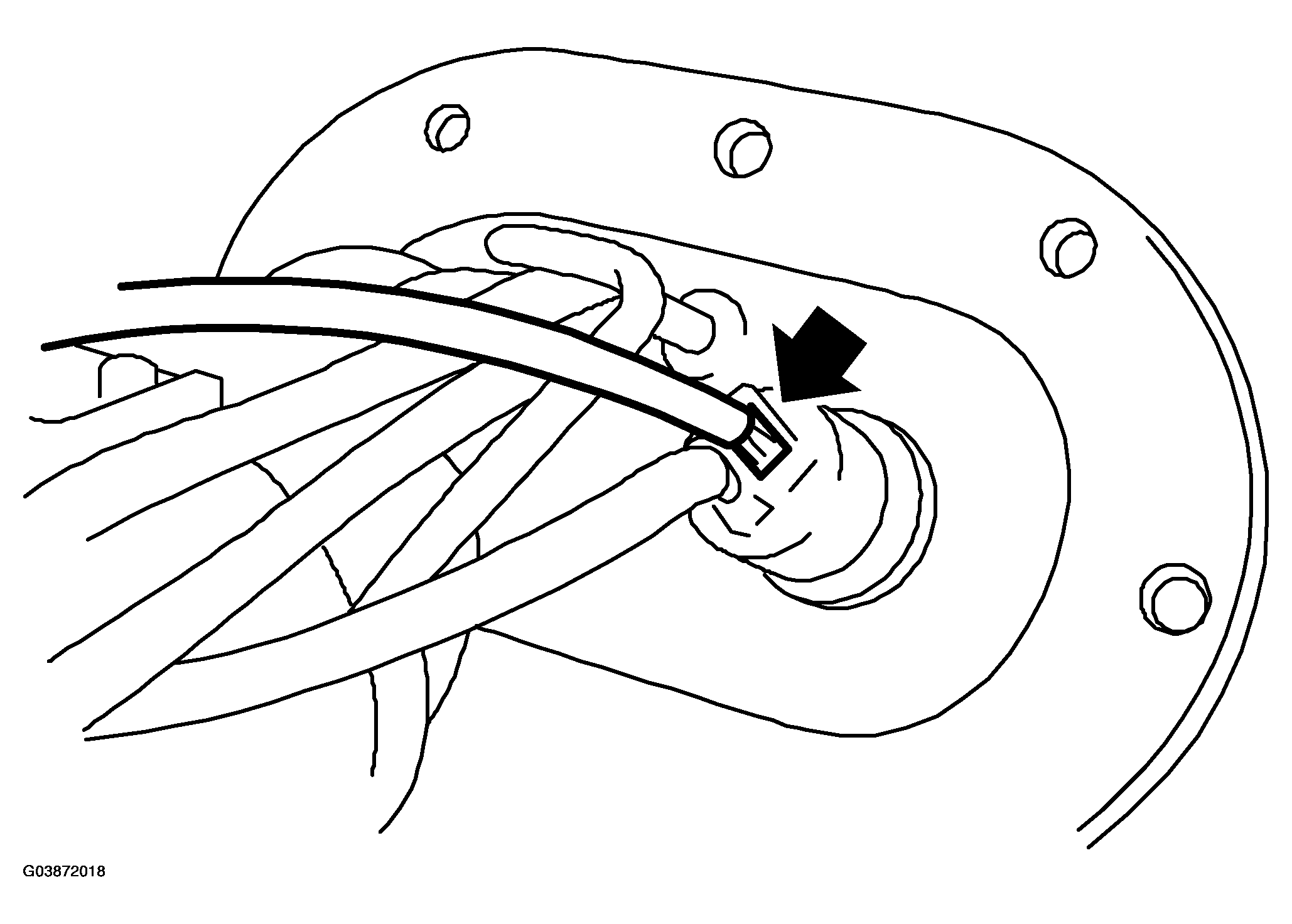

Fig 1: Disconnecting Connector From Fuel Pump Bracket

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the fuel temperature sensor.

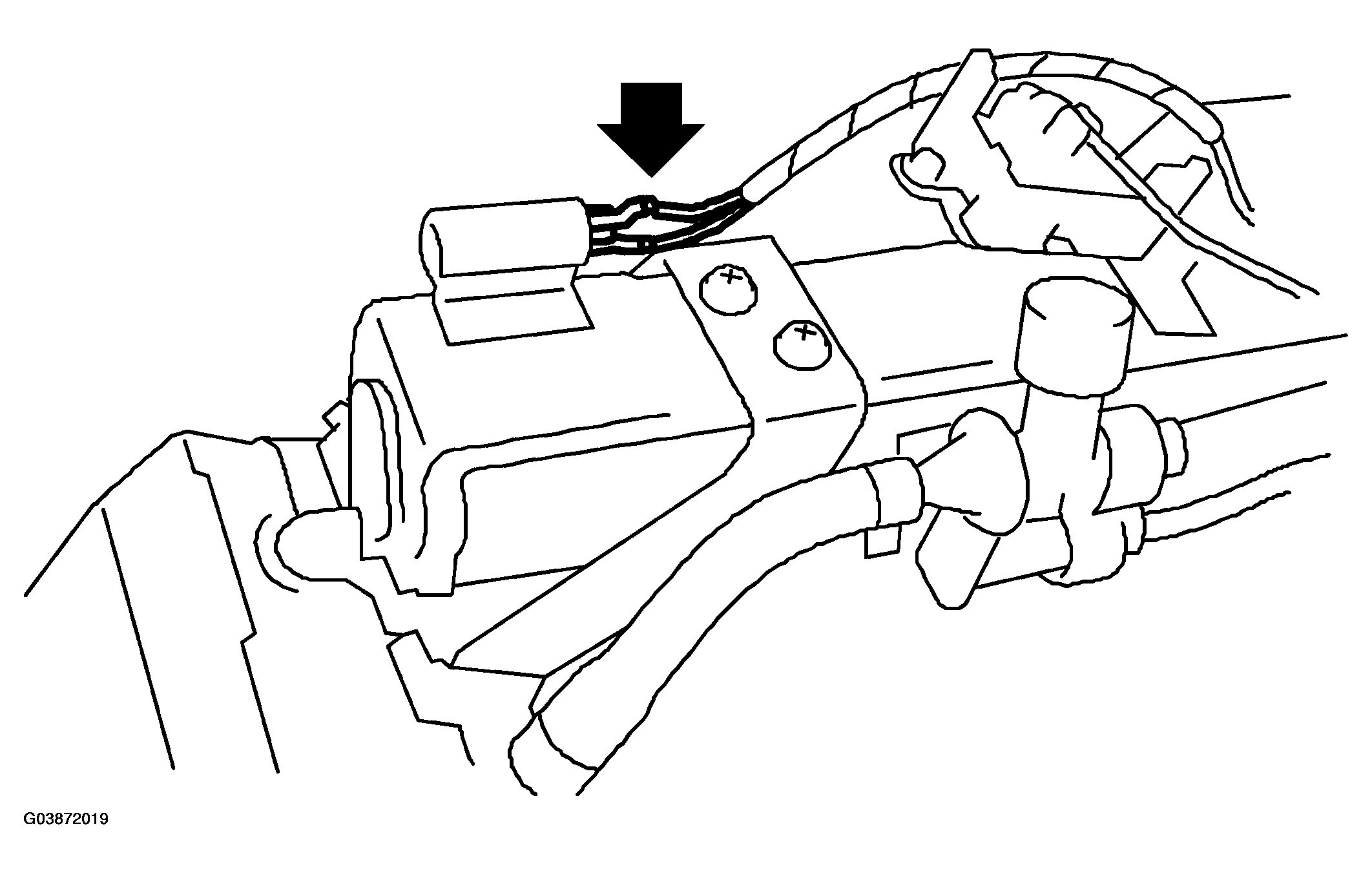

Fig 2: Removing Fuel Temperature Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the bolt which installs the fuel level sensor on mounting bracket.

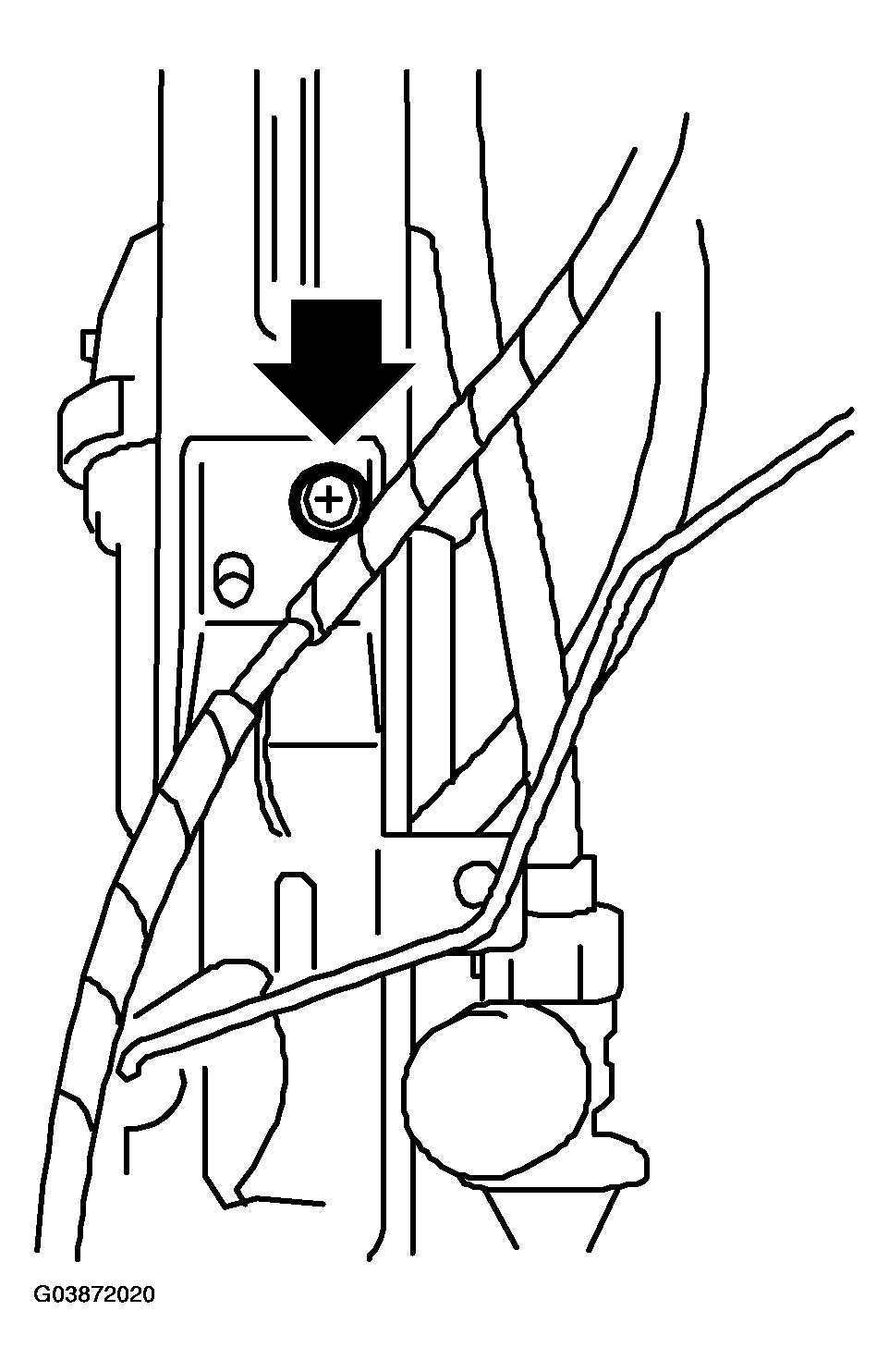

Fig 3: Removing Bolt Which Installs Fuel Level Sensor On Mounting Bracket

Courtesy of SAAB-SCANIA OF AMERICA, INC.
