Technical Data: Specifications: Notes

When replacing a rear differential assembly, select the correct one according to the following table.

NOTE: Using the different rear differential assembly causes the drive line and tires to "drag" or emit abnormal noise when AWD is selected.

TECHNICAL DATA

MODEL	Saab 9-2X 2.5i Linear		Saab 9-2X 2.0T Aero
	AT	MT	AT	MT
Rear differential type	T-type model without LSD		T-type model with LSD
LSD type	-		Viscous coupling
Identification	EH	EG	EJ	EF
Type of gear	Hypoid gear
Gear ratio (Number of gear teeth)	4.111 (37/9)	3.900 (39/10)	4.111 (37/9)	3.545 (39/11)
Oil capacity	0.8 liters (0.8 US qt, 0.7 Imp qt)
Rear differential gear oil	GL-5

Identification

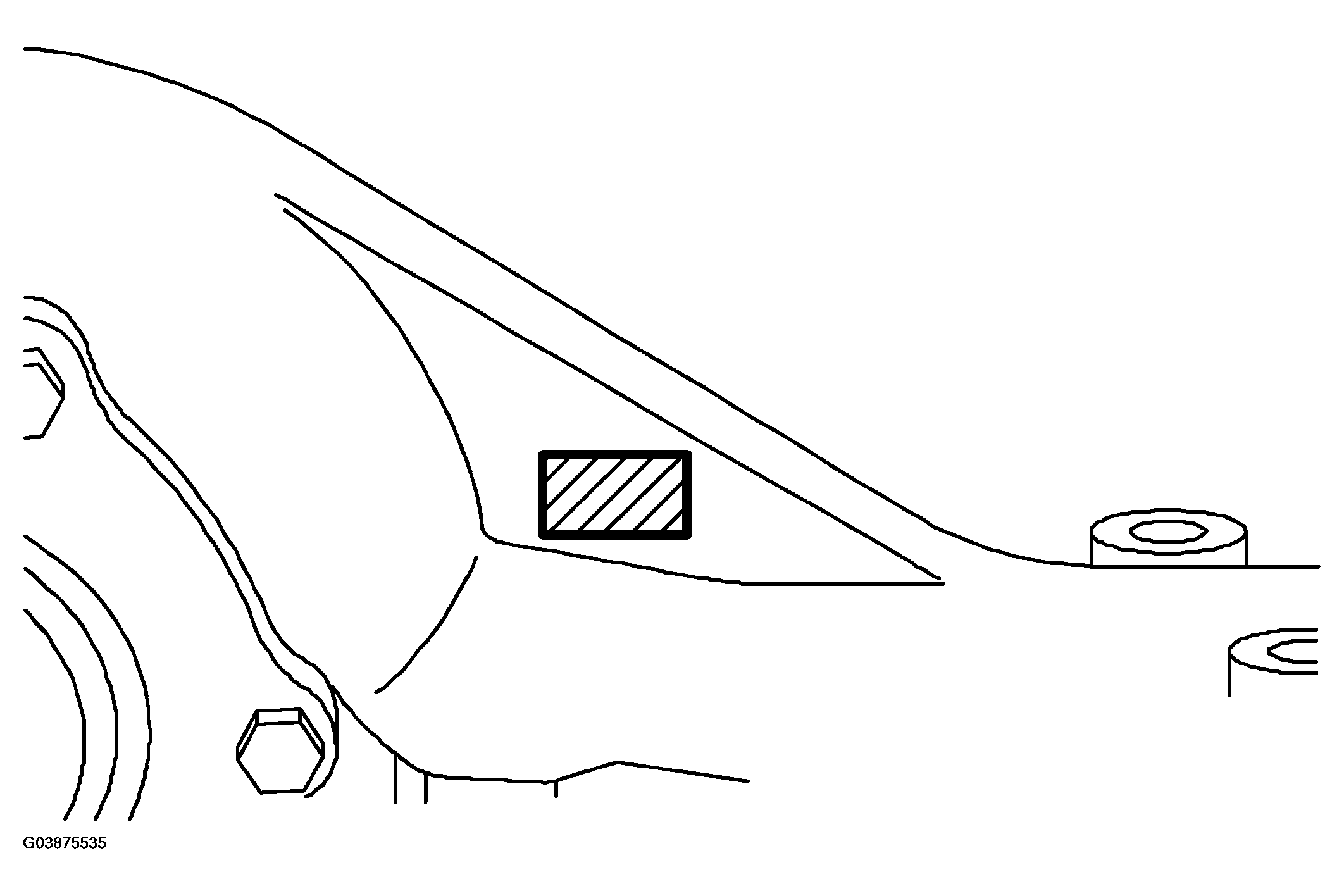

Fig 1: Identifying Identification Tag Location
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Rear differential gear oil

Recommended oil

IMPORTANT: Each oil manufacturer has its base oil and additives. Thus, do not mix two or more brands.

Fig 2: Recommended Oil Chart

Courtesy of SAAB-SCANIA OF AMERICA, INC.
