Combination Base Switch Assembly: Removal

Remove the driver's airbag module.

Remove the steering wheel.

Remove the steering column cover.

Remove the combination switch. and

Loosen the four screws and remove the roll connector.

Loosen the three screws.

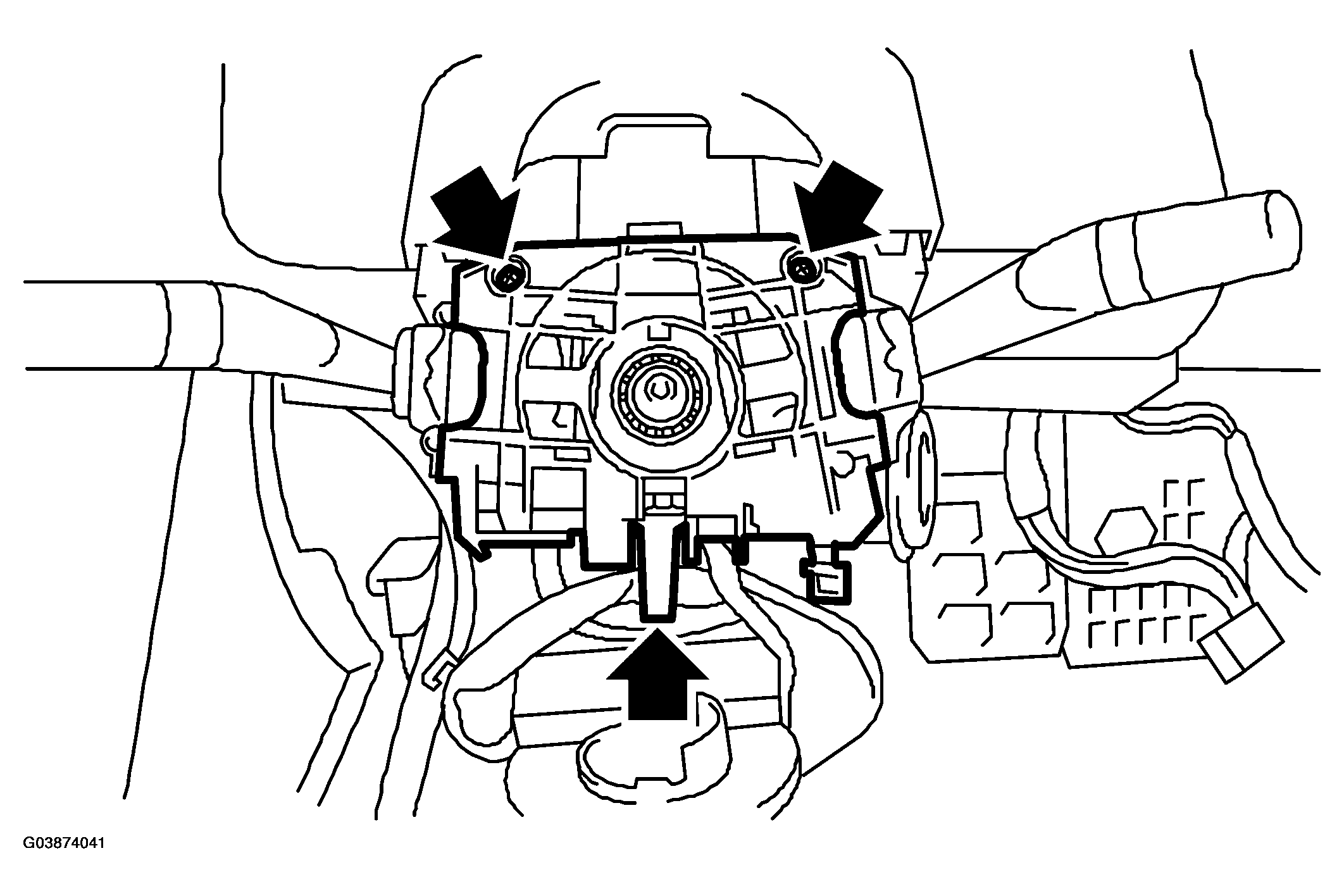

Fig 1: Locating Screws

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the connector and remove the combination base switch assembly.
