Special Tool

NOTE: To view special tools, see Fig 1 - Fig 43 .
SPECIAL TOOL

TOOL NUMBER DESCRIPTION REMARKS
ST-498575400 OIL PRESSURE GAUGE ASSY Used for measuring oil pressure.
ST-498897200 OIL PRESSURE GAUGE ADAPTER Used oil pump housing when measuring reverse clutch pressure and line pressure.
ST-498897700 OIL PRESSURE ADAPTER SET Used for measuring transfer clutch pressure.
ST-498545400 OIL FILTER WRENCH Used for removing and installing ATF filter.
ST-498277200 STOPPER SET Used for removing and installing automatic transmission assembly to engine.
ST41099AC000 ENGINE SUPPORT ASSY Used for supporting engine.
ST-398527700 PULLER ASSY
  • Used for removing extension case roller bearing.
  • Used for removing extension oil seal.
  • Used for removing front differential side retainer bearing outer race.
  • Used for removing front differential side retainer bearing outer ball race.
ST-498057300 INSTALLER Used for installing extension oil seal.
ST-498077000 REMOVER Used for removing differential taper roller bearing.
ST-499247400 INSTALLER
  • Used for installing transfer outer snap ring.
  • Used with SNAP RING OUTER GUIDE (32005128).
ST-499257300 SNAP RING OUTER GUIDE
  • Used for installing transfer outer snap ring.
  • Used with INSTALLER (32005127).
ST18630AA010 WRENCH ASSY Used for removing and installing differential side retainer.
ST-398437700 DRIFT
  • Used for installing converter case oil seal.
  • Used for installing taper roller bearing of front differential.
ST-398673600 COMPRESSOR Used for removing and installing clutch spring.
ST-498255400 PLATE Used for measuring backlash of hypoid gear.
ST-399893600 PLIERS Used for removing and installing clutch spring.
ST-498247001 MAGNET BASE
  • Used for measuring gear backlash.
  • Used with DIAL GAUGE (32005095).
ST-498247100 DIAL GAUGE
  • Used for measuring gear backlash.
  • Used with MAGNET BASE (32005094).
ST-498517000 REPLACER Used for removing front roller bearing.
ST-398623600 SEAT Used for removing spring of transfer clutch piston.
ST-499267300 STOPPER PIN Used for installing inhibitor switch.
ST-499787700 WRENCH Used for removing and installing drive pinion lock nut.
ST-499787500 ADAPTER Used for removing and installing drive pinion lock nut.
ST-398643600 GAUGE Used for measuring total end play, extension end play and drive pinion height.
ST-498627100 SEAT Used for holding low clutch piston retainer spring when installing snap ring.
ST-499577000 GAUGE
  • Used for measuring the transmission case mating surface to the reduction gear end surface.
  • For MPT model.
ST-398744300 GAUGE
  • Use for measuring contact face between multi-plate clutch end and transmission.
  • For VTD model.
ST-499737000 PULLER Used for removing reduction driven gear assembly.
ST-499737100 PULLER SET Used for removing reduction drive gear assembly.
ST-498077600 REMOVER Used for removing ball bearing.
ST-498937110 HOLDER Used for removing and installing drive pinion lock nut.
ST-498677100 COMPRESSOR Used for installing 2 -4 brake snap ring.
ST-498437000 HIGH CLUTCH PISTON GUIDE Used for installing high clutch piston.
ST-498437100 LOW CLUTCH PISTON GUIDE Used for installing low clutch piston.
ST-899580100 INSTALLER Used for press-fitting the ball bearing for transfer clutch.
ST18675AA000 DIFFERENTIAL SIDE OIL SEAL INSTALLER Used for installing differential side retainer oil seal.
ST28399SA010 OIL SEAL PROTECTOR Used for installing front drive shaft.
ST-398497701 INSTALLER Used for installing needle bearing.
ST-899524100 PULLER SET Used for bolt only.
  • Used with PULLER SET (32005145).
  • Used with PULLER (32005144).

  1. Puller
  2. Cap
ST-398663600 PLIERS Used for removing and installing snap ring.
ST-499977100 CRANK PULLEY WRENCH Used for stopping rotation of crank pulley when loosening and tightening crank pulley bolts. (Saab 9 -2X 2.5i Linear)
ST-499977400 CRANK PULLEY WRENCH Used for stopping rotation of crank pulley when loosening and tightening crank pulley bolt. (Saab 9 -2X 2.0T Aero)
ST22771AA030 Vehicle Diagnostic Interface Troubleshooting for electrical systems.
Fig 1: ST-498575400
G03874605Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 2: ST-498897200
G03874606Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 3: ST-498897700
G03874607Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 4: ST-498545400
G03874608Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 5: ST-498277200
G03874609Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 6: ST41099AC000
G03874610Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 7: ST-398527700
G03874611Courtesy of SAAB-SCANIA OF AMERICA, INC.

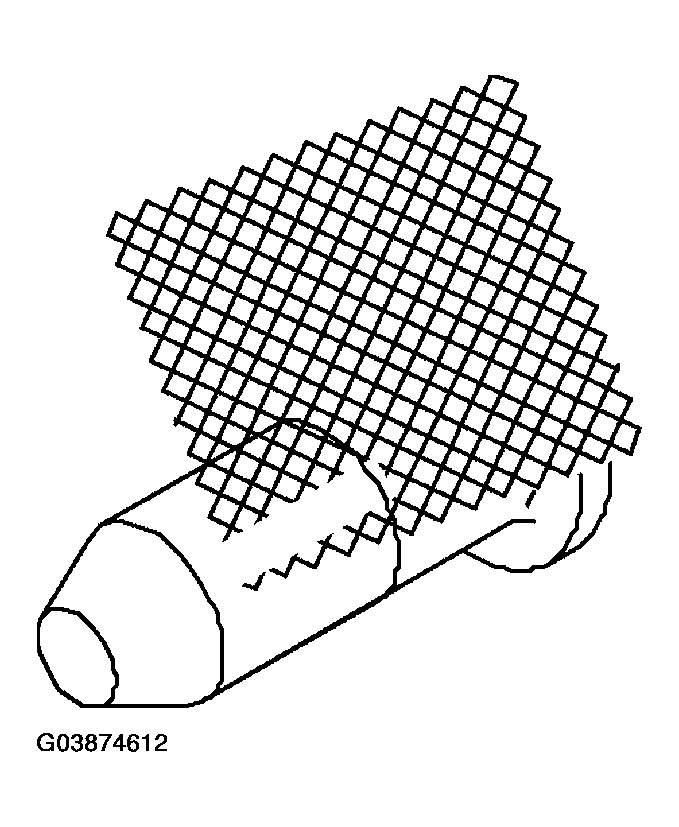

Fig 8: ST-498057300
G03874612Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 9: ST-498077000
G03874613Courtesy of SAAB-SCANIA OF AMERICA, INC.

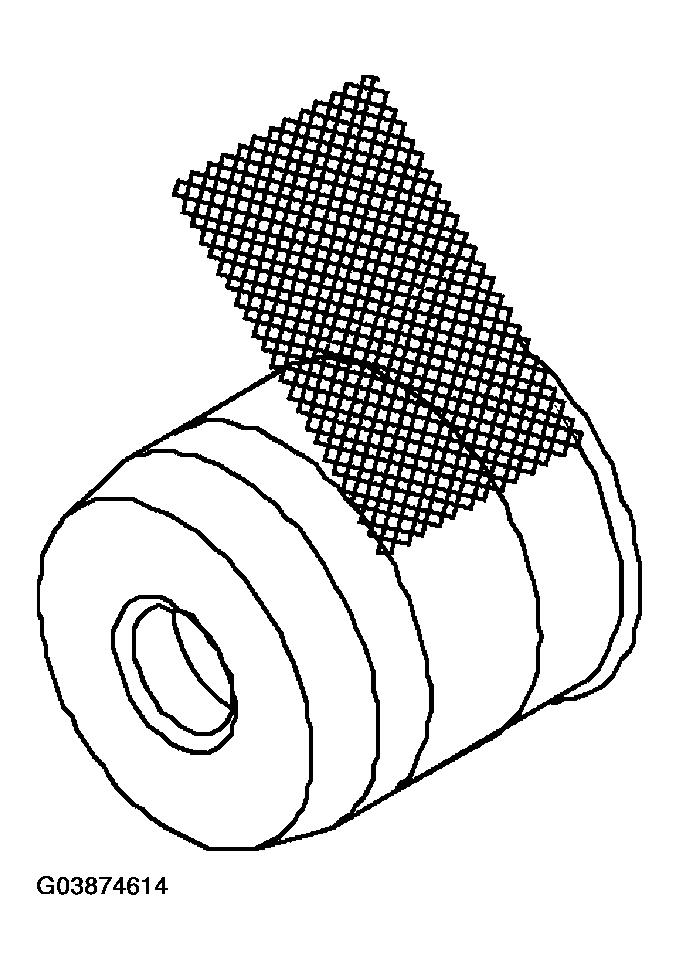

Fig 10: ST-499247400
G03874614Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 11: ST-499257300
G03874615Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 12: ST-18630AA010
G03874616Courtesy of SAAB-SCANIA OF AMERICA, INC.

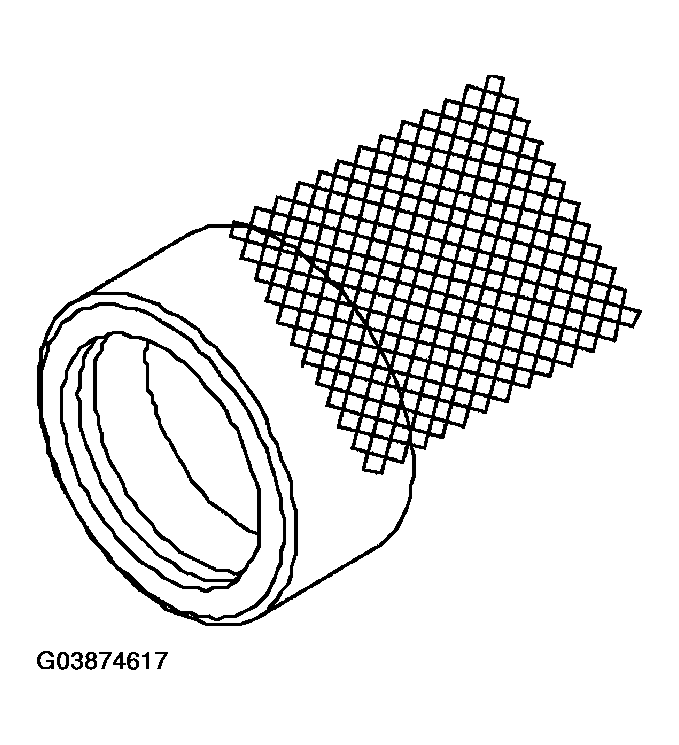

Fig 13: ST-398437700
G03874617Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 14: ST-398673600
G03874618Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 15: ST-498255400
G03874619Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 16: ST-399893600
G03874620Courtesy of SAAB-SCANIA OF AMERICA, INC.

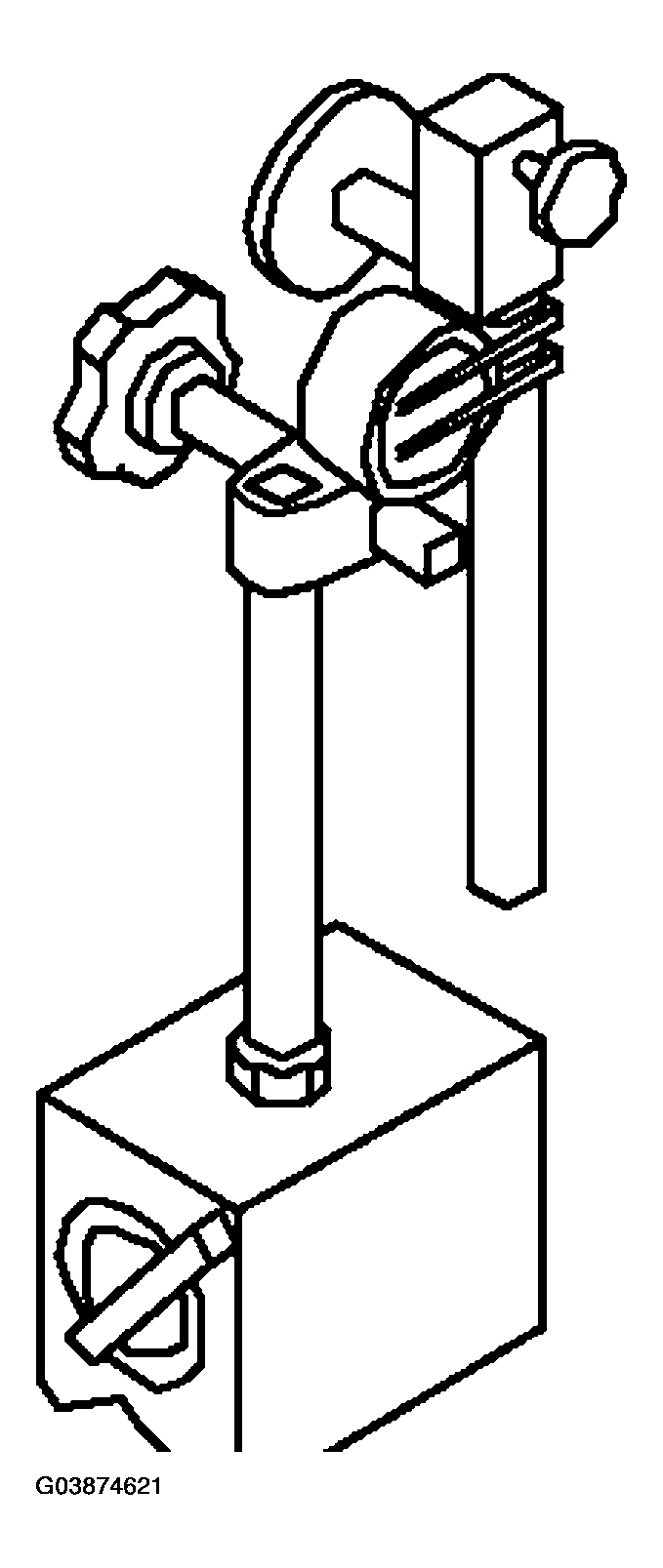

Fig 17: ST-498247001
G03874621Courtesy of SAAB-SCANIA OF AMERICA, INC.

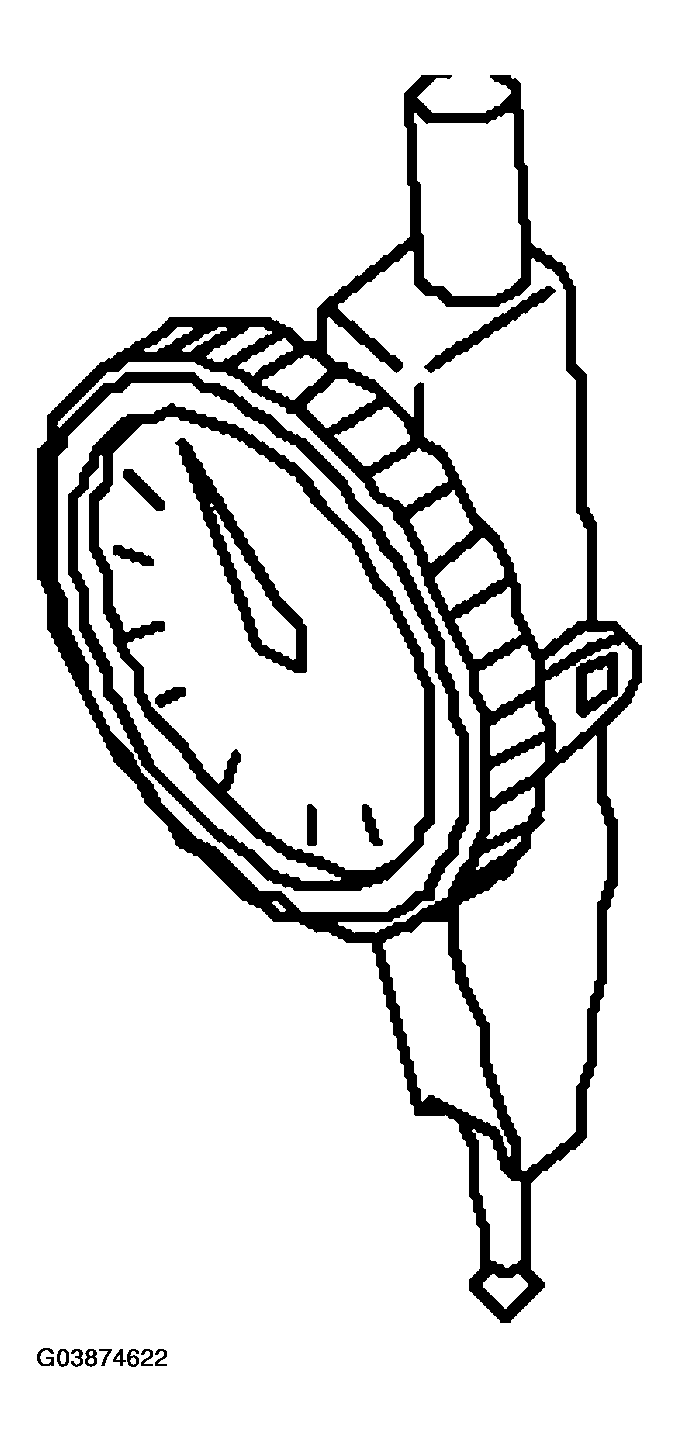

Fig 18: ST-498247100
G03874622Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 19: ST-498517000
G03874623Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 20: ST-398623600
G03874624Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 21: ST-499267300
G03874625Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 22: ST-499787700
G03874626Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 23: ST-499787500
G03874627Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 24: ST-398643600
G03874628Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 25: ST-498627100
G03874629Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 26: ST-499577000
G03874630Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 27: ST-398744300
G03874631Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 28: ST-499737000
G03874632Courtesy of SAAB-SCANIA OF AMERICA, INC.

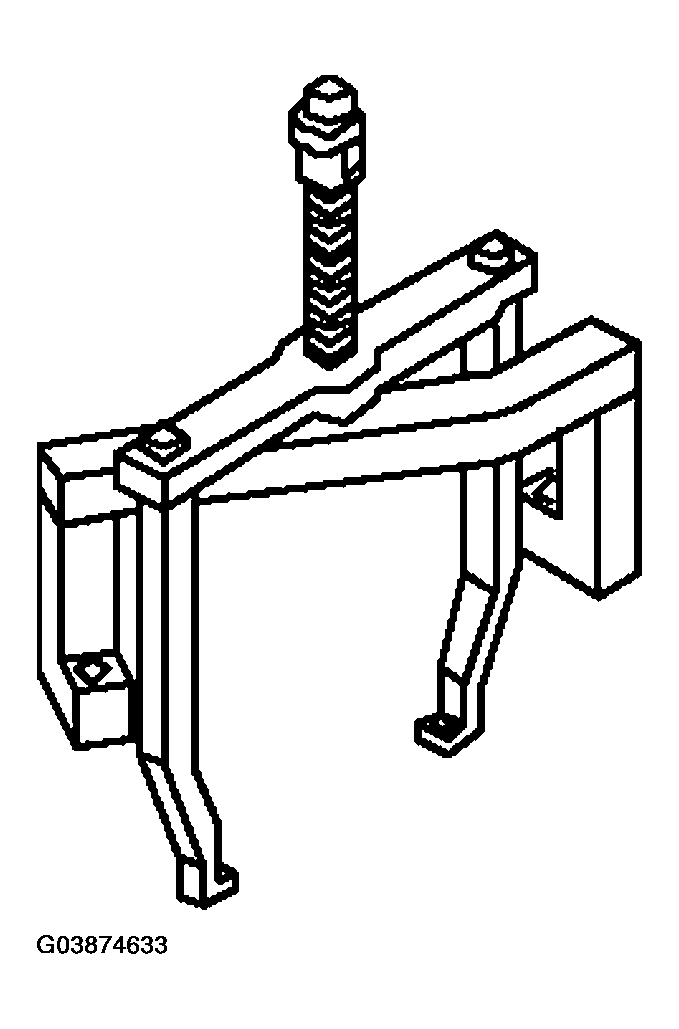

Fig 29: ST-499737100
G03874633Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 30: ST-498077600
G03874634Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 31: ST-498937110
G03874635Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 32: ST-498677100
G03874636Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 33: ST-498437000
G03874637Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 34: ST-498437100
G03874638Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 35: ST-899580100
G03874639Courtesy of SAAB-SCANIA OF AMERICA, INC.

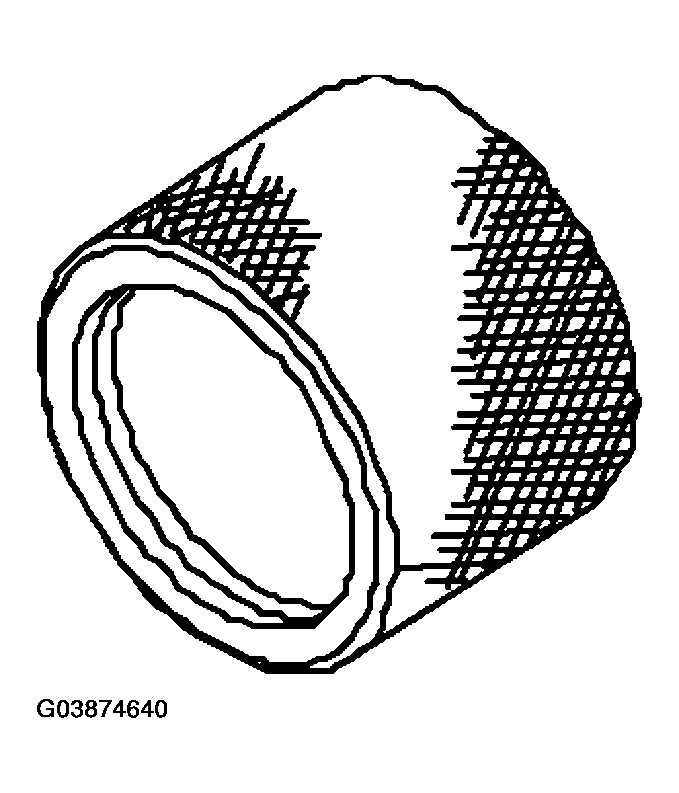

Fig 36: ST18675AA000
G03874640Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 37: ST28399SA010
G03874641Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 38: ST-398497701
G03874642Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 39: ST-899524100
G03874643Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 40: ST-398663600
G03874644Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 41: ST-499977100
G03874645Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 42: ST-499977400
G03874646Courtesy of SAAB-SCANIA OF AMERICA, INC.

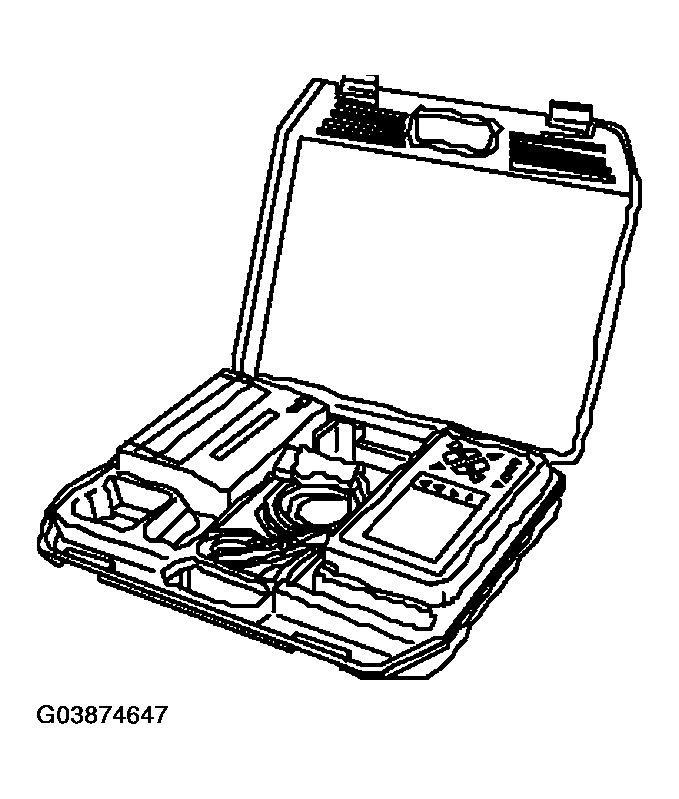

Fig 43: ST22771AA030
G03874647Courtesy of SAAB-SCANIA OF AMERICA, INC.
