Reduction Gear With VTD

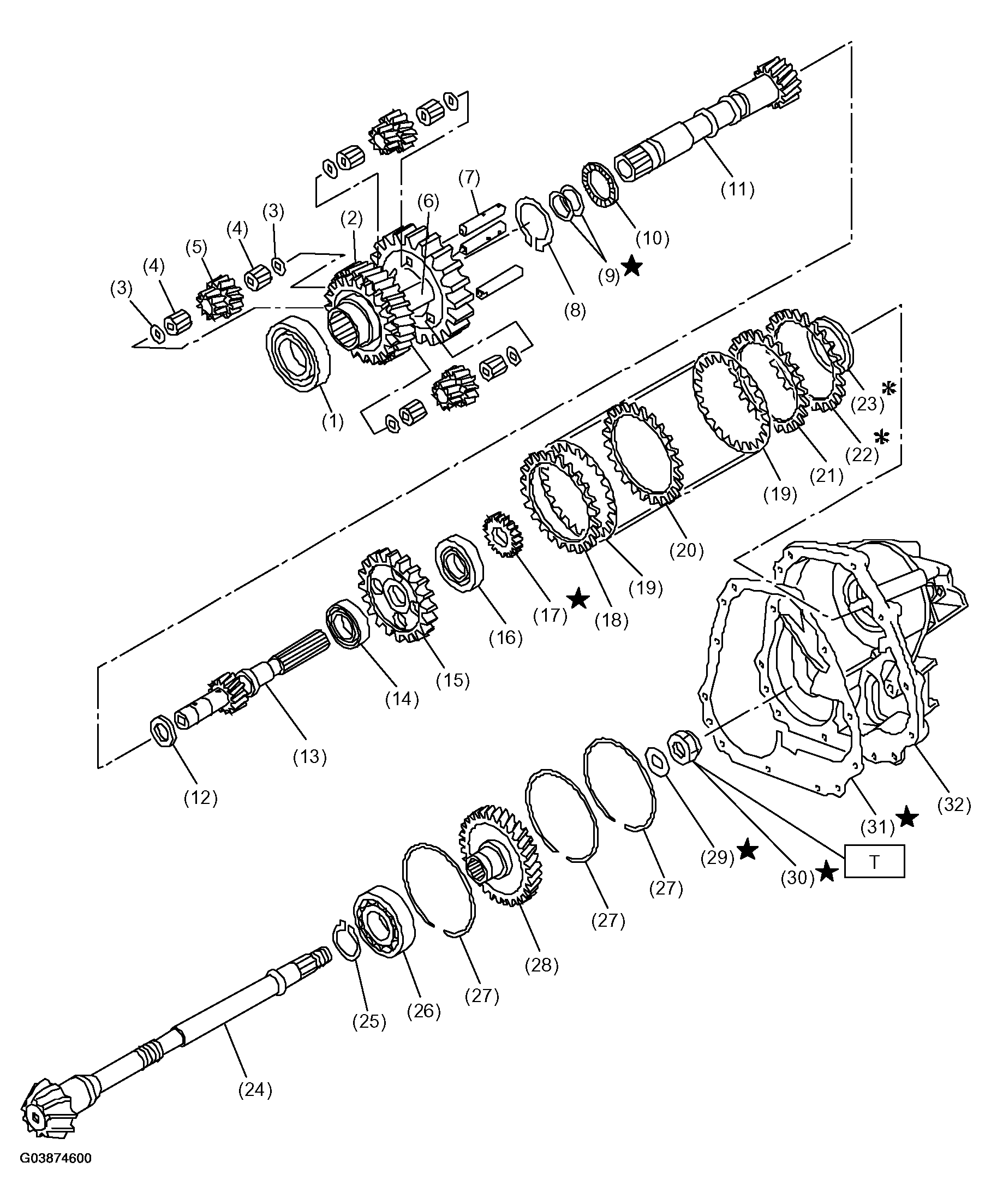

Fig 1: Identifying Components Reduction Gear With VTD

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Ball bearing
2. Reduction drive gear
3. Washer
4. Needle bearing
5. Pinion gear
6. Carrier
7. Planetary pinion shaft
8. Snap ring
9. Seal ring
10. Thrust needle bearing
11. Intermediate shaft
12. Thrust washer
13. Rear drive shaft
14. Ball bearing
15. Multi-plate clutch (LSD) hub
16. Ball bearing
17. Revolution gear
18. Driven plate (Thick)
19. Driven plate
20. Driven plate (Thin)
21. Driven plate (Thick)
22. Retaining plate
23. Rear drive shaft shim
24. Drive pinion shaft
25. Snap ring
26. Ball bearing
27. Snap ring
28. Reduction driven gear
29. Lock washer
30. Lock nut
31. Gasket
32. Extension case

Tightening torque: Nm (kgfm, ft-lb)

T: 100 (10.2, 73.8)
