Pitching Stopper

Disconnect the ground cable from battery.

Remove the air intake chamber. (Saab 9-2X 2.5i Linear)

Remove intercooler. (Saab 9-2X 2.0T Aero)

Remove the pitching stopper.

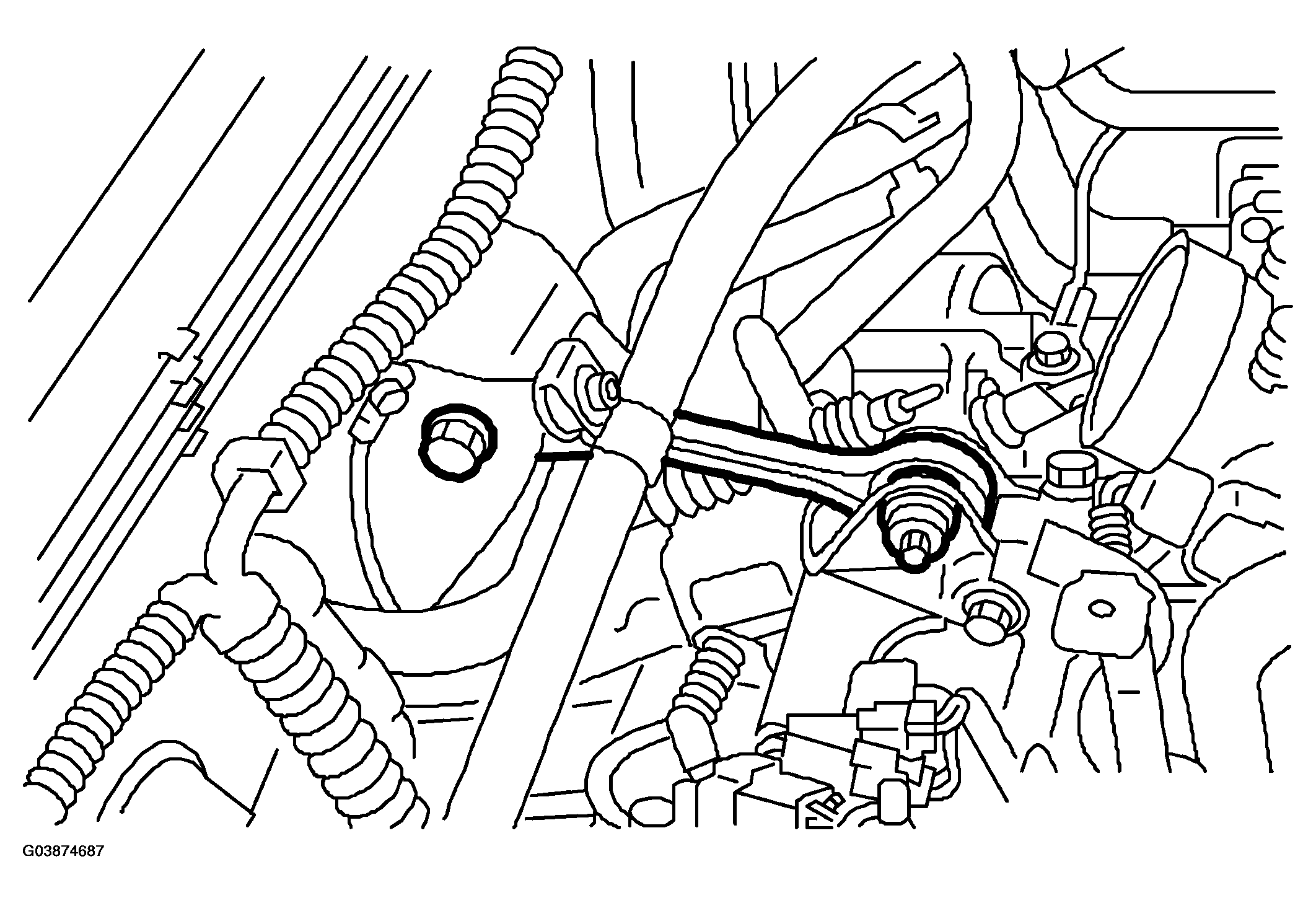

Fig 1: Removing Pitching Stopper
G03874687Courtesy of SAAB-SCANIA OF AMERICA, INC.
