Transfer Clutch: Inspection
- Check the drive plate facing for wear and damage.
- Check the snap ring for wear, return spring for permanent set and breakage, and return spring for deformation.
- Check the D-ring for damage.
- Measure the extension end play and adjust it to within specifications.

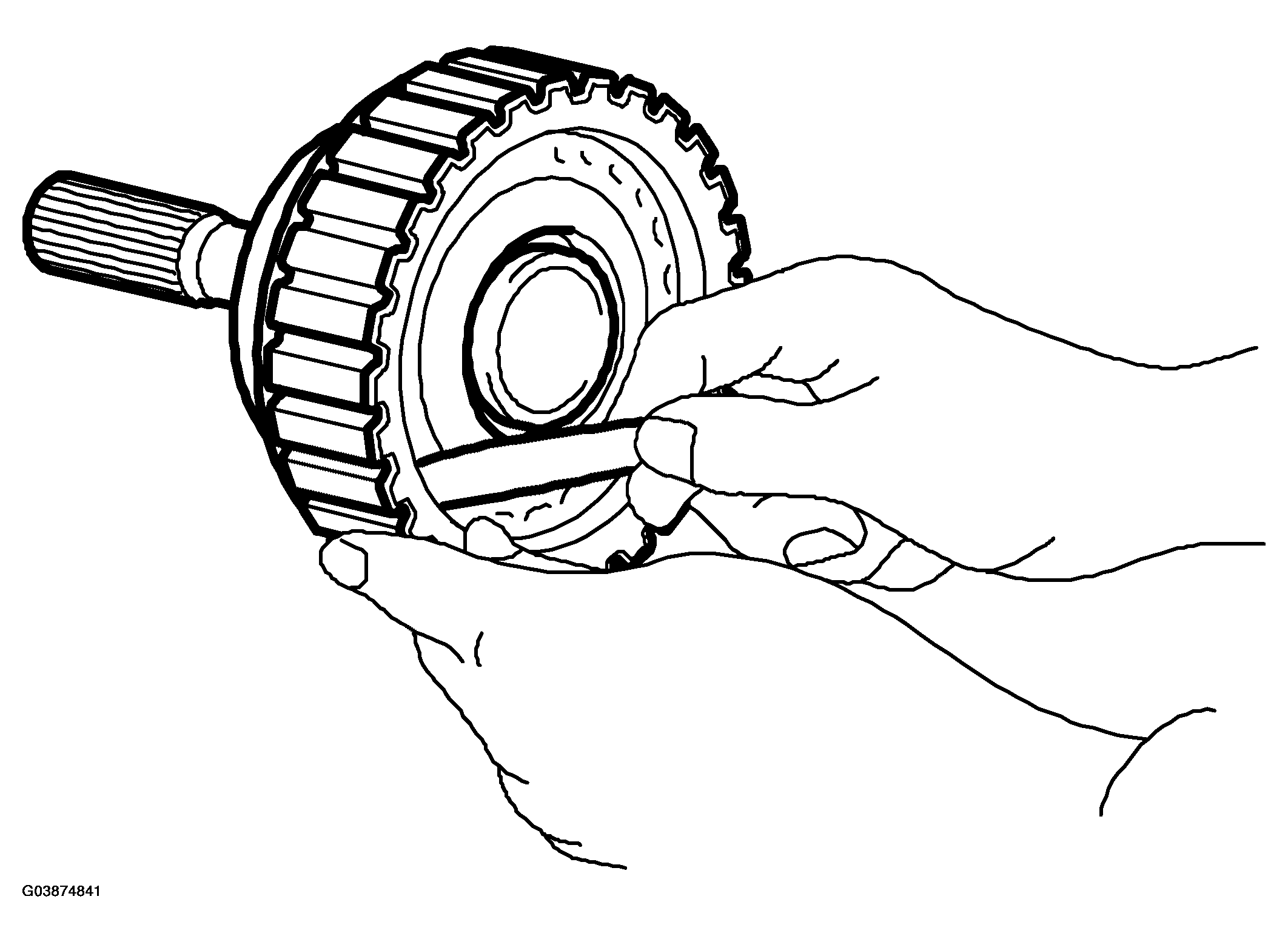

Inspect clearance between snap ring and pressure plate.
Before measuring clearance, place the same thickness of shim on both sides to prevent pressure plate from tilting.
If the clearance is not within specification, adjust it by selecting a suitable pressure plate on the transfer clutch piston side. If it exceeds the service limit, replace the drive plate with new one and adjust it within the specification by selecting the pressure plate.
Initial standard: 0.7 - 1.1 mm (0.028 - 0.043 in)
Limit thickness: 1.6 mm (0.063 in)
| Pressure plates | |
|---|---|
| Part No. | Thickness mm (in) |
| 32006541 | 3.3 (0.130) |
| 32006542 | 3.7 (0.146) |
| 32006543 | 4.1 (0.161) |
| 32006544 | 4.5 (0.177) |
Check if the tight corner braking does not occur when the vehicle is started with steering wheel held at fully turned position. If tight corner braking occurs, perform the following procedures.
With the steering wheel held at fully turned position, drive the vehicle in "D" range and with vehicle speed at approx. 5 km/h (3 MPH) in both clockwise and counterclockwise directions for approx. ten times each, while repeating acceleration and braking intermittently.
If the tight corner braking still persists, drive the vehicle again in a circle for several laps.
