Reduction Drive Gear: Disassembly

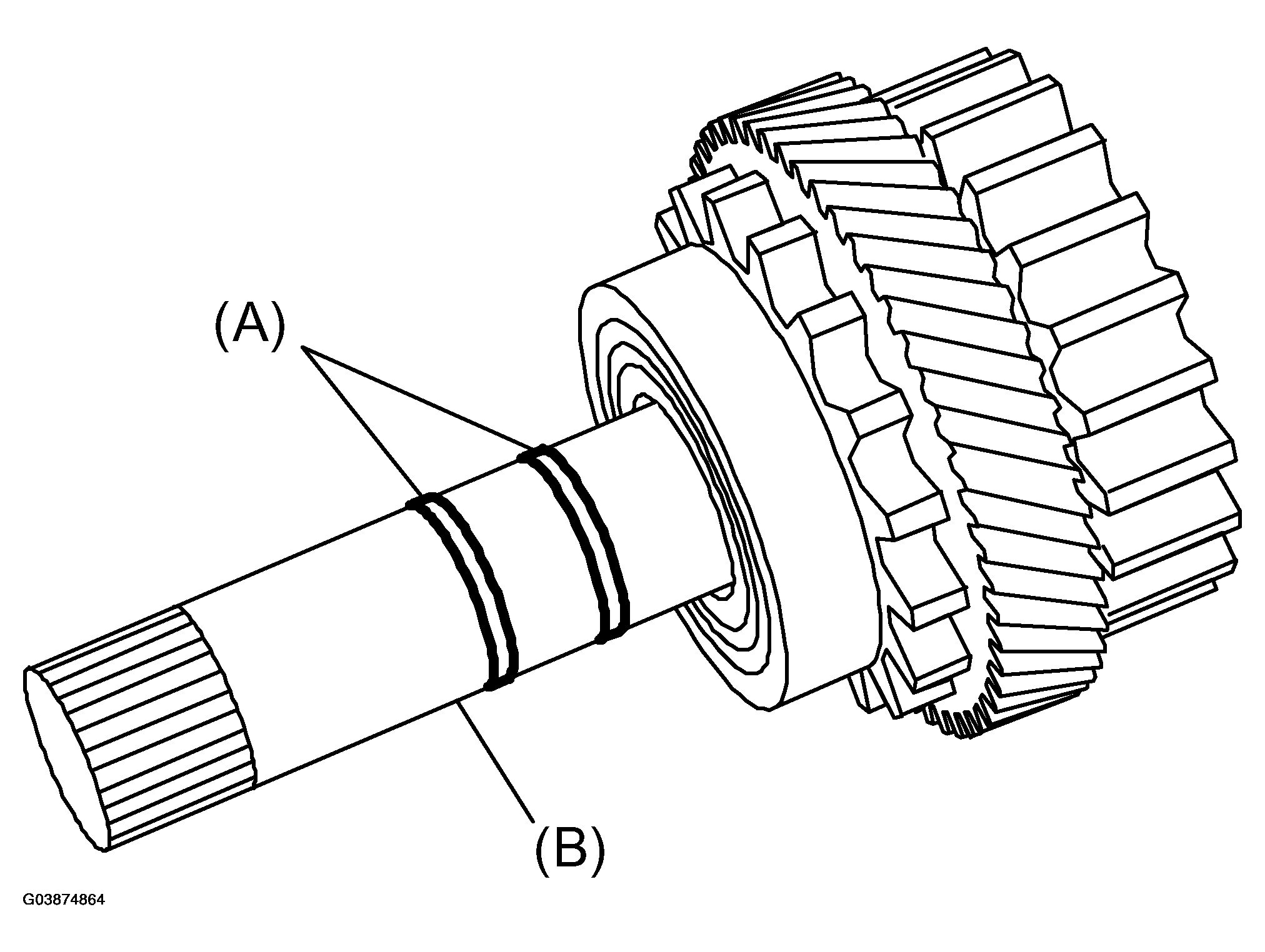

Take out the seal rings.

Fig 1: Removing Seal Ring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Seal rings
2. Reduction drive shaft

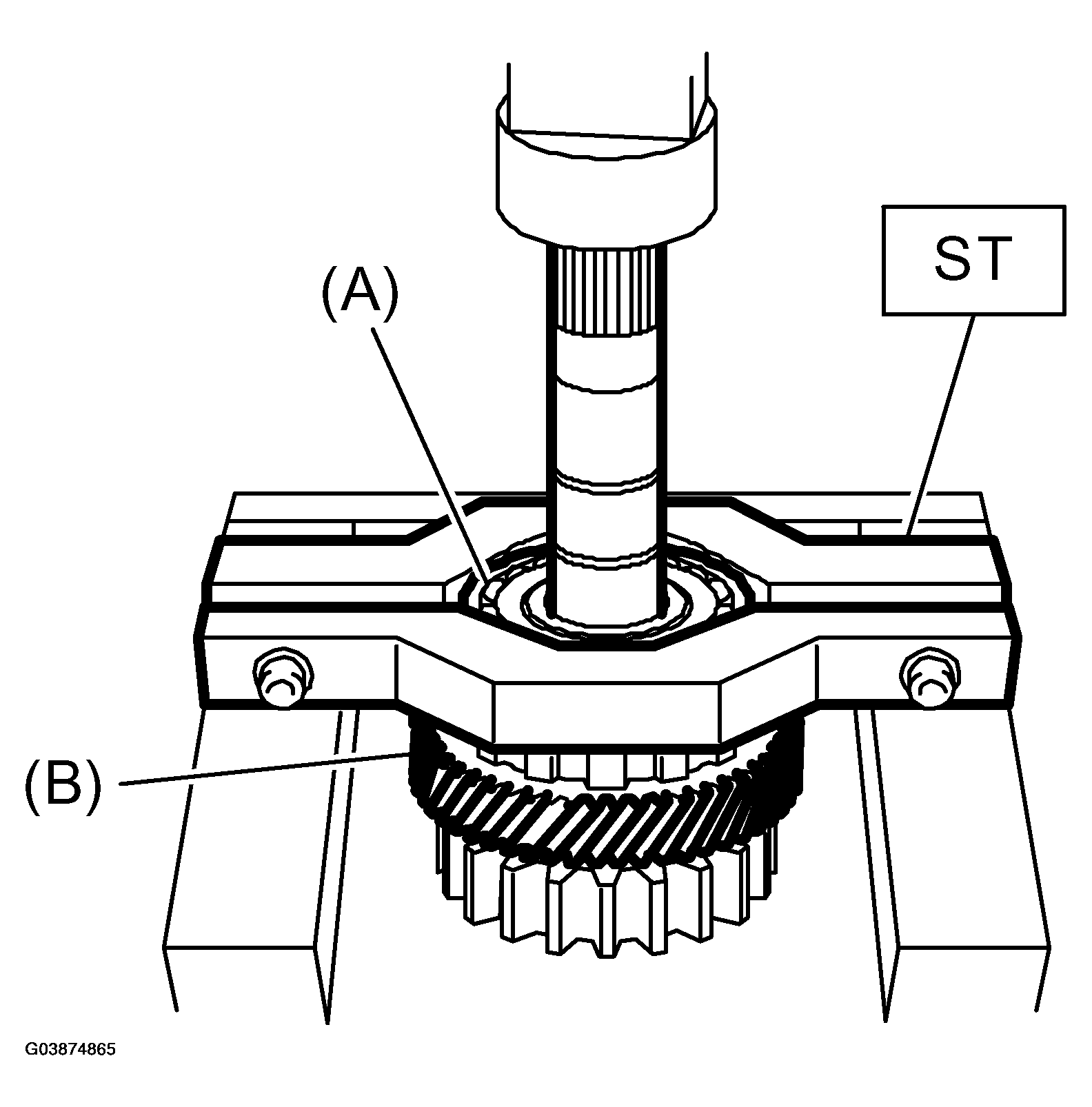

Using ST, remove the ball bearing.

ST 32005091 REMOVER

Fig 2: Removing Ball Bearing Using ST 32005091 Remover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Ball bearing
2. Reduction drive gear

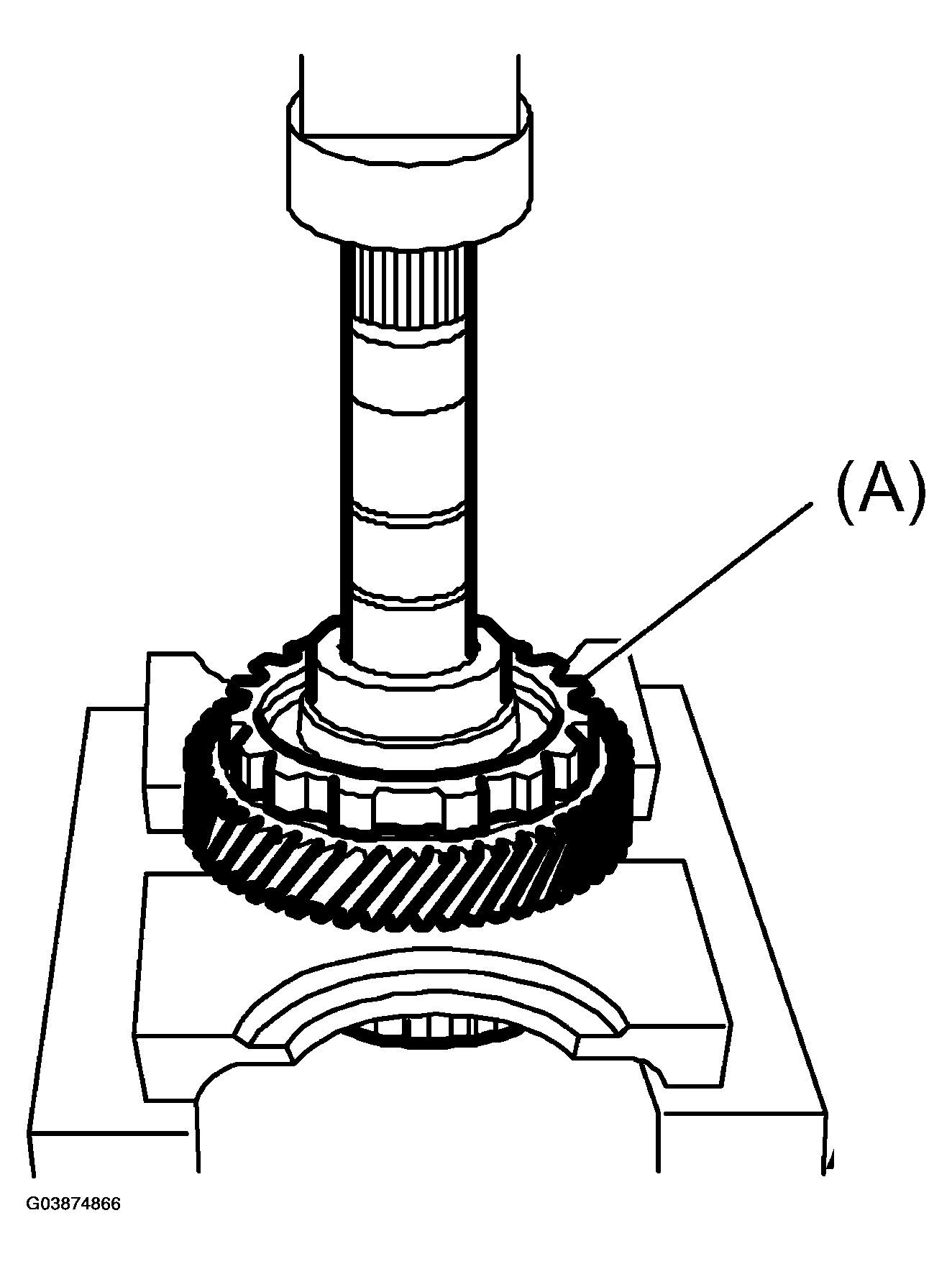

Using a press, remove the reduction drive gear.

Fig 3: Removing Reduction Drive Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Reduction drive gear
