Rear Drive Shaft: Assembly
Assemble in the reverse order of disassembly.
NOTE:
- Use a new revolution gear and ball bearings.

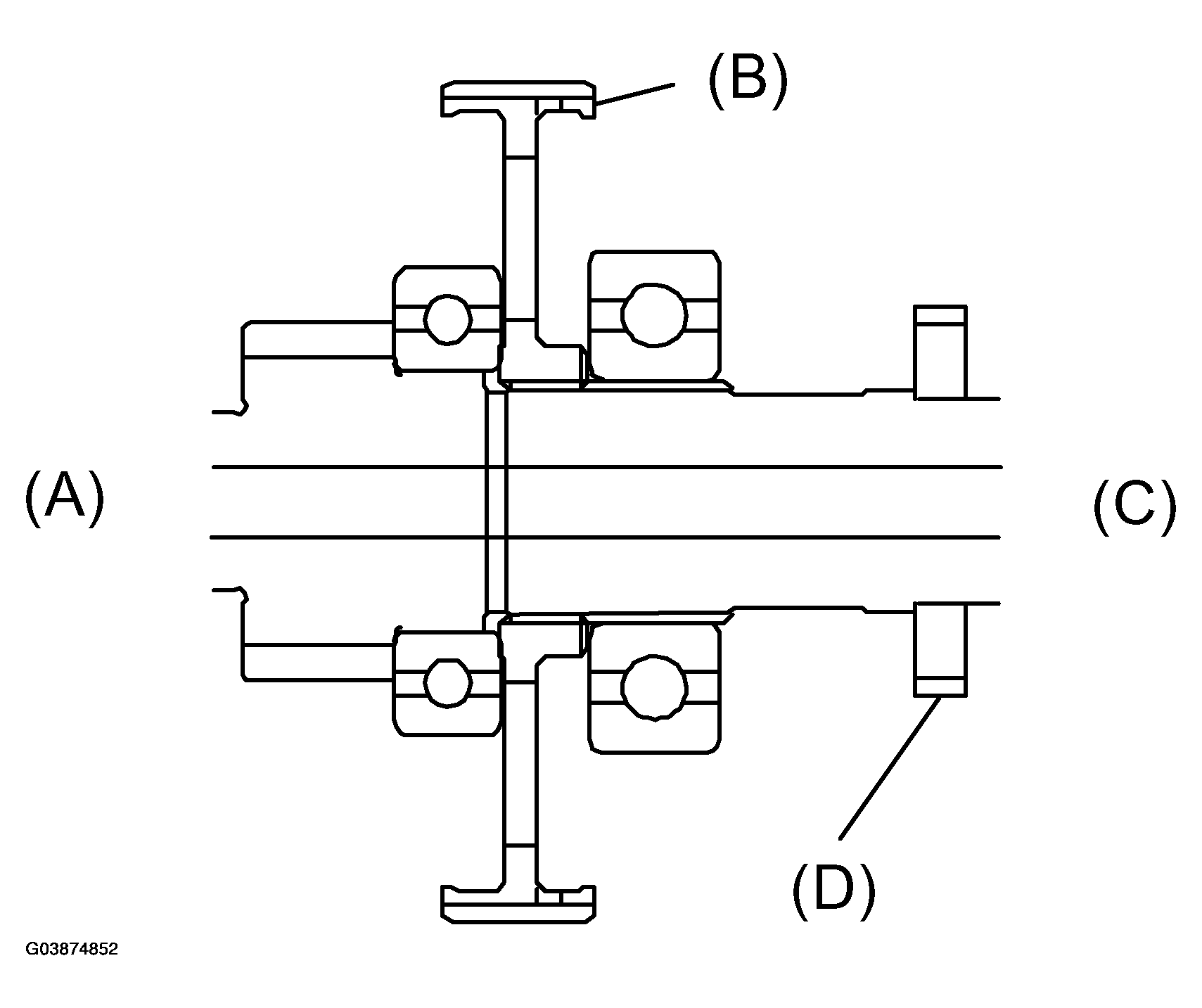

- Make sure the clutch hub is oriented in the correct direction.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Front side
- Clutch hub
- Rear side
- Revolution gear
