Oil Pump Housing: Installation

Secure the oil pump housing with two nuts and a bolt.

Tightening torque:

42 Nm (4.3 kgf-m, 31 ft-lb)

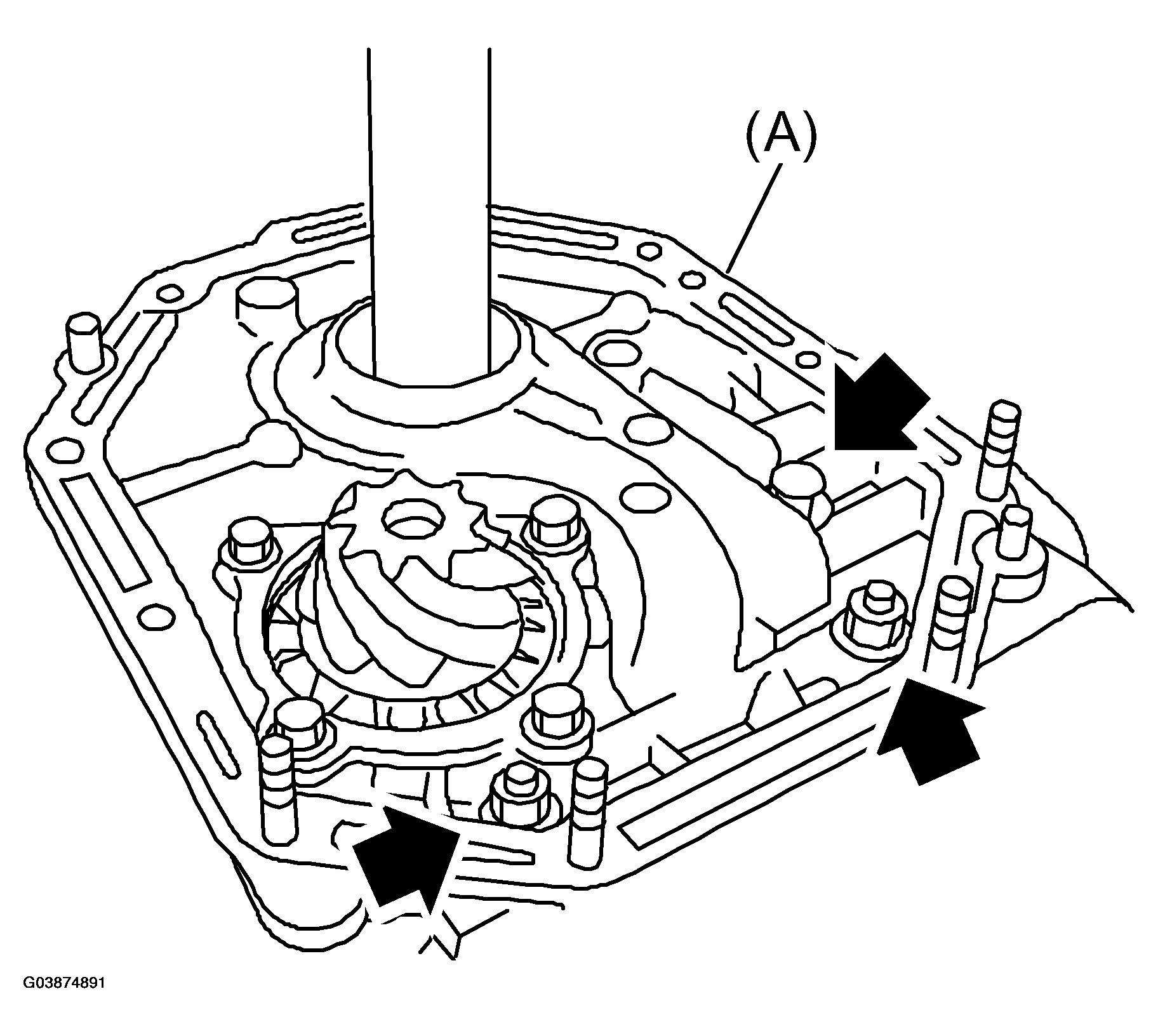

Fig 1: Securing Oil Pump Housing With Nuts And Bolt

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the converter case assembly to the transmission case assembly.

Install reduction driven gear.

Install the reduction drive gear. (MPT model)

Install the center differential carrier. (VTD model)

Combine the extension case with the transmission case, and install vehicle speed sensor 1 (rear).

Insert inhibitor switch and transmission connector into stay.

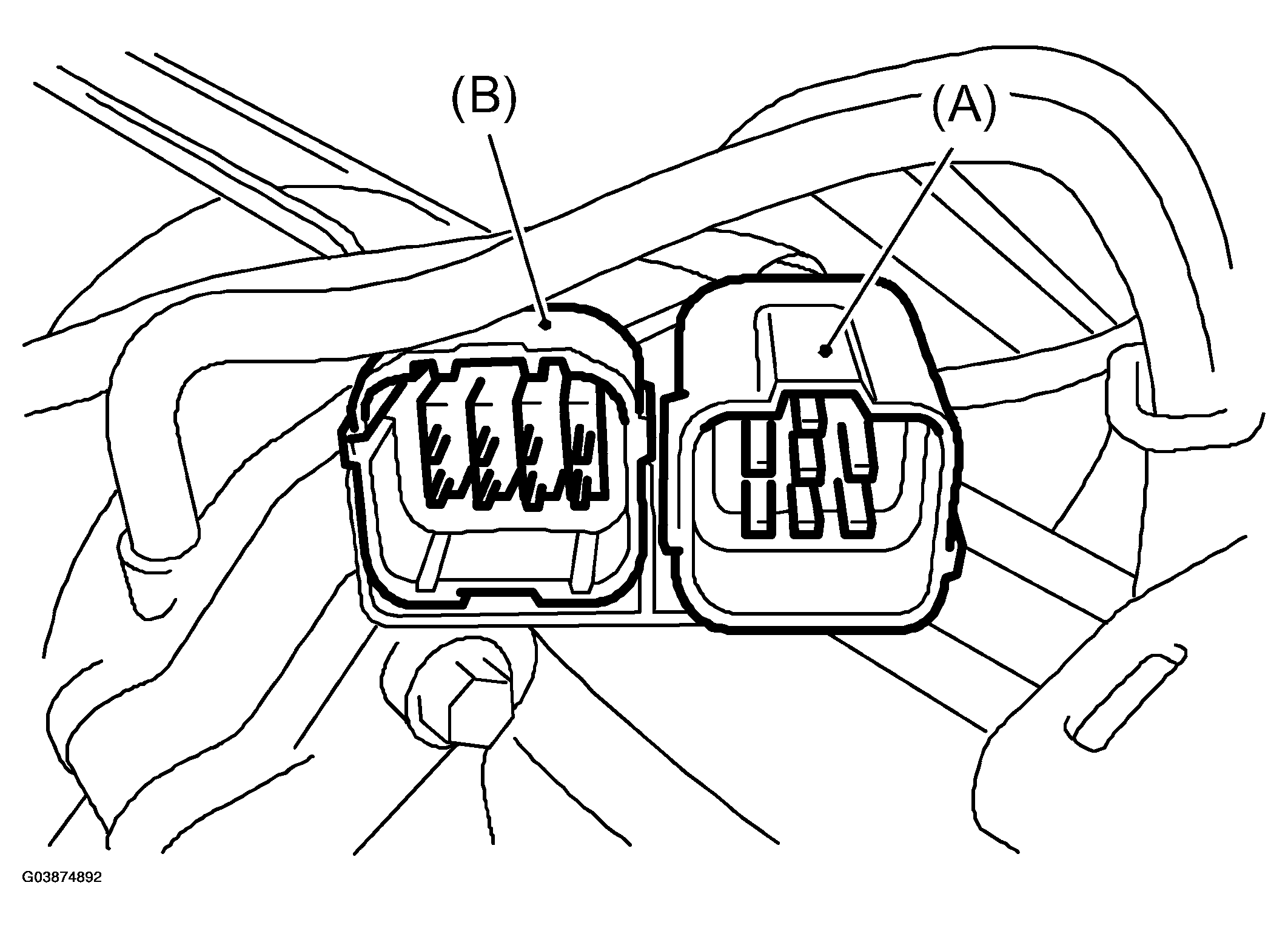

Fig 2: Inserting Inhibitor Switch And Transmission Connector Into Stay

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the oil cooler pipe.

Install the oil charge pipe with O-ring.

Insert the input shaft while turning lightly by hand and verify the protrusion amount.

Normal protrusion A:

50 - 55 mm (1.97 - 2.17 in)

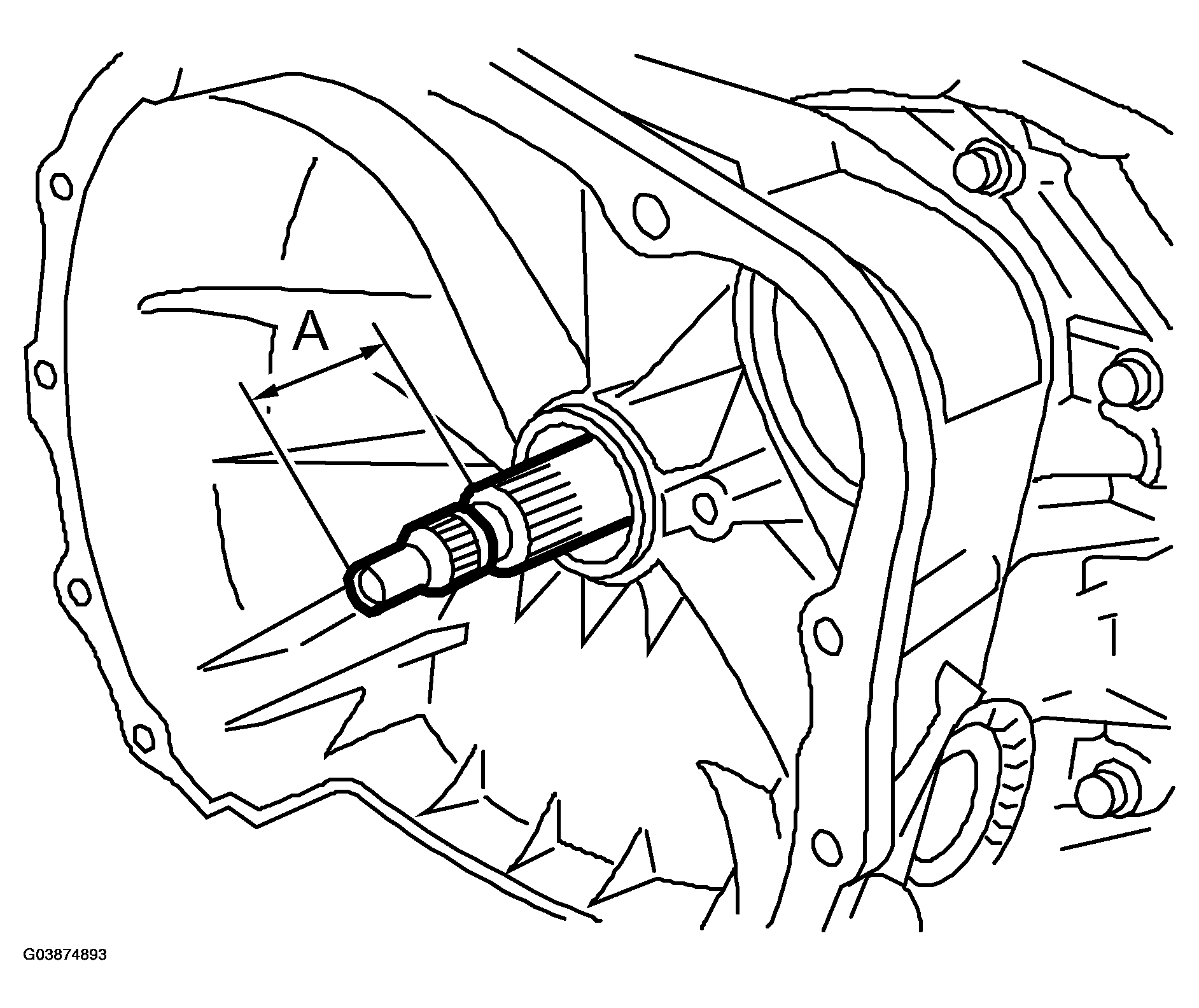

Fig 3: Inserting Input Shaft

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Install the torque converter clutch assembly.

Install the transmission assembly to the vehicle.
