Oil Change Pipe: Installation

Install the oil charge pipe with new O-ring.

Tightening torque:

41 Nm (4.2 kgf-m, 30.4 ft -lb)

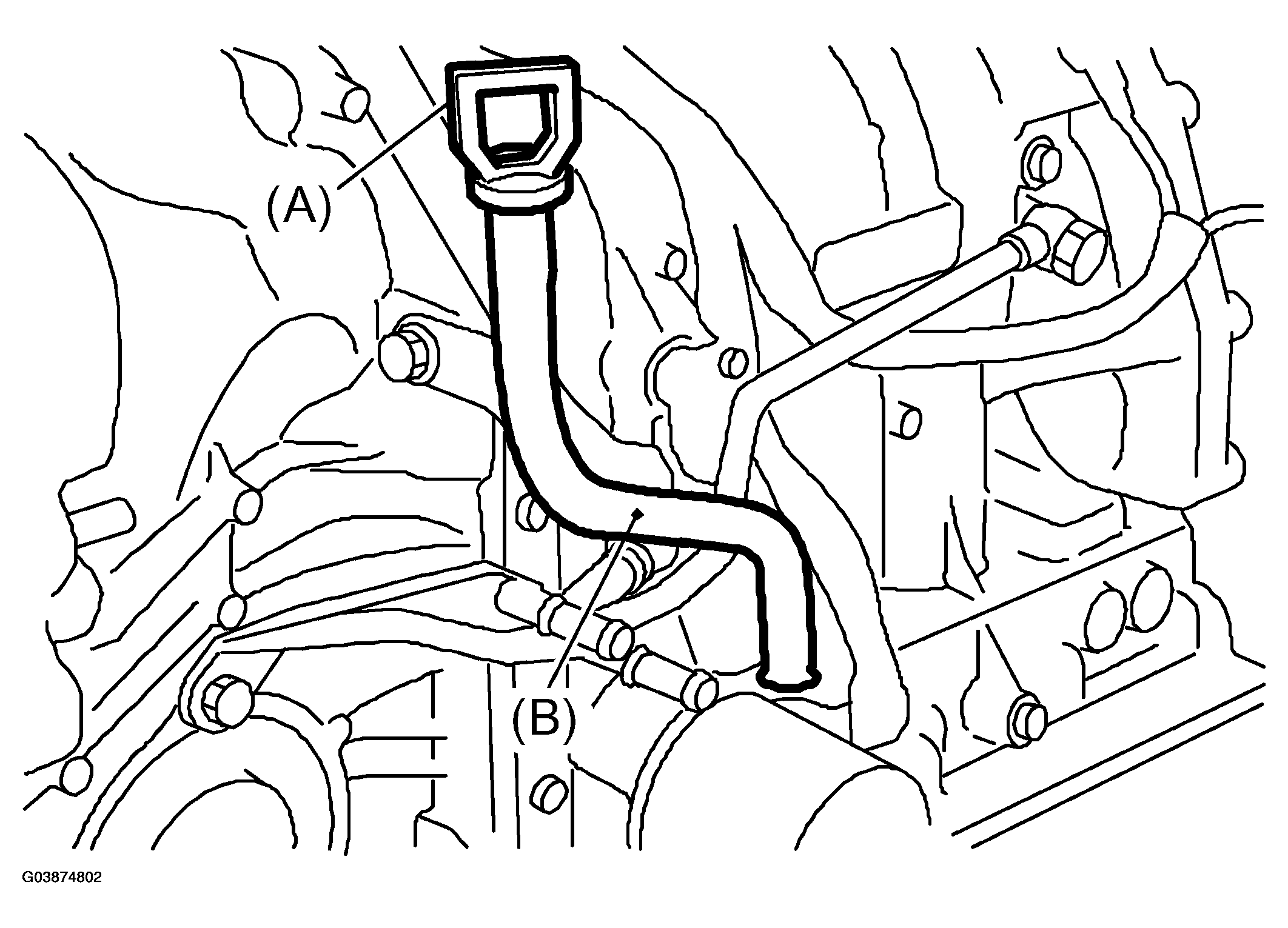

Fig 1: Installing Oil Charge Pipe

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Oil level gauge
2. Oil charge pipe

Install the air intake chamber. (Saab 9-2X 2.5i Linear)

Install intercooler. (Saab 9-2X 2.0T Aero)
