Multi-Plate Clutch: Adjustment

Remove drive plate and driven plate from center differential carrier.

Using the special tool, measure distance "A" from extension case joining surface to multi -plate clutch (LSD) piston.

ST 32005073 GAUGE

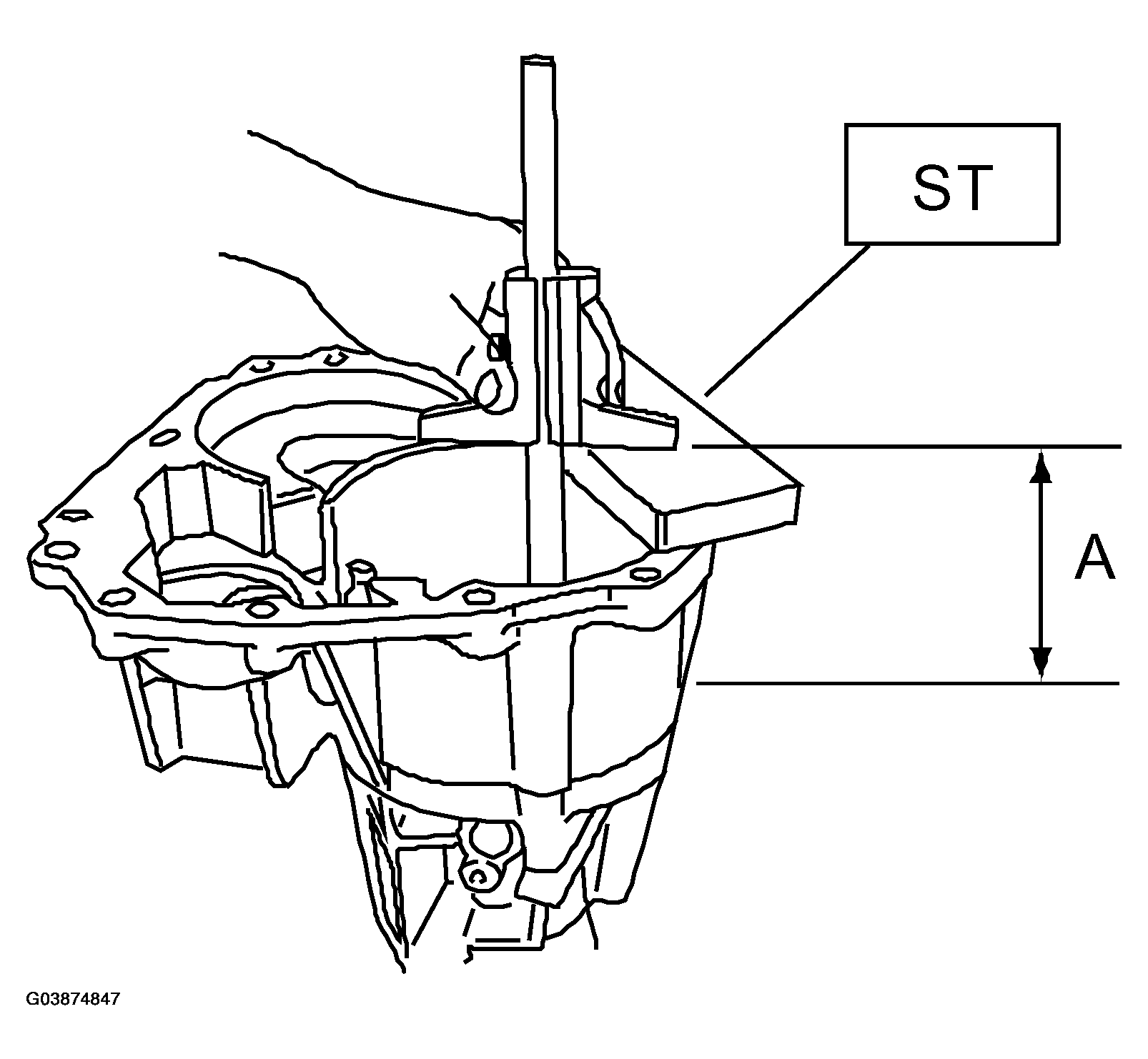

Fig 1: Measuring Distance "A" From Extension Case Joining Surface To Multi-Plate Clutch Piston

G03874847

Courtesy of SAAB-SCANIA OF AMERICA, INC.

A: Measured value
Using ST, measure height "B" from transmission case joining edge to center differential clutch drum edge.

ST 32005076 GAUGE

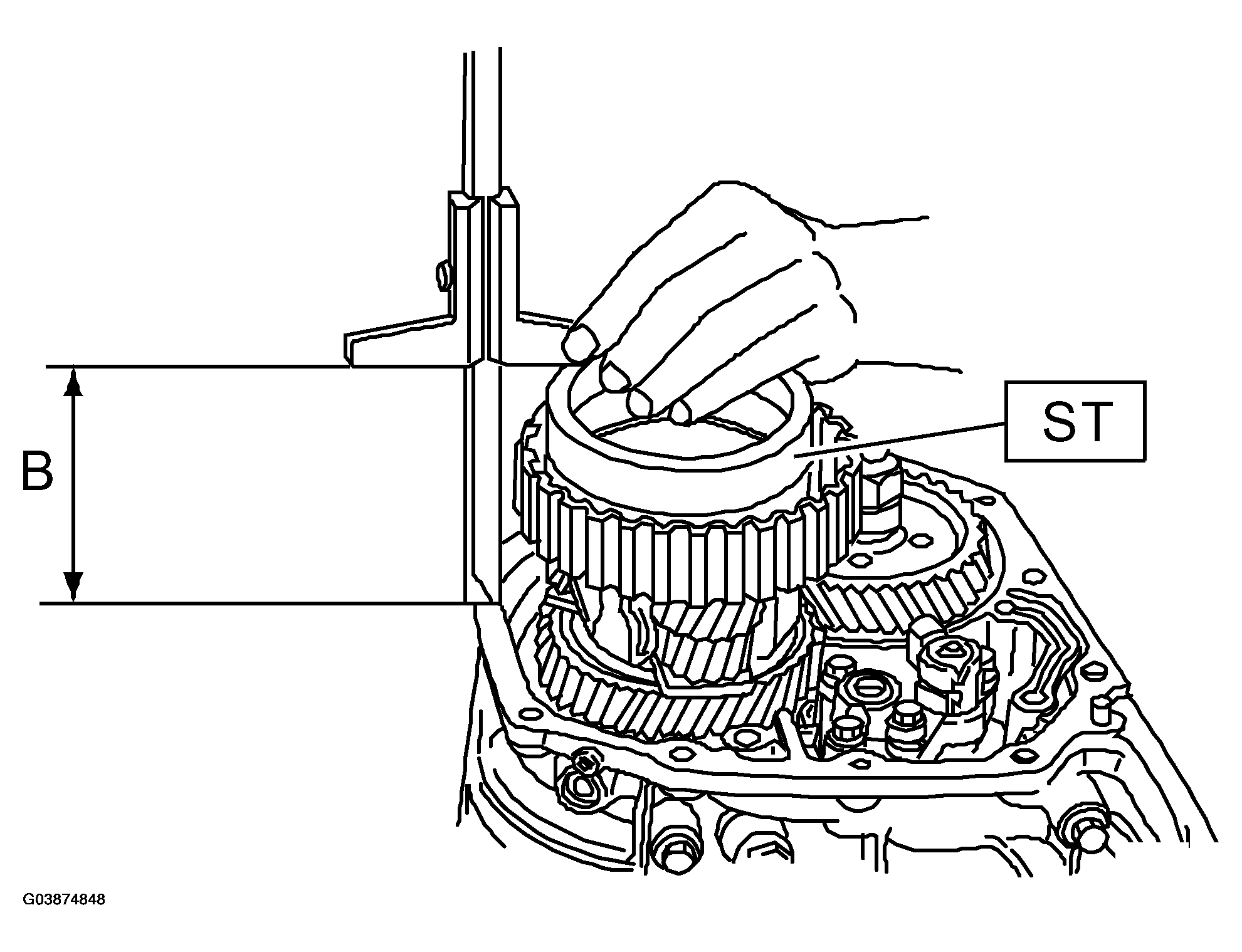

Fig 2: Measuring Height "B" From Transmission Case Joining Edge To Center Differential Clutch Drum Edge
Courtesy of SAAB-SCANIA OF AMERICA, INC.
B: Measured value

Calculation formula

T = A - B + 0.45 mm

[T = A - B + 0.0177 in]

NOTE:

Calculation formula for "T" is applied when measuring using ST (32005073 GAUGE, 32005076 GAUGE). When not using ST, apply
T = (A - a + 0.45 mm) - (B - b)

[T = (A - a + 0.0177 in) - (B - b)].

T: Thrust needle bearing thickness

A: Distance from end of extension case to end of reduction drive shaft

B: Distance from end of transmission case to end of rear drive shaft

a: Collar thickness used when measuring "A"

b: Collar thickness used when measuring "B"

0.45: Gasket thickness (mm)
Measure multi-plate clutch (LSD) driven and drive plate thickness to find the clearance between measurement value and "T".
Standard value:

0.2 - 0.6 mm (0.008 - 0.024 in)

Limit value:

1.6 mm (0.063 in)

If outside the standard value, replace the plate set (drive and driven plate). Select a multi-plate clutch (LSD) piston side adjustment plate that will bring clearance within the standard value.

THICKNESS REFERENCE

Obtainable driven plate
Part No.	Thickness mm (in)
32006533	1.6 (0.063)
32006534	2.0 (0.079)
32006535	2.4 (0.094)
32006536	2.8 (0.110)
