Drive Pinion Shaft Assembly: Installation

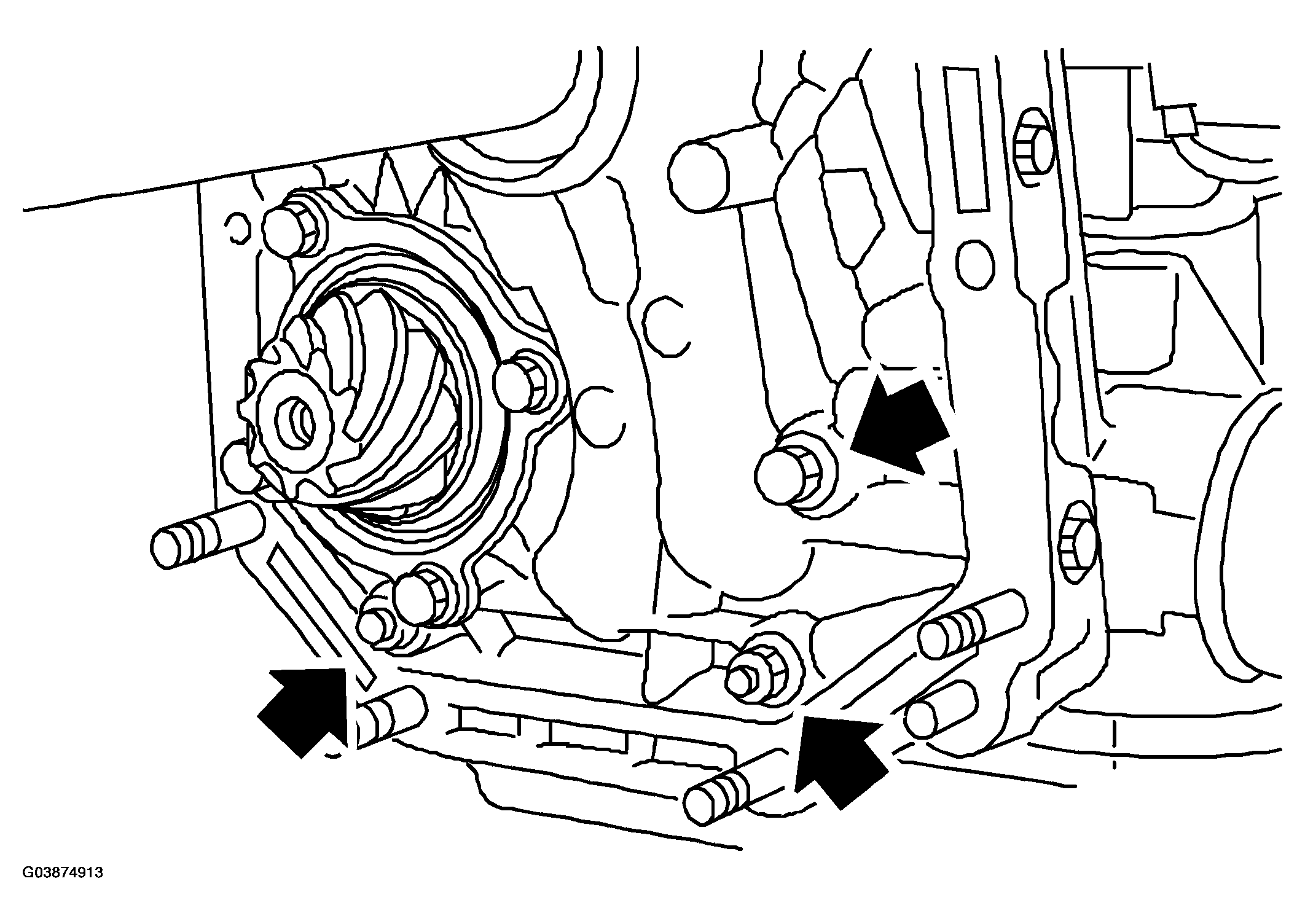

Assemble the drive pinion assembly to the oil pump housing.
- Pay attention not to bend the shim.
- Pay attention not to press the pinion into housing bore.
Tightening torque:
40 Nm (4.0 kgf-m, 30 ft-lb)
Combine the torque converter case with the transmission case.
Install the reduction driven gear.
Install the reduction drive gear. (MPT model)
Install the center differential carrier. (VTD model)
Combine the extension case with the transmission case, and install vehicle speed sensor 1 (rear).
Insert inhibitor switch and transmission connector into stay.
Install the oil cooler inlet and outlet pipes.
Install the oil charge pipe with O-ring.

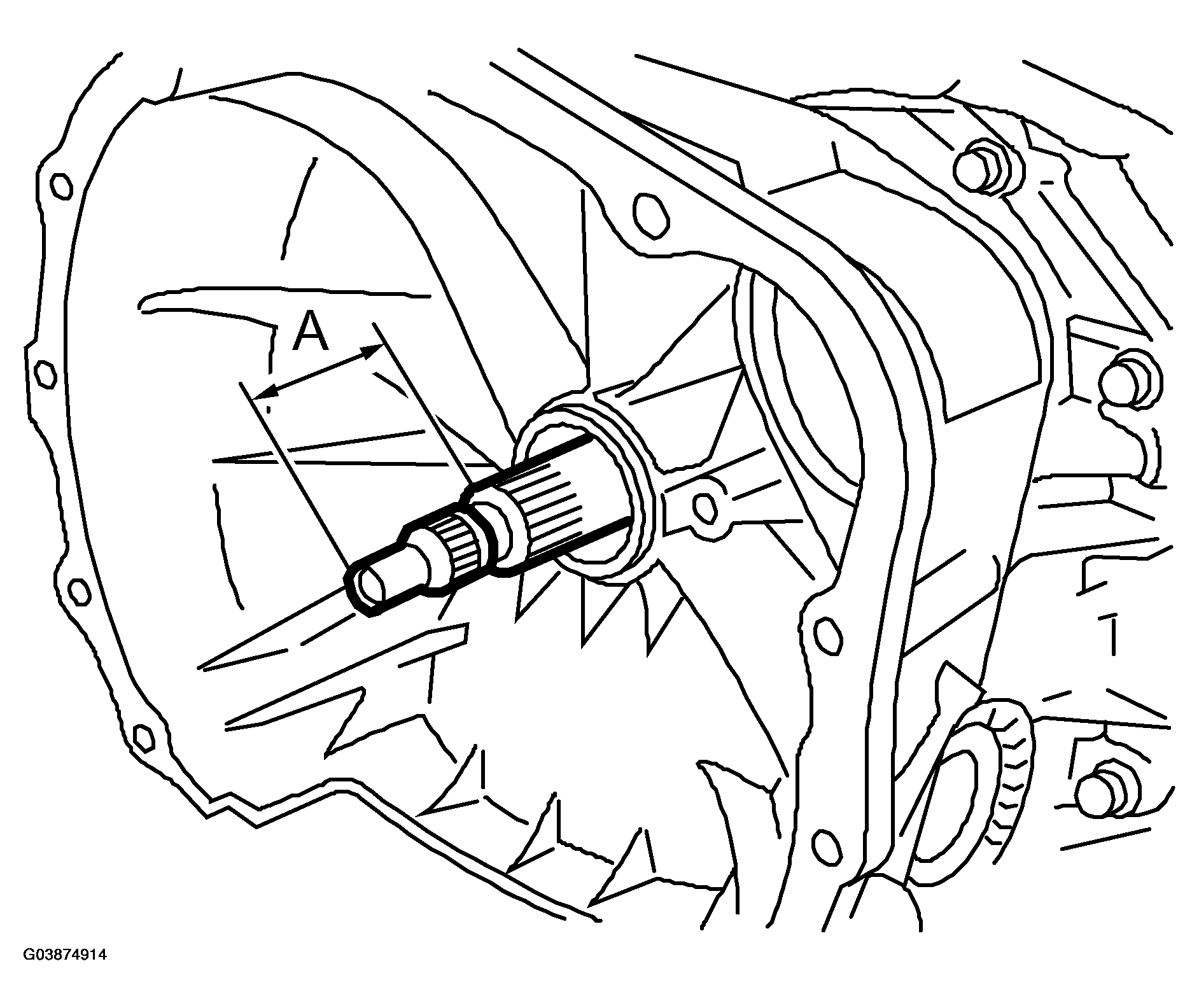

Insert the input shaft while turning lightly by hand and verify the protrusion amount.
Normal protrusion A:
50 - 55 mm (1.97 - 2.17 in)
Install the torque converter clutch assembly.
Install the transmission assembly to vehicle.
