Center Differential Carrier: Installation

Install the center differential assembly with the shim(s).

NOTE: Insert the center differential assembly and shim(s) completely into the bearing shoulder bottom.

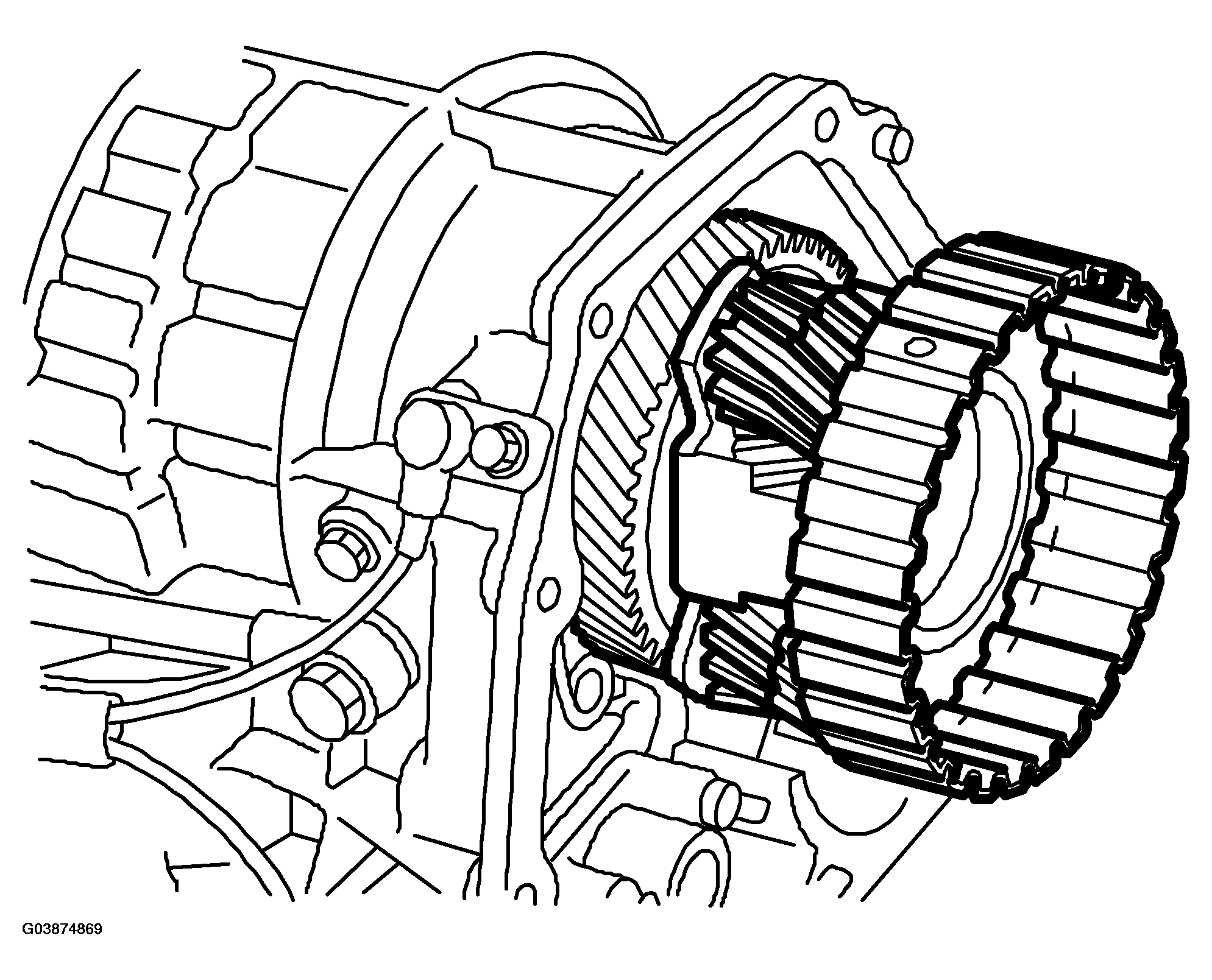

Fig 1: Installing Center Differential Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Insert the rear driveshaft.

Connect the transmission case and extension case, and install the rear wheel speed sensor.

Install the transmission assembly onto vehicle.
