Center Differential Carrier: Disassembly

Remove the seal rings.

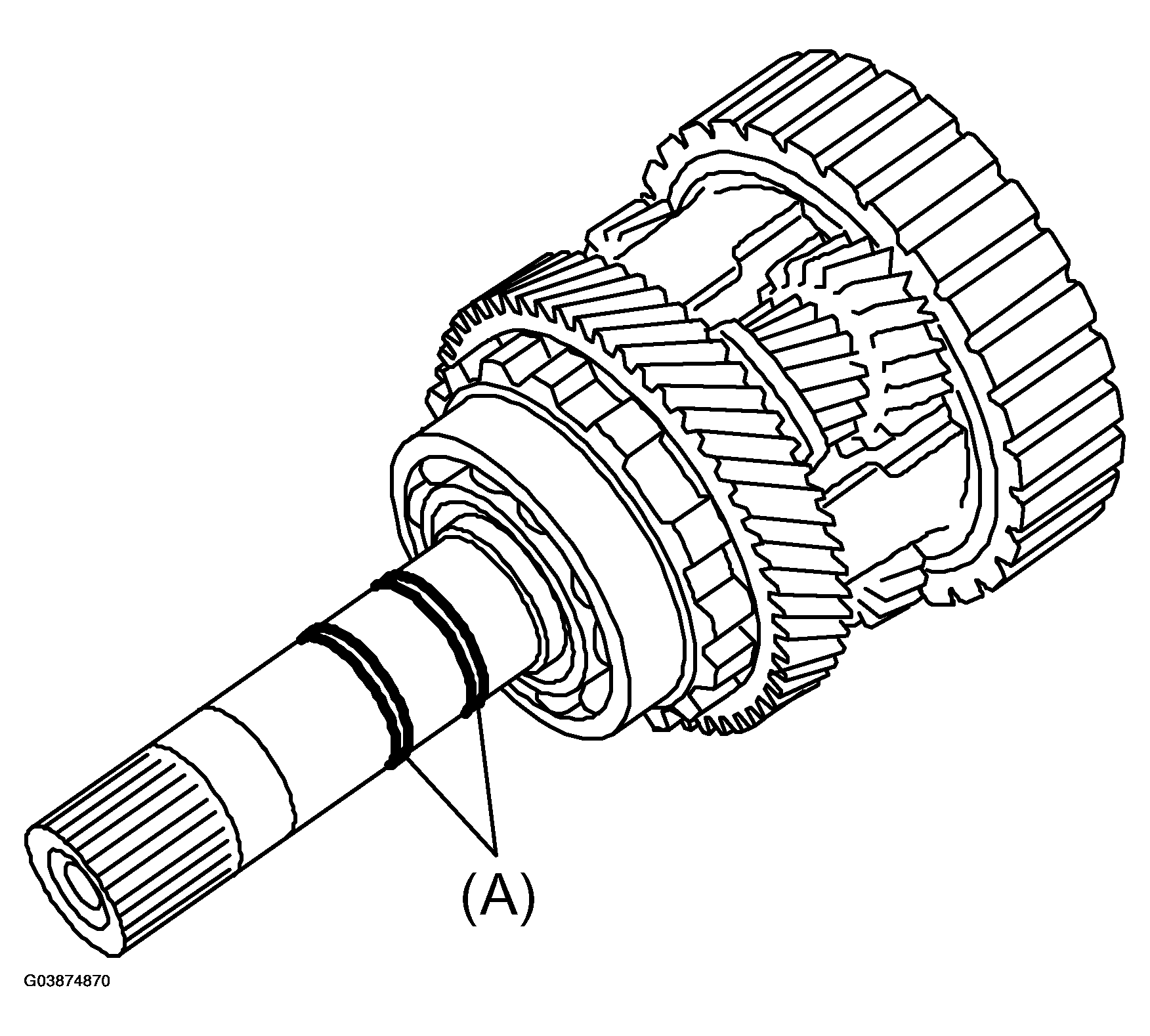

Fig 1: Removing Seal Rings

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Seal ring

Using a press and the special tool, remove the ball bearing.

ST 32005091 REMOVER

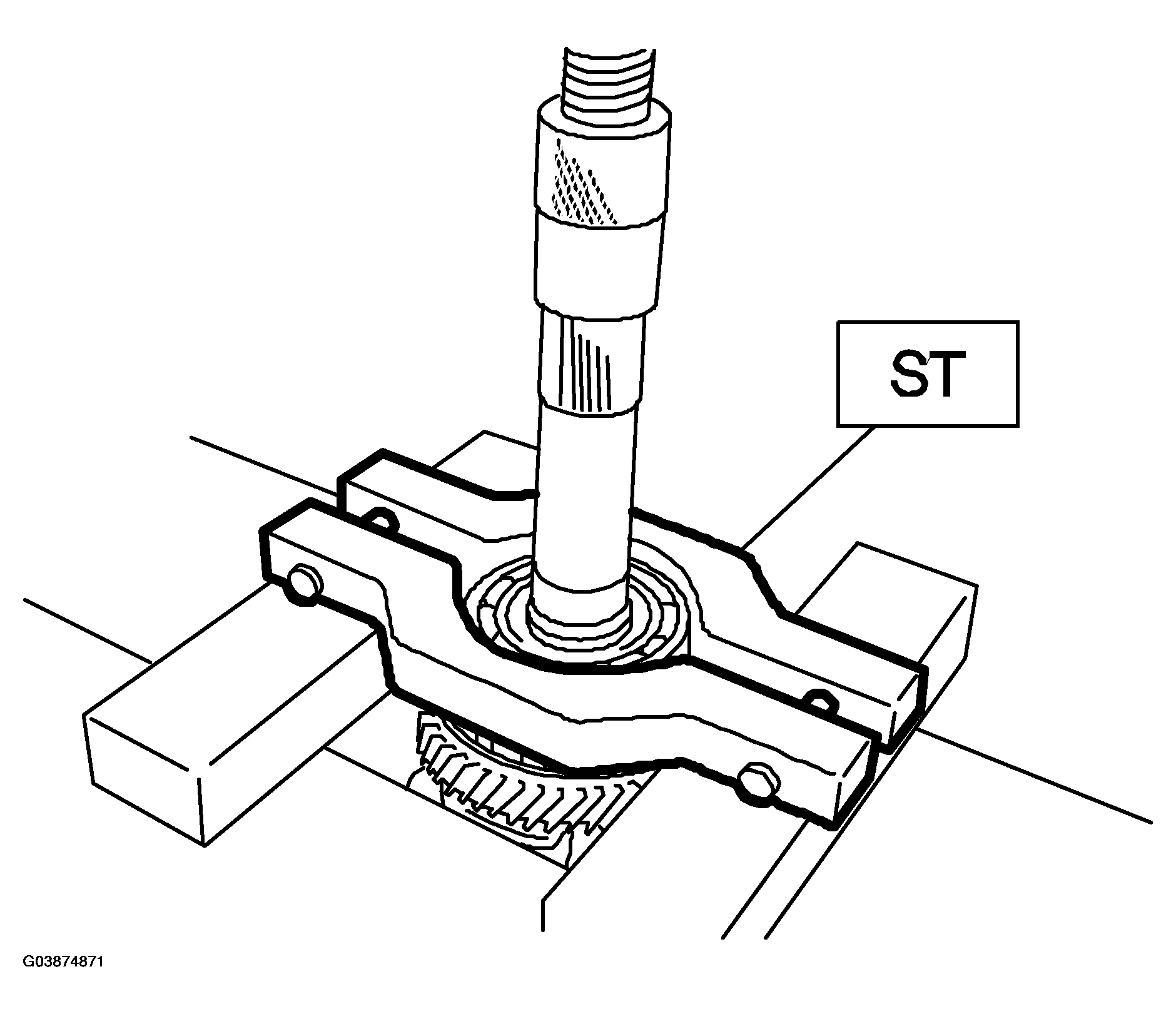

Fig 2: Removing Ball Bearing Using ST 32005091 Remover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the snap ring, and pull out the shaft from the center differential assembly.

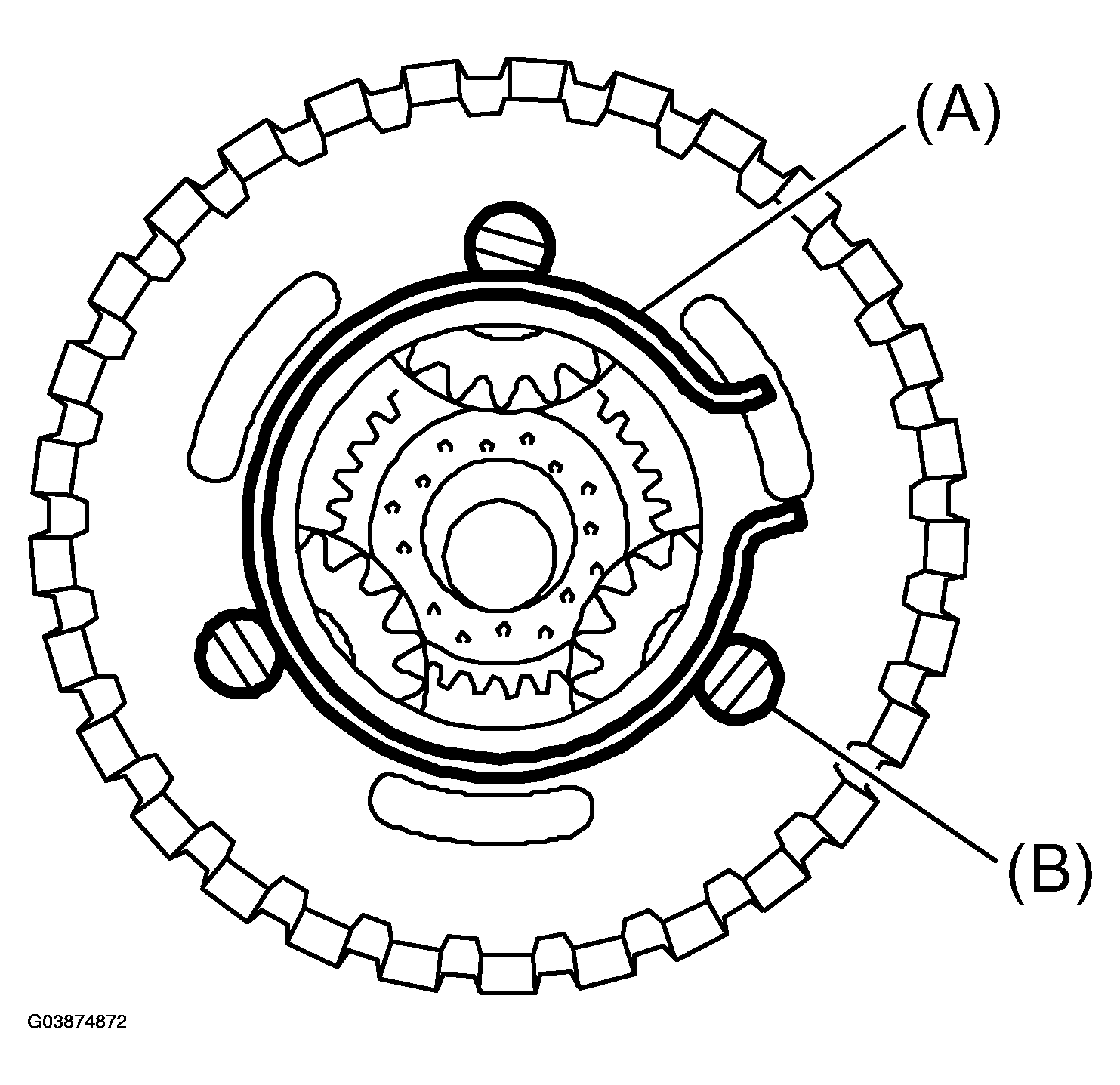

Fig 3: Removing Snap Ring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Snap ring
2. Shaft

Remove the thrust washers, pinion gears, and washers from the center differential assembly.

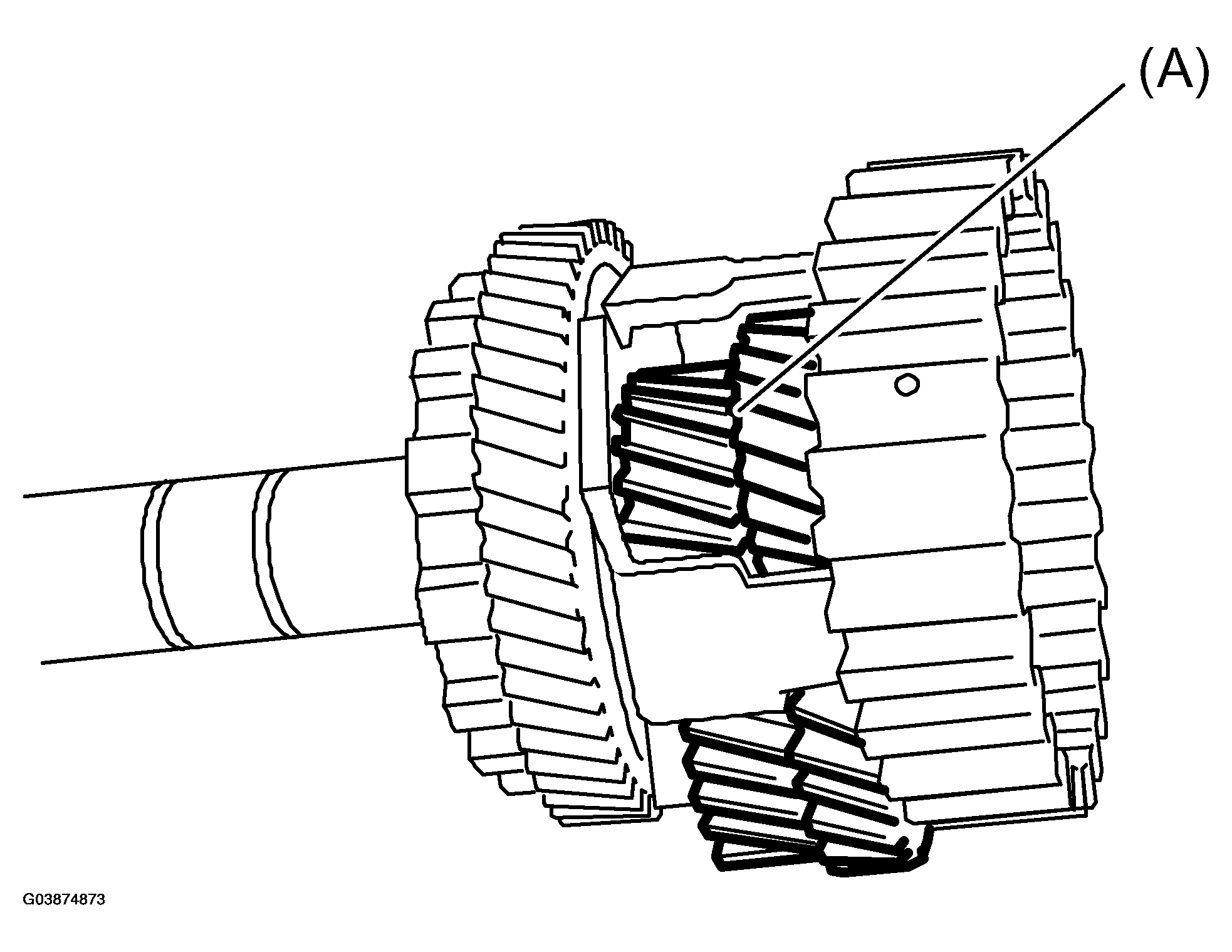

Fig 4: Removing Thrust Washers, Pinion Gears, And Washers

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Pinion gear

Pull out the intermediate shaft and thrust bearing.
