A/T Main Case: Removal

Remove the transmission assembly from the vehicle.

Extract the torque converter clutch assembly.

Remove the input shaft.

Fig 1: Identifying AT Main Case

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Lift-up lever behind the transmission harness connector and disconnect it from stay.

Disconnect inhibitor switch connector from stay.

Disconnect the air breather hose.

Remove the oil charge pipe.

Remove the oil cooler inlet and outlet pipes.

Separation of converter case and transmission case.

Remove the oil pump housing.

Take out the high clutch, thrust needle bearing and reverse clutch assembly.

Fig 2: Removing Thrust Needle Bearing And Reverse Clutch Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

High clutch and reverse clutch assembly
Thrust needle bearing

Take out the high clutch hub and the thrust bearing.

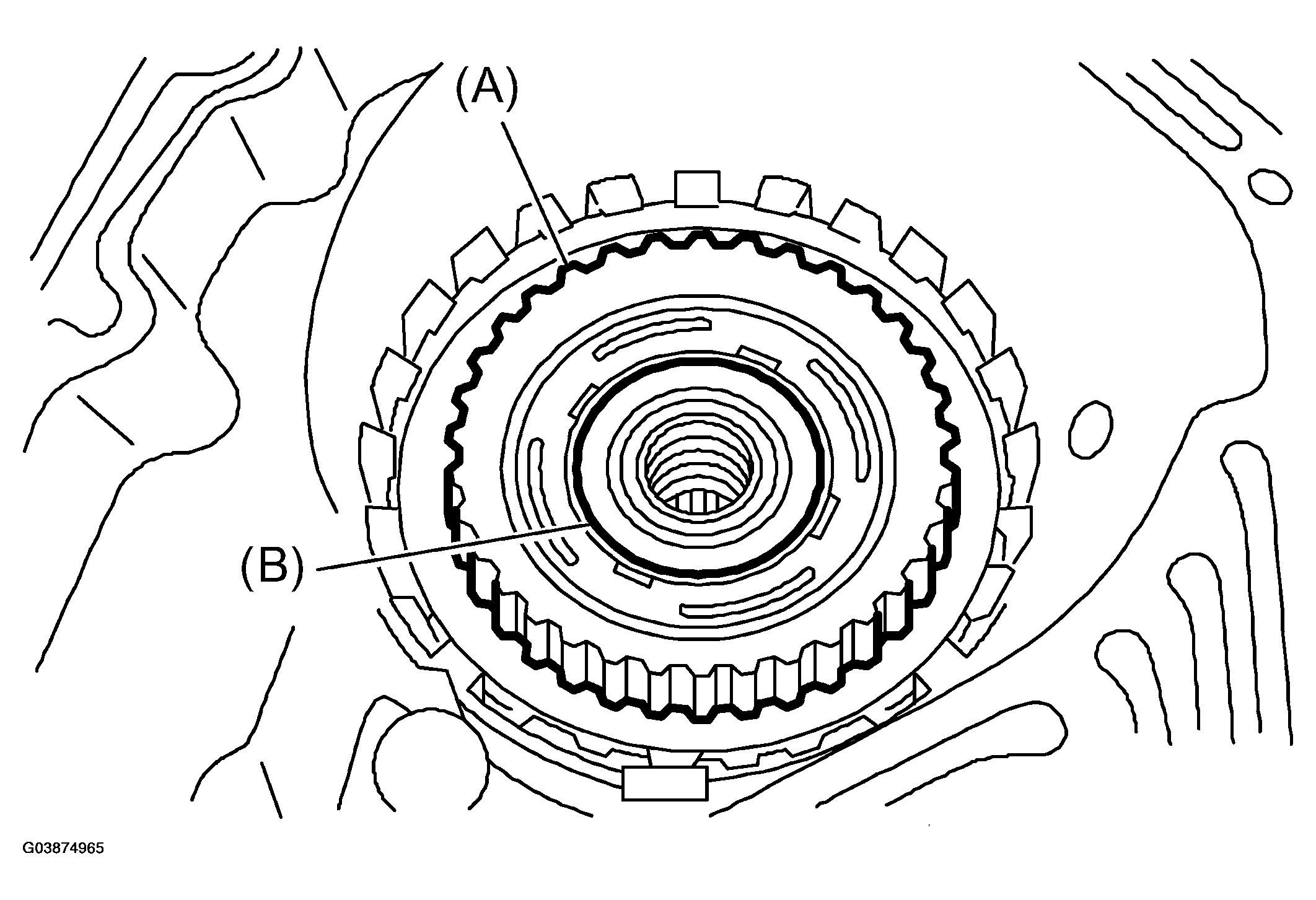

Fig 3: Removing High Clutch Hub And Thrust Bearing

Courtesy of SAAB-SCANIA OF AMERICA, INC.

High clutch hub
Thrust needle bearing

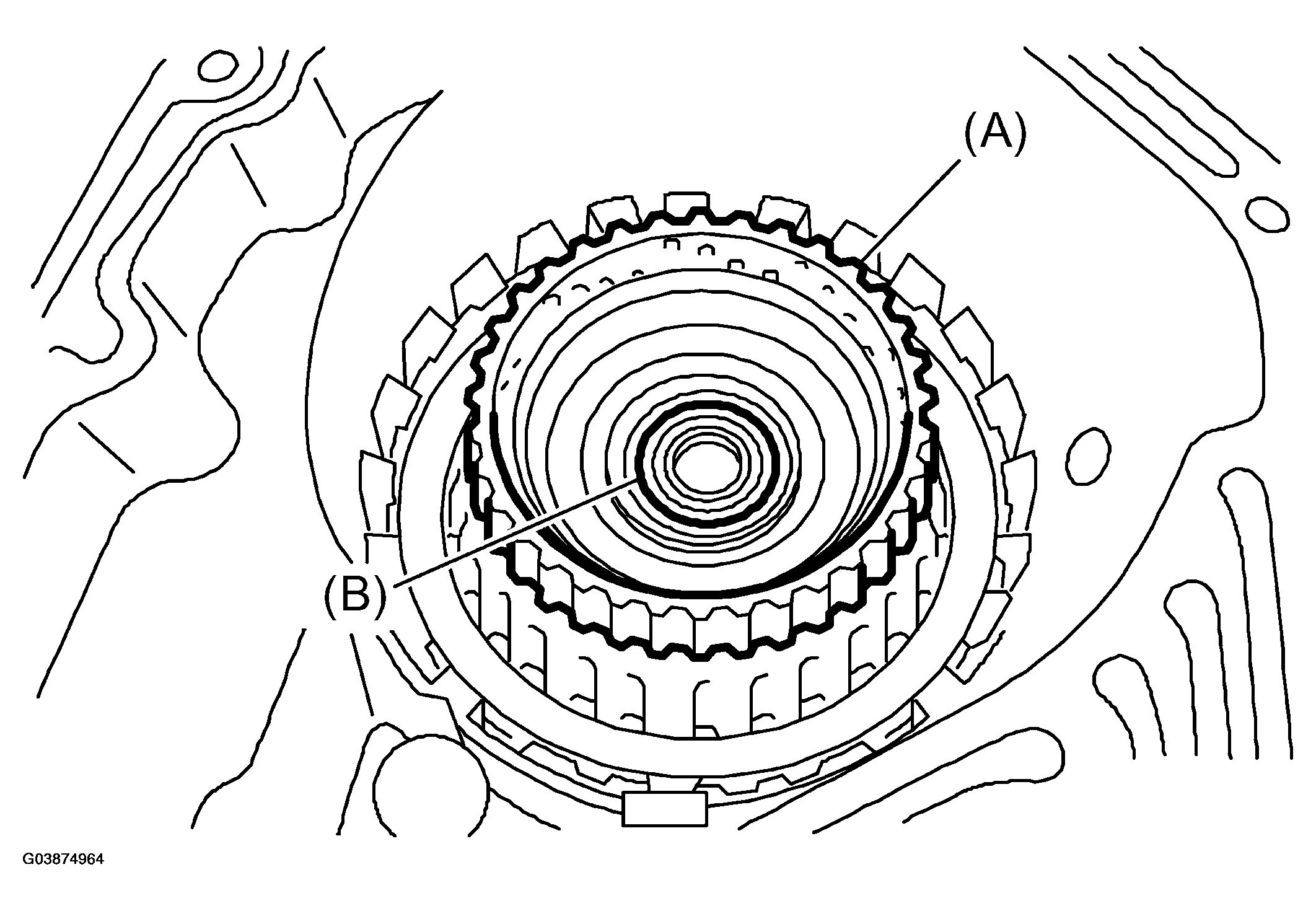

Take out the front sun gear and the thrust bearing.

Fig 4: Removing Front Sun Gear And Thrust Bearing

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Front sun gear
Thrust needle bearing

Pull out leaf spring without folding.

NOTE: Remove it while pressing down on lower leaf spring.

Fig 5: Pulling Out Leaf Spring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Leaf spring
Retaining plate

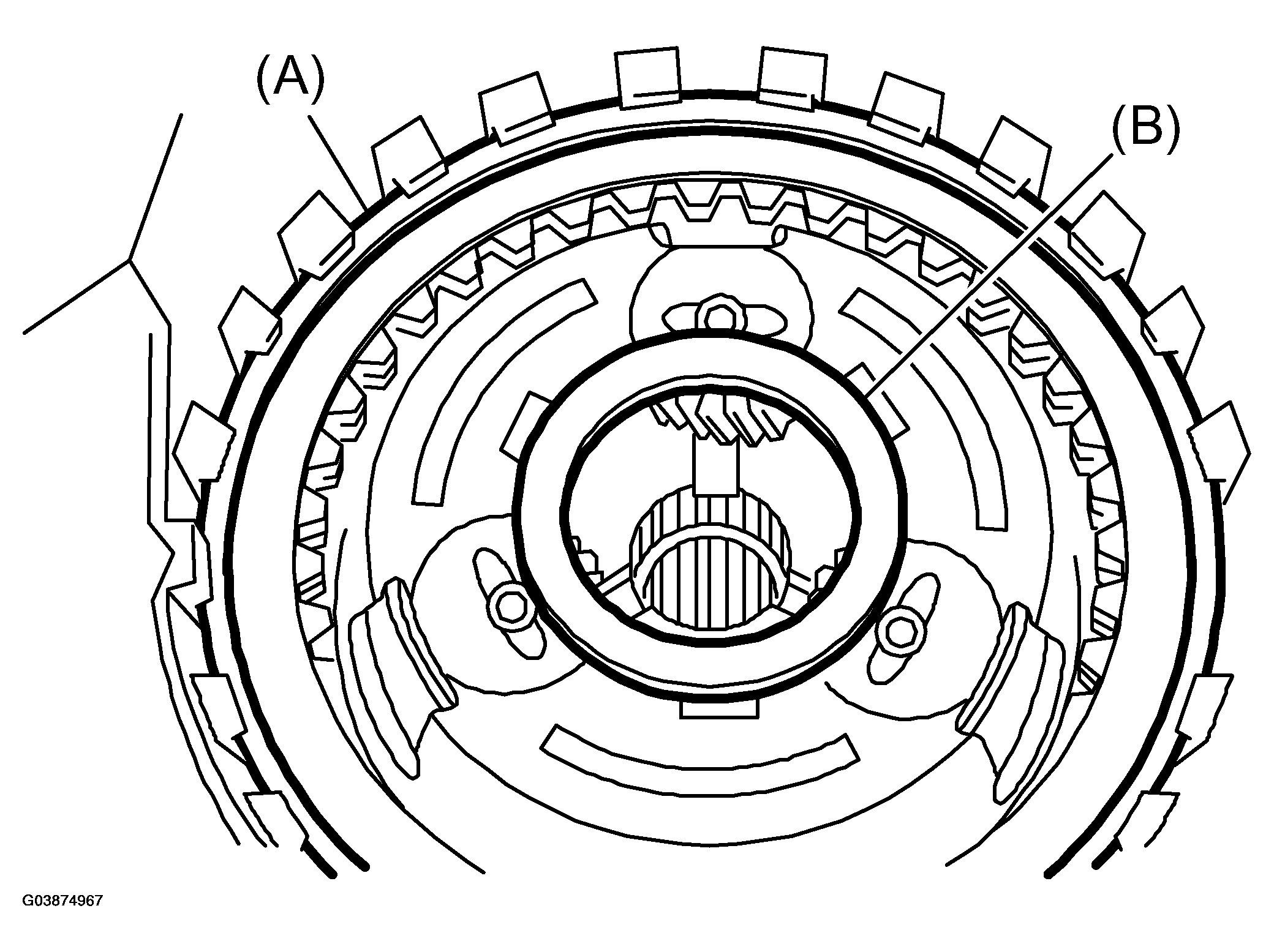

Remove snap ring and thrust needle bearing.

Fig 6: Removing Snap Ring And Thrust Needle Bearing

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Snap ring
Thrust needle bearing

Take out retaining plate, drive plate and driven plate of 2-4 brake.

Fig 7: Removing Retaining Plate, Drive Plate And Driven Plate

Courtesy of SAAB-SCANIA OF AMERICA, INC.

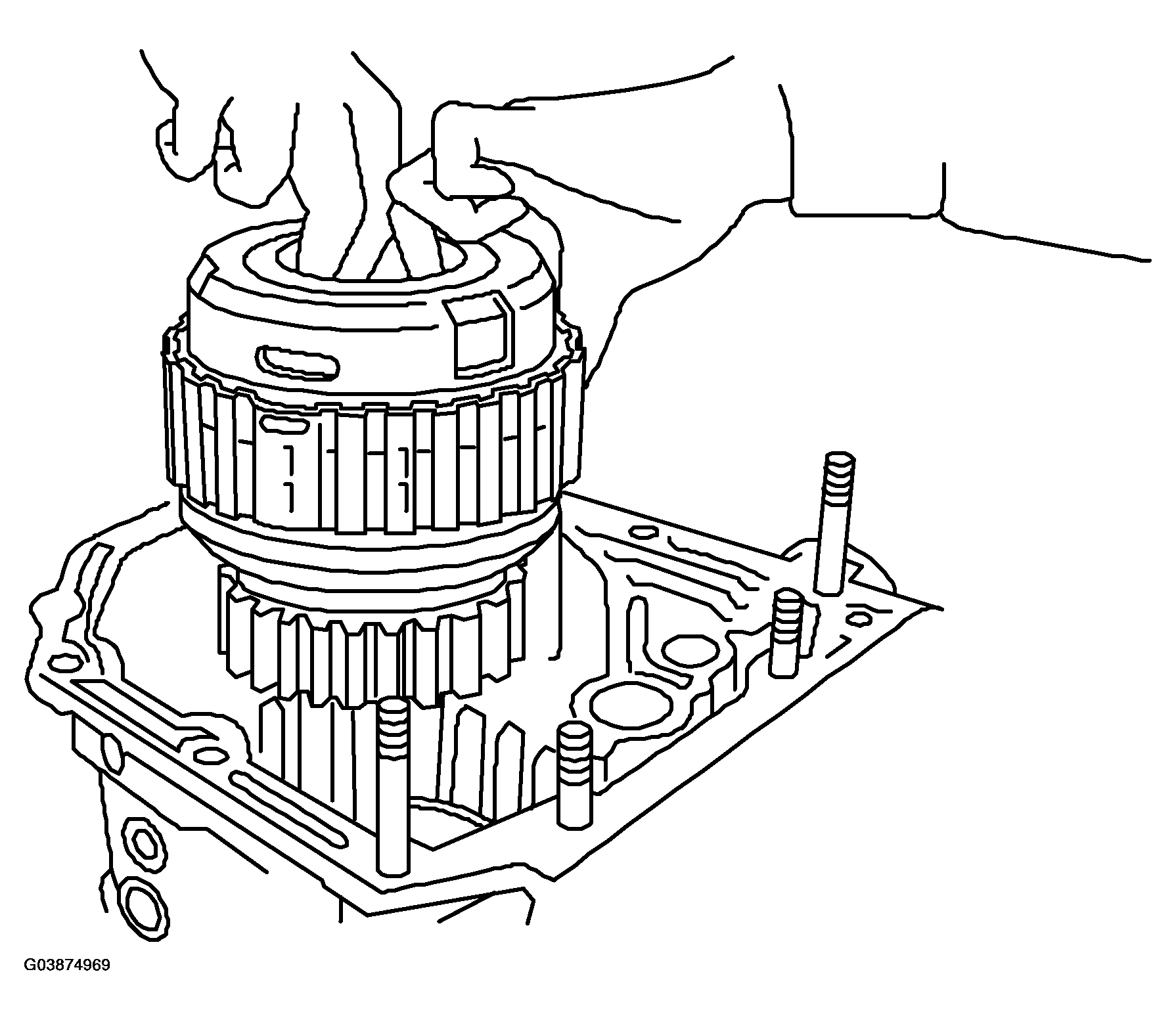

Take out the thrust needle bearing, planetary gear assembly and the low clutch assembly.

Fig 8: Removing Thrust Needle Bearing, Planetary Gear Assembly And Low Clutch Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove 2-4 brake seal.

Fig 9: Removing Brake Seal

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove snap ring.

Fig 10: Removing Snap Ring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Snap ring
2-4 brake piston

Take out 2 -4 brake return spring.

Fig 11: Removing Brake Return Spring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

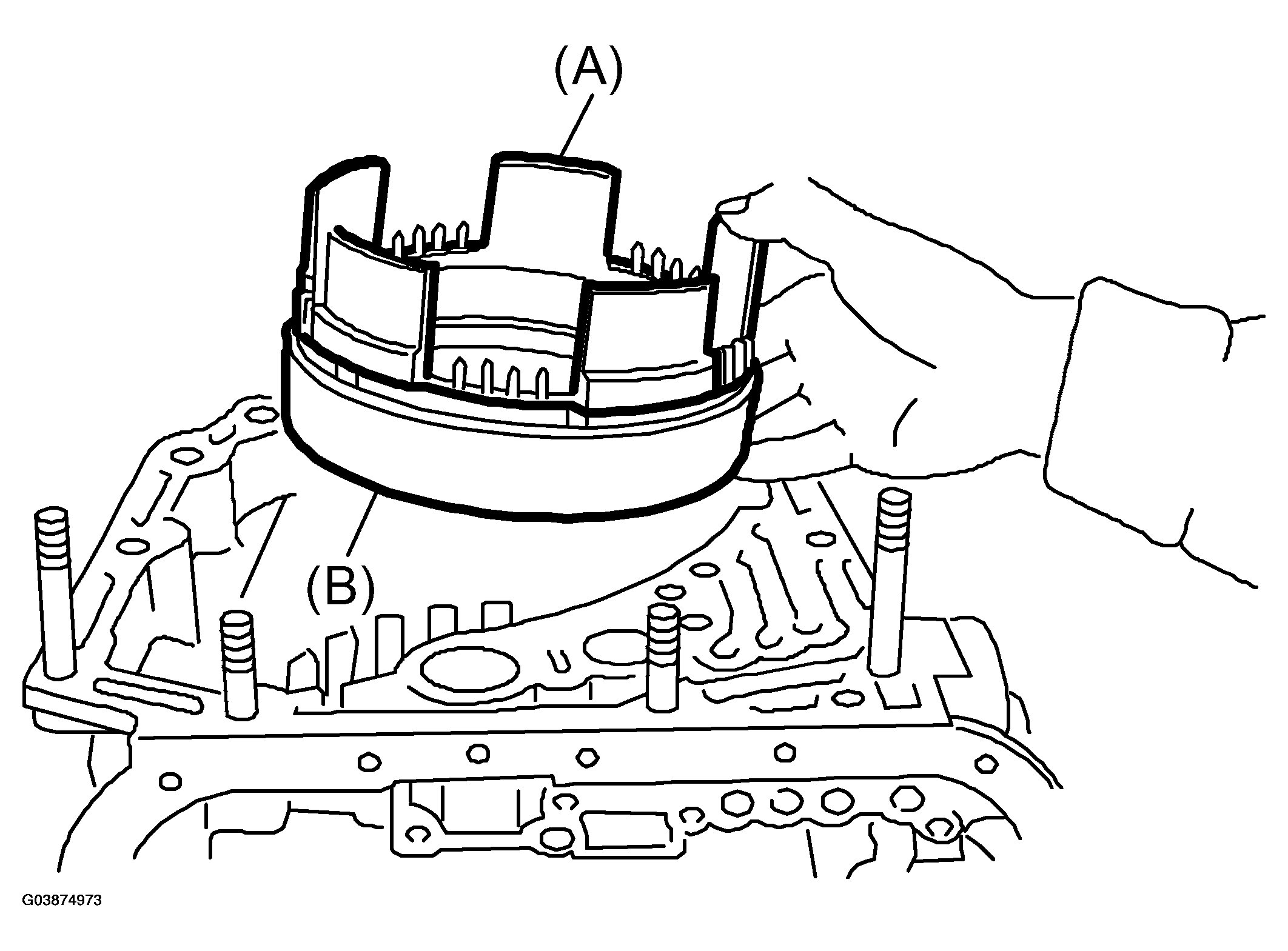

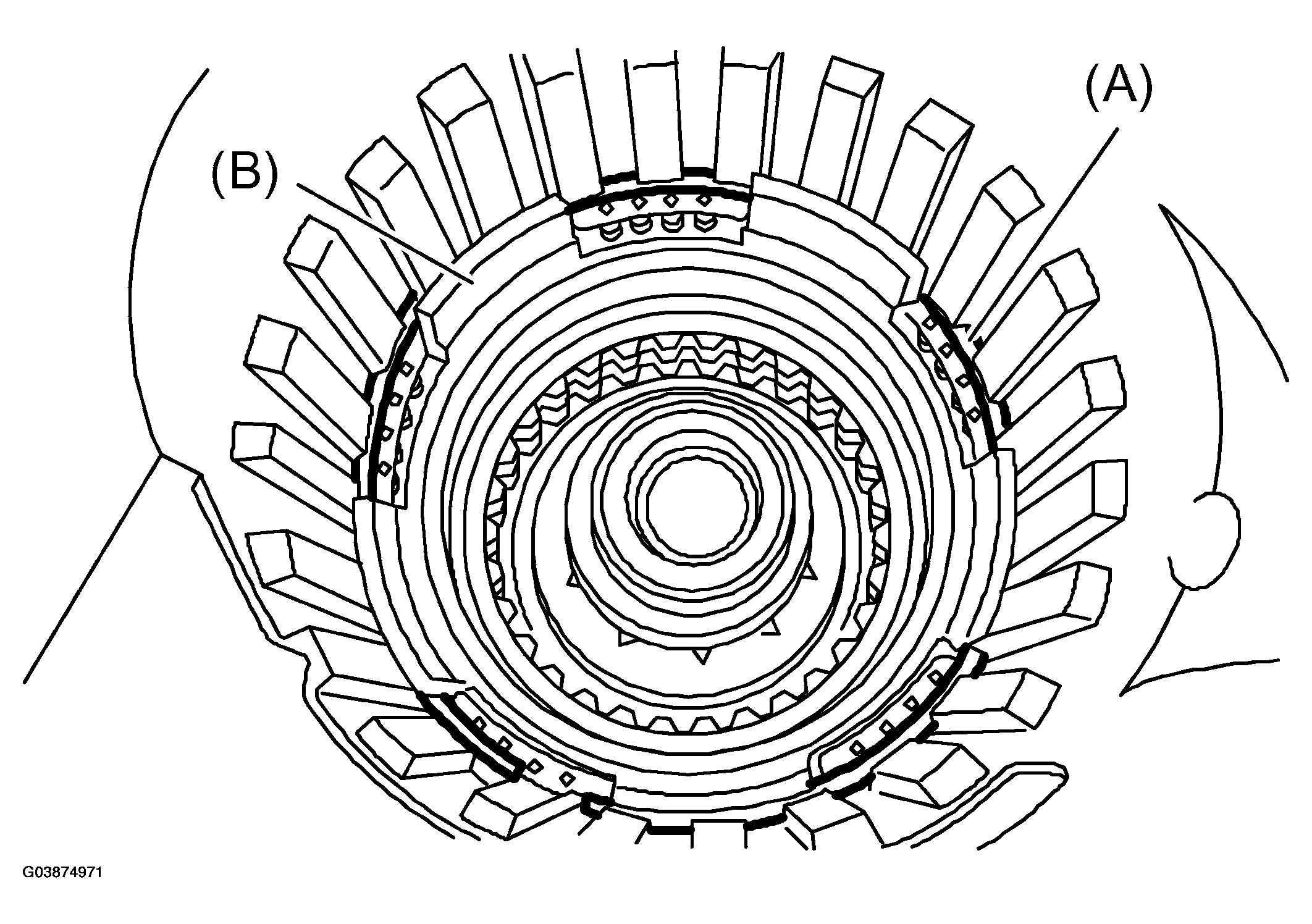

Remove the 2-4 brake piston and piston retainer without damaging.

Fig 12: Removing Brake Piston And Piston Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

2-4 brake piston
2-4 brake piston retainer

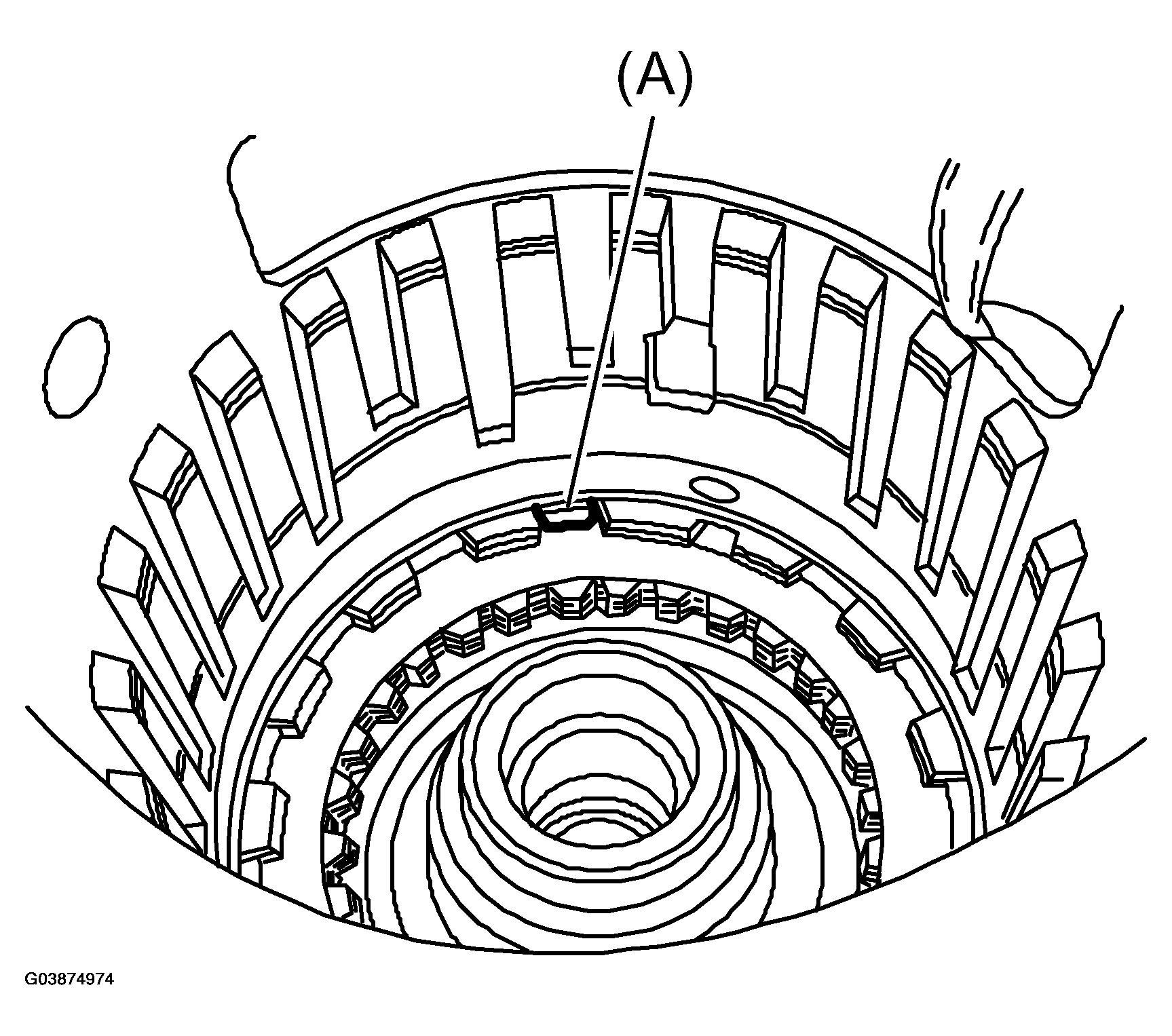

Pull out the leaf spring without folding.

Fig 13: Pulling Out Leaf Spring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Leaf spring

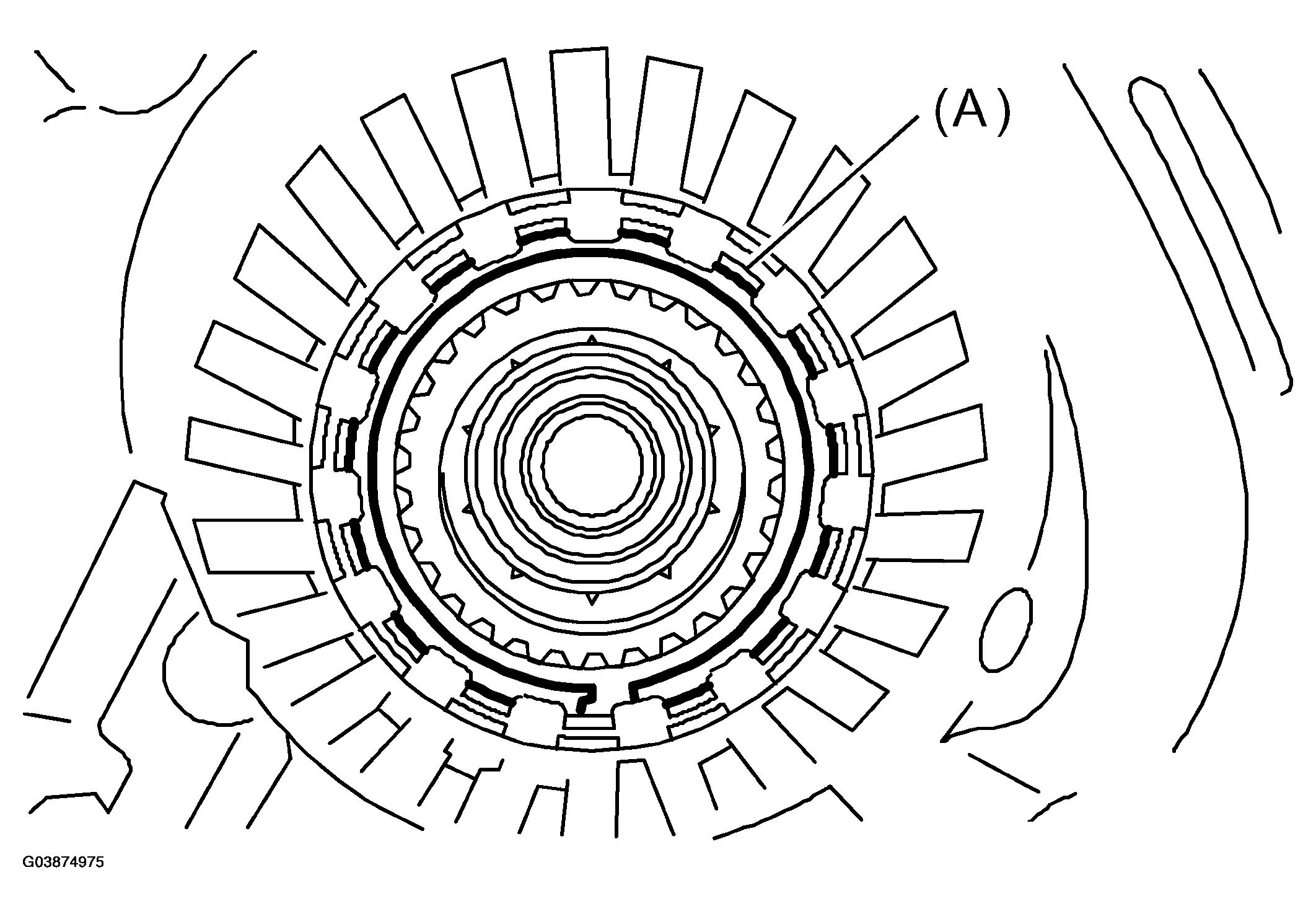

Remove snap ring.

Fig 14: Removing Snap Ring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Snap ring

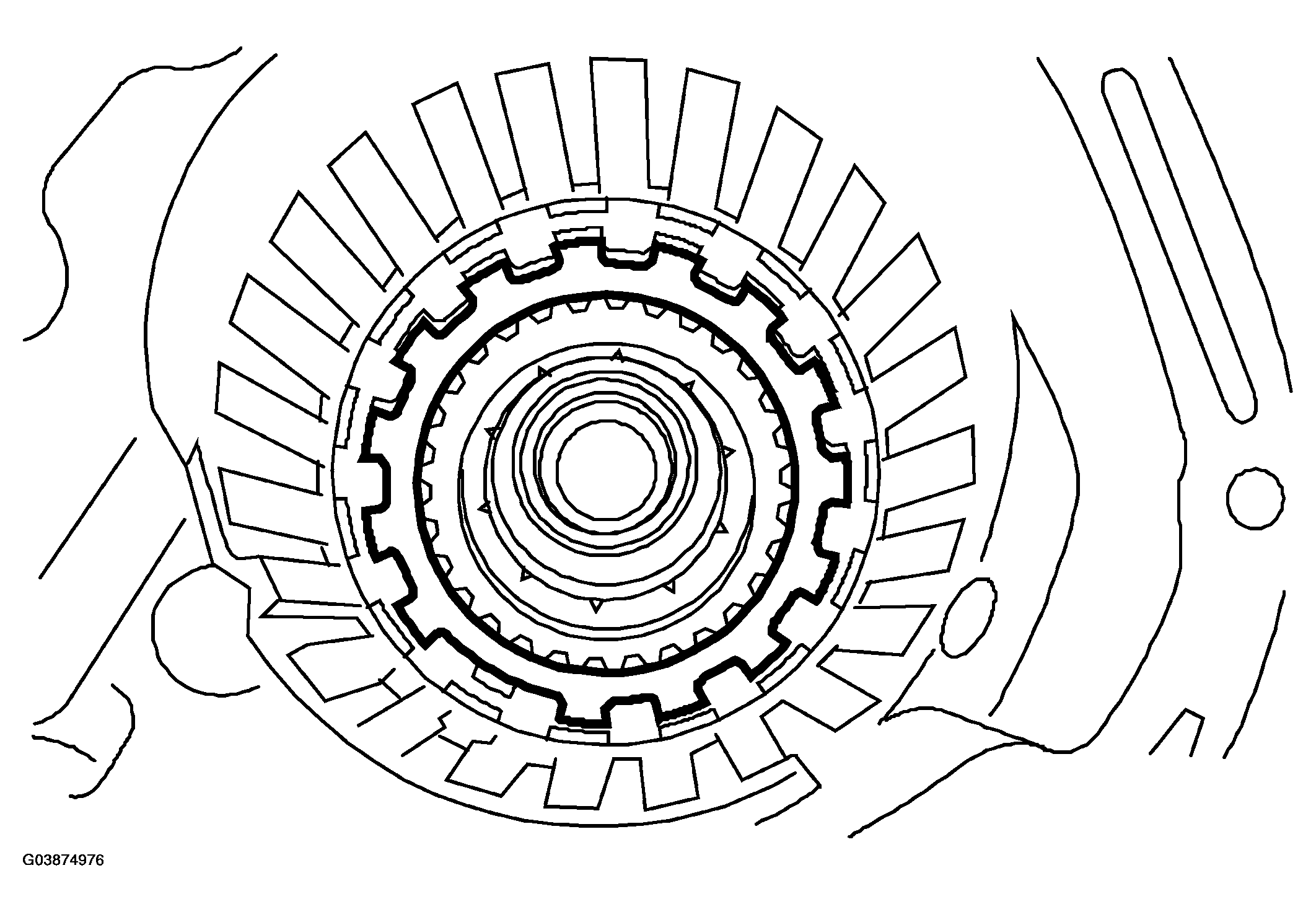

Take out retaining plate, drive plate, driven plate and dish plate.

Fig 15: Removing Retaining Plate, Drive Plate, Driven Plate And Dish Plate

Courtesy of SAAB-SCANIA OF AMERICA, INC.

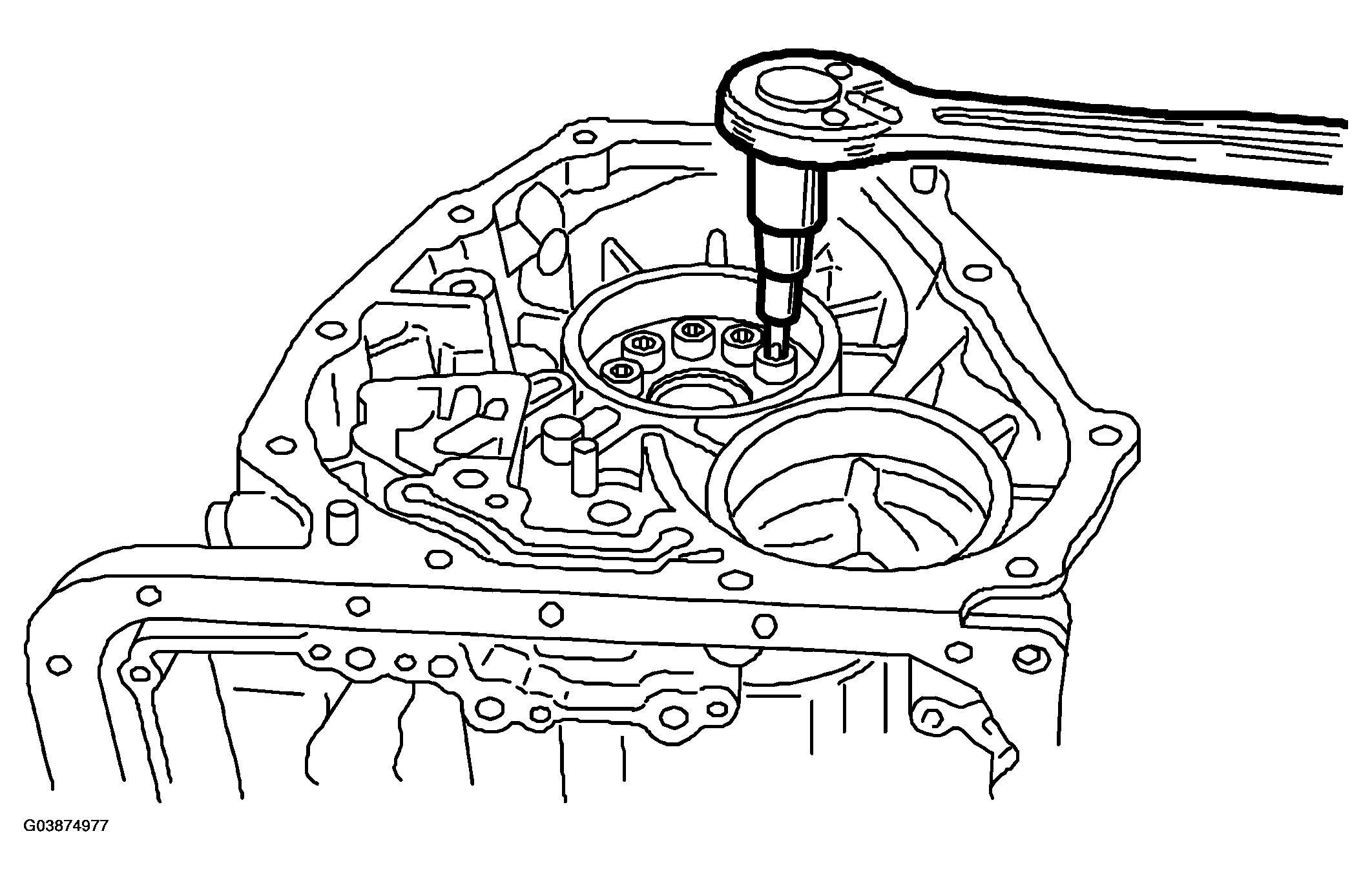

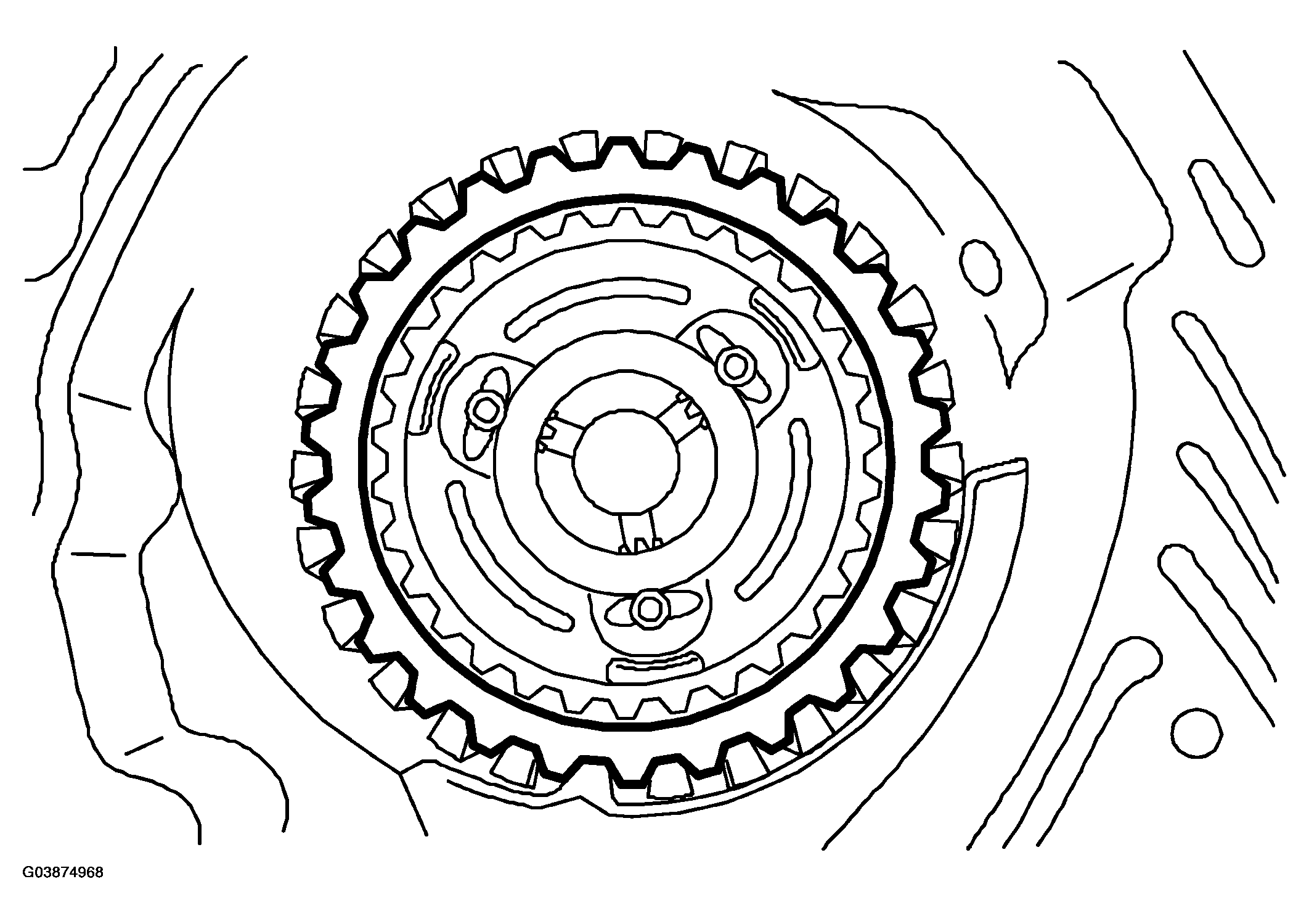

Turn the transmission case upside down, and then take out the socket bolts while holding the one-way clutch inner race with hand.

Fig 16: Turning Transmission Case

Courtesy of SAAB-SCANIA OF AMERICA, INC.

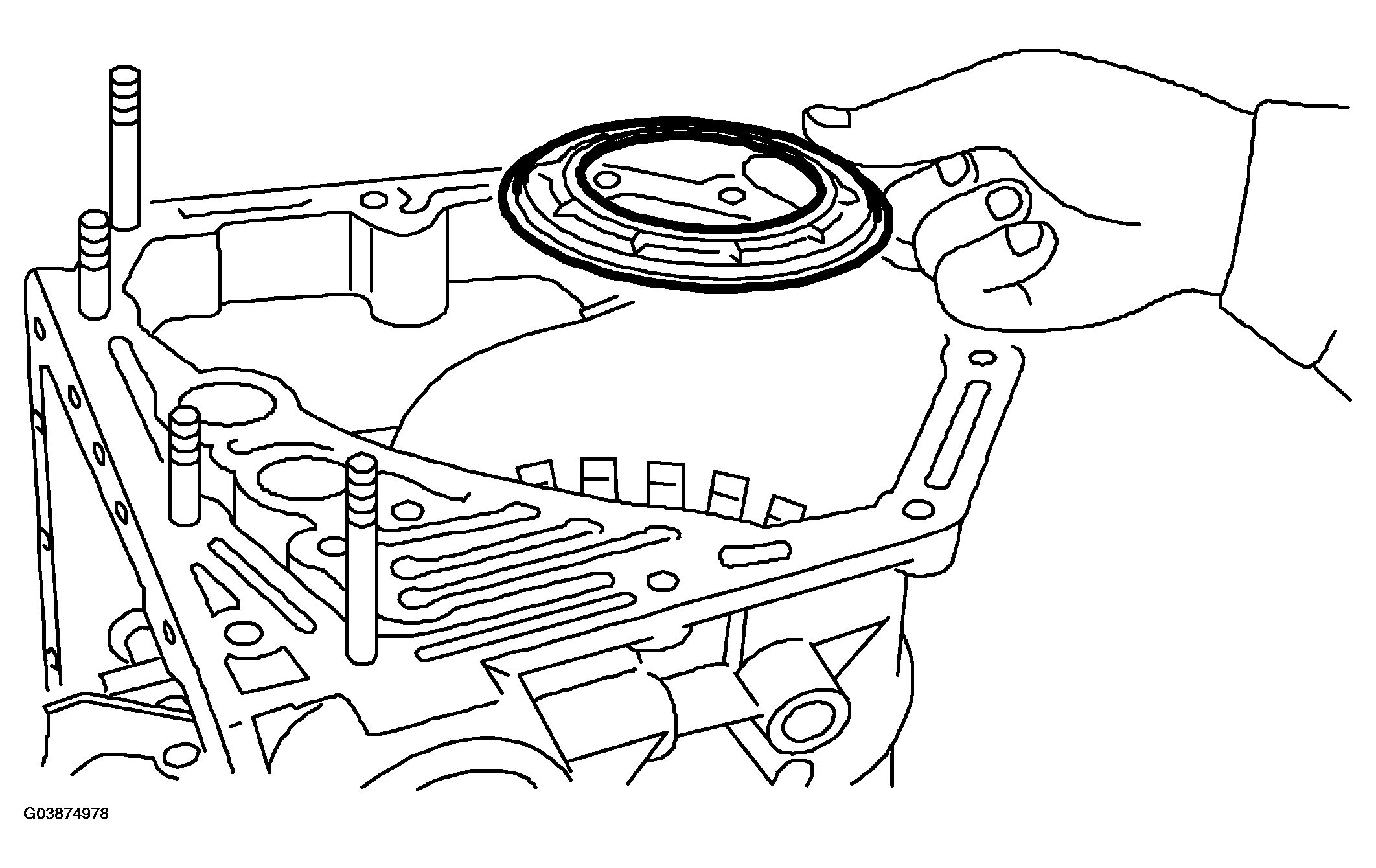

Take out the spring retainer.

Fig 17: Removing Spring Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

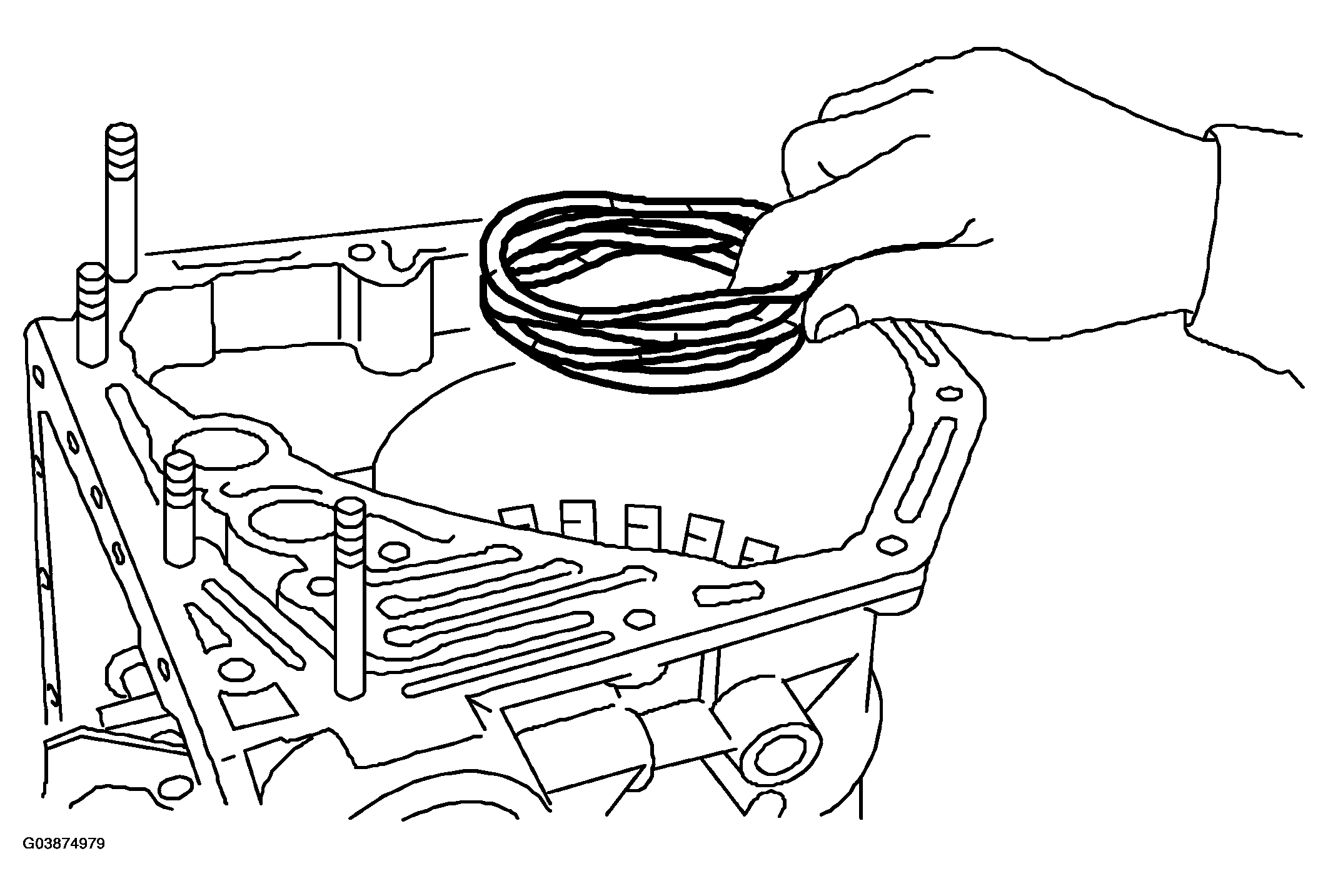

Take out the return spring.

Fig 18: Removing Return Spring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

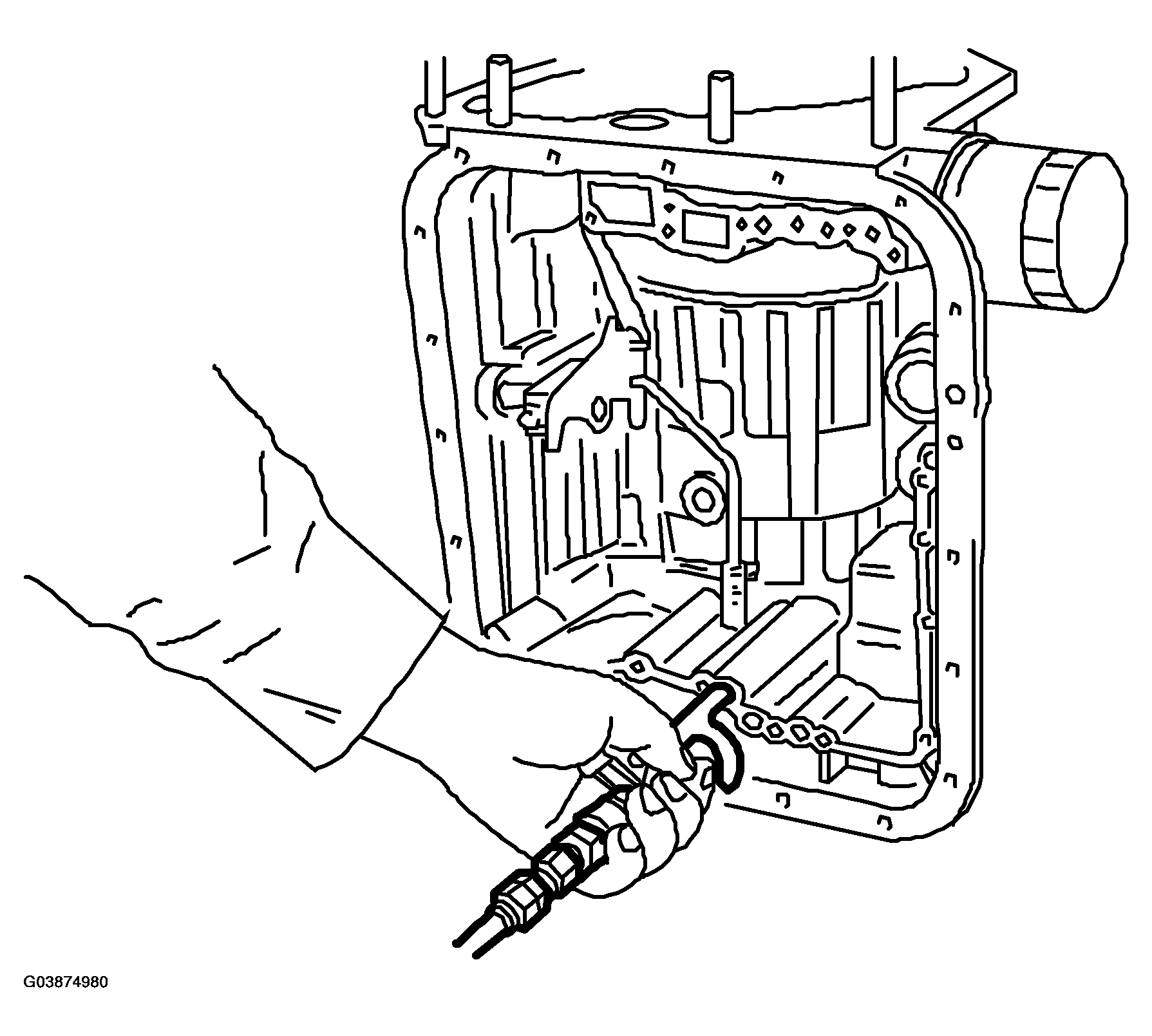

Apply compressed air.

Fig 19: Applying Compressed Air

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Take out the low & reverse piston.

Fig 20: Removing Low & Reverse Piston

Courtesy of SAAB-SCANIA OF AMERICA, INC.
