2-4 Brake

Separate 2-4 brake piston and piston retainer.

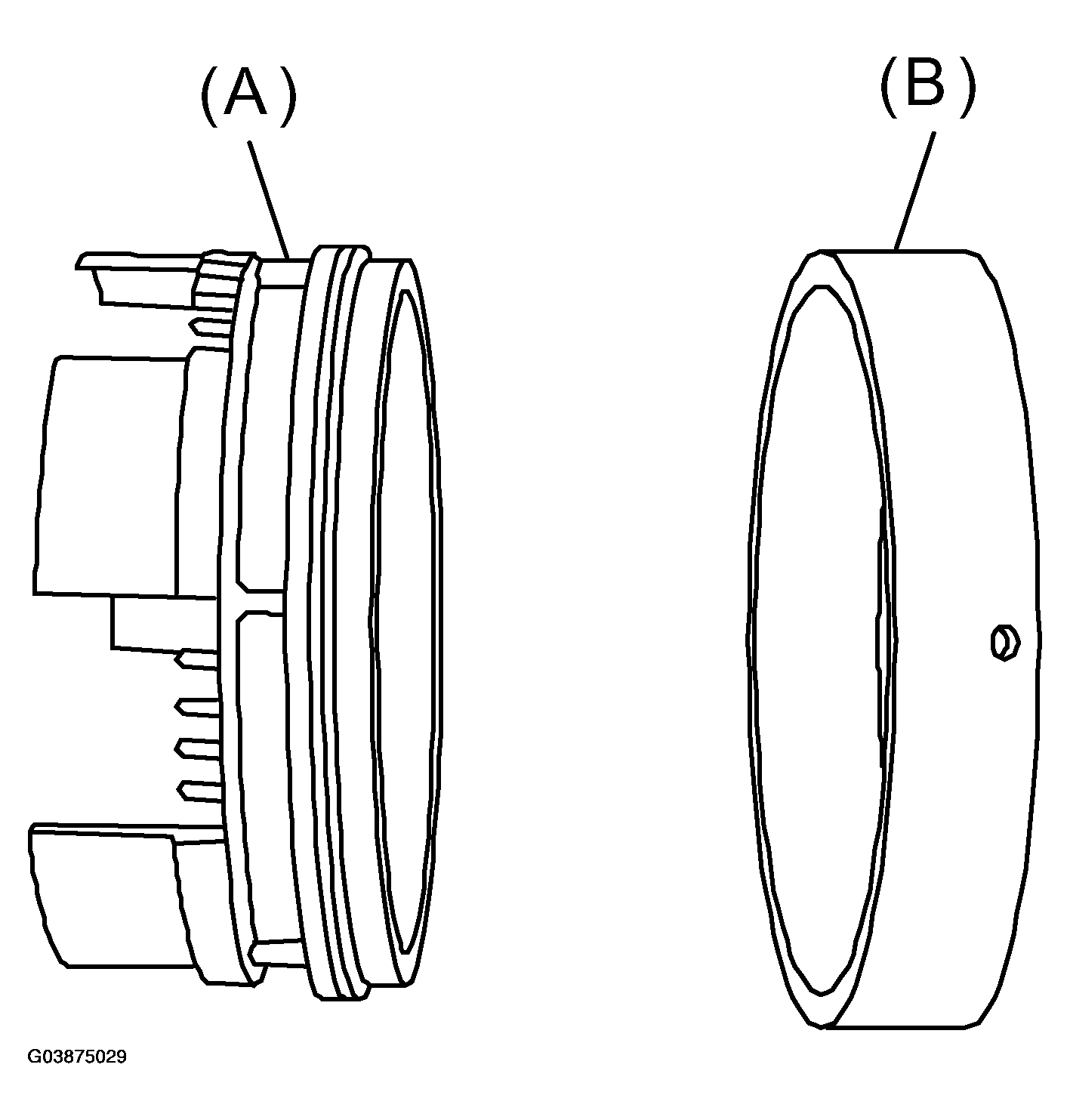

Fig 1: Separating Brake Piston And Piston Retainer
G03875029Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. 2-4 brake piston
  2. 2-4 brake piston retainer

Remove the D-ring from 2-4 brake piston.
