2-4 Brake

Apply ATF to new D-ring, and install it to 2-4 brake piston.

Install 2-4 brake piston to 2 -4 brake piston retainer.

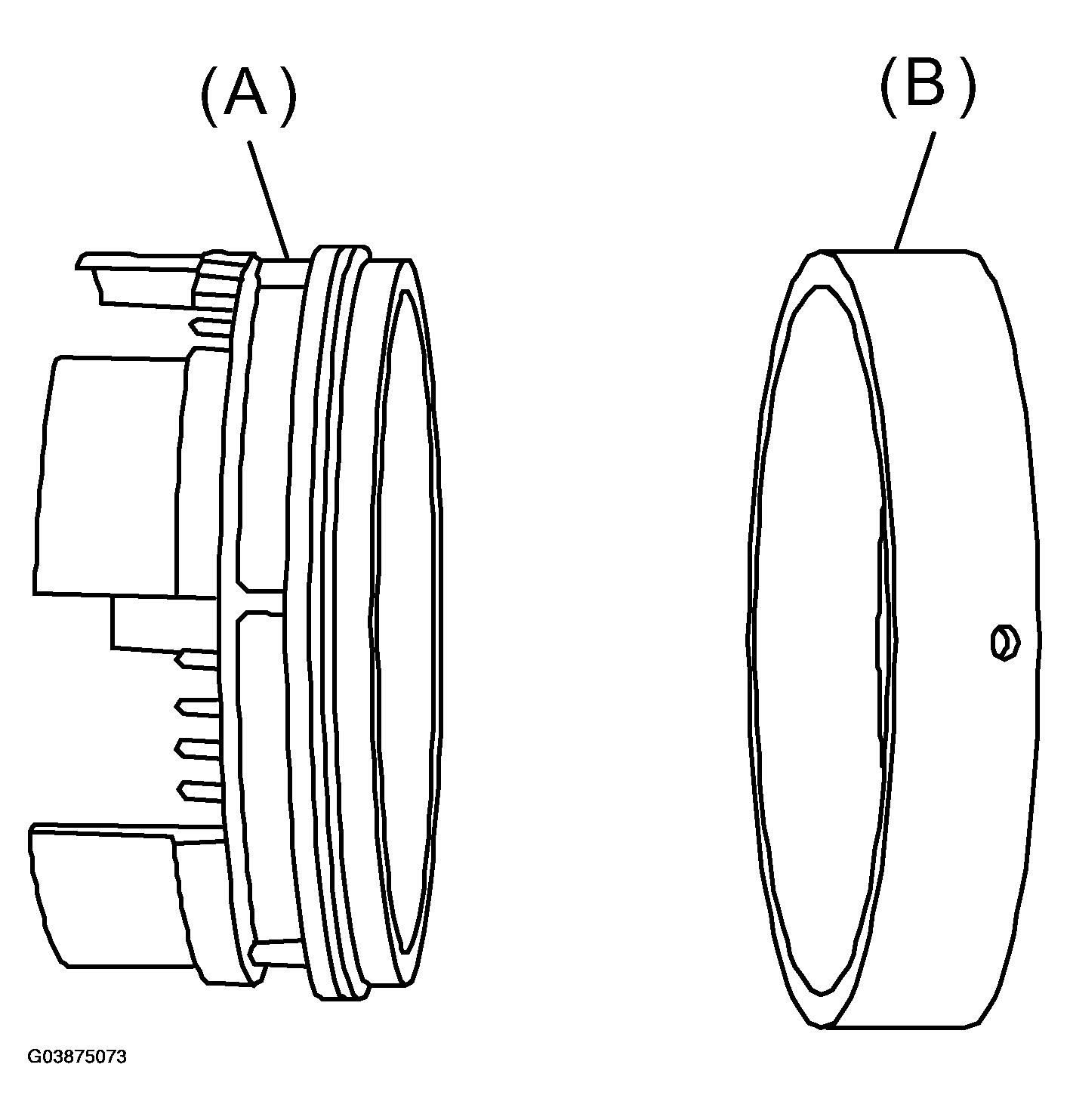

Fig 1: Applying ATF To New D-Ring
G03875073Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. 2-4 brake piston
  2. 2-4 brake piston retainer
