Technical Data: Specification
FRONT SUSPENSION SPECIFICATION
| Model | Saab 9-2X 2.5i Linear | Saab 9-2X 2.0T Aero | |
|---|---|---|---|
| Front | Camber (Tolerance: +/-0°45' Adjustment standard: +/-0°30' ) |
- 0°10' | - 0°20' |
| Caster | 3°25' | 3°35' | |
| Toe-in | Tolerance: 1.8+/-3 mm (0.08+/-0.12 in), Toe angle (The sum of both wheels): 0°10'+/-15' Tolerance: 1.8+/-2 mm (0.08+/-0.08 in), Toe angle (The sum of both wheels): 0°10'+/-10' |
||
| Kingpin angle | 13°30' | 13°45' | |
| Wheel arch height [Tolerance: +12/- 24 mm (+0.47/- 0.94 in)] |
397 mm (15.63 in) |
387 mm (15.24 in) |
|
| Diameter of stabilizer | 21 mm (0.83 in) | ||
| Rear | Camber (Tolerance: +/-0°45' Adjustment standard: +/-0°30' ) |
- 1°15' | - 1°20' |
| Toe-in | Tolerance: 0+/-3 mm (0+/-0.12 in), Toe angle (The sum of both wheels): +/-0°15' Tolerance: 0+/-2 mm (0+/-0.08 in), Toe angle (The sum of both wheels): +/-0°10' |
||
| Wheel arch height [Tolerance: +12/- 24 mm (+0.47/- 0.94 in)] |
381 mm (15.0 in) |
376 mm (14.80 in) |
|
| Thrust angle | Tolerance: +/-0°30', Adjustment standard: +/-0°20' | ||
| Diameter of stabilizer | 13 mm (0.51 in) | 17 mm (0.67 in) | |
NOTE:
- Front and rear toe-in and front camber can be adjusted. If toe-in or camber exceeds tolerance, adjust toe-in and camber to the adjustment standard.
- The other items indicated in the specification table cannot be adjusted. If the other items exceed specifications, check suspension parts and connections for deformities; replace with new ones as required.

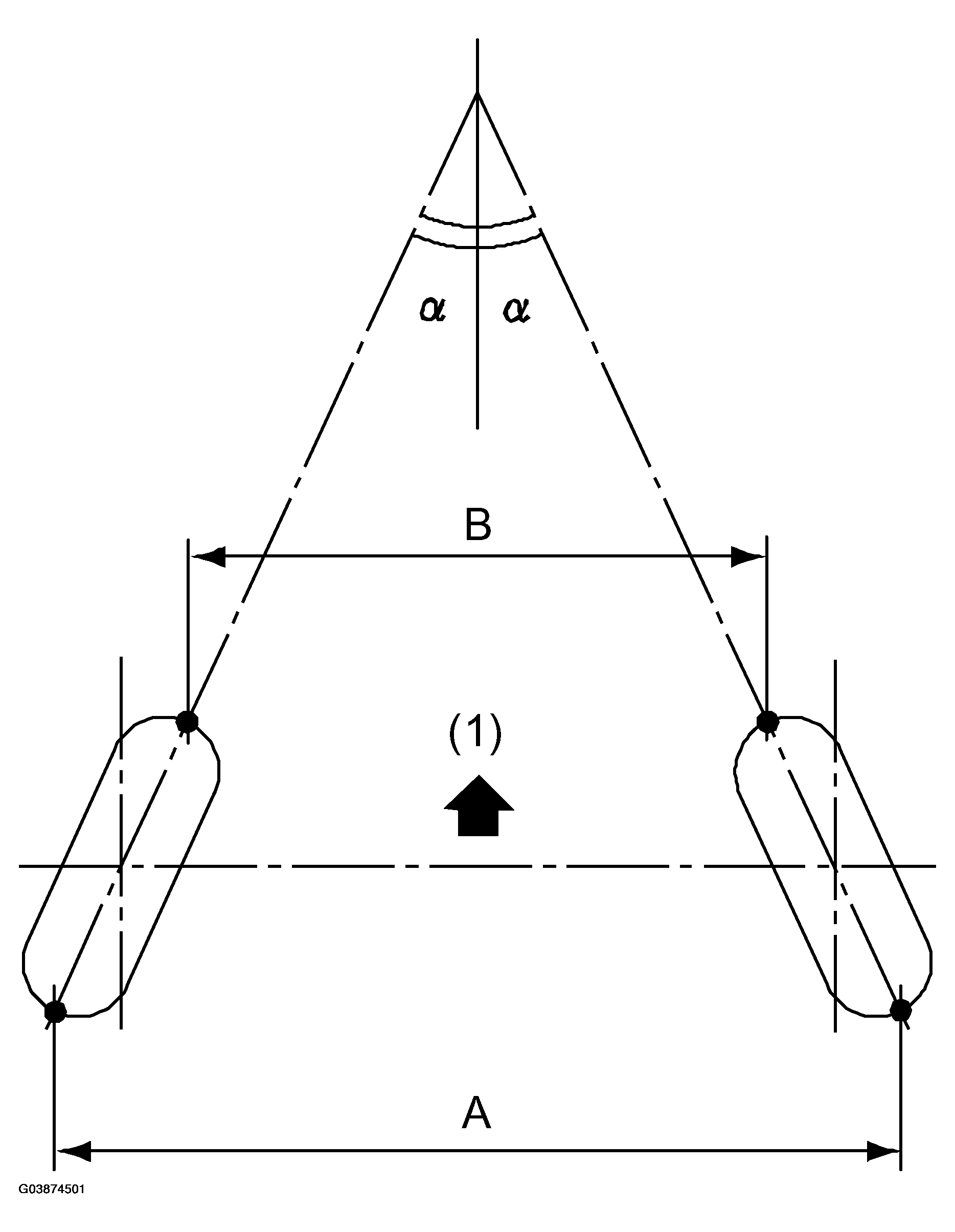

- Front
A - B = Positive: Toe-in, Negative: Toe-out
a = Each toe angle
