Component View

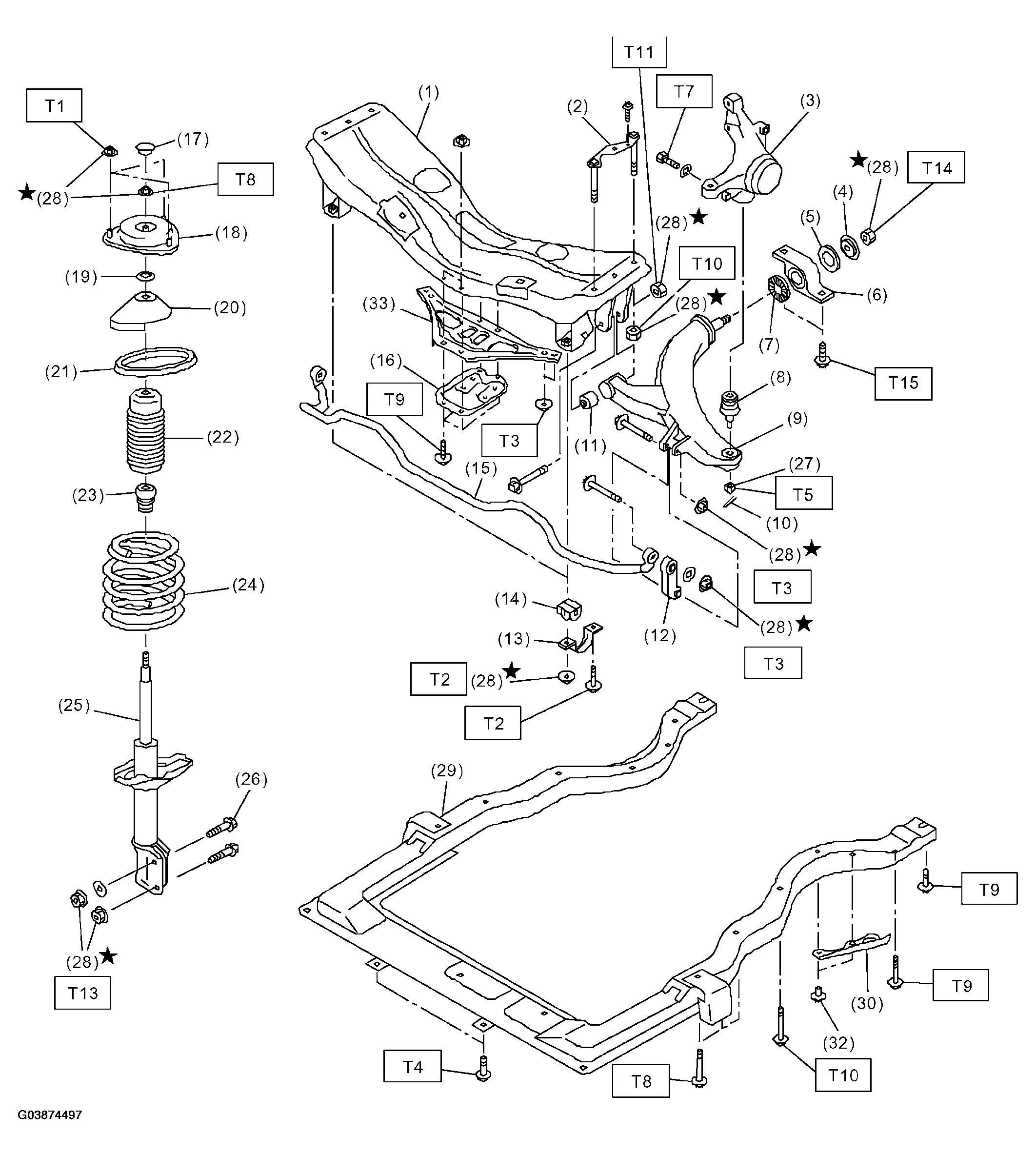

Fig 1: Exploded View Of Front Suspension
G03874497Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Front crossmember
  2. Bolt ASSY
  3. Housing
  4. Washer
  5. Stopper rubber (Rear)
  6. Rear bushing
  7. Stopper rubber (Front)
  8. Ball joint
  9. Transverse link
  10. Cotter pin
  11. Front bushing
  12. Stabilizer link
  13. Clamp
  14. Bushing
  15. Stabilizer
  16. Jack-up plate (Saab 9-2X 2.5i Linear)
  17. Dust seal
  18. Strut mount
  19. Spacer
  20. Upper spring seat
  21. Rubber seat
  22. Dust cover
  23. Helper
  24. Coil spring
  25. Damper strut
  26. Adjusting bolt
  27. Castle nut
  28. Self-locking nut
  29. Sub frame
  30. Cover
  31. Boss
  32. Clip

Tightening torque: Nm (kgfm, ft-lb)

T1: 20 (2.0, 14.5)

T2: 25 (2.5, 18.1)

T3: 30 (3.1, 22)

T4: 34 (3.5, 25)

T5: 40 (4.1, 30)

T6: 45 (4.6, 33)

T7: 50 (5.1, 37)

T8: 55 (5.6, 41)

T9: 70 (7.1, 52)

T10: 105 (10.7, 77)

T11: 125 (12.7, 92)

T12: 155 (15.8, 114)

T13: 175 (17.8, 129)

T14: 190 (19.4, 140)

T15: 250 (25.5, 184)
