Front Bushing

Assemble in the reverse order of disassembly.

IMPORTANT: Install the front bushing in correct direction, as shown in the figure.

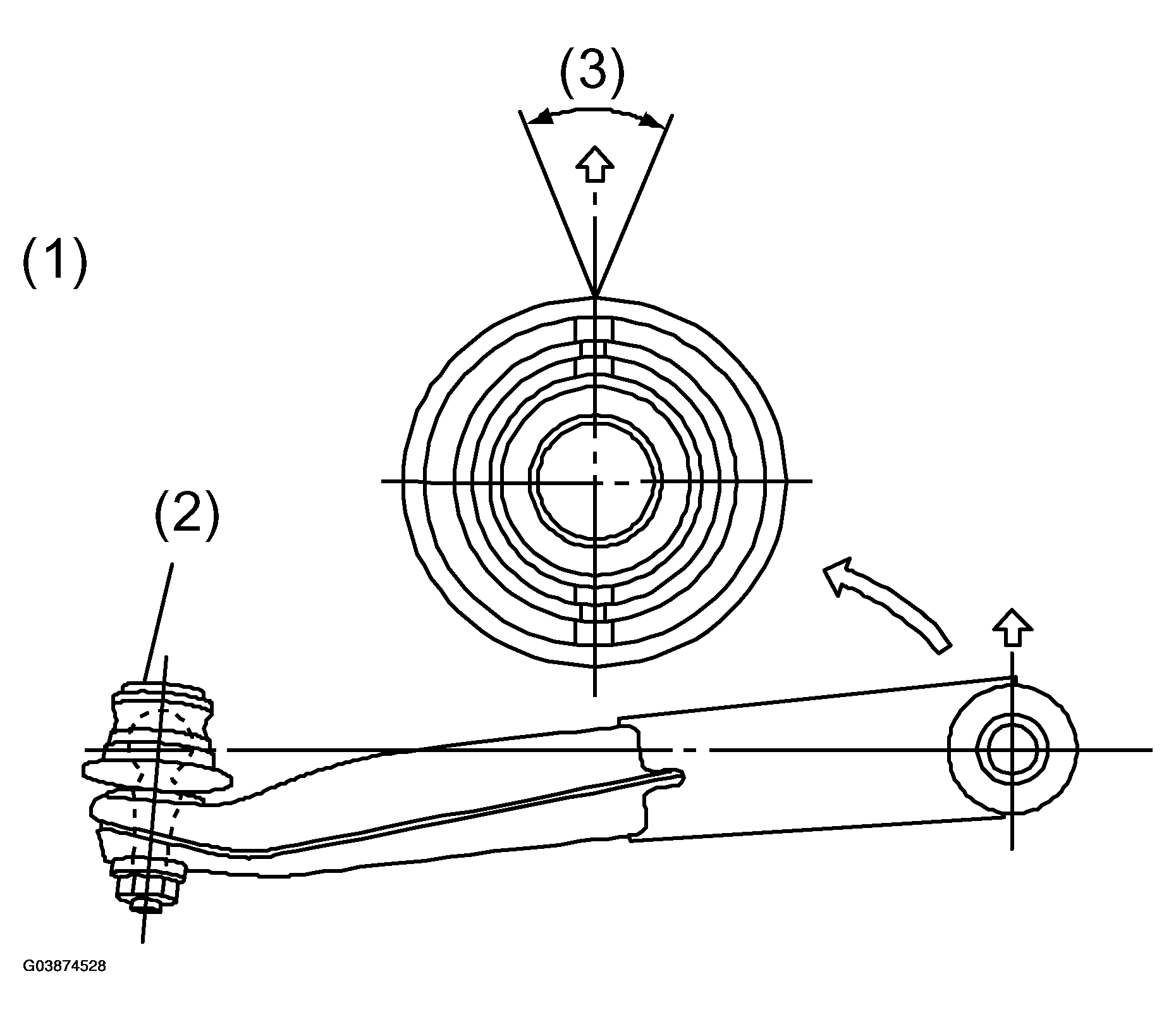

Fig 1: Installing Front Bushing
G03874528Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Face bushing toward center of ball joint
  2. Ball joint
  3. +/-3°
