Front Strut: Removal

Remove the wheel.

Remove the bolt securing the brake hose from strut.

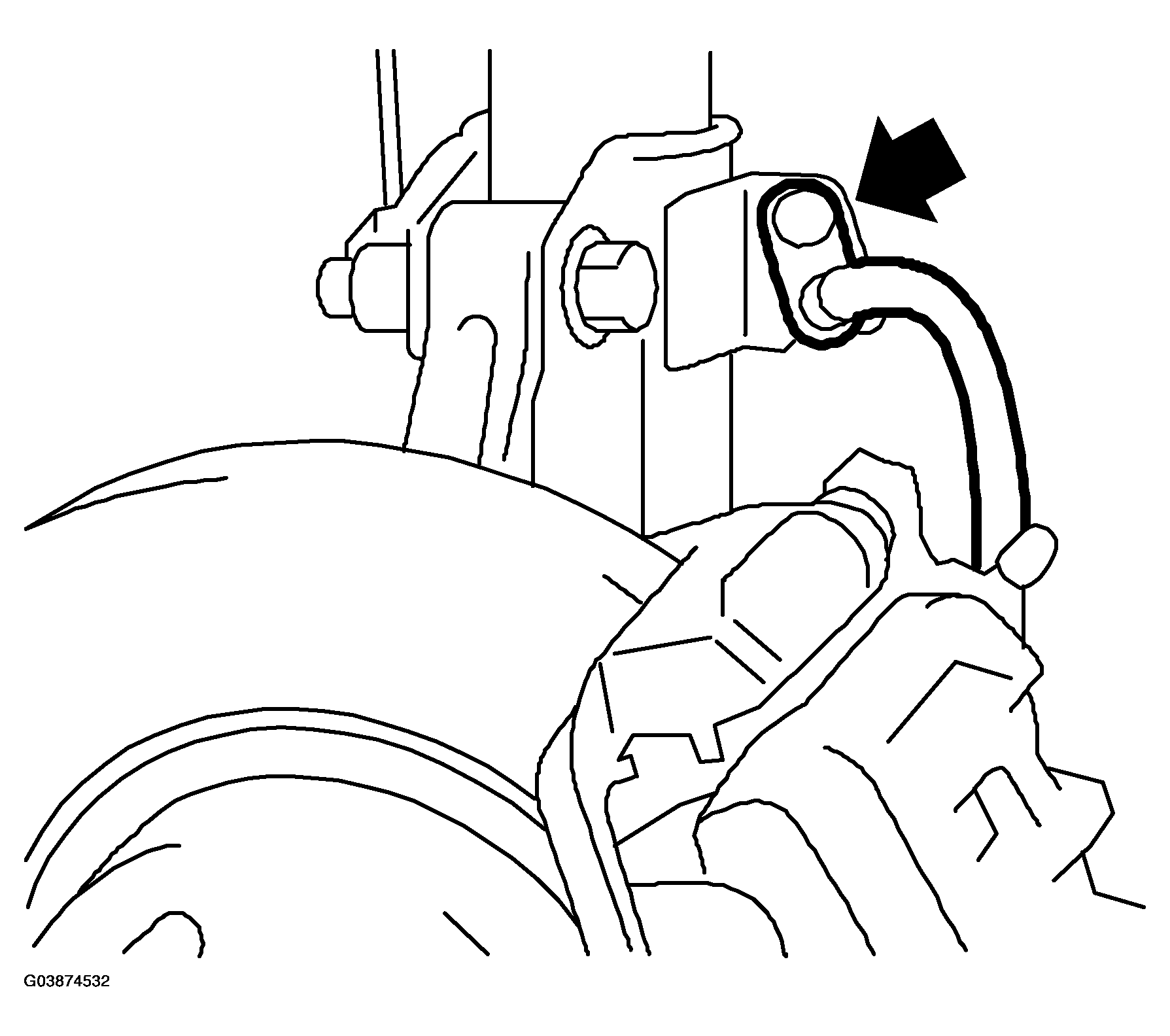

Fig 1: Removing Bolt Securing Brake Hose From Strut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Scribe an alignment mark on the camber adjusting bolt which secures the strut to housing.

Remove the bolt securing ABS wheel speed sensor harness.

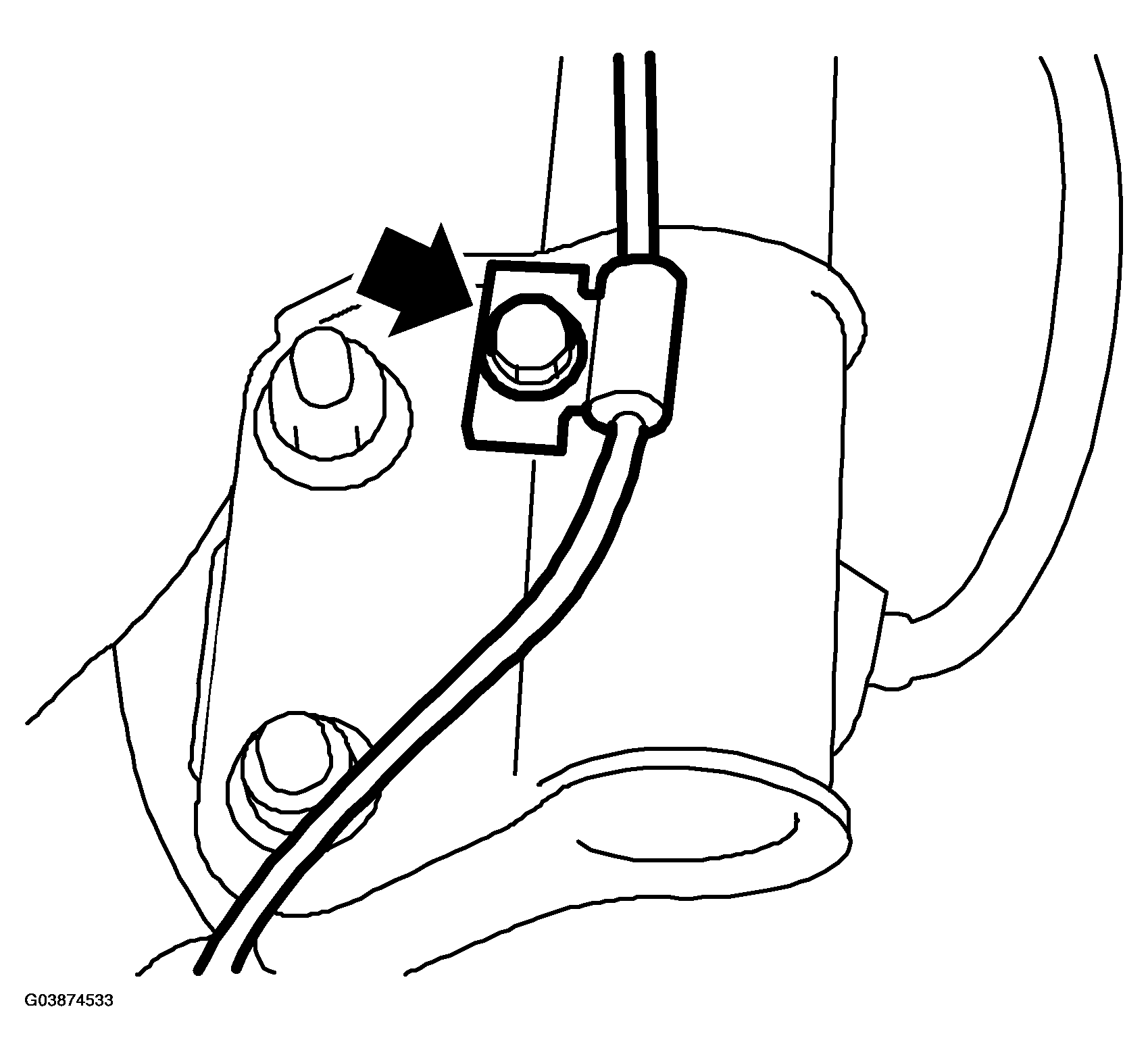

Fig 2: Removing Bolt Securing ABS Wheel Speed Sensor Harness

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the two bolts securing housing to strut.

Remove the three nuts securing the strut mount to body.

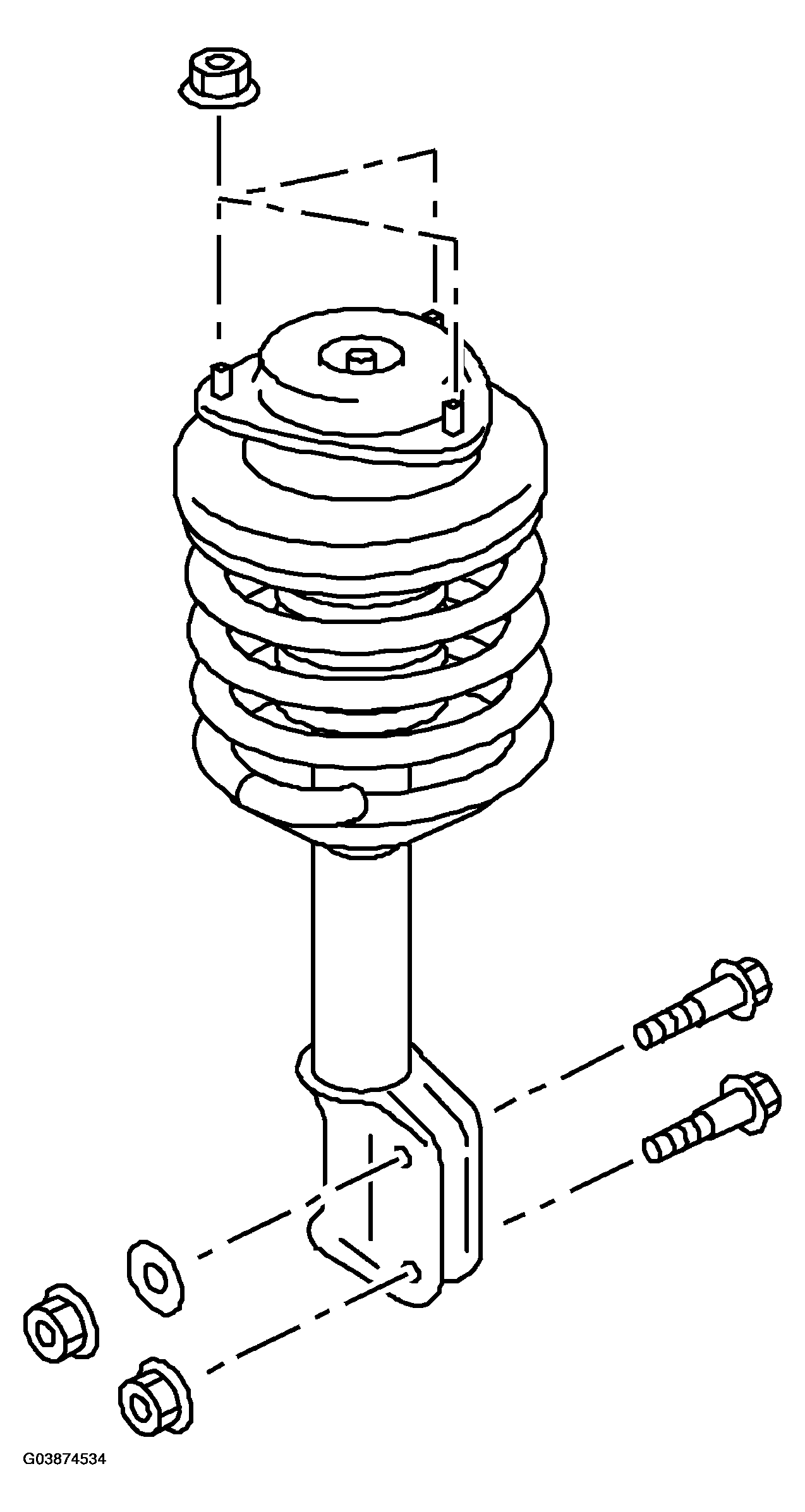

Fig 3: Removing Nuts Securing Strut Mount To Body

Courtesy of SAAB-SCANIA OF AMERICA, INC.
