Front Strut: Disassembly

Using a coil spring compressor, compress the coil spring.

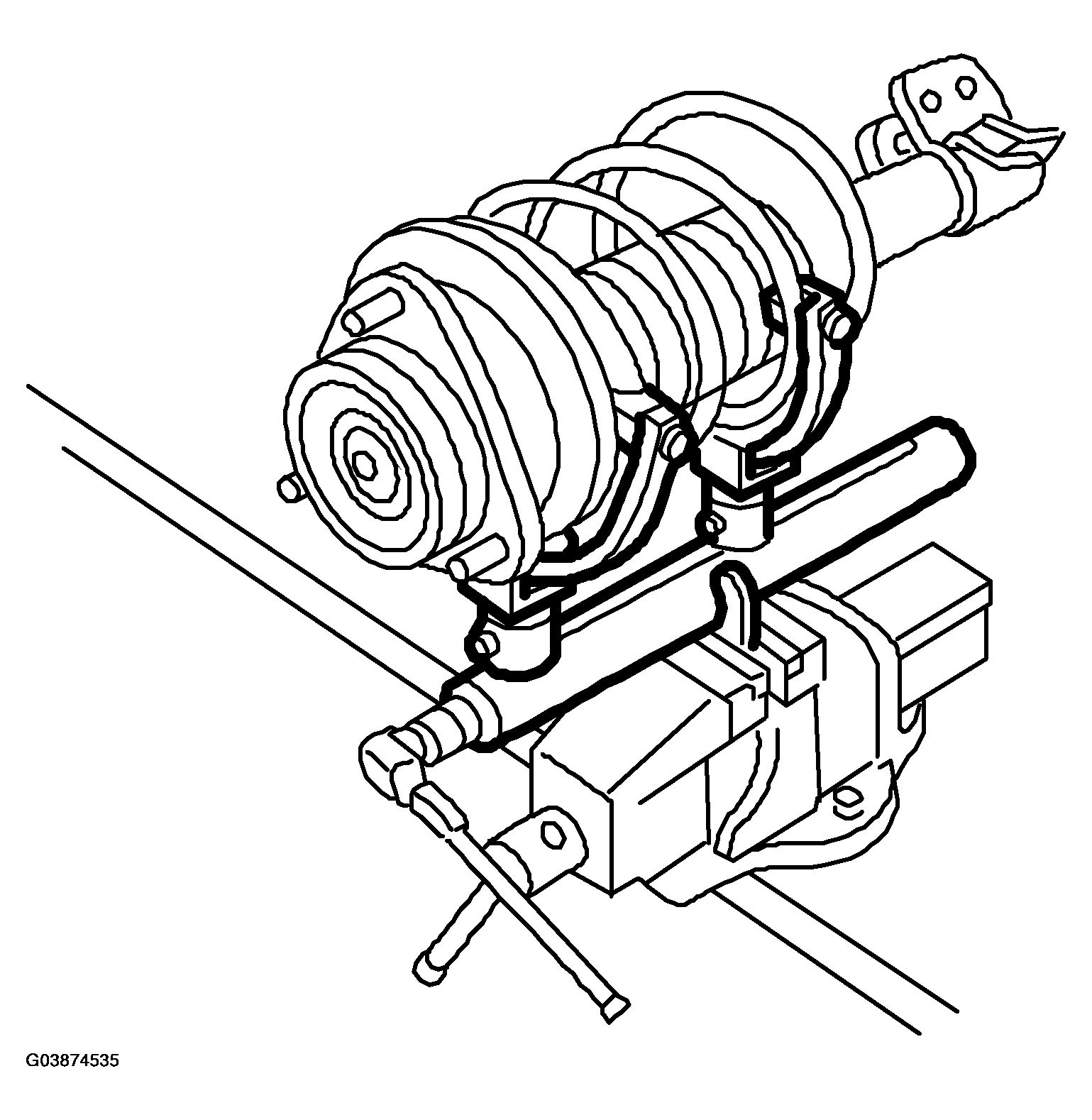

Fig 1: Compressing Coil Spring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Using the ST, remove the self-locking nut.

ST 32005223 STRUT MOUNT SOCKET

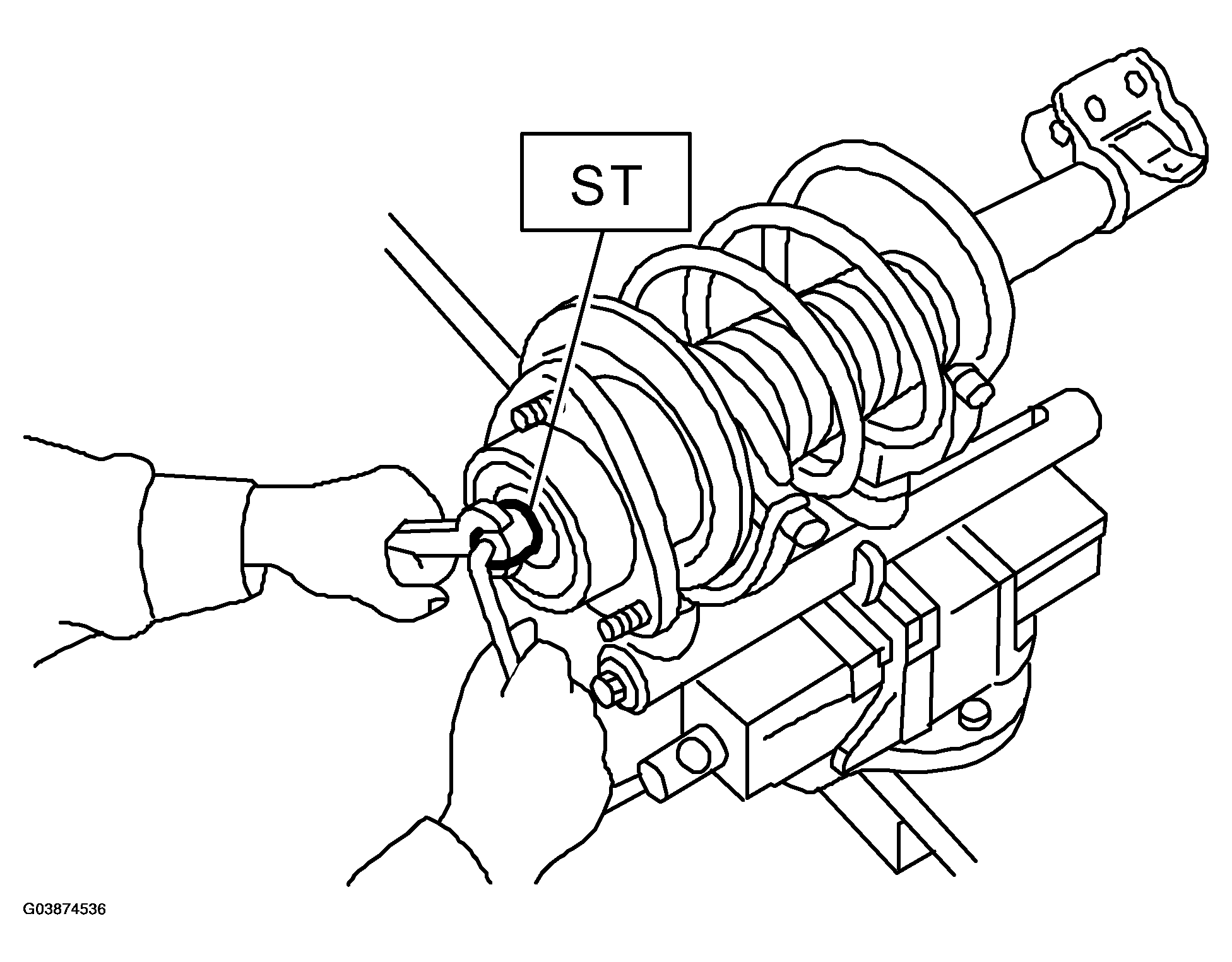

Fig 2: Removing Self-Locking Nut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the strut mount, upper spring seat and rubber seat from strut.

Gradually decreasing the compression force of compressor, and then remove the coil spring.

Remove the dust cover and helper spring.
