Front Stabilizer: Removal

Jack-up the front part of the vehicle and support it with rigid racks.

Remove the jack-up plate from lower part of crossmember.

Remove the sub frame.

Remove the nut which secures stabilizer link to front transverse link.

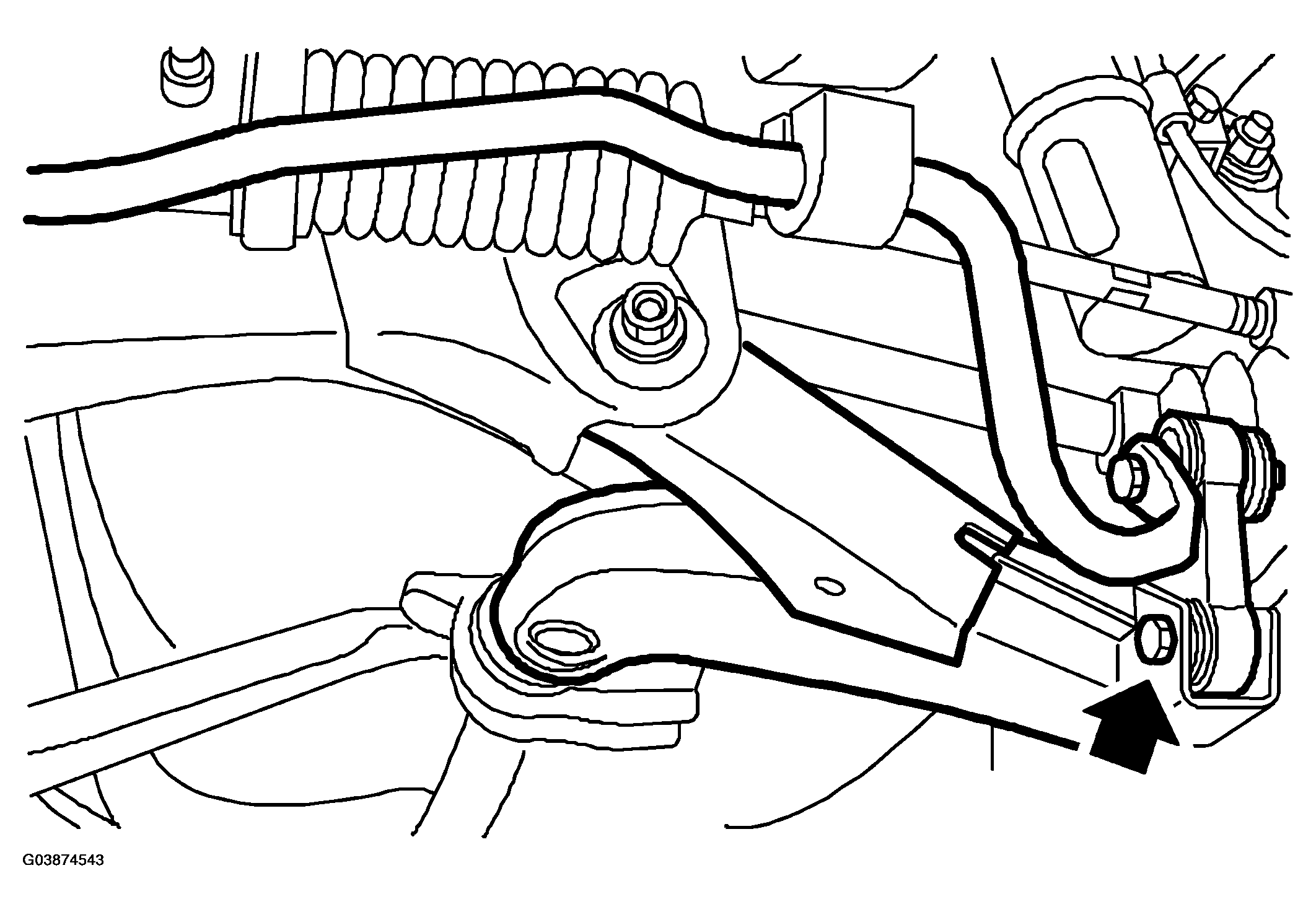

Fig 1: Removing Nut Which Secures Stabilizer Link To Front Transverse Link

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the bolts which secure stabilizer to crossmember.

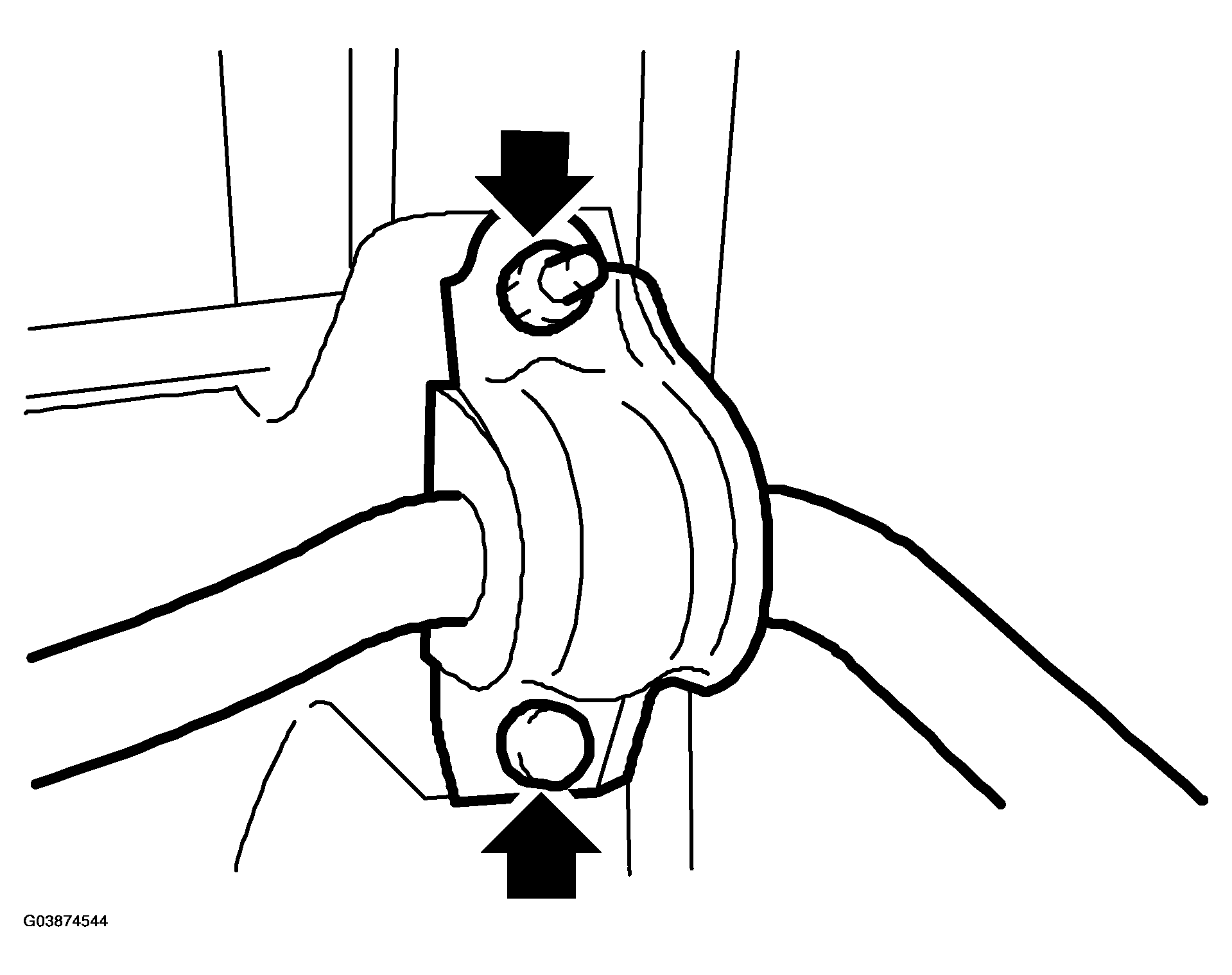

Fig 2: Removing Bolts Which Secure Stabilizer To Crossmember

Courtesy of SAAB-SCANIA OF AMERICA, INC.
