Basic Inspection

Measure overall length of the steering column. If not as specified, replace.

Standard value:

Overall length L

818.7+/-1.5 mm (32.23+/-0.059 in)

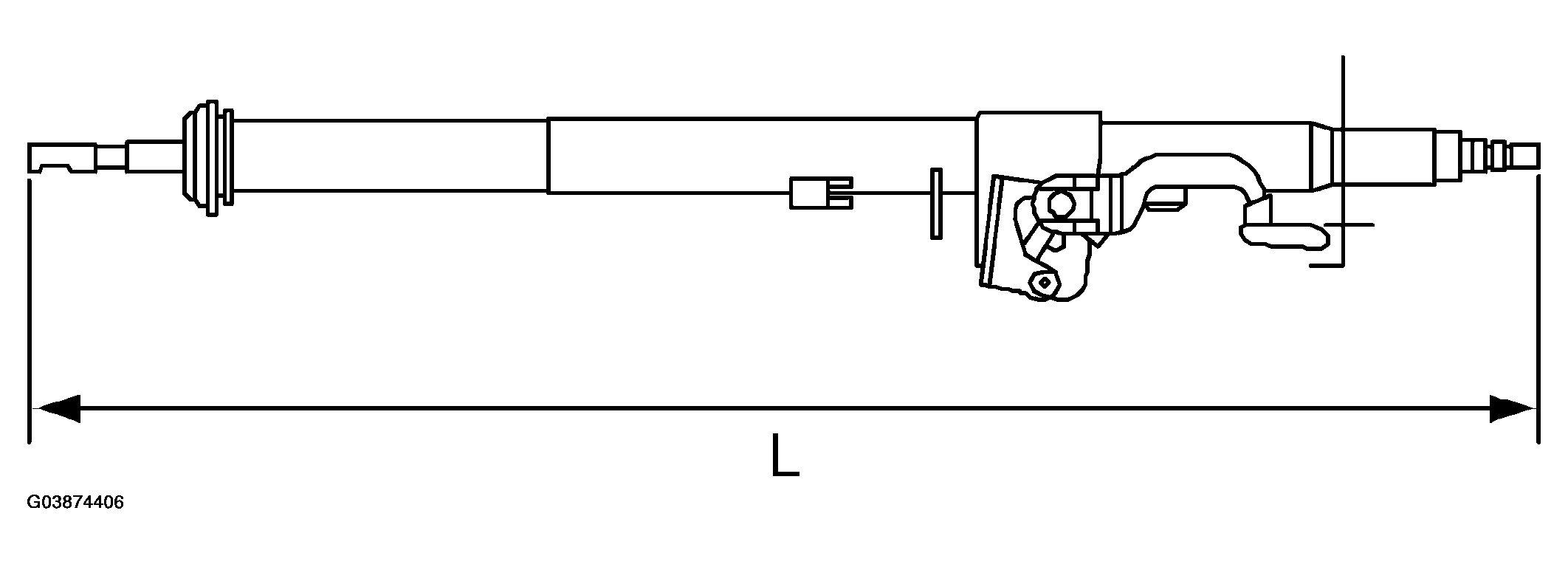

Fig 1: Measuring Overall Length Of Steering Column

Courtesy of SAAB-SCANIA OF AMERICA, INC.

AIRBAG MODEL INSPECTION
