Vehicle Diagnostic Interface
After clearing the memory, check for any remaining unresolved trouble data.
Warm up the engine.
Prepare the Vehicle Diagnostic Interface kit.
Connect the diagnosis cable to Vehicle Diagnostic Interface.

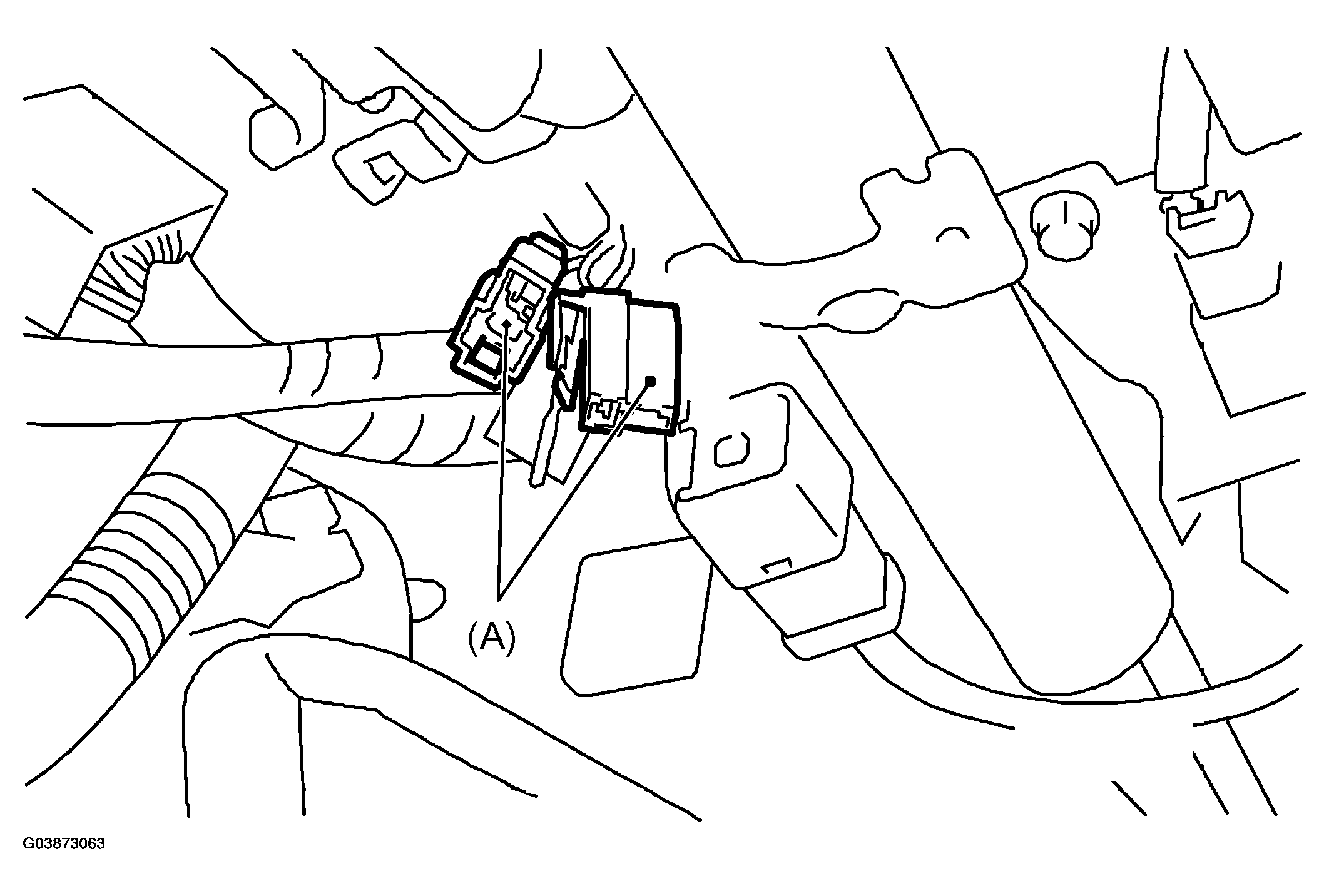

Connect the test mode connector (A) at the lower portion of instrument panel (on driver's side).
Connect the Vehicle Diagnostic Interface to data link connector.

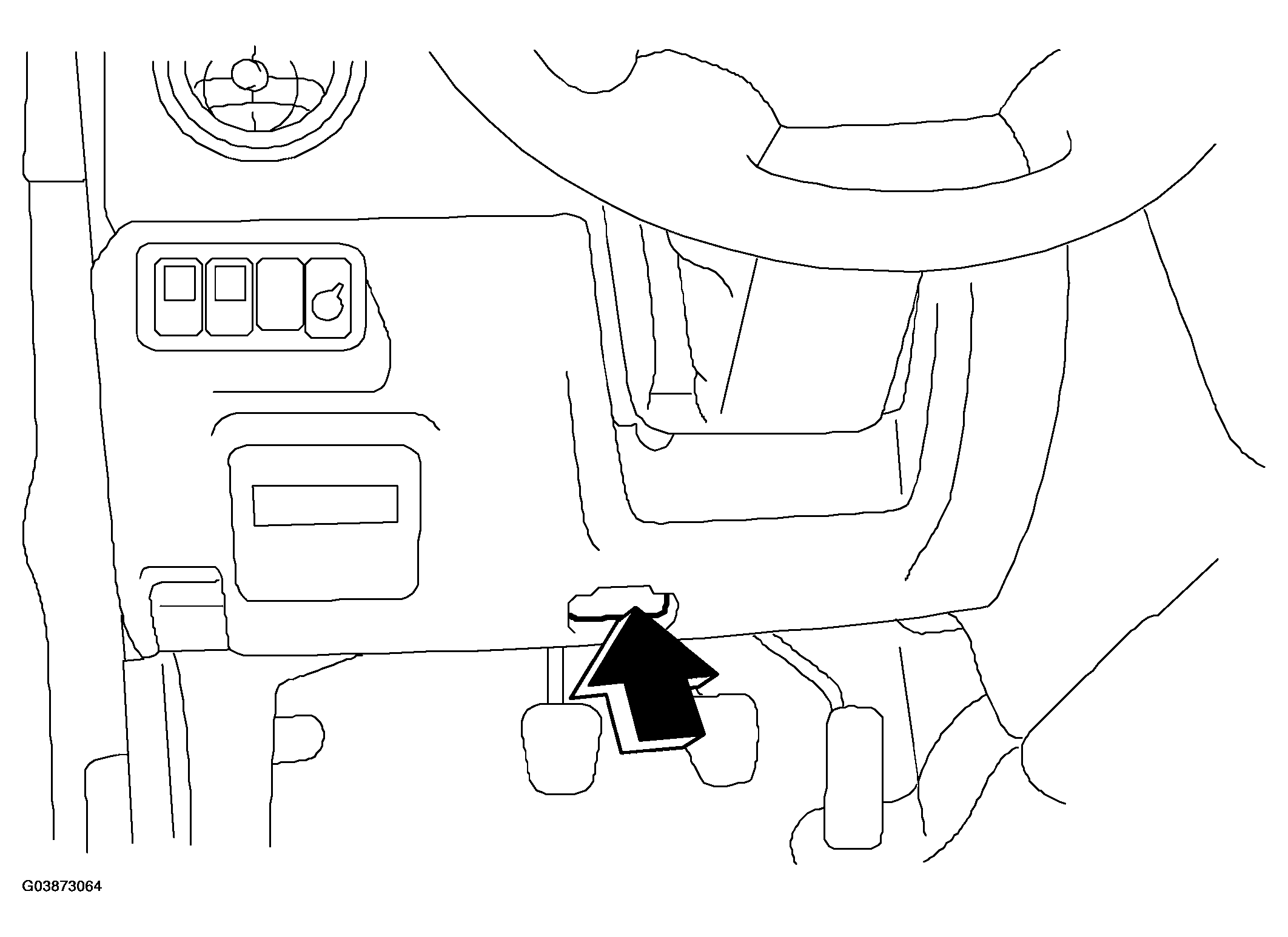

Data link connector is located in the lower portion of the instrument panel (on the driver's side).
Connect the diagnosis cable to data link connector.
Turn the ignition switch to ON (engine OFF), and start the Vehicle Diagnostic Interface.
On << Main Menu >> display screen, select the {2. Each System Check}.
On << System Selection Menu >> display screen, select the {Engine Control System}.
Select the {OK} after the information of engine type is displayed.
On << Engine Diagnosis >> display screen, select the {Dealer Check Mode Procedure}.
After the "Perform Inspection (Dealer Check) Mode?" is shown on display screen, select the {OK}.
Perform subsequent procedures as instructed on display screen.
- If trouble still remains in memory, the corresponding DTC appears on display screen.NOTE:
- For detailed operation procedure, refer to the VEHICLE DIAGNOSTIC INTERFACE OPERATION MANUAL.
- For details concerning the DTC, refer to the LIST OF DIAGNOSTIC TROUBLE CODE (DTC) .
- Release the parking brake.
- The speed difference between front and rear wheels may light either the ABS warning light, but this indicates no malfunctions. When the engine control diagnosis is finished, perform the ABS memory clearance procedure of self-diagnosis system.
