Adjustment - Replacement: Generator: Disassembly

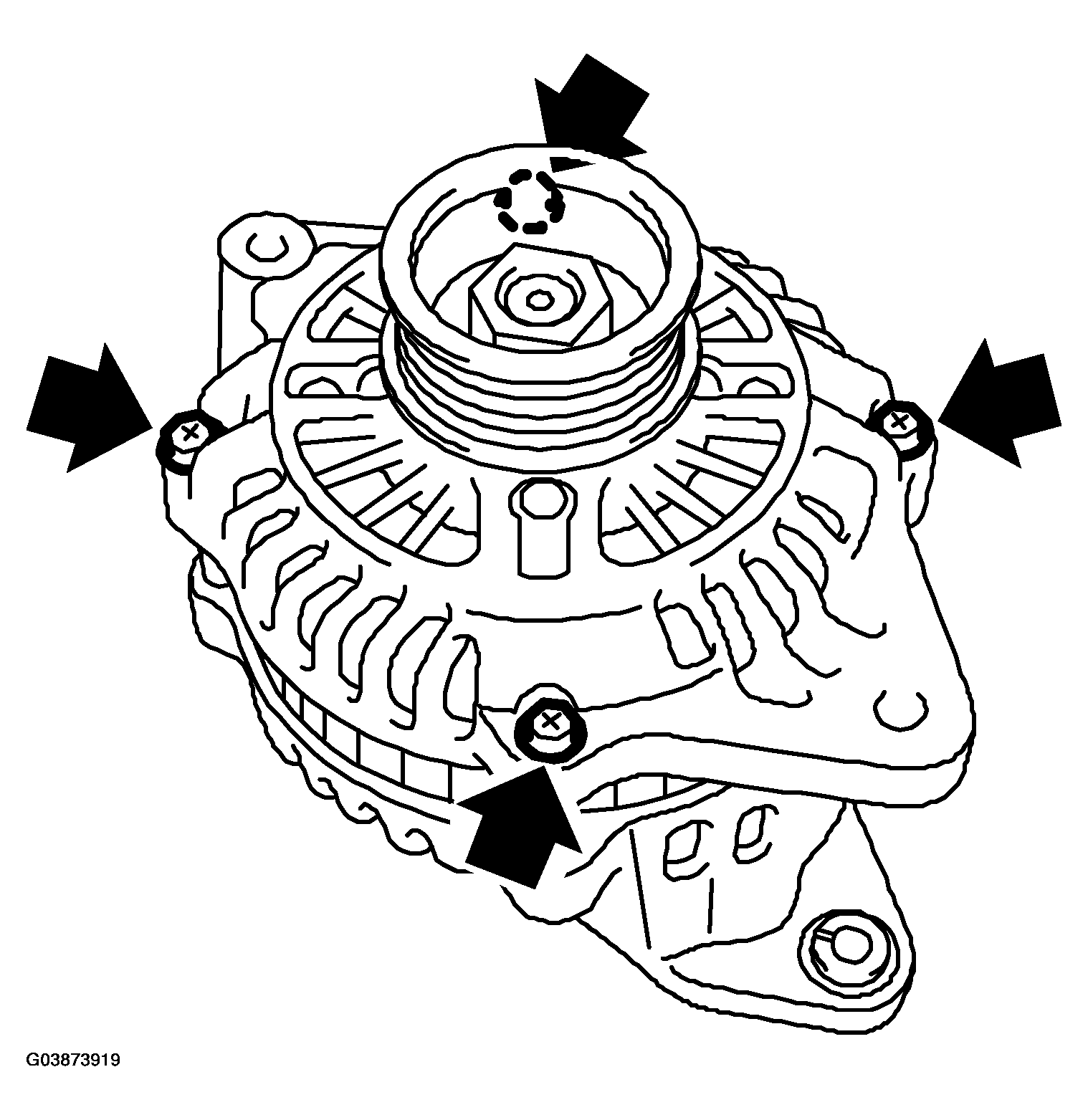

Remove the four through-bolts.

Fig 1: Removing Through-Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.

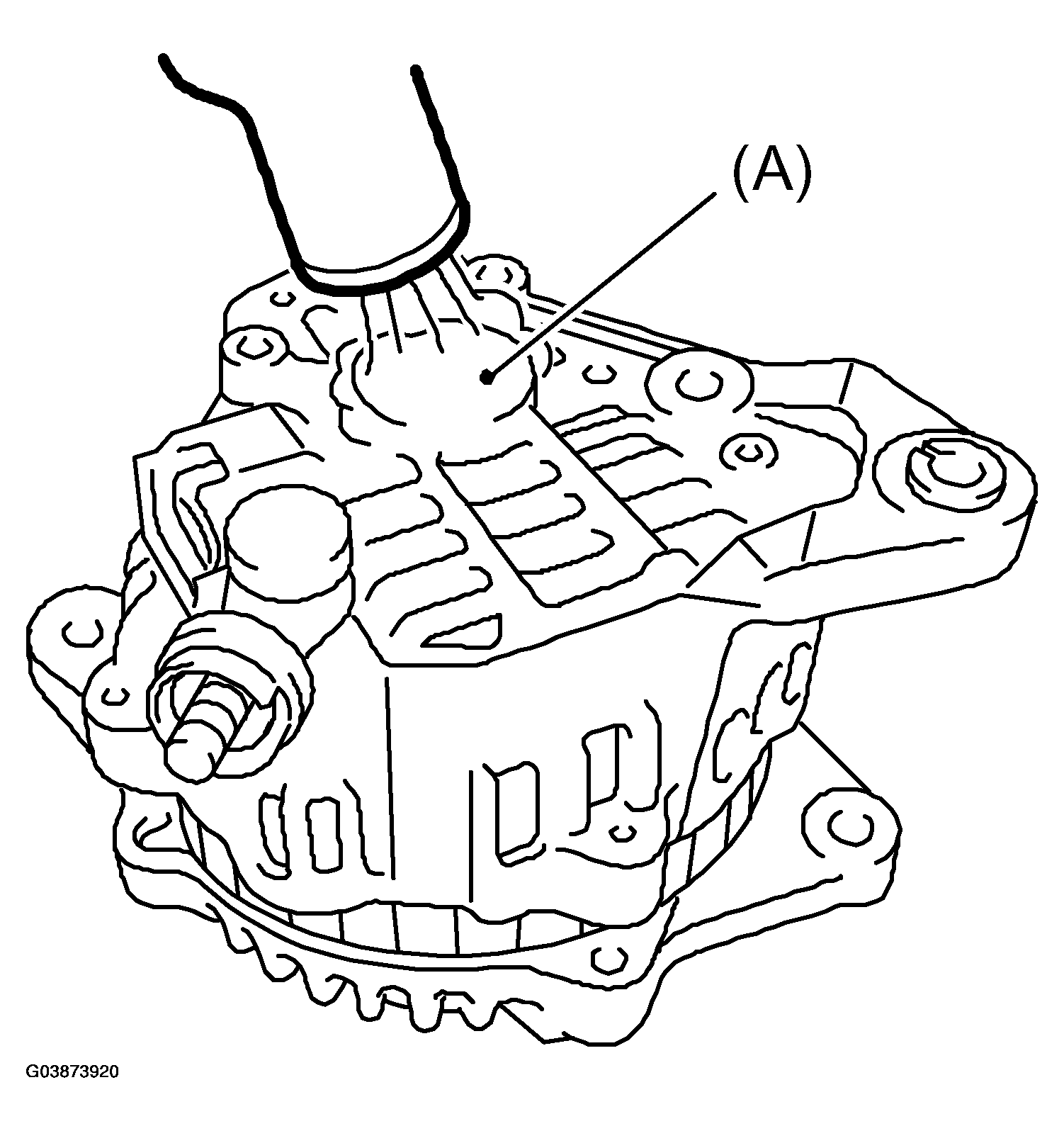

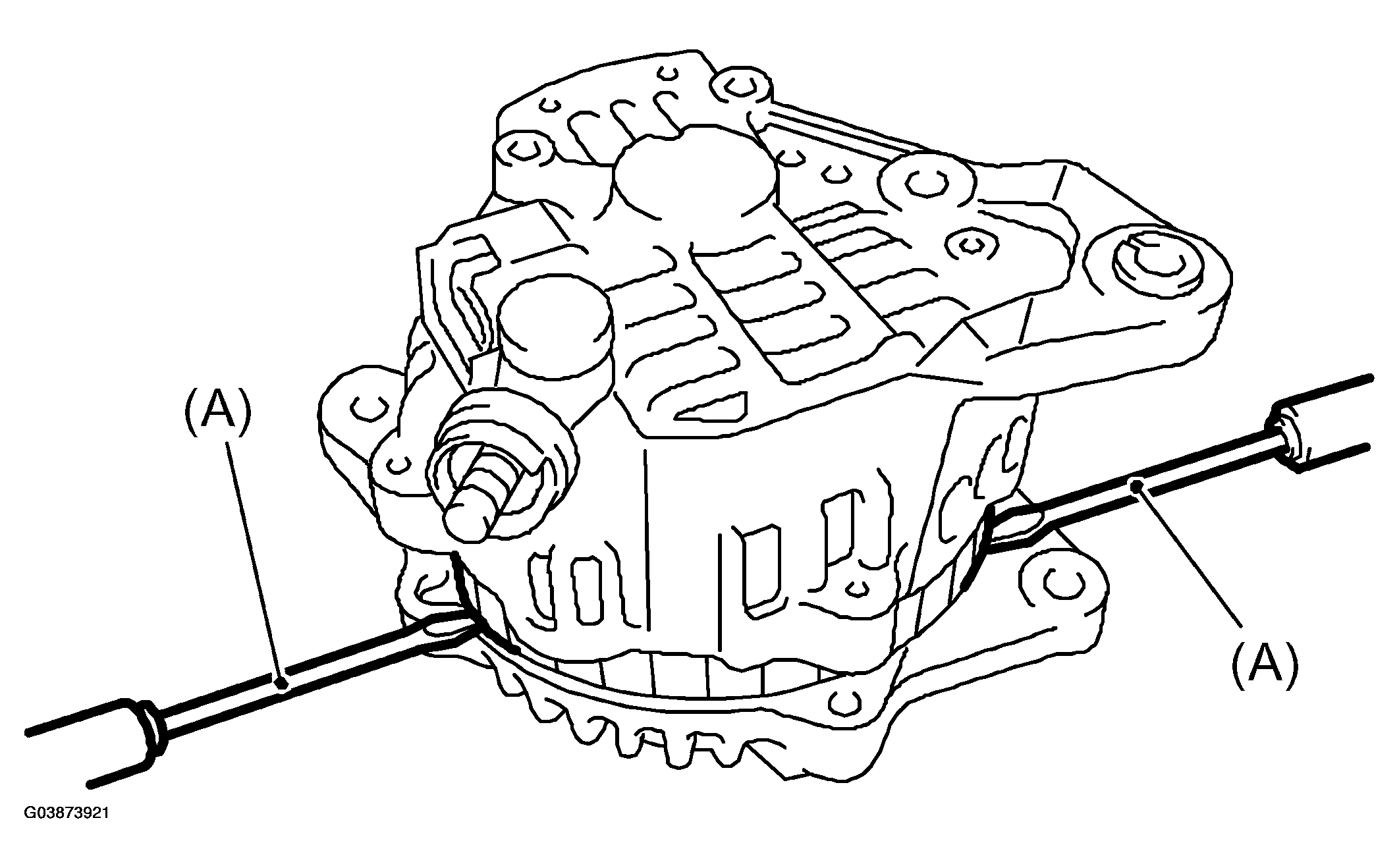

Heat portion (A) of rear cover to 50°C (122°F) with a heater drier.

Fig 2: Heating Portion Of Rear Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Then insert the tip of a flat tip screwdriver into the gap between stator core and front cover. Pry them apart to disassemble.

Fig 3: Inserting Tip Of Flat Tip Screwdriver Into Gap Between Stator Core And Front Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Screwdriver

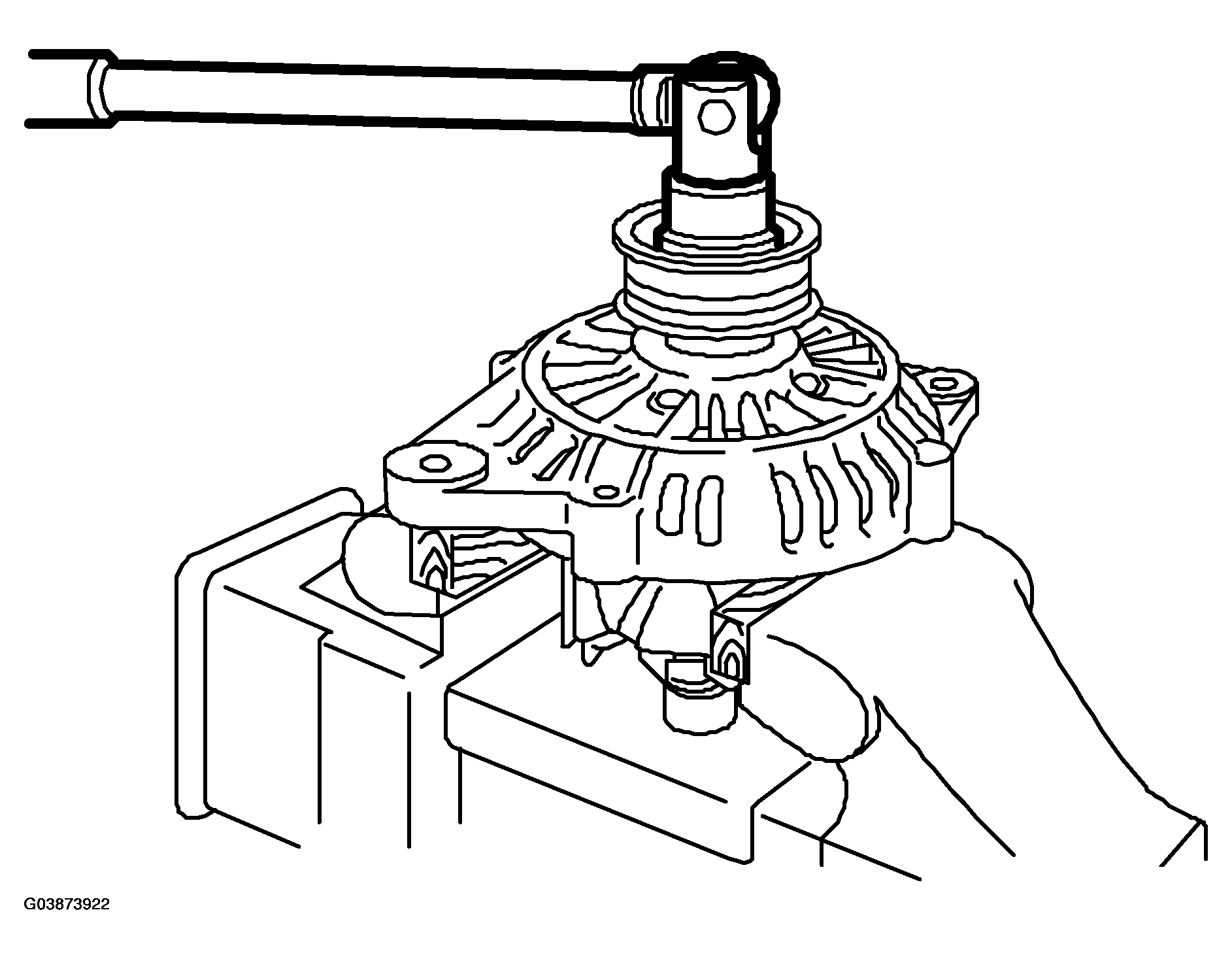

Hold the rotor with a vise and remove pulley nut.

Fig 4: Removing Pulley Nut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT: When holding the rotor with a vise, place aluminum plates or wooden pieces on the vise jaws to prevent rotor from damage.

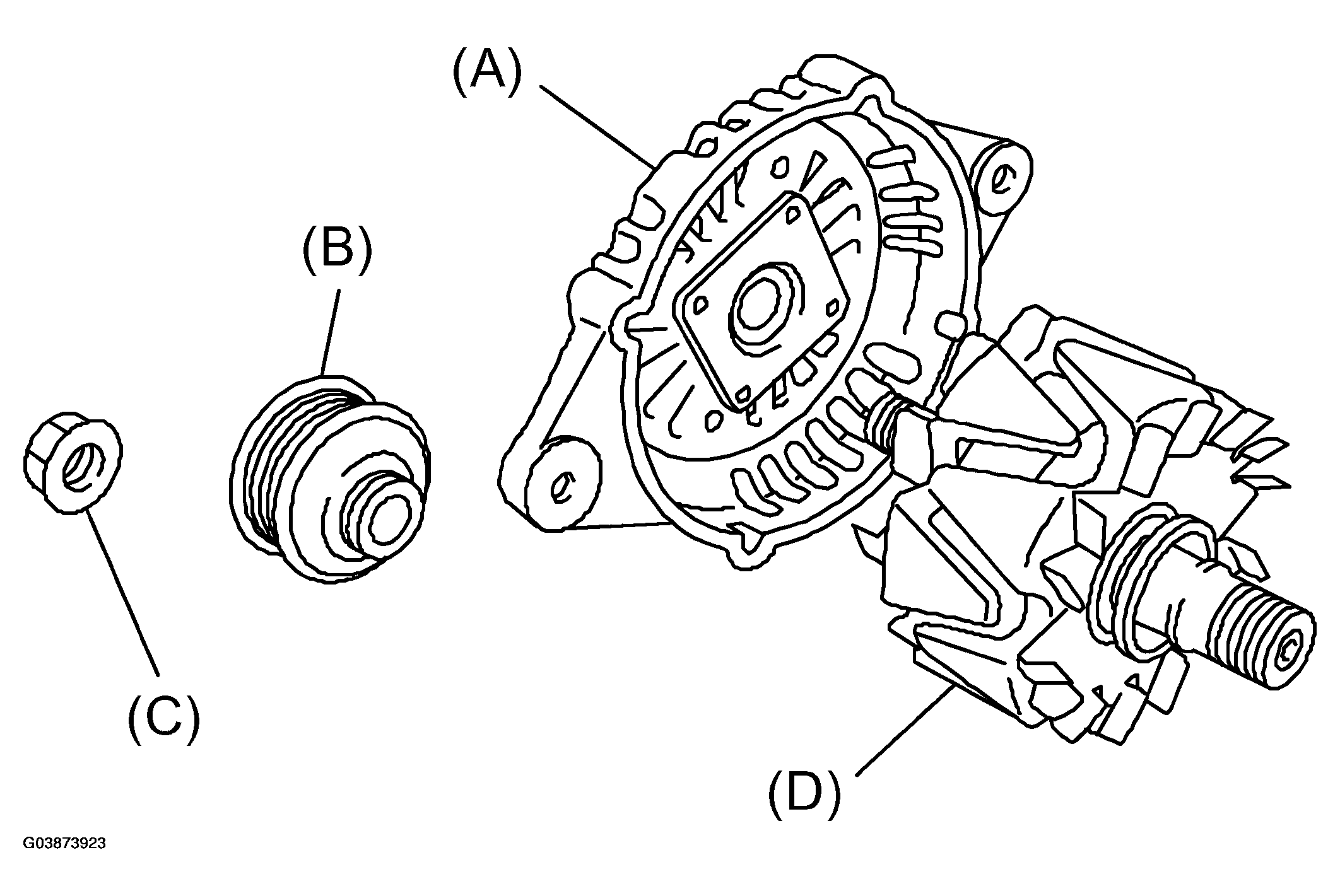

Fig 5: Exploded View Of Generator

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Front cover
Pulley
Nut
Rotor

Remove the ball bearing as follows.

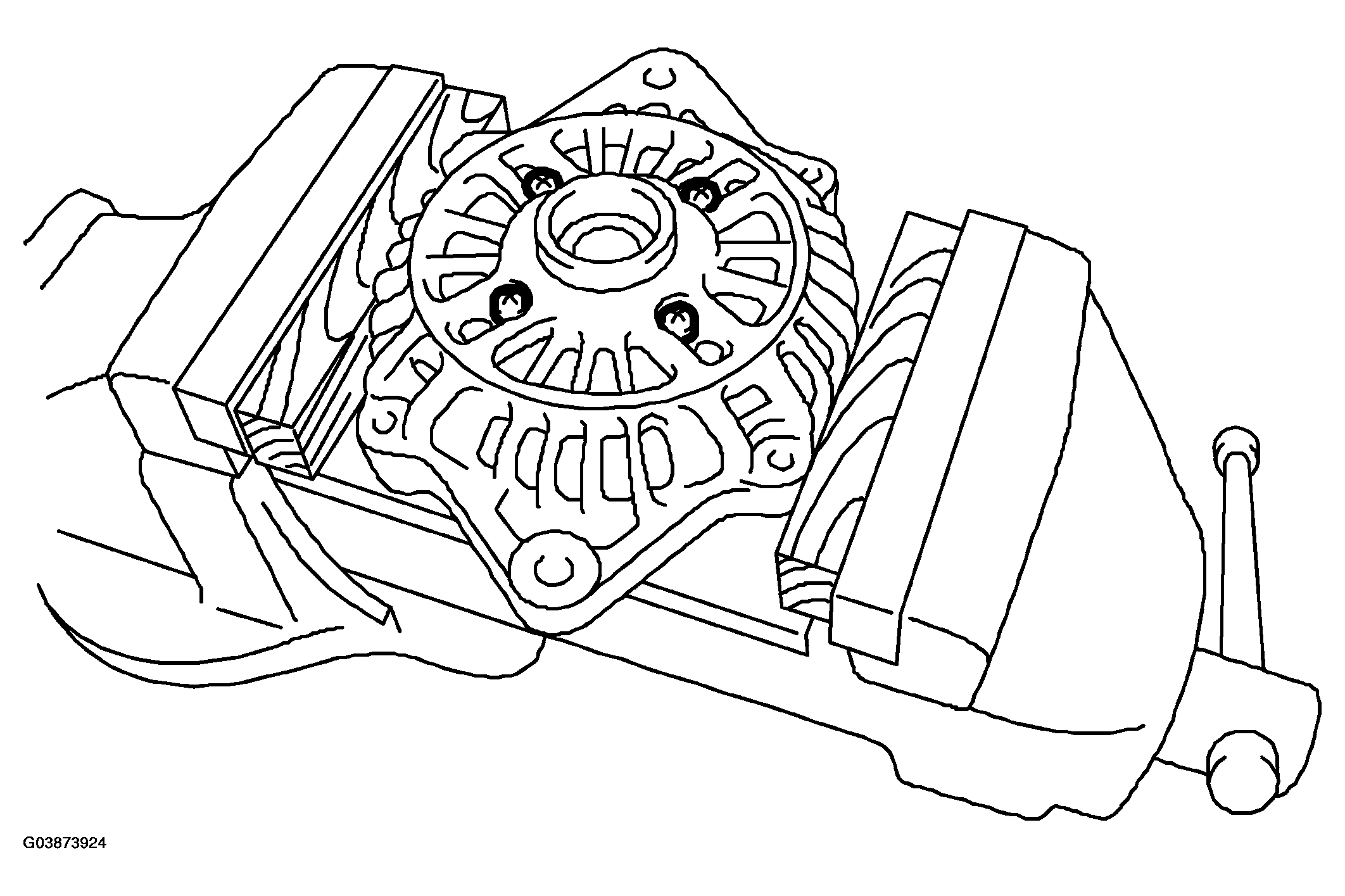

Remove the bolt, and then remove the bearing retainer.

Fig 6: Removing Bearing Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

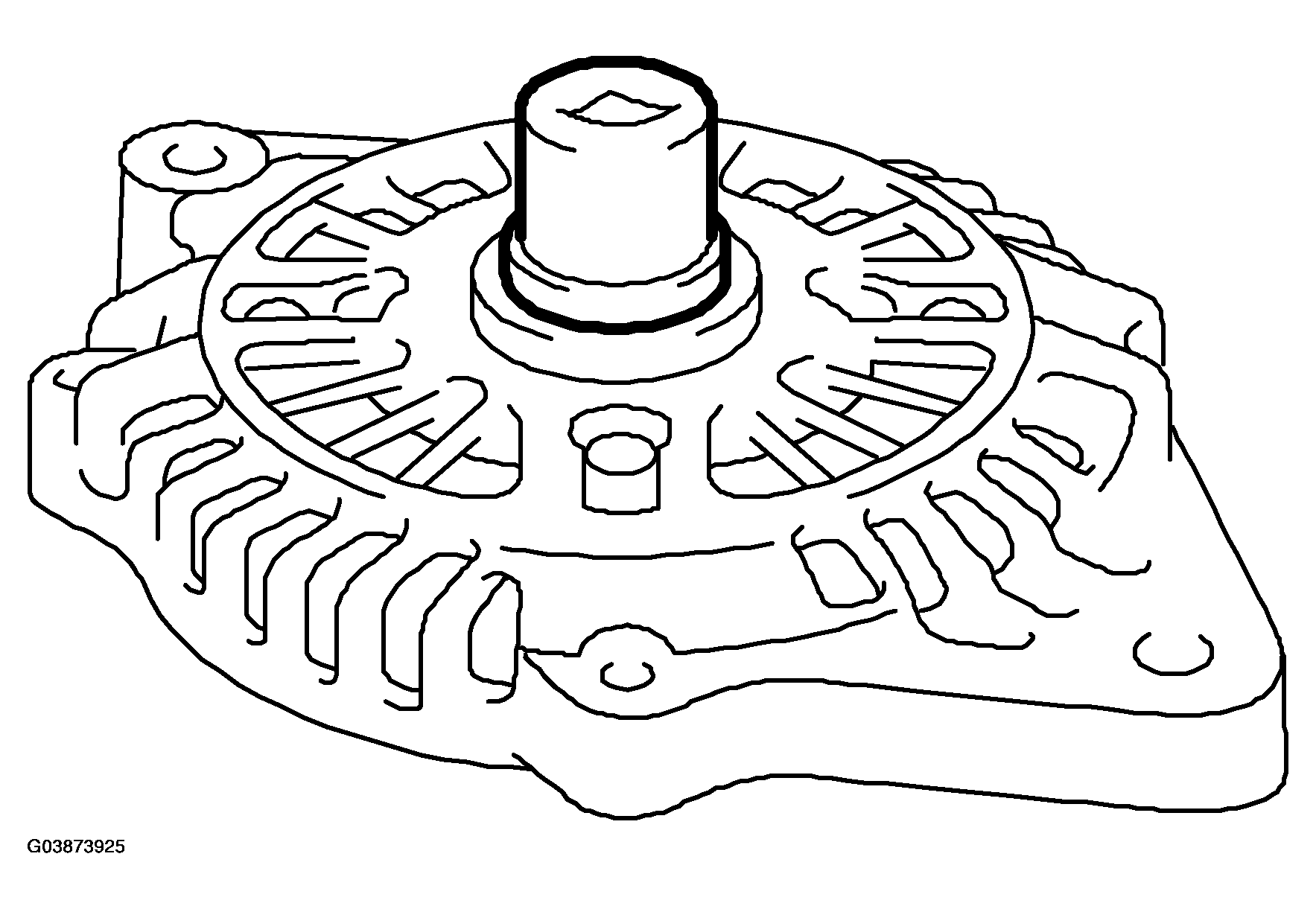

Firmly install an appropriate tool (such as a fit socket wrench) to bearing inner race.

Fig 7: Pressing Out Bearing Inner Race

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Push the ball bearing off the front cover using a press.

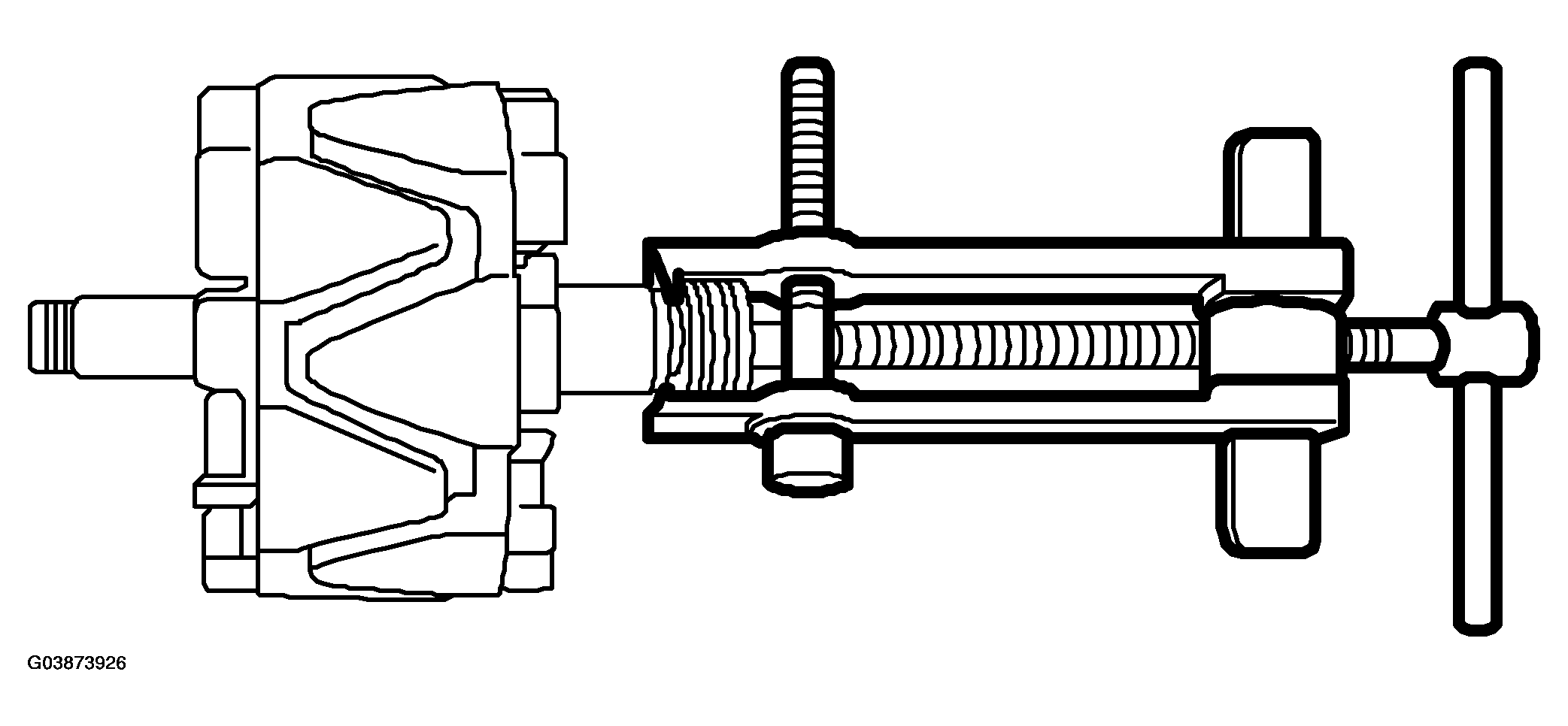

Remove the bearing from rotor using a bearing puller.

Fig 8: Removing Bearing From Rotor Using Bearing Puller

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Unsolder connection between rectifier and stator coil to remove the stator coil.

IMPORTANT: Do not allow a 180 - 270 W soldering iron to contact the
terminals for more than 5 seconds at once because the rectifier cannot withstand so much heat.

Fig 9: Removing Stator Coil

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the IC regulator as follows.

Remove the screws which secure IC regulator to rear cover.

Fig 10: Removing Screws Which Secure IC Regulator To Rear Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

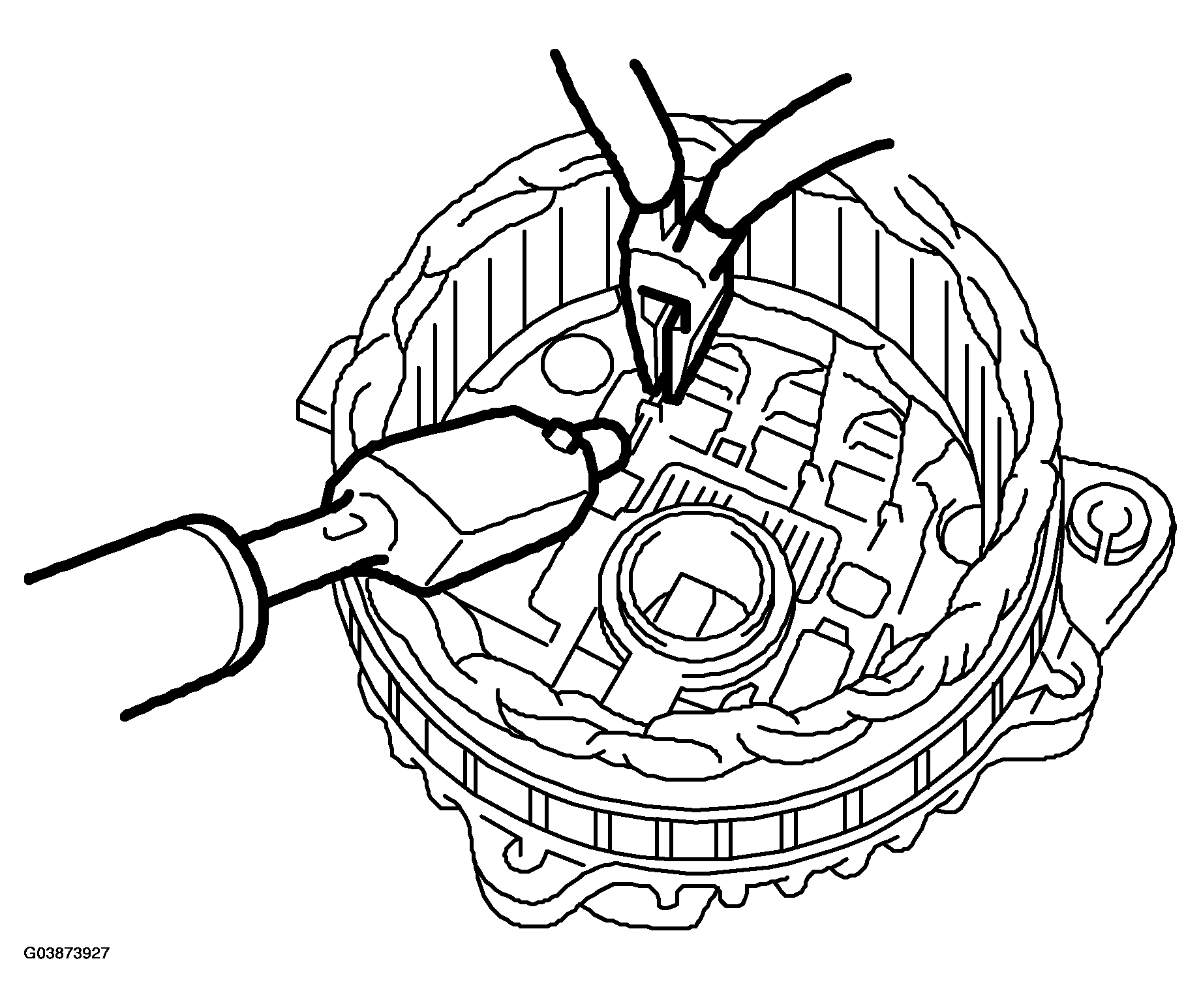

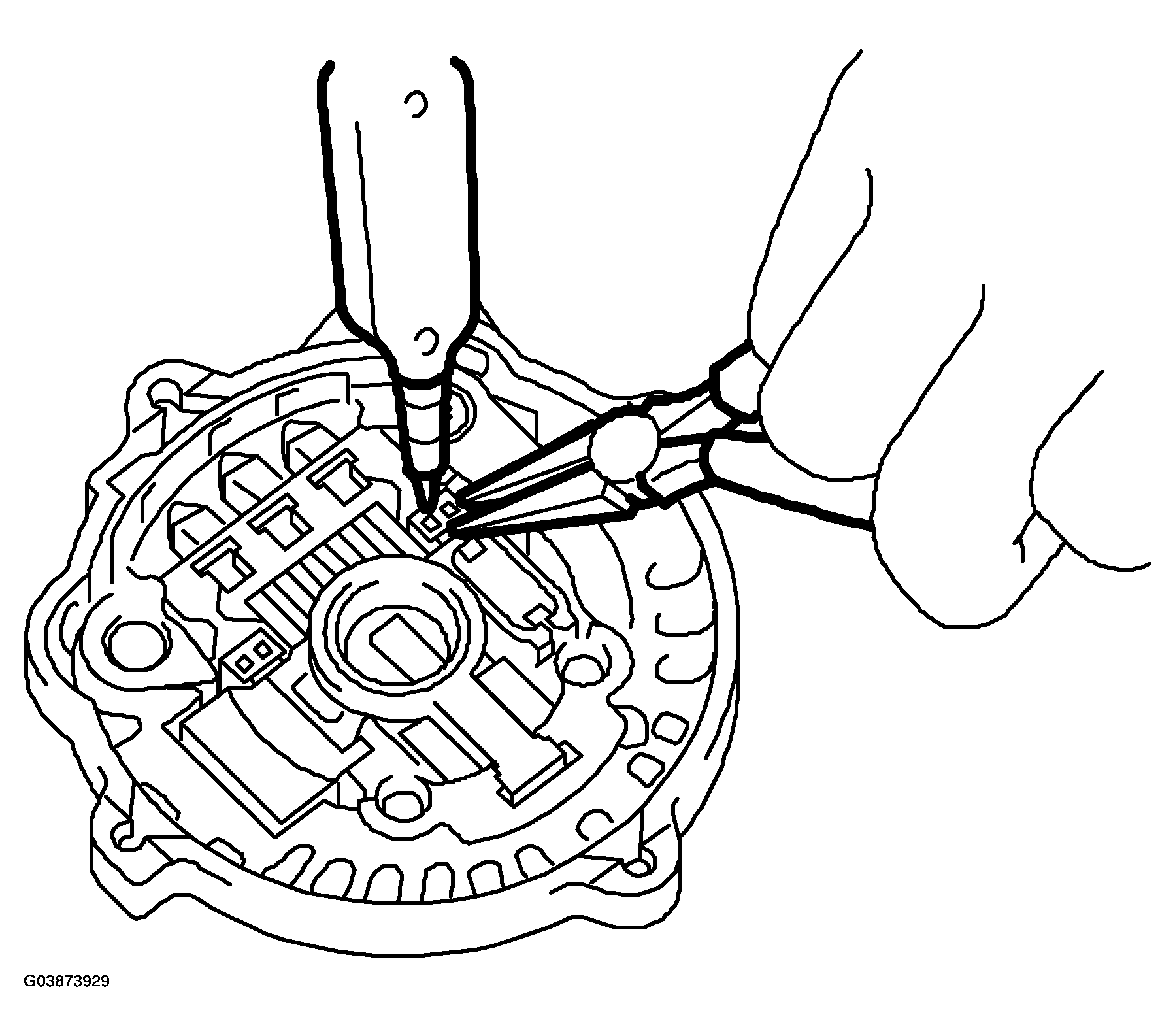

Unsolder the connection between IC regulator and rectifier to remove the IC regulator.

Fig 11: Removing IC Regulator

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the brush as follows.

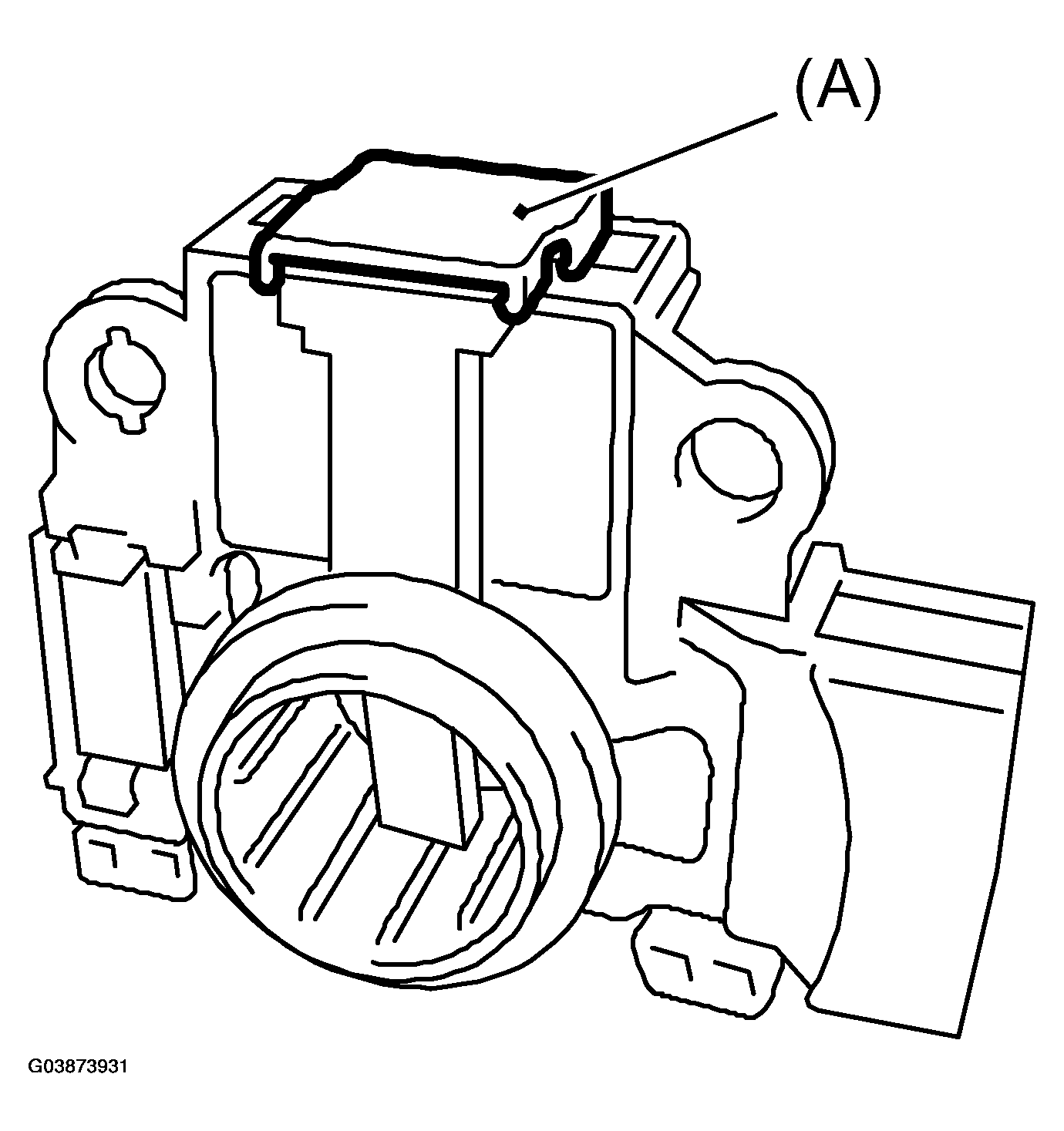

Remove cover A.

Fig 12: Removing Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

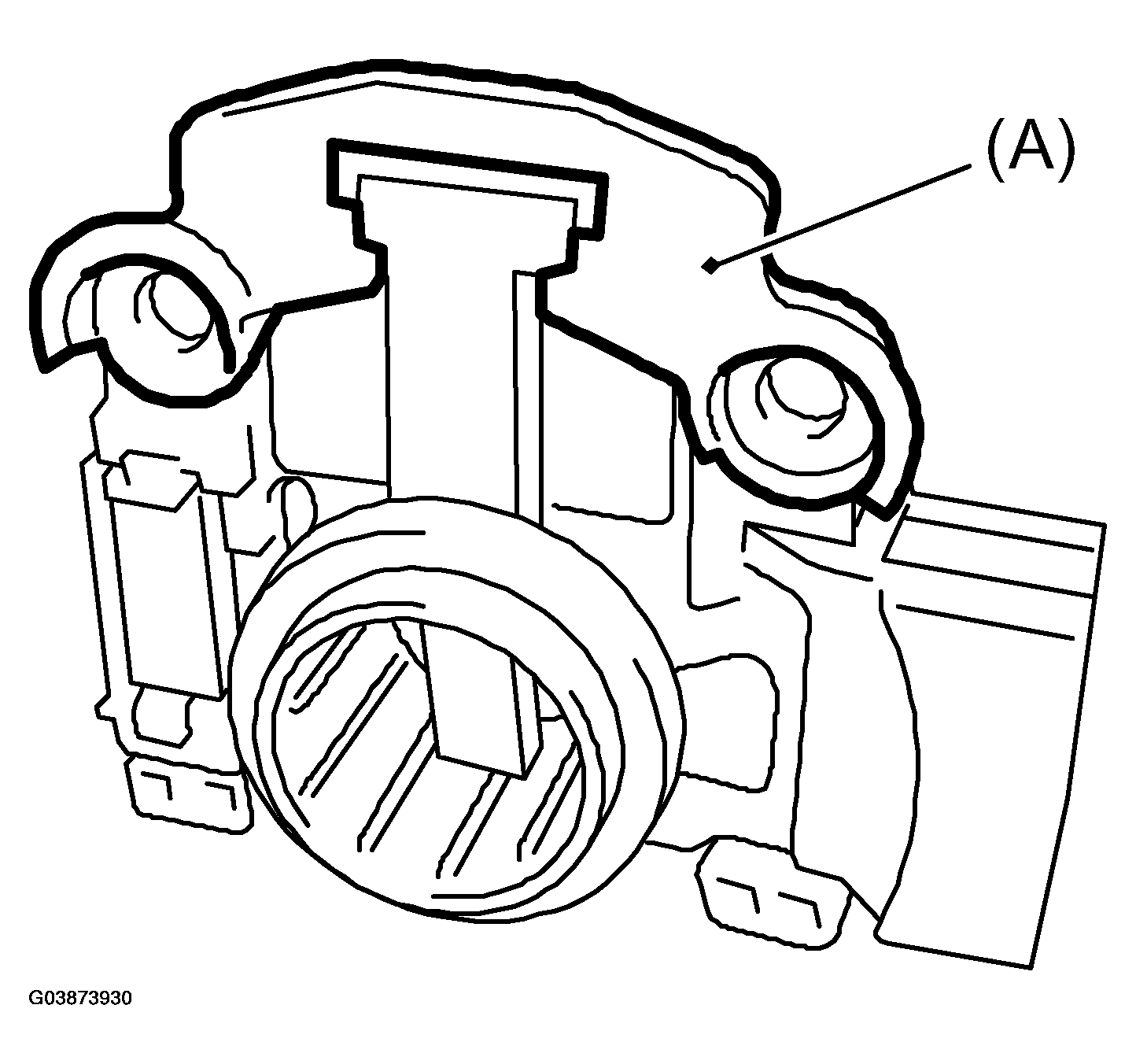

Cover A

Remove cover B.

Fig 13: Removing Cover A

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Cover B

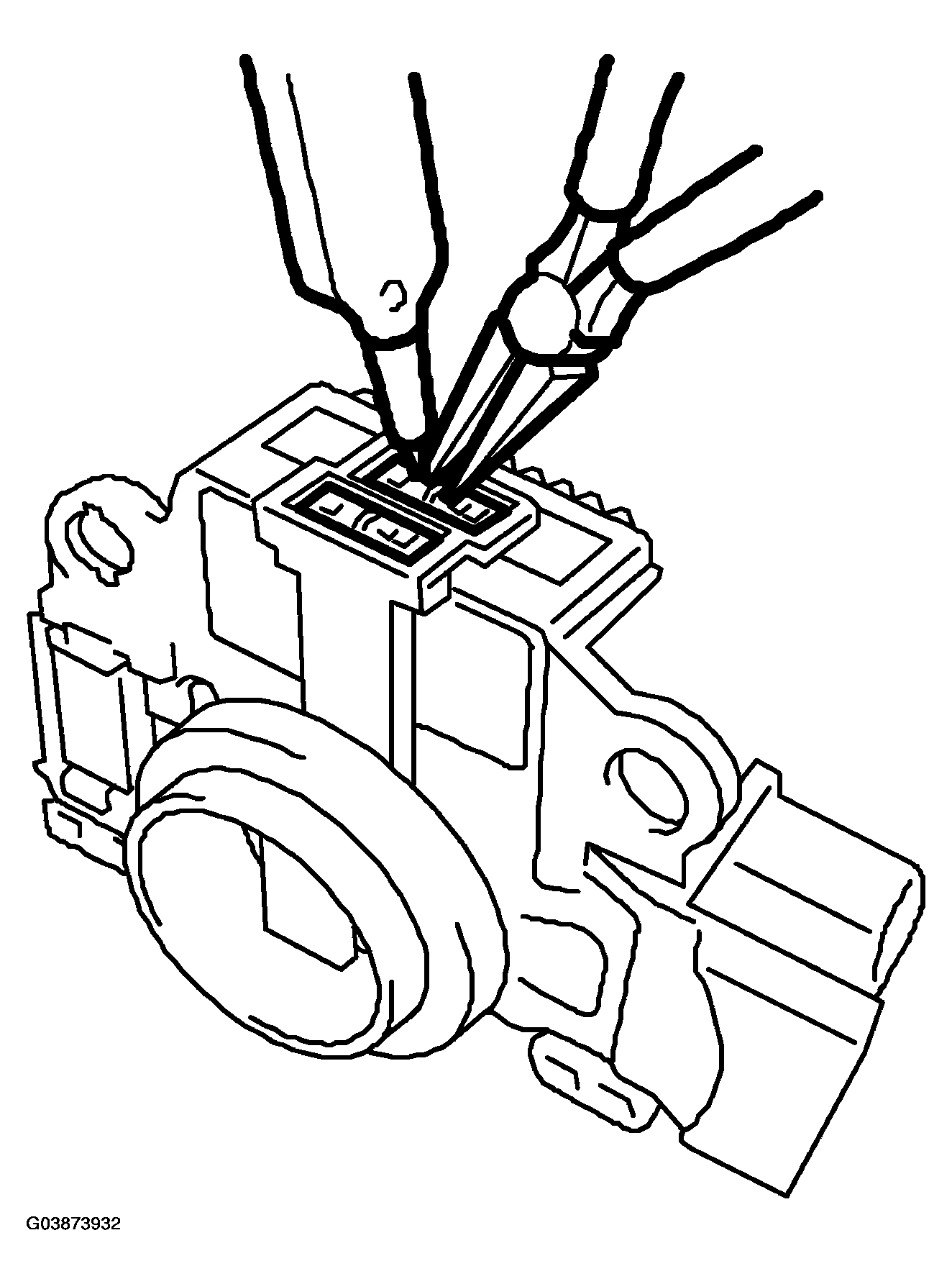

Separate the brush from connection to remove.

Fig 14: Separating Brush From Connection

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the rectifier as follows.

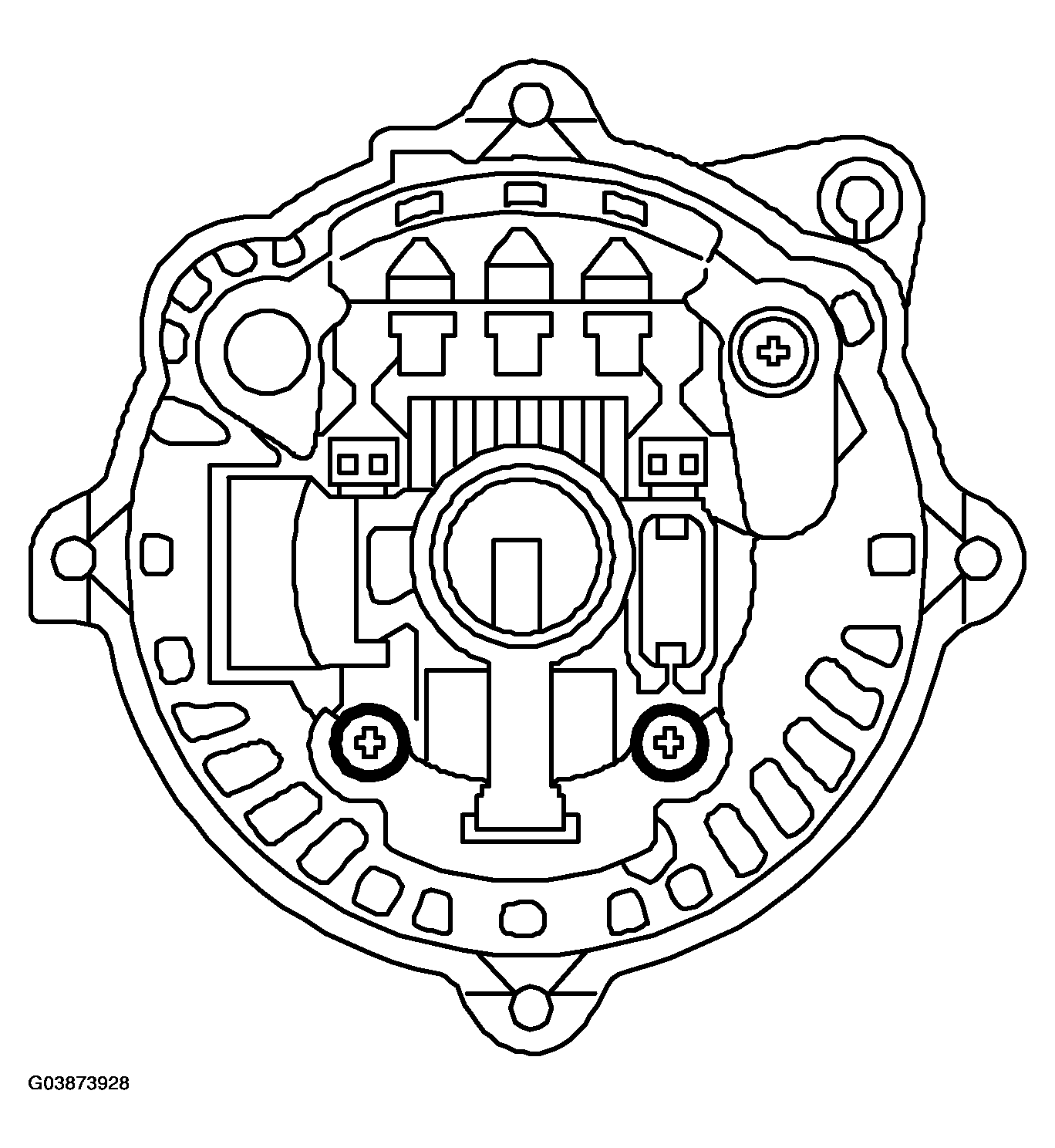

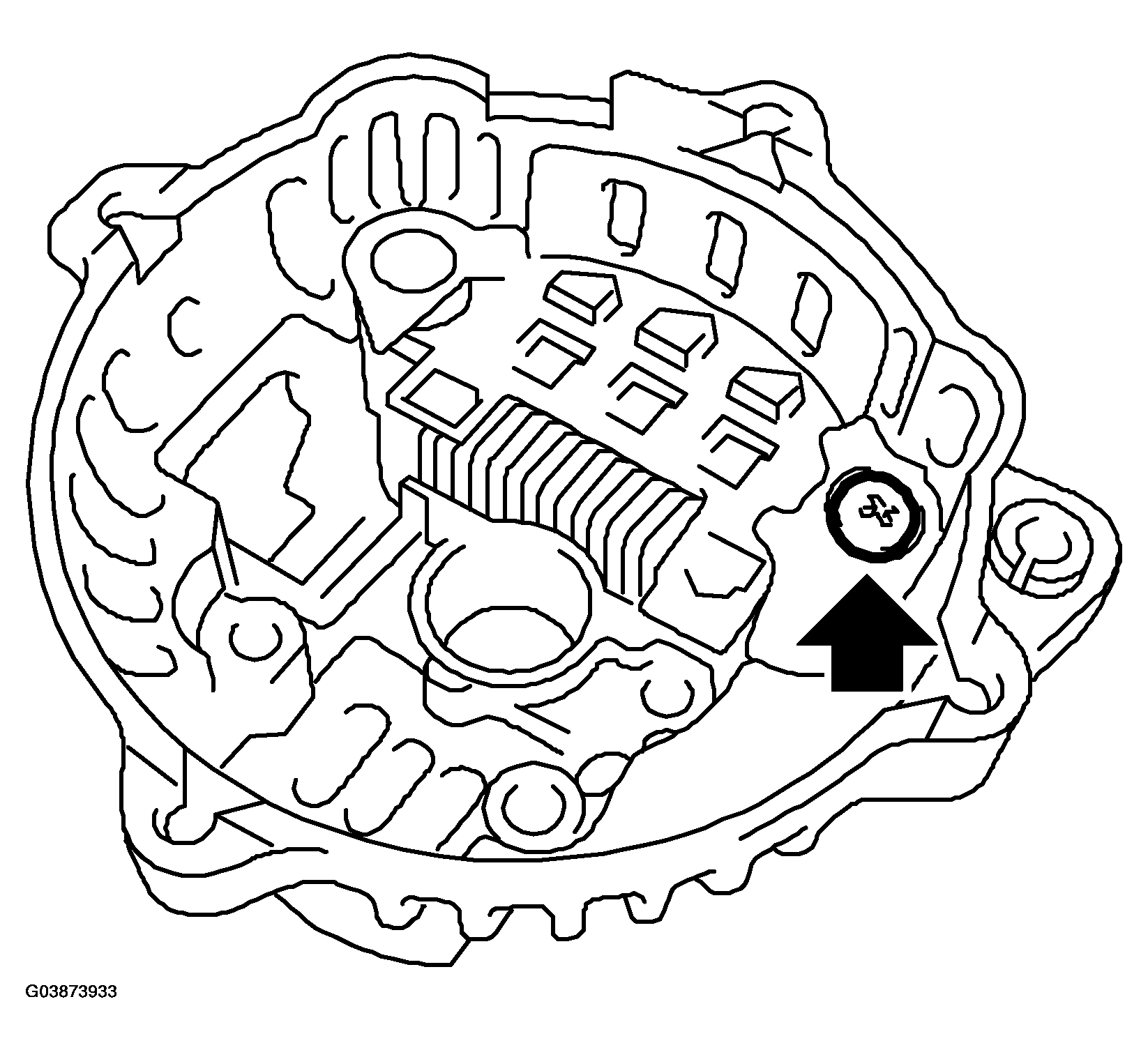

Remove the bolts which secure the rectifier.

Fig 15: Removing Bolts Which Secure Rectifier

Courtesy of SAAB-SCANIA OF AMERICA, INC.

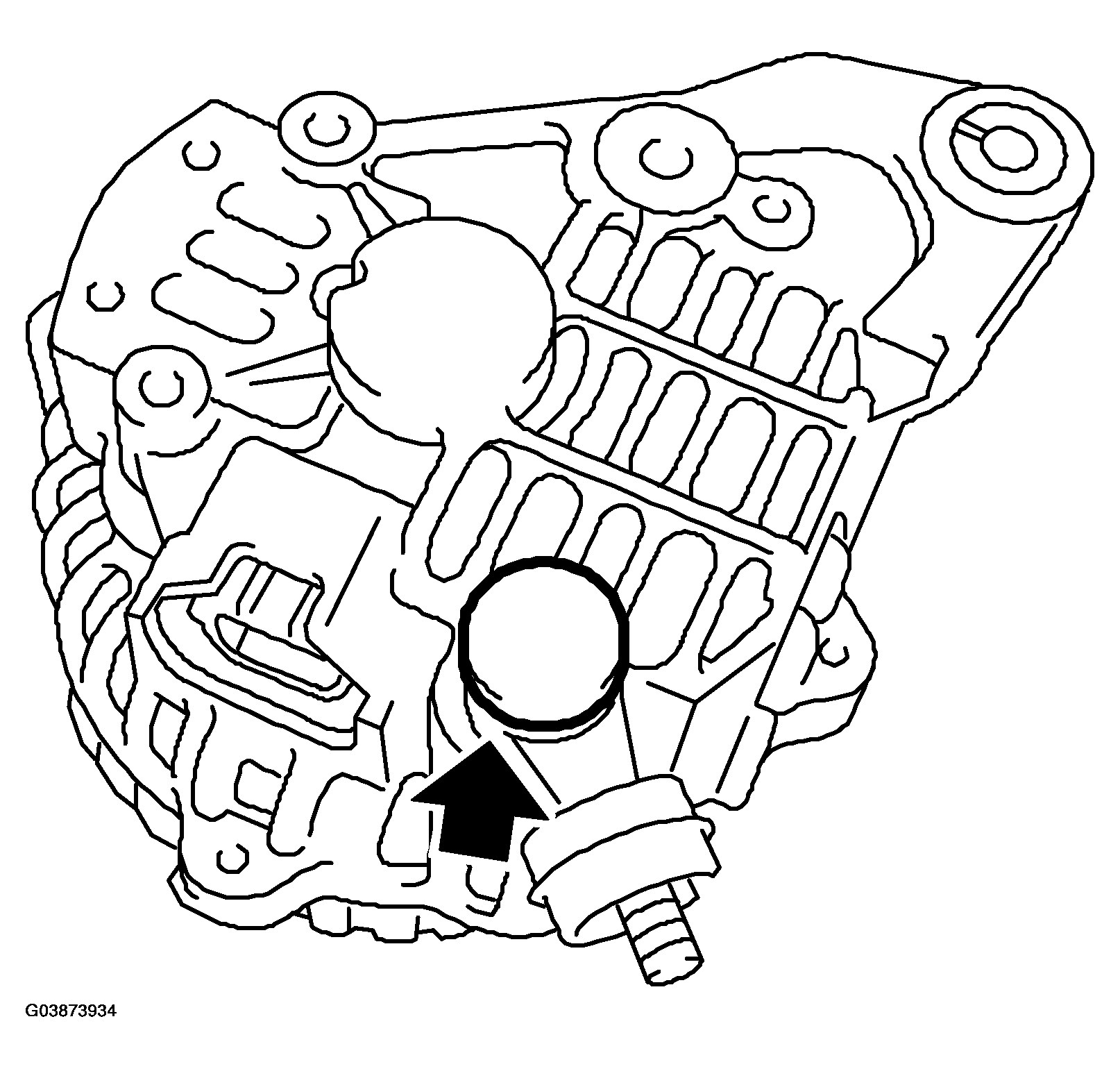

Remove the cover of terminal B.

Fig 16: Removing Cover Off Terminal

Courtesy of SAAB-SCANIA OF AMERICA, INC.

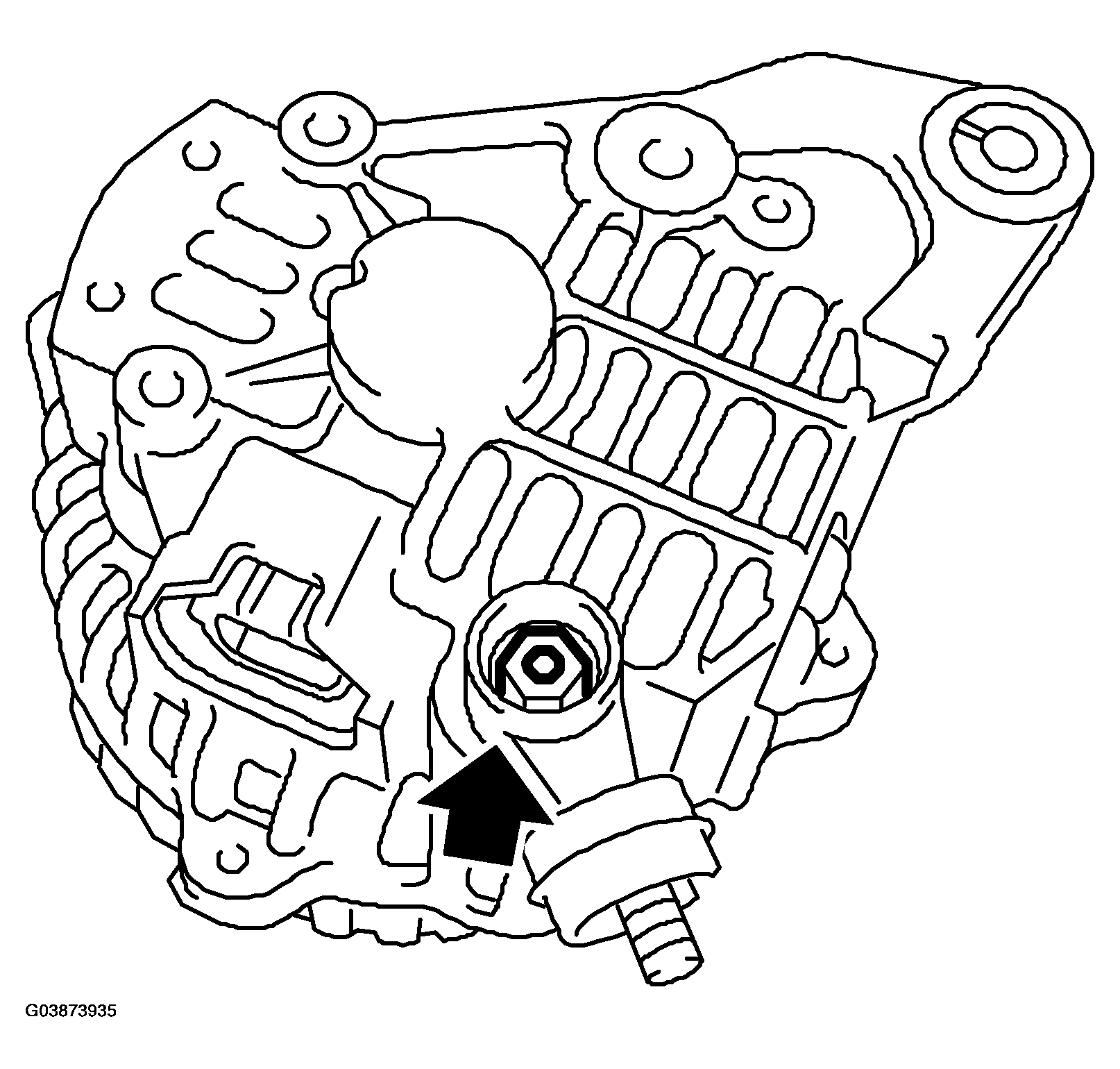

Remove the nut of terminal B, and then remove the rectifier.

Fig 17: Removing Rectifier

Courtesy of SAAB-SCANIA OF AMERICA, INC.
