Instrumentation/Driver Info: Adjustment/Replacement/Inspection: Speedometer: Inspection

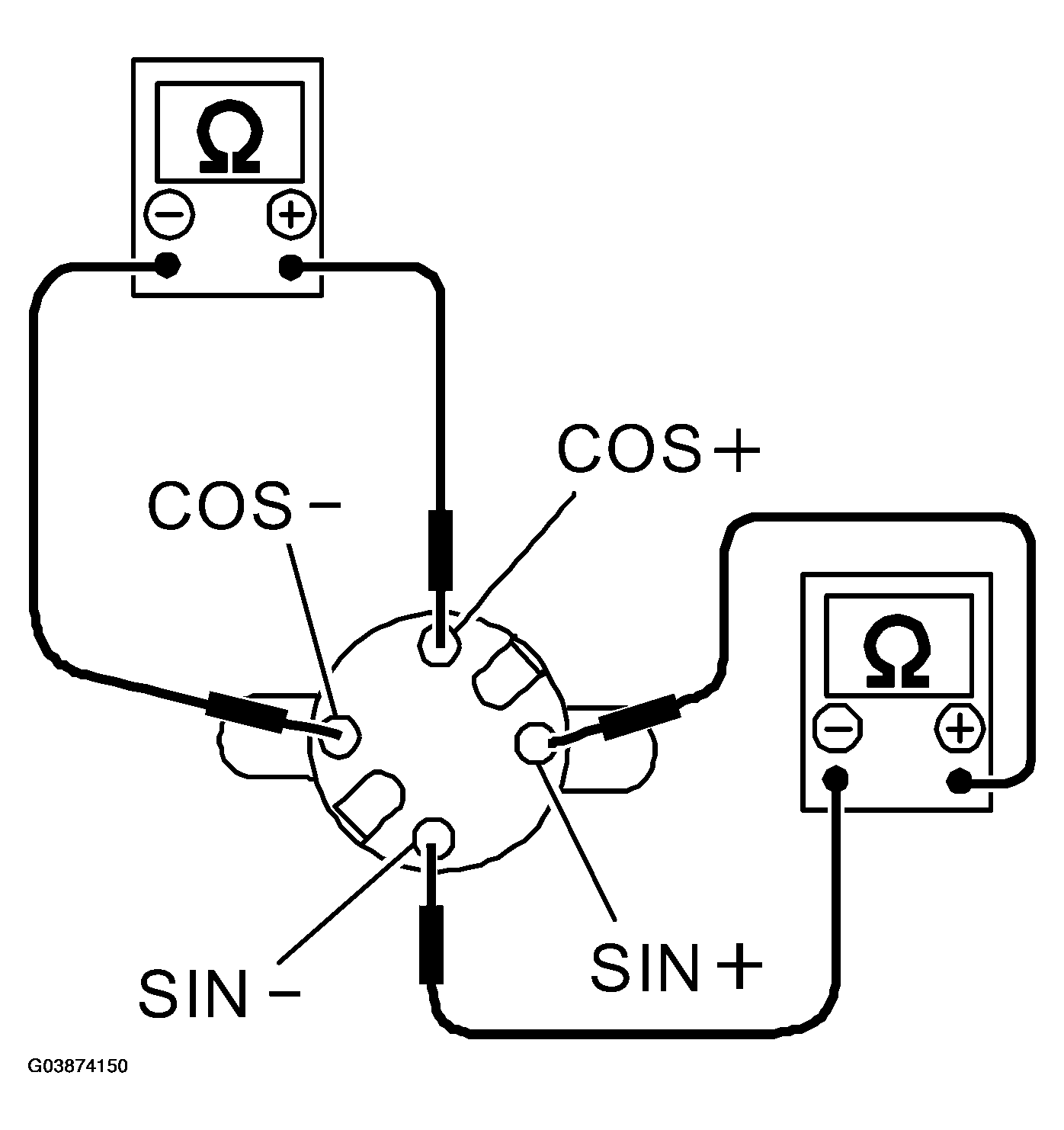

Measure the speedometer resistance.
Courtesy of SAAB-SCANIA OF AMERICA, INC. RESISTANCE SPECIFICATIONS
| Terminal |
Resistance |
| Terminals SIN+ and SIN- |
200+/-8 O |
| Terminals COS+ and COS- |
200+/-8 O |
If NG, replace the speedometer and tachometer assembly.
If OK, replace the combination meter printed circuit.
