Combination Meter: Removal

Disconnect the ground cable from battery.

Set the tilt steering at lowest position.

Remove the screws and detach the meter visor.

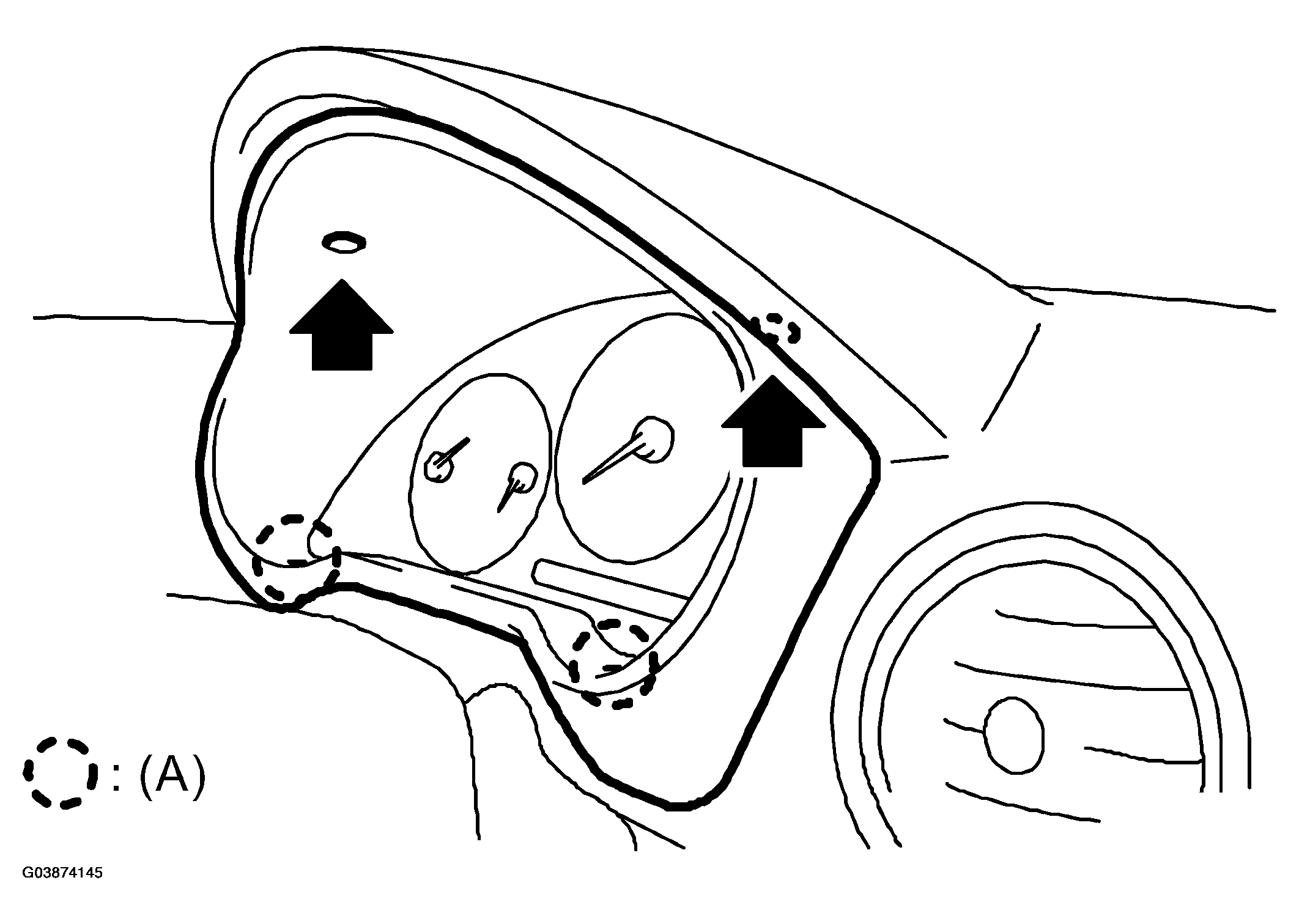

Fig 1: Detaching Meter Visor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Hook

Remove the screws of combination meter and pull out the meter toward you.

Fig 2: Removing Screws Of Combination Meter

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the connector in the upper area of combination meter to remove the meter.
