Combination Meter: Disassembly: Notes

IMPORTANT: Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.

Disengage the claw (F) to remove the inner case (B) from back cover (A).

Disengage the claw (G) to remove the meter glass (E), reflector (D), and window plate (C) from inner case (B).

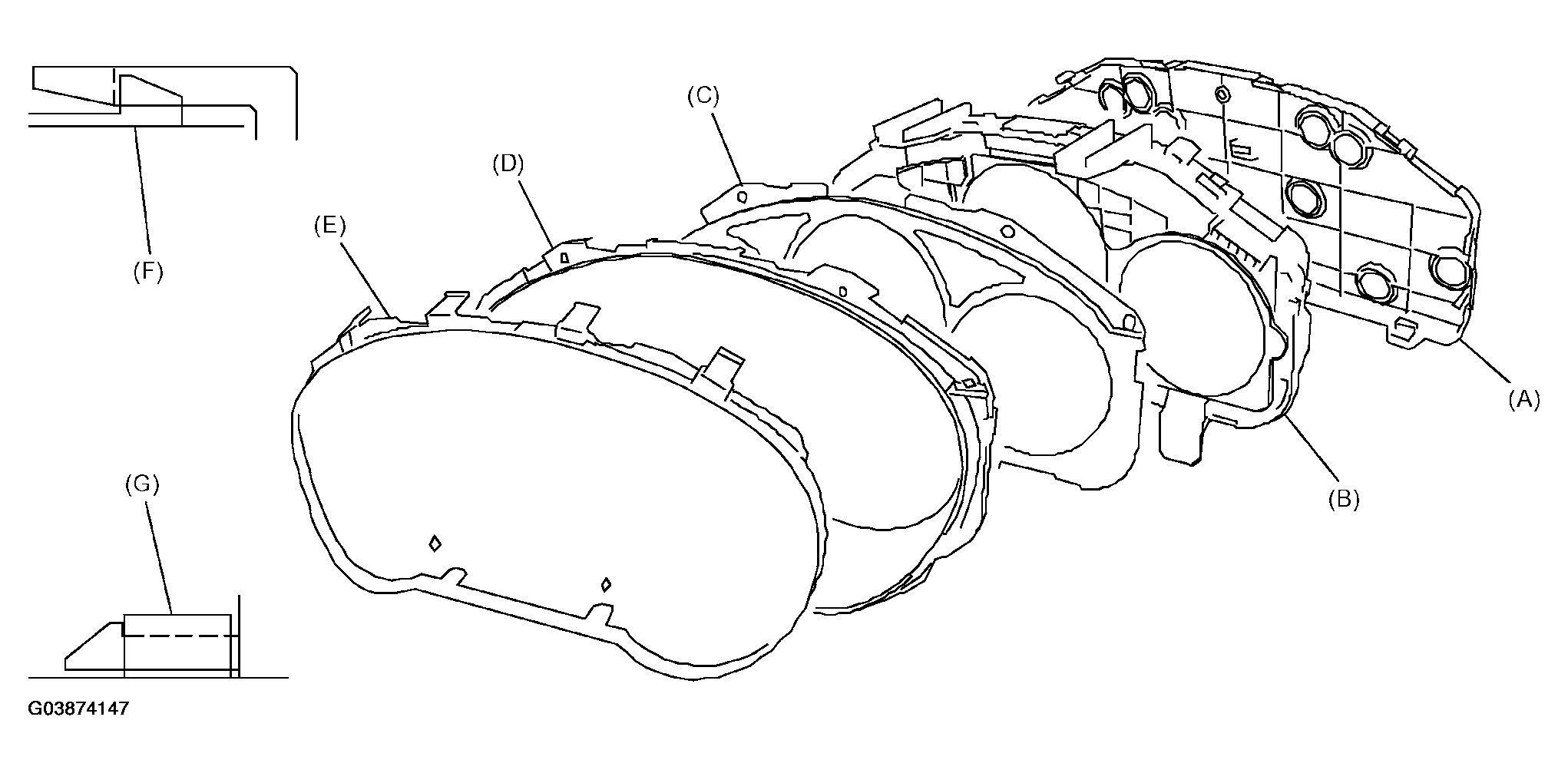

Fig 1: Removing Meter Glass, Reflector, And Window Plate From Inner Case

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Pull up the claw (A) in portion (B) of combination meter printed circuit (C) with combination pliers. Push out the speedometer and tachometer assembly (D) and fuel gauge and water temperature gauge assembly (E) using hole (F).

Pull up the claw in center of combination meter printed circuit (C), and remove the printed circuit from case (G).

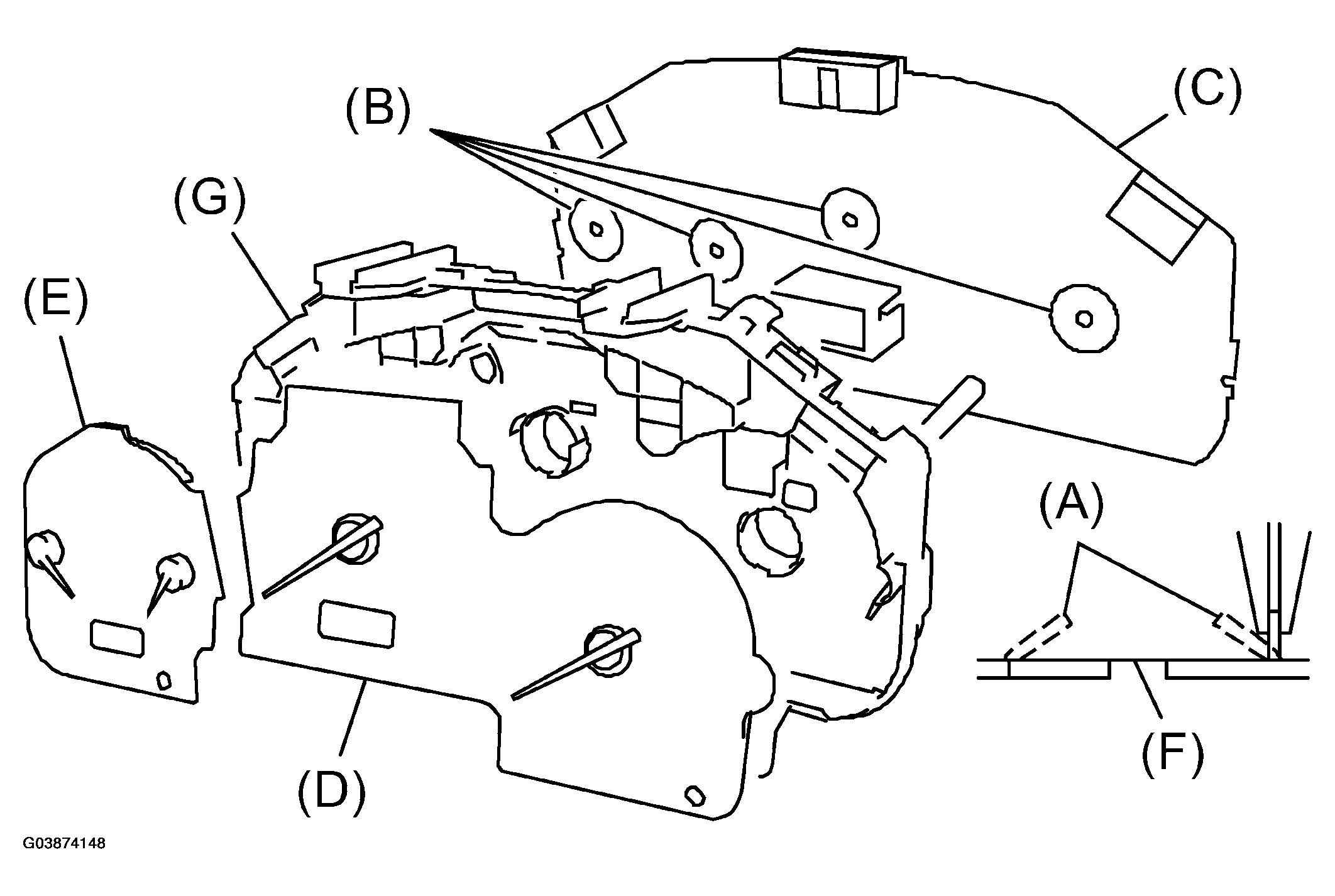

Fig 2: Removing Printed Circuit From Case

Courtesy of SAAB-SCANIA OF AMERICA, INC.
